Feathers |
|
|
|
The unique extruding technology provides the
fibers in the tube with good flexible and bending endurance. |
|
The unique fiber excess length control method
provides the cable with excellent mechanical and environmental
properties. |
|

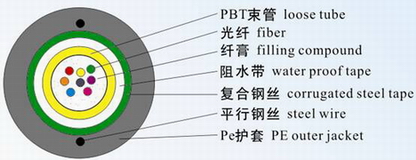

Double-sided PE corrugated steel tape armored.
Parallel double steel wire as strength member. |
|
Multiple water-blocking materials filling
provides dual water-blocking function. |
|
Compact structure, lightweight and good crushes
resistance. |
|
Installation： |
|
|
|
• By duct, aerial and direct burial |
|
|
|
Technical parameter: |
|
|
|
Fiber count(core)
|
2～12 |
|
Outer diameter(±0.5mm) |
7.8～ |
|
Weight (Kg/Km) |
85～ |
|
Minimum tensile strength (N) |
Short-term |
1500 |
|
Long-term |
600 |
|
Crushing (Min) (N/100mm) |
Short-term |
1000 |
|
Long-term |
300 |
|
Bending radius |
Static: 10 times of diameter |
|
Dynamic: 20 times of diameter |
|
Temperature range(0C) |
－40～＋60
|
