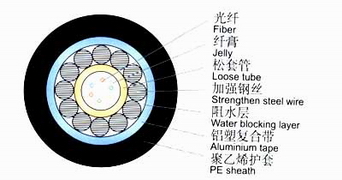

Structure: PBT for the middle-casing filled with
water blocking cable paste, packets around 12 (or 10 or 8) uniform
circular wire strands, outsourcing aluminum - bonded(APL) polyethylene
jacket. |
|
Feathers： |
|
|
|
• Low attenuation and dispersion, special control
of exceed length ensure the good transmission performance in varying
environment. |
|
• Armoring steel wire ensure the excellent
mechanical performance |
|
• Corrugated aluminum tape coated with PE jacket
provide good water blocking performance |
|
• Good flexibility and bending performance |
|
|
|
• Shot-gun resistance to some extent |
|
|
|
Installation: |
|
|
|
• GYXTA By duct and aerial |
|
|
|
Technical parameter: |
|
|
|
Fiber count (core)
|
2～12 |
|
Outer diameter(±0.5mm) |
10.0 / 10.8 |
|
Weight (Kg/Km) |
100 |
|
Minimum tensile strength (N) |
Short-term |
1500 |
|
Long-term |
600 |
|
Crushing (Min) (N/100mm) |
Short-term |
1000 |
|
Long-term |
300 |
|
Bending radius |
Static:
10 times of diameter |
|
Dynamic: 20 times of diameter |
|
Temperature range(0C) |
－40～＋60
|
