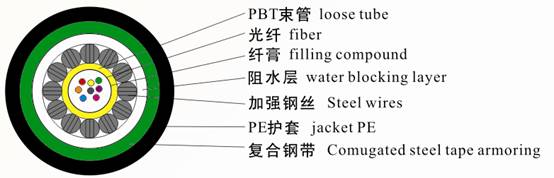

Structure:
PBT for the
middle-casing filled with water blocking cable paste, packets around
12 (or 10 or 8) uniform circular wire strands, outsourcing Steel –
bonded (PSP) polyethylene
sheath. |
|
Quantity of fibers:
2～12 |
|
Looae tube:
2.0～
3.0 |
|
Outer PE jacket:
1.8～2.5 |
|
Outer diameter (mm):
10.5 |
|
Approximated cable weight
(kg/km): 110 |
|
Laying mode: Duct, Aerial |
|
Operating temperature: -40℃～+60℃ |
|
Application:
Long distance and
interoffice communication |
|
(Features): |
1.Reasonable design and
precise control over the loose-tube fiber in the remainder of a
long, fiber optic cable with excellent performance and temperature
tensile properties. |
|
2.Compact, so that the cable
is well-positioned to bending performance. |
|
3.Wire-side pressure Armored
excellent performance, and a bullet-proof capability. |
|
4.Double coated strip tide,
and has lateral pressure. |
|
(The main mechanical
properties): |
Allow tensile force (N) |
short-term |
1500 |
|
long-term |
600 |
|
Allow squash Force ((N/100mm) |
short-term |
1000 |
|
long-term |
300 |
|
Min bend radius ((D: mm) |
Static |
10D |
|
Dynamic |
20D |
