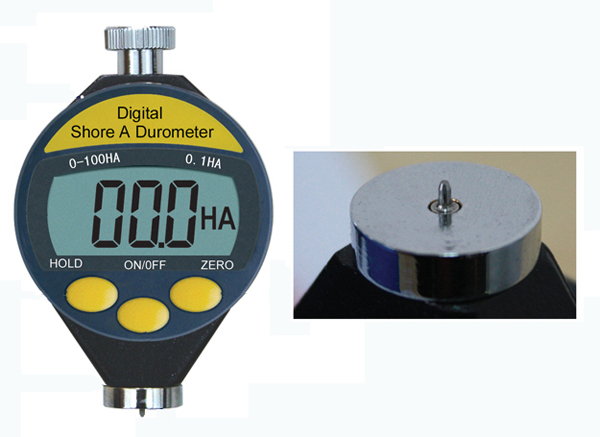

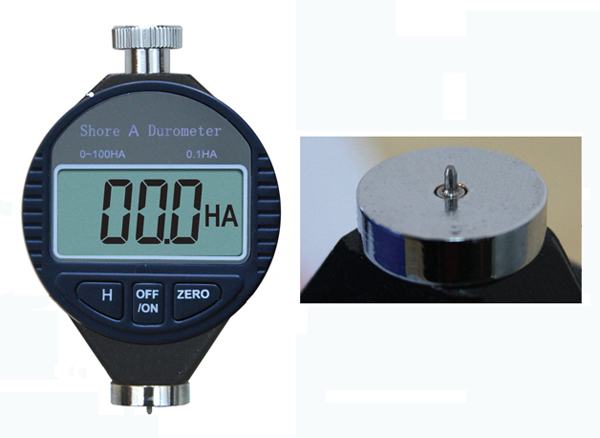

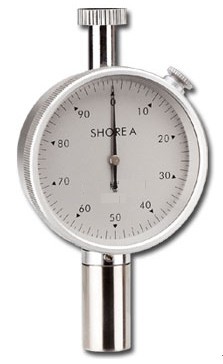

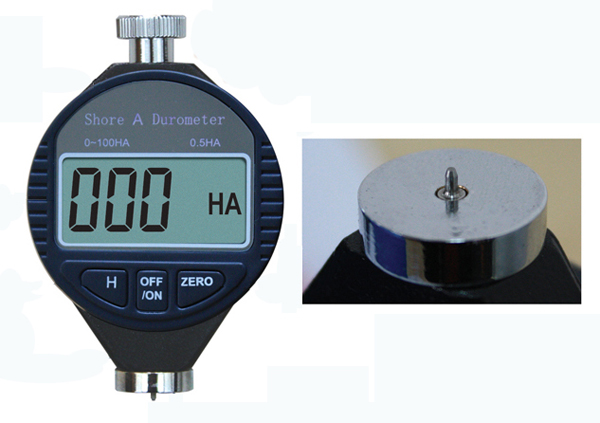

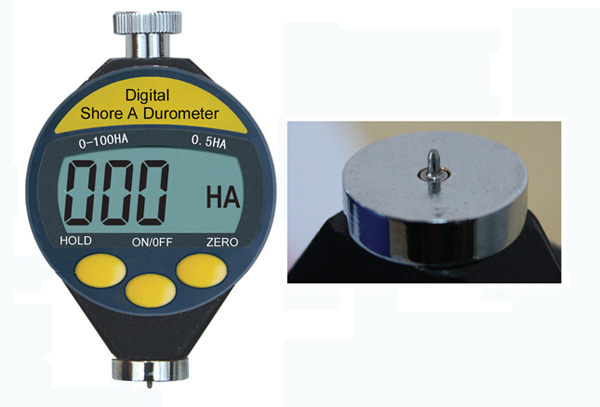

Function:
SHORE A - widely used to test common rubber, complex rubber, soft rubber,elastomers, leather, wax and so on. It is available in DIN 53505, ASTM D2240, ISO/R868, JIS R7215.Executive standart - GB/T531-99,GB2411-80, HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HA;
-Available test range: 10-90 HA ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: Φ0.79mm;
-Net weight: 0.5kgs.

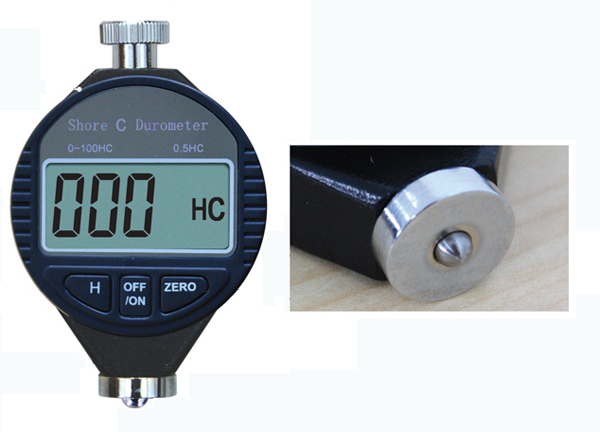

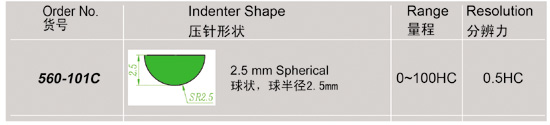

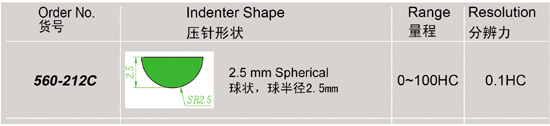

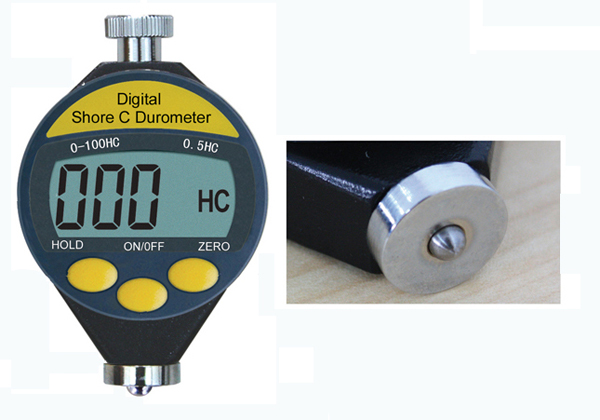

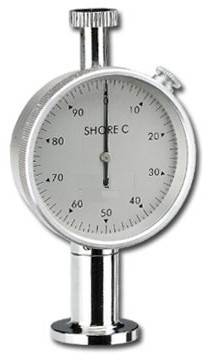

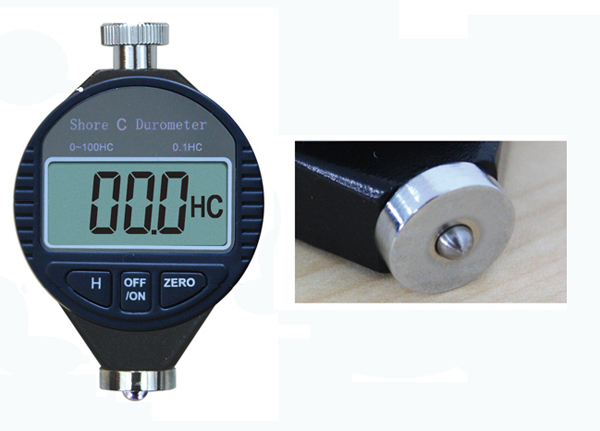

Function:
SHORE C Durometer is widely used in testing of various foam, sponge, microporous material and so on. It is available in HG/T2489-93.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HW;
-Available test range: 10-90 HW ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR2.5mm;
Net weight: 0.5Kgs.

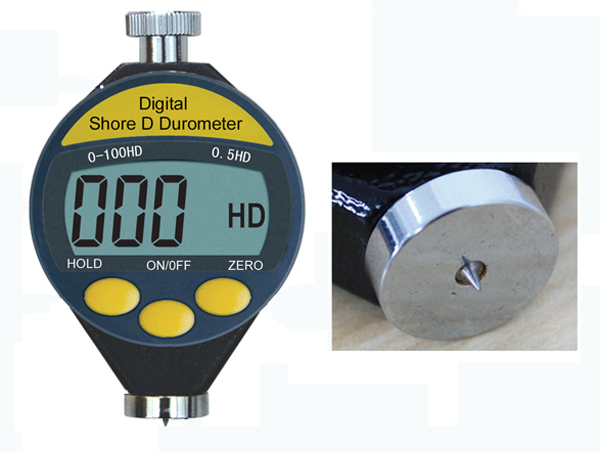

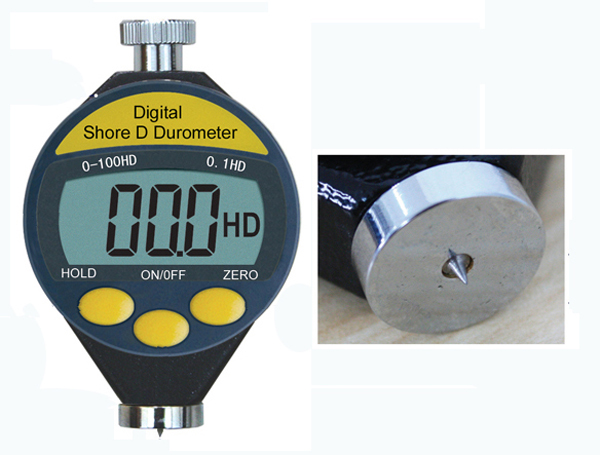

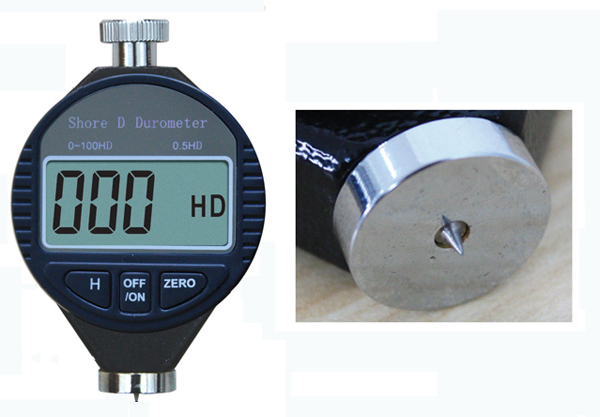

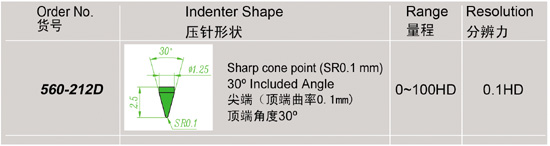

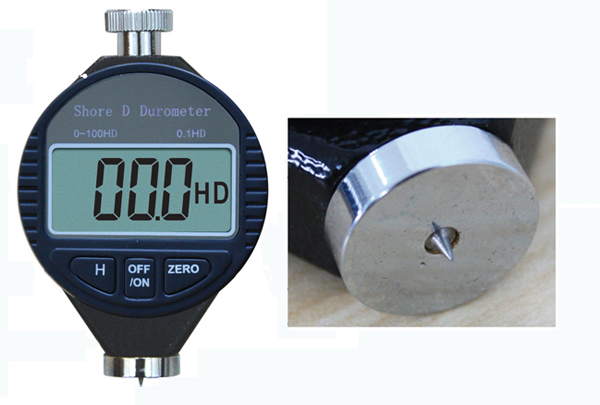

Function:
SHORE D - widely used to test hard rubber, hard colophony, grass, plastic,print board, fibre and so on. It is available in DIN 53505, ASTM D2240,ISO/R868, JIS R7215.executive standart - GB/T531-99, GB2411-80,HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-D);
-Test range: 0-100 HD;
-Available test range: 10-90 HD ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;

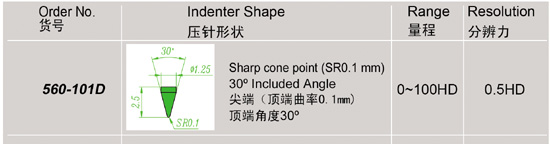

-Tip dimension: SR0.1mm;
-Net weight: 0.5Kgs.

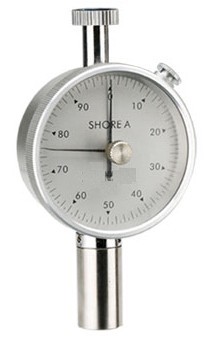

SHORE A (Peak hold) Durometer
Function:
SHORE A - widely used to test common rubber, complex rubber,
soft rubber,elastomers, leather, wax and so on. It is available
in DIN 53505, ASTM D2240, ISO/R868, JIS R7215.Executive standart
- GB/T531-99,GB2411-80, HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HA;
-Available test range: 10-90 HA ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: Φ0.79mm;
-Net weight: 0.5kgs.
Peak hold: double pins, one to hold the peak testing value.
SHORE C (Peak hold) Durometer
Function:
SHORE C Durometer is widely used in testing of various foam,
sponge, microporous material and so on. It is available in
HG/T2489-93.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HW;
-Available test range: 10-90 HW ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR2.5mm;
-Net weight: 0.5Kgs.
Peak hold: double pins, one to hold the peak testing value.

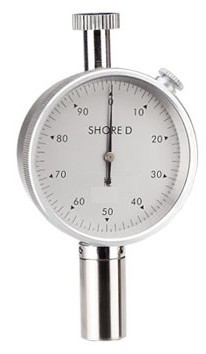

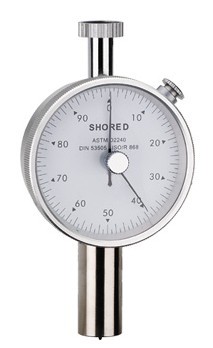

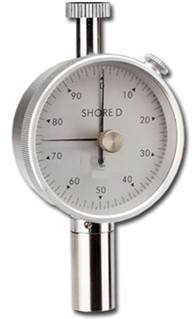

SHORE D (Peak hold) Durometer
Function:
SHORE D - widely used to test hard rubber, hard colophony,
grass, plastic,print board, fibre and so on. It is available in
DIN 53505, ASTM D2240,ISO/R868, JIS R7215.executive standart -
GB/T531-99, GB2411-80, HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-D);
-Test range: 0-100 HD;
-Available test range: 10-90 HD ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR0.1mm;
-Net weight: 0.5Kgs.
Peak hold: double pins, one to hold the peak testing value.
SHORE O (Peak hold) Durometer
Function:
SHORE O Durometer is widely used in testing of various foam,
sponge, microporous material and so on. It is available in
HG/T2489-93.
Specification:
High resolution;
With facility, easy to operate;
Use by handy or by test stand(HLX-AC);
Dimension: 115*60*25(mm);
Stroke: 2.5 mm;
Tip dimension: SR2.5mm;
Net weight: 0.5Kgs

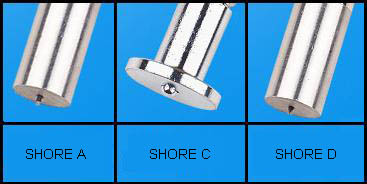

PIN type for SHORE A, C, D durometer
test block for SHORE A, C, D durometer

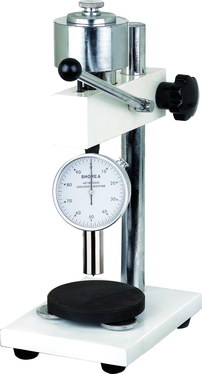

Function:
HLX-AC Durometer stand is R & D for SHORE A and SHORE C durometer. It will get more accurate result when fixing the durometer on the HLX-AC Durometer stand. Table platform in metal.
Specification:
-Match to SHORE A and C durometer;
-Construction include operating handle;
-Manual operation, easy and stable to operate;
-Dimension: 100*212*250(mm);
-Gross weight: 4 Kgs.

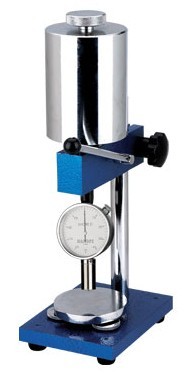

Function:
HLX-D Durometer stand is R & D for SHORE D durometer. It will get more accurate result when fixing the durometer on the HLX-D Durometer stand. Table platform in metal.
Specification:
-Match to SHORE D series durometer;
-Construction include operating handle;
-Manual operation, easy and stable to operate;
-Dimension: 100*212*250(mm);
-Gross weight: 9kg.

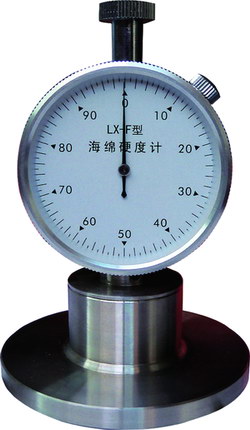

Sponge Hardness Tester
SHORE F Durometer /SHORE F (Peak hold) Durometer
In order to measure the hardness of
foam, we special tailor-Made the F type sponge durometer to
facilitate our customers. It is suitable for the determination
of soft foam, polyurethane foam rubber products'hardness. And
itwill be different with the other hardness tester In the
aspects of using. When using, the presser foot directly contact
to the sample, and see it sown weight as force measuremen tload.
Main parameters:
Scope of pressure needle route: 0~2.5millimeters.
The scale value: 0-100 degrees.
The force of pressure needle end: 550mN~4300mN(56~438.5g).
Second, the method of using:
Held the middle of the instrument, located the hardness tester
gently on the plane Specimens which is bigger than presser
foot(orspecimen). Reading out the value in 1 second when
durometers'presser foot contact with the samples moothly. And
the tick of pointers is the hardness value of sample (specimen).
In order to improve the
Accuracy of measurement, you should putthe sample on a flat
plate glass or plate.
Each measuring point should be measured only on
Forth, Attention:
1 When the durometer presser foot is in the free state, it
points "0". The pressure
Needle end and the pressure foot flat is in close contact with
the glass surface, the
Indication should be "100" If the Durometers' pointer can
notshow "0' and "100"
Whenchecking, adjustitto"0'and"100
2, The sample and adjustments
The specimen thicknesss houldbe in 25mm to 30mm, when
insufficient thickness Of 25mm, you can stack 2 pieces. But you
need to ensure the flat surface smooth, The whole thicknesss
tills hould conform to the sample thickness. The sample size
should satisfy thel ength and the width are larger than100mm,
The distance between the measuring point and sample edge is not
less than 40mm, All measuring point are less than between 25mm,
each sample pointsi s not less Than five points.
Take out the skin of both sides of the specimen, the thickness
should be uniform, smooth surface, micro-hole distribution
uniformity, no mechanical damage and impurities.
SampletestconditionsaccordingtoGB/T2941-91provisions.
3, Afterusingthehardnesstester, putitininstrumentbox,
putindryplacetoprevent Moisture.
