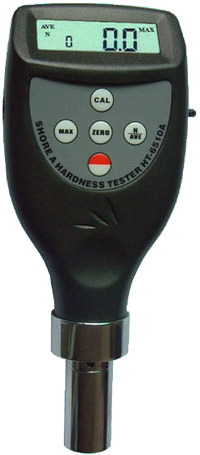

Shore Hardness Tester HT-6510A,
HT-6510D
HT-6510A is designed to measure the
penetration hardness of rubber, elastomers and other rubber like substances such
as neoprene, silicone, and vinyl. It can also be used for soft plastics, felt,
leather and similar materials.
HT-6510C is used for test of hardness of foam
plastic and sponge and etc soft material.
HT-6510D is used for test of
hardness of hard plastic and hard rubber, such as thermoplastic, hard resin,
plastic floorboard, bowling.
|
Model |
HT-6510A |
HT-6510C |
HT-6510D |
|
Measurement Range |
0-100HA |
0-100HC |
0-100HD |
|
Test Scale |
Shore hardness |
|
Standard |
DIN53505, ASTMD2240,ISO7619 JISK7215 |
|
Parameters |
Hardness result , average value , maxes,
value |
|
Measurement Deviation |
<1%H |
|
Resolution |
0.1 |
|
Communication Interface |
RS232 |
|
Operating Conditions |
0°C to 40°C |
|
Power Supply |
4x1.5V AAA (UM-4) battery |
|
Switch |
Auto switch off |
|
Battery Indicator |
Low battery indicator |
|
Dimensions |
162x65x38mm |
|
Weight |
173g(no probe) |
|
Standard Delivery |
Instrument, Test block , English manual
and carrying case |
|
Optional Accessories |
cable RS-232C & software OR cable USB &
software |
|
|
|
|
 |

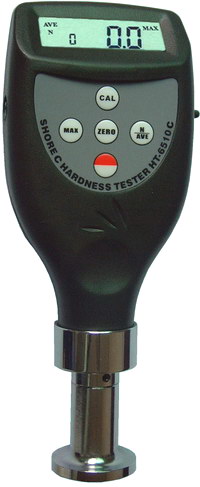

Shore Hardness Tester HT-6510C
HT-6510A is designed to measure the
penetration hardness of rubber, elastomers and other rubber like substances such
as neoprene, silicone, and vinyl. It can also be used for soft plastics, felt,
leather and similar materials.
HT-6510C is used for test of hardness of foam
plastic and sponge and etc soft material.
HT-6510D is used for test of
hardness of hard plastic and hard rubber, such as thermoplastic, hard resin,
plastic floorboard, bowling.
|
Model |
HT-6510A |
HT-6510C |
HT-6510D |
|
Measurement Range |
0-100HA |
0-100HC |
0-100HD |
|
Test Scale |
Shore hardness |
|
Standard |
DIN53505, ASTMD2240,ISO7619 JISK7215 |
|
Parameters |
Hardness result , average value , maxes,
value |
|
Measurement Deviation |
<1%H |
|
Resolution |
0.1 |
|
Communication Interface |
RS232 |
|
Operating Conditions |
0°C to 40°C |
|
Power Supply |
4x1.5V AAA (UM-4) battery |
|
Switch |
Auto switch off |
|
Battery Indicator |
Low battery indicator |
|
Dimensions |
162x65x38mm |
|
Weight |
173g(no probe) |
|
Standard Delivery |
Instrument, Test block , English manual
and carrying case |
|
Optional Accessories |
cable RS-232C & software OR cable USB &
software |
|
|
|
|
 |

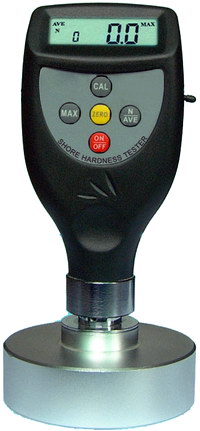

Shore Hardness Tester HT-6510F
Durometer Type F is an exclusive
design for testing soft cellular materials. The large diameter
presser foot and cylindrical indentor configuration allow
measurement by direct application to the test specimen.
Display:4 digits, 10 mm LCD
Presser foot: 80mm diameter
Indenter: Extension 2.54mm
Measurement deviation: = ?
Power supply: 4x1.5v AA (UM-3)
battery
Operating condition: Temp. 0~50C
Size:162x65x28mm
(6.4x2.6x1.1inch)
Weight:about 490g / 1.1lb(not
including batteries)
PC interface: RS232C interface
Manual off at any time by
depressing the power key till OFF shows on the display or
Auto power off after 2 minutes from last key operation
.
Carrying case 1 pc Operation manual 1 pc.
Optional accessories: able RS-232C & software OR cable USB &
software
|
|
|
 |
 |
SHORE A
Durometer
Function:
SHORE A - widely used to test common rubber, complex rubber,
soft rubber,elastomers, leather, wax and so on. It is available
in DIN 53505, ASTM D2240, ISO/R868, JIS R7215.Executive standart
- GB/T531-99,GB2411-80, HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HA;
-Available test range: 10-90 HA ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: Φ0.79mm;
-Net weight: 0.5kgs. |
SHORE C
Durometer
Function:
SHORE C Durometer is widely used in testing of various foam,
sponge, microporous material and so on. It is available in
HG/T2489-93.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HW;
-Available test range: 10-90 HW ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR2.5mm;
Net weight: 0.5Kgs. |
|
|
|
|
 |
 |
SHORE D
Durometer
Function:
SHORE D - widely used to test hard rubber, hard colophony,
grass, plastic,print board, fibre and so on. It is available in
DIN 53505, ASTM D2240,ISO/R868, JIS R7215.executive standart -
GB/T531-99, GB2411-80,HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-D);
-Test range: 0-100 HD;
-Available test range: 10-90 HD ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR0.1mm;
-Net weight: 0.5Kgs. |
SHORE A (Peak hold) Durometer
Function:
SHORE A - widely used to test common rubber, complex rubber,
soft rubber,elastomers, leather, wax and so on. It is available
in DIN 53505, ASTM D2240, ISO/R868, JIS R7215.Executive standart
- GB/T531-99,GB2411-80, HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HA;
-Available test range: 10-90 HA ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: Φ0.79mm;
-Net weight: 0.5kgs.
Peak hold: double pins, one to
hold the peak testing value. |
|
|
|
 |
 |
|
SHORE C (Peak hold) Durometer
Function:
SHORE C Durometer is widely used in testing of various foam,
sponge, microporous material and so on. It is available in
HG/T2489-93.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-AC);
-Test range: 0-100 HW;
-Available test range: 10-90 HW ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR2.5mm;
-Net weight: 0.5Kgs.
Peak hold: double pins, one to
hold the peak testing value. |
SHORE D (Peak hold) Durometer
Function:
SHORE D - widely used to test hard rubber, hard colophony,
grass, plastic,print board, fibre and so on. It is available in
DIN 53505, ASTM D2240,ISO/R868, JIS R7215.executive standart -
GB/T531-99, GB2411-80, HG/T2489-93, JJG304-2003.
Specification:
-High resolution;
-With facility, easy to operate;
-Use by handy or by test stand(HLX-D);
-Test range: 0-100 HD;
-Available test range: 10-90 HD ;
-Dimension: 115*60*25(mm);
-Stroke: 2.5 mm;
-Tip dimension: SR0.1mm;
-Net weight: 0.5Kgs.
Peak hold: double pins, one to
hold the peak testing value. |
|
|
|
|
 |
SHORE O (Peak hold) Durometer
Function:
SHORE O Durometer is widely used in testing of various foam,
sponge, microporous material and so on. It is available in
HG/T2489-93.
Specification:
High resolution;
With facility, easy to operate;
Use by handy or by test stand(HLX-AC);
Dimension: 115*60*25(mm);
Stroke: 2.5 mm;
Tip dimension: SR2.5mm;
Net weight: 0.5Kgs |
|
|
|
|
 |
PIN type for SHORE A, C, D durometer |
|
|
|
|
 |
 |
HLX-AC
Test Stand
Function:
HLX-AC Durometer stand is R & D for SHORE A and SHORE C
durometer. It will get more accurate result when fixing the
durometer on the HLX-AC Durometer stand. Table platform in
metal.
Specification:
-Match to SHORE A and C durometer;
-Construction include operating handle;
-Manual operation, easy and stable to operate;
-Dimension: 100*212*250(mm);
-Gross weight: 4 Kgs. |
HLX-D Test
Stand
Function:
HLX-D Durometer stand is R & D for SHORE D durometer. It will
get more accurate result when fixing the durometer on the HLX-D
Durometer stand. Table platform in metal.
Specification:
-Match to SHORE D series durometer;
-Construction include operating handle;
-Manual operation, easy and stable to operate;
-Dimension: 100*212*250(mm);
-Gross weight: 9kg. |
|
|
|
|
 |
Sponge Hardness Tester
SHORE F Durometer /SHORE F (Peak hold) Durometer
In order to measure the hardness of
foam, we special tailor-Made the F type sponge durometer to
facilitate our customers. It is suitable for the determination
of soft foam, polyurethane foam rubber products'hardness. And
itwill be different with the other hardness tester In the
aspects of using. When using, the presser foot directly contact
to the sample, and see it sown weight as force measuremen tload.
Main parameters:
Scope of pressure needle route: 0~2.5millimeters.
The scale value: 0-100 degrees.
The force of pressure needle end: 550mN~4300mN(56~438.5g).
Second, the method of using:
Held the middle of the instrument, located the hardness tester
gently on the plane Specimens which is bigger than presser
foot(orspecimen). Reading out the value in 1 second when
durometers'presser foot contact with the samples moothly. And
the tick of pointers is the hardness value of sample (specimen).
In order to improve the
Accuracy of measurement, you should putthe sample on a flat
plate glass or plate.
Each measuring point should be measured only on
Forth, Attention:
1 When the durometer presser foot is in the free state, it
points "0". The pressure
Needle end and the pressure foot flat is in close contact with
the glass surface, the
Indication should be "100" If the Durometers' pointer can
notshow "0' and "100"
Whenchecking, adjustitto"0'and"100
2, The sample and adjustments
The specimen thicknesss houldbe in 25mm to 30mm, when
insufficient thickness Of 25mm, you can stack 2 pieces. But you
need to ensure the flat surface smooth, The whole thicknesss
tills hould conform to the sample thickness. The sample size
should satisfy thel ength and the width are larger than100mm,
The distance between the measuring point and sample edge is not
less than 40mm, All measuring point are less than between 25mm,
each sample pointsi s not less Than five points.
Take out the skin of both sides of the specimen, the thickness
should be uniform, smooth surface, micro-hole distribution
uniformity, no mechanical damage and impurities.
SampletestconditionsaccordingtoGB/T2941-91provisions.
3, Afterusingthehardnesstester, putitininstrumentbox,
putindryplacetoprevent Moisture. |
