Function:

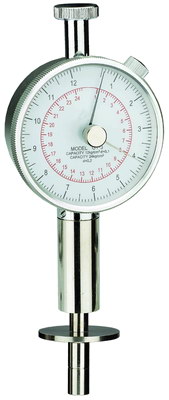

GY Series fruit penetrometer with 3 models: GY-1, GY-2, GY-3, which special for inspecting the hardness of the fruits, such as apple, pear, strawberry, grape and so on. Judging the harness and mature of the fruits will good for breed, deposited, export, transport, machining, etc.They are wildely used for fruit research department, fruit company, fruit farm, college and so on.
Parameter:
¡¡
| Model: | GY-1 | GY-2 | GY-3 | |
| Range: | 2-15kg/cm 2 | 0.5-4kg/cm 2 | 0.5-12kg/cm 2 | 1-24kg/cm 2 |
| (¡Á10 5pa) | (¡Á10 5pa) | (¡Á10 5pa) | (¡Á10 5pa) | |
| Head Dim.: | ¦µ3.5mm | ¦µ3.5mm | ¦µ8mm | ¦µ11mm |
| Resolution: | 0.1 | 0.02 | 0.1 | 0.2 |
| Stoke: | 10mm | |||
| Dimension: | 140*60*30mm | |||
| weight: | 0.5kgs | |||

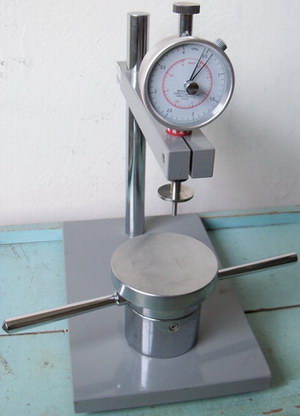

This stand can be used for GY-Series fruit penetrometer.
Stand weight: 15kgs.
GY-4 Fruit penetrometer
GY-4 digital Fruit Sclerometer which are to measure the hardness of apples, pears, strawberries and grapes, etc. It is a suitable instrument for fruit company, fruit farm, fruit research institutions to test the ripeness of fruits. With compact size, low weight and ocular reading, it is suitable to use on the scene. It also can be applied with its matched test stands to improve the accuracy.
Technical Specifications:
|
Model |
GY-4 |
|
Load limit |
20kgs |
|
Load resolution |
0.01kg |
|
Accuracy |
¡À0.5% |
|
Unit |
N, kg, lb, |
|
Interface |
RS-232-USB |
|
Battery |
Ni-Hi 7.2V 1800mAh |
|
Power supply |
Input110~240V 50-60Hz 200mA Output9.4V 600mA |
|
Sensor |
high precision sensor |
|
Working temperature |
5¡ãC~35¡ãC |
|
Transporting temperature |
-10¡ãC~60¡ãC |
|
Comparative humidity |
15%~80%RH |
|
Working environment |
No shaking and no causticity |
|
Pressure Diameter |
3.5mm 8mm 11mm |
|
Pressure Depth |
10mm |
|
Weight |
1.5kgs |
|
Dimension |
L245mm * W66mm * H36mm |
|
Remark |
Digital fruit Penetrometer |
