Manual Test Stand, Manual Force Measurement Test Stands, manual horizontal test stand

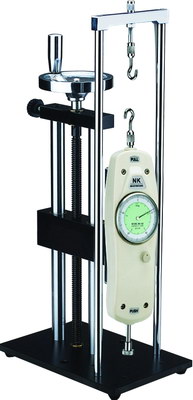

HLA Manual Test stand
Function:
-Match to NK/HP series force gauge;
-Both vertical and horizontal installation;
-Manual operation, easy and stable to operate;
-With wheel handle.

Specification:
-Capacity: 500N;
-Stroke: 150 mm;
-Dimension: 250*152*245(mm);
-Net weight: 11Kgs.

HLB Manual Test stand
Function:
-Match to NK/HP series force gauge;
-Both vertical and horizontal installation;
-Manual operation, easy and stable to operate;
-With wheel handle,with digital scale (compared with HLA);

Specification:
-Capacity: 500N;
-Stroke: 150 mm;
-Dimension: 250*152*245(mm);

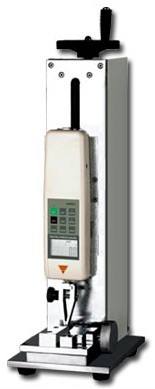

-Net weight: 11 Kgs. 		HHB Manual Test Stand
Function:
-Match to NK/HP series force gauge;
-Both vertical and horizontal installation;
-Manual operation, easy and stable to operate;
-With wheel handle;

Specification:
-Capacity: 500N;
-Stroke: 140 mm;
-Dimension: 200*160*540(mm);
-Net weight: 20 Kgs.

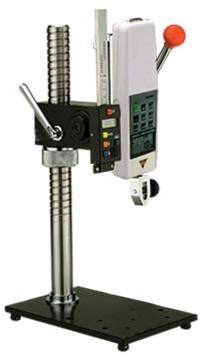

HPA Manual Test stand
Function:
-Match to NK/HP series force gauge ;
-Manual operation, easy and stable to operate ;
-Compact construction.

Specification:
-Capacity: 500N;
-Stroke: 70 mm;
-Dimension: 200*160*540(mm);

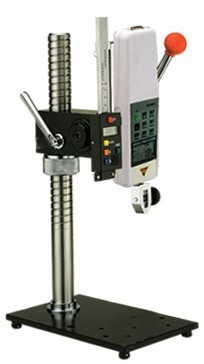

-Net weight: 12 Kgs. 		HPB Manual Test Stand
Function:
-Match to NK/HP series force gauge ;
-Manual operation, easy and stable to operate ;
-Compact construction,with digital scale.

Specification:
-Capacity: 500N;
-Stroke: 70 mm;
-Dimension: 200*160*540(mm);
-Net weight: 12 Kgs.

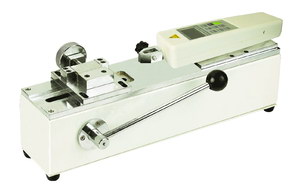

HPH Manual Test Stand
Function:
-Match to NK/HP series force gauge;
-Horizontal installation;
-Manual operation, easy and stable to operate.

Specification:
-Capacity: 500N;
-Stroke: 50 mm;
-Dimension: 450*190*180(mm);

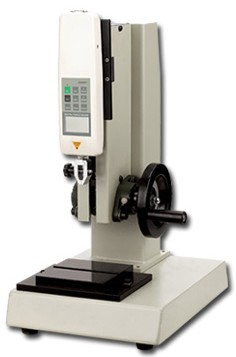

-Net weight: 20 Kgs. 		HLD Manual Test stand
Function:
-Match to NK/HP series force gauge;
-With excellent stability, suit for operate on desk indoor.
-Trapezoid screw wheel, manual and easy operate.
-With a moving pedestal, easy moving up and down, X and Y axis.
-The design is vonvenient to fix clamps.

Specification:
-Capacity: 1000N;
-Stroke: 180 mm;
-Dimension: 450*450*700(mm);
-Net weight: 30 Kgs.

Attachment, Grips and Tips

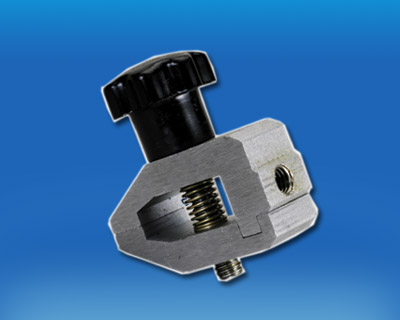

HJJ-001
-2 Pcs
-Capacity: 500N

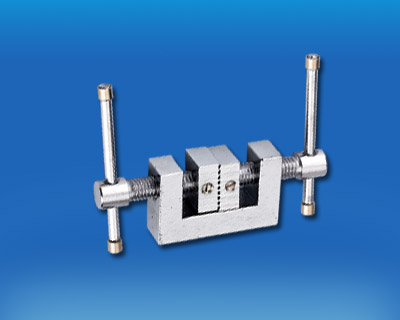

-Sponge, foam, tape, leather, paper, flake and so on. 		HJJ-002
-2 Pcs
-Capacity: 500N
-Rubber, cables and wires, paper,electrical components, plastic films and so on.

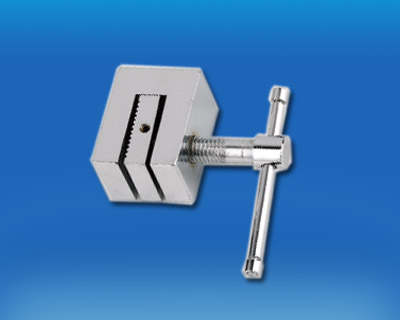

HJJ-003
-2 Pcs
-Capacity: 500N
-Sponge, foam, glass, hardness of stone materials, destructive test and so on. 		HJJ-005
-3 Pcs
-Capacity: 500N
-Plastic wood, glass, leather, paper, destructive test and so on.

HJJ-007
-2 Pcs
-Capacity: 500N
-Various wires and cables, glass, leather, various electrical and so on. 		HJJ-008
-2 Pcs
-Capacity: 500N
-Plastic, wood, glass, leather, paper, flake and so on.

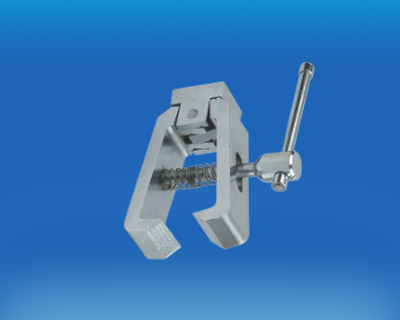

HJJ-009
-2 Pcs
-Capacity: 500N
-Rubber, PCB, adhesive tape , various materials peel strength test and so on. 		HJJ-010
-1 Pcs
-Capacity: 500N
-Tape, leather, paper, flake, destructive test and so on.

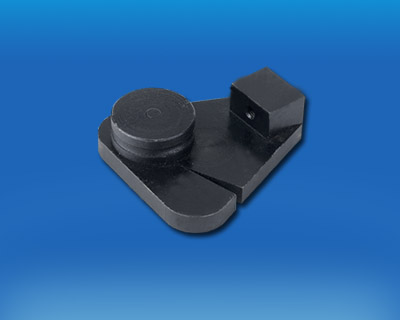

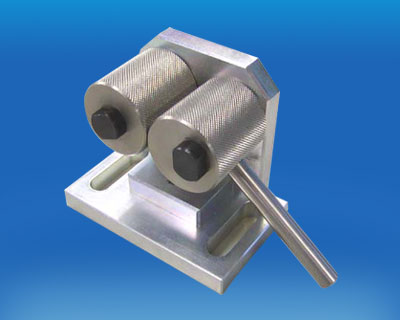

HJJ-011
-2 Pcs
-Capacity: 500N
-iron wire, steel wire ,fishing wire , all kinds of cables and wires and so on. 		HJJ-012
-2 Pcs
-Capacity: 5000N
-iron wire, steel wire ,fishing wire , all kinds of cables and wires and so on.

HJJ-015
Capacity: 500N
Rubber, PCB, adhesive tape , various materials peel strength test and so on.

HJJ-016
Capacity: 1000N
iron wire, steel wire ,fishing wire , all kinds of cables and wires and so on.

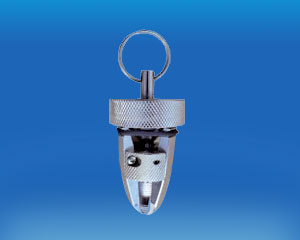

HJJ-017
For wire or soft samples,crips and so on.
Capacity : 1000N
Opening width : 10mm
Weight : Approx900g

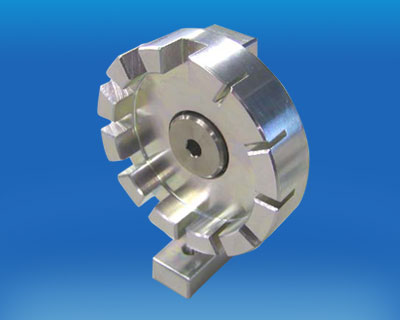

HJJ-018

This attachment rotates and accomodates a various sizes of terminals without being detached from the force gauge, thus contributing to more efficient testing. Capacity : 1000N
Number of slit : 12
Weight : Approx.380g

HJJ-019

Capacity : 500N
Weight : Approx500g

HJJ-020

Capacity : 500N
Weight : Approx500g
