Function:

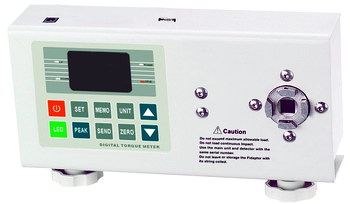

HT Series Digital Torque Meter is an intellectualized measure instrument, which is specially designed for testing and measuring different of torque. HT is main used for kinds motorized or air screwdriver, torque screwdriver, torque wrench, torque driver, measure and calibrate torque testing, and parts fracture test. It is widely applied in electric industry, machinery industry, light industry, automobile industry, scientific research and so on.
Specification:
-high accuracy and resolution;
-peak hold function;
-peak automatic clearance function;
-Tolerance limit (up and down limit);
-3 units available: N.m, kgf.cm, lbf.in;
-reset acceleration of gravity function;
-large memory;
-inductive background light;
-USB output; Match synchronous analysis software.
Parameter:
¡¡
| Model | HT-10 | HT-20 | HT-50 | HT-100 | HT-200 |
| Measurement range at peak (N.m ) | 0.0005~1 | 0.001~2 | 0.002~5 | 0.005~10 | 0.01~20 |
| Measurement mode | Track, Peak, Auto Peak | ||||
| Accuracy | ¡À0.5%Fs | ||||
| Power (charging time) | 1.5VNiHM cell¡Á6 or rechargeable battery (recharging 6 hours) | ||||
| Specified charger | Input:AC220V~240V Output: DC9V400mA | ||||
| Continuous use at full charge | 20 hours | ||||
| Battery life | Recharging 300 times | ||||
| Dimensions/Weight | W¡ÁH¡ÁD 230mm¡Á65mm¡Á120mm 2Kg | ||||
Function:

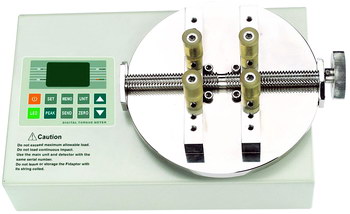

HB Series Cap Torque Tester is an intellectualized measure instrument, which is specially designed for testing and measuring different of torque. HT is main used for kinds motorized or air screwdriver, torque screwdriver, torque wrench, torque driver, measure and calibrate torque testing, and parts fracture test. It is widely applied in electric industry, machinery industry, light industry, automobile industry, scientific research and so on.
Specification:
-high accuracy and resolution;
-peak hold function;
-peak automatic clearance function;
-Tolerance limit (up and down limit);
-3 units available: N.m, kgf.cm, lbf.in;
-reset acceleration of gravity function;
-large memory;
-inductive background light;
-USB output; Match synchronous analysis software.
Parameter:
¡¡
| Model | HB-10 | HB-20 | HB-50 | HB-100 | HB-200 |
| Measurement range at peak (N.m ) | 0.0005~1 | 0.001~2 | 0.002~5 | 0.005~10 | 0.01~20 |
| Measurement mode | Track, Peak, Auto Peak | ||||
| Accuracy | ¡À0.5%Fs | ||||
| Power (charging time) | 1.5VNiHM cell¡Á6 or rechargeable battery (recharging 6 hours) | ||||
| Specified charger | Input:AC220V~240V Output: DC9V400mA | ||||
| Continuous use at full charge | 20 hours | ||||
| Battery life | Recharging 300 times | ||||
| Dimensions/Weight | W¡ÁH¡ÁD 330*100*200mm 5Kg | ||||
