Ultrasonic Thickness Meter / Ultrasonic Thickness Gauge

¡¡

Range 0.75-200mm          Range 0.75-300mm          Through coating/paint

¡¡

For coating thickness meter, click here: coating thickness meter

¡¡

through coat ultrasonic thickness gauge, through coat ultrasonic thickness meter, through coat thickness gauge, through coat thickness meter, through coating ultrasonic thickness gauge, through coating ultrasonic thickness meter, through coating thickness gauge, through coating thickness meter, Thru-Paint ultrasonic thickness gauge, Thru-Paint ultrasonic thickness meter, Thru-Paint ultrasonic thickness gauge, Thru-Paint ultrasonic thickness meter, Thru-Paint thickness gauge, Thru-Paint thickness meter, Thru-Painting ultrasonic thickness gauge, Thru-Painting ultrasonic thickness meter, Thru-Painting thickness gauge, Thru-Painting thickness meter, through paint ultrasonic thickness gauge, through paint ultrasonic thickness meter, through paint thickness gauge, through paint thickness meter, through painting ultrasonic thickness gauge, through painting ultrasonic thickness meter, through painting thickness gauge, through painting thickness meter.

¡¡

This gauge is a simple to use, high accuracy, hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and coatings and even to eliminate the thickness of the paint or coating. Through-Coating Thickness Measuring Capability - You can now test painted tanks, pipes, etc., without having to remove the paint or make corrections for the paint thickness. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side.

¡¡

Operating principle:

¡¡

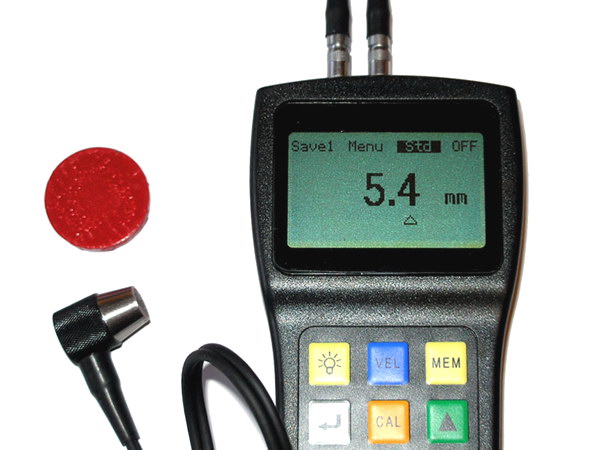

Standard mode: P-E (pulse-echo) method with dual-element probes

¡¡

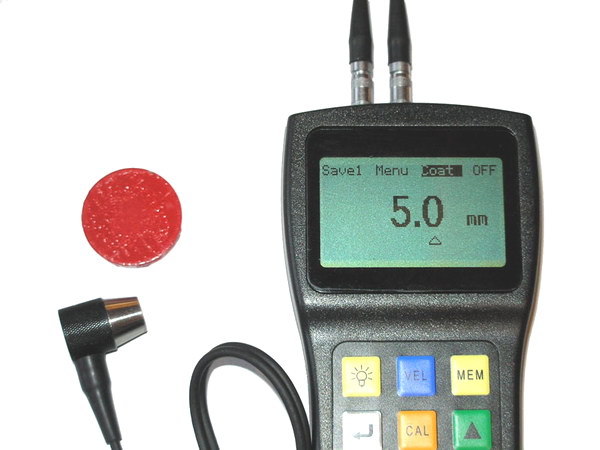

Coating mode:  E-E (echo-echo) method with dual-element probes

¡¡ ¡¡

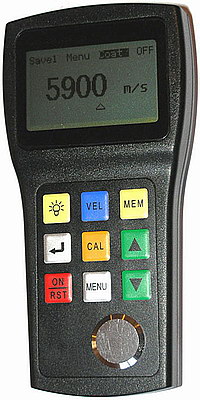

Thru-Paint (Through coating, Through paint) ultrasonic thickness gauge SR8911D

Measuring range:

0.8mm to 300mm; 0.031in to 11.81in in standard mode

3.0mm to 18.0mm; 0.118in to 0.709in in through coating mode

Depending on probe, material and surface condition

Digital resolution:

0.001in or 0.1mm (less than SR8912D)

Units: Selectable: inch or mm

Display:

128¡Á64 dot-matrix LCD screen (1.65in¡Á2.24in; 42mm¡Á57mm)

EL backlight and switchable contract ratio

Digit height: 0.54in or 13.75mm

Measurement update rate:

4 Hz in standard measurement mode

25 Hz in MIN capture mode

Material velocity range:

1000 to 9999 m/s; 0.039 to 0.394 inch/µs

Power:

Two 1.5V AA alkaline batteries

Warning with low battery voltage

Operating time:

Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode

Auto shut-off: After 5 minutes of non-use

Probe zero adjustment:

Selectable: 1-point calibration: normal measurement

                 2-point calibration: curve surface measurement or other special application with a high precision

V-path correction: Automatic

Size: 5.86in¡Á2.87in¡Á1.25in; 149mm¡Á73mm¡Á32mm (H¡ÁW¡ÁD)

Weight: 200g; 7oz (including batteries)

Packing: 1PCS/CTN, CTN SIZE: 28*24*11, G.W.: 1.5KGS

Data logger capacity:

Up to 500 readings can be divided into a maximum of 5 files (user-selectable)

Measuring error:

Up to 1in: ¡À0.002in or ¡À0.1mm

Above 1in: ¡À 1%H

H is the height of the testing object

Repeatability: ¡À0.001in or ¡À0.1mm

Application software: UMVIEW

Interfaces:

Serial RS 232C port in combination with a communicative cable;

Data transfer parameters: 8 bits, 1 stop bit, 9600 baud, no parity.

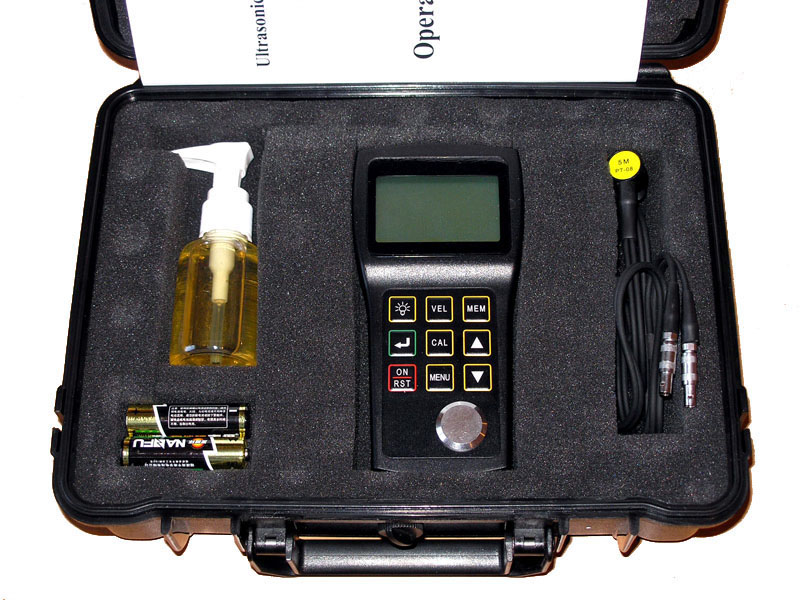

Standard package:

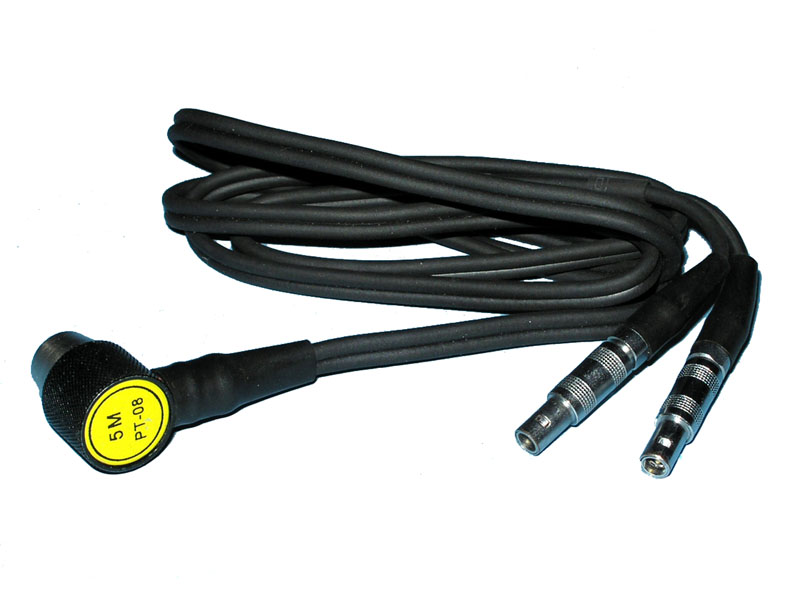

SR8911D thickness gauge,  Standard probe (PT-08)

Carrying case,  Two 1.5V AA alkaline batteries

Couplant, Operating manual

Optional accessories:

Attachable rubber case

Numerous special probes on request

Couplants and high-temperature couplant

4-step/6-step block for calibration

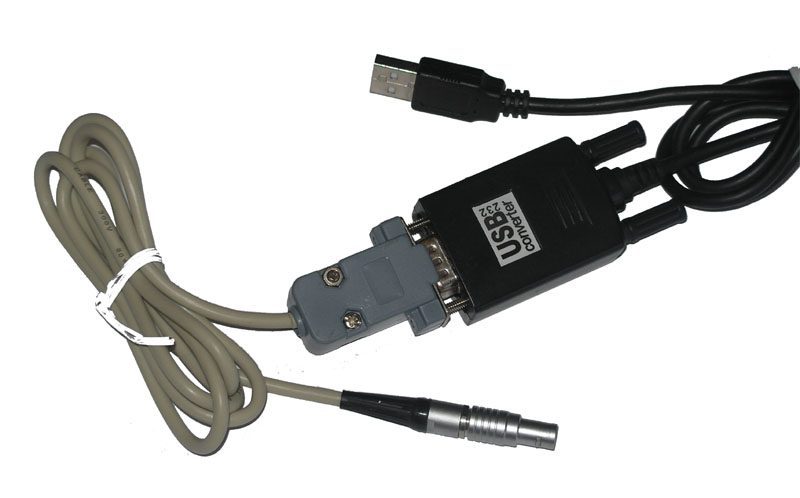

Data transmission cable

Application software

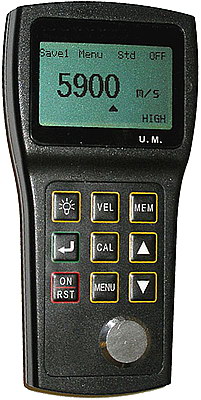

Thru-Paint (Through coating, Through paint) ultrasonic thickness gauge SR8912D

Measuring range:

0.8mm to 300mm; 0.031in to 11.81in in standard mode

3.0mm to 18.0mm; 0.118in to 0.709in in through coating mode

Depending on probe, material and surface condition

Digital resolution:

H£¼4in : 0.001in /0.01in or 0.01mm/0.1mm; H¡Ý4in : 0.01in or 0.1mm

Units: Selectable: inch or mm

Display:

128¡Á64 dot-matrix LCD screen (1.65in¡Á2.24in ;42mm¡Á57mm)

EL backlight and switchable contract ratio

Digit height: 0.54in or 13.75mm

Measurement update rate:

4 Hz in standard measurement mode

25 Hz in MIN capture mode

Material velocity range:

1000 to 9999 m/s; 0.039 to 0.394 inch/µs

Power:

Two 1.5V AA alkaline batteries

Warning with low battery voltage

Operating time:

Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode

Auto shut-off: After 5 minutes of non-use

Probe zero adjustment:

Selectable: 1-point calibration: normal measurement

                 2-point calibration: curve surface measurement or other special application with a high precision

V-path correction: Automatic

Size: 5.86in¡Á2.87in¡Á1.25in; 149mm¡Á73mm¡Á32mm (H¡ÁW¡ÁD)

Weight: 200g; 7oz (including batteries)

Packing: 1PCS/CTN, CTN SIZE: 28*24*11, G.W.: 1.5KGS

Data logger capacity:

Up to 500 readings can be divided into a maximum of 5 files (user-selectable)

Measuring error:

Up to 1in: ¡À0.002in or ¡À0.05mm

Above 1in: ¡À0.5%H

H is the height of the testing object

Repeatability: ¡À0.001in or ¡À0.025mm

Application software: UMVIEW

Interfaces:

Serial RS 232C port in combination with a communicative cable;

Data transfer parameters: 8 bits, 1 stop bit, 9600 baud, no parity.

Standard package:

SR8912D thickness gauge, Standard probe (PT-08)

Carrying case, Two 1.5V AA alkaline batteries

Couplant, Operating manual

Optional accessories:

Attachable rubber case

Numerous special probes on request

Couplants and high-temperature couplant

4-step/6-step block for calibration

Data transmission cable

Application software

¡¡

Different Material Velocity for reference when you use Ultrasonic Thickness Gauge

Material

Velocity (m/s)

Material

Velocity (m/s)

Aluminum

6320

Acetate Resin

2670

Zinc

4170

Phosphor Bronze

35830

Silver

3600

Turpentine

4430

Gold

3240

Glass

5440

Tin

3230

Incoloy Alloy

5720

Iron/Steel

5900

Magnesium

6310

Brass

4640

Monel Alloy

6020

Copper

4700

Nickel

5630

SUS

5790

Steel 4330 (mild)

5850

Acrylic Resin

2730

Steel 330

5660

Water (20 ¡ãC)

1480

Titanium

6070

Glycerin

1920

Zirconium

4650

Soluble Glass

2350

Nylon

2620

¡¡
