Ultrasonic Thickness Meter / Ultrasonic Thickness Gauge

¡¡

Range 0.75-200mm          Range 0.75-300mm          Through coating/paint

¡¡

For coating thickness meter, click here: coating thickness meter

¡¡

¡¡

Please be noted:

TM Series 1-200 mm is only for 45# steel. For other materials, its measurement thickness depends on the material hardness. For PVC, it should be up to 20 mm.

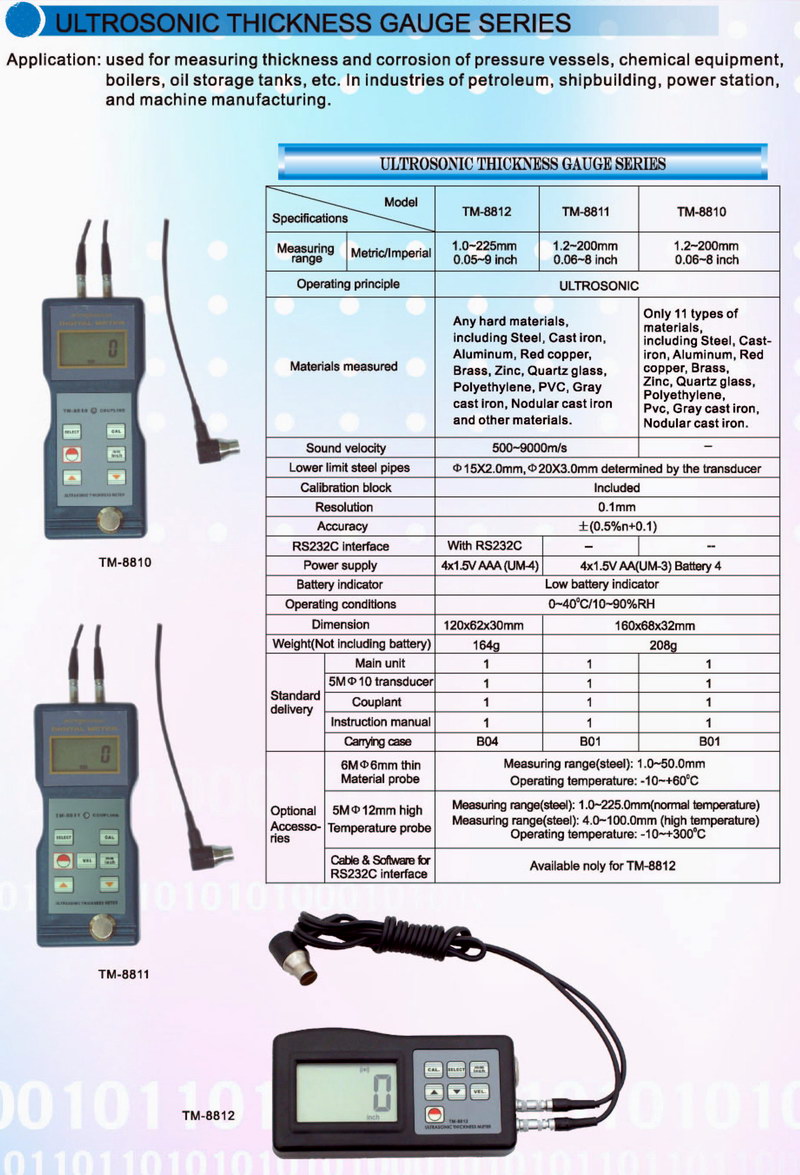

TM8811, TM8812 can be used to test thickness of GRP (glass reinforced plastic or fibreglass).

Ultrasonic thickness meter can be used to test thickness of HARD rubber, but can't be used to test thickness of SOFT rubber, as soft rubber absorb too much ultrasonic.

TM8812 Resolution: 0.1mm (TM8812C 0.01mm)

¡¡

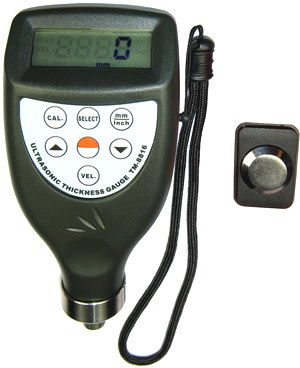

ULTRASONIC THICKNESS METER/GAUGE TM8816 TM8816C

Application:

        Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Model: TM8816 TM8816C

Measuring range (metric/imperial): 1.0-200mm,0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: §æ15x2.0mm, §æ20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm (TM8816C 0.01mm)

Accuracy: ¡À(0.5%n+0.1)

RS232C interface: with RS232C (optional)

Power supply: 4*1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45ºC(32¡ãF-104¡ãF),¡Ü90%RH

Dimensions: 120x62x30mm
weight: 164g(not including battery)

¡¡ ¡¡

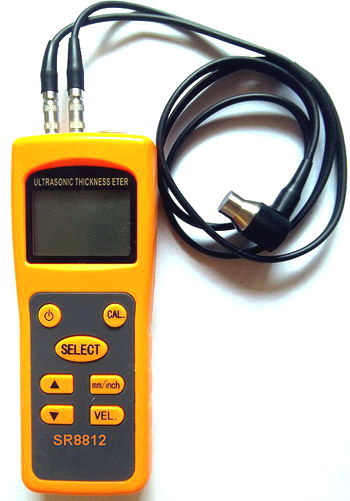

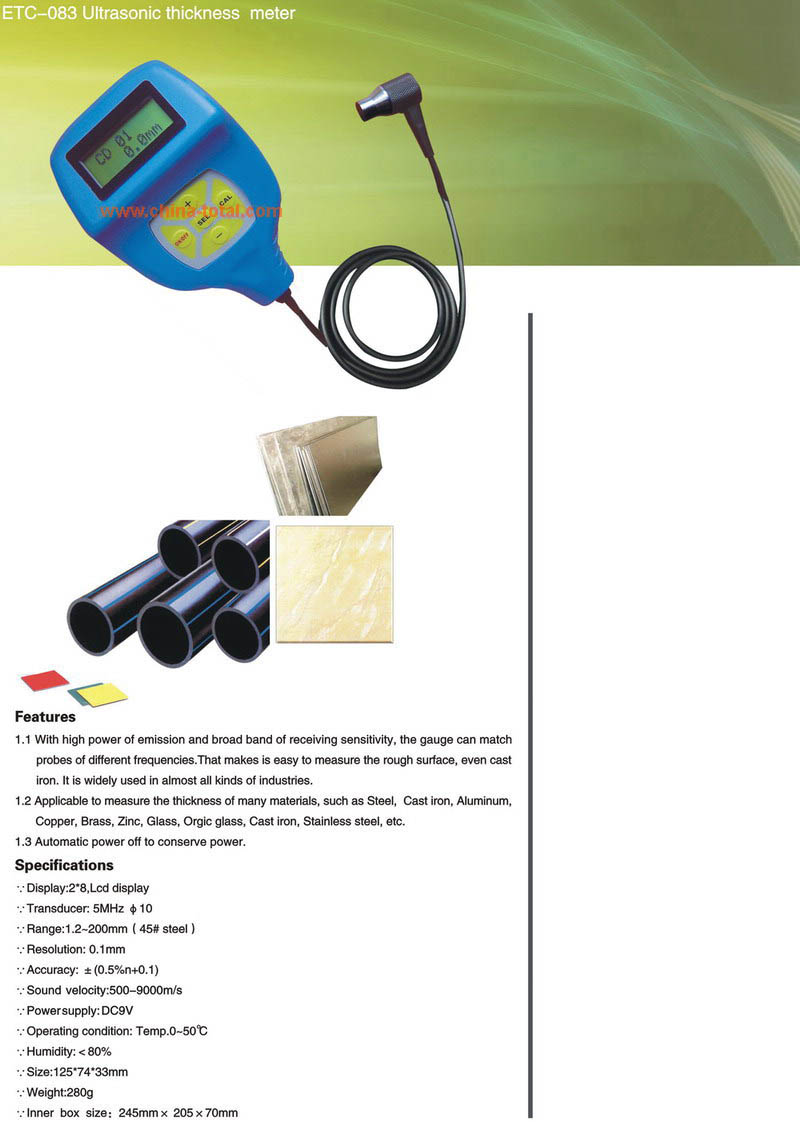

MODEL SR8812
Product Names: Ultrasonic thickness meter
Measuring mode: Ultrasonic
Measurable materials: Thickness of any hard material, such as steel, cast steel, aluminum, red copper, brass, zinc, silica glass, polyethylene, PVC (polyvinyl chloride), gray cast iron, spheroidal graphite cast iron, ceramic, plastic and any other good conductor of ultrasonic
Display: 4 digits, 16 mm LCD
Range: 1.0~200mm (45# steel)
Resolution: 0.1 mm/0.001inch
Accuracy: ¡À (0.5%+0.1)
Sound velocity: 500~9000 m/s
Power supply: 4x 1.5v AAA (UM-4) battery
Operating condition: Temp. 0~50¡ãC Humidity: < 80%
Size: 165x58x33mm
Weight: 120g (not including batteries)
FEATURES:
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.
* With high power of emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies.That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron,Aluminum, Red copper, Brass, Zinc,Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Automatic power off to conserve power.
Application: Thickness measurement and corrosion measurement of petroleum, shipbuilding, power station, machine-building and pressure vessel, chemical equipment boiler, oil tank, etc.

¡¡ ¡¡

Main Functional Parameters:

4. Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
5. Two working modes: single point measurement and scanning measurement.
6. Able to preset the upper limit and the lower limit for the thickness, alarm when the value is beyond the limit.
6. Coupling state indicating in the display.
7. With LED backlight of display, easily used in dark environment.
8. Indicating remaining battery energy on the LCD for the real-time power energy monitoring .

9. Able to communicate with the PC via RS232 interface, and connect to the micro printer for report printing.

10.Standard delivery equipped with PC software+RS232 cable properly, sending the mea_ surement results, managing the measurement store, analyzing the measurement statistics, printing the measurement reports and so on.
11. Adaptive in poor operating environment, compatible with vibrating, impact,  and electromagnetic interference

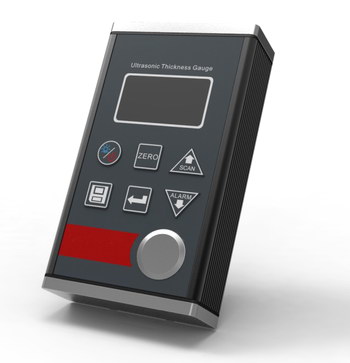

Ultrasonic Thickness Gauge SR8912

Handy, precise, efficient

With ultra-low power consumption

Instrument Features:
Support report printing via serial port
Standard parameter setting and user parameter setting
RS232 interface
Reliable measurement results with rapid lock-in readings
Powered by two 1.5V alkaline batteries
Metal shell with perfect EMC performance
Main Technical Parameters:
Measuring range: 0.75-200mm(steel)
Displaying accuracy: 0.01mm, 0.1 mm (optional)
Measuring error: 1mm~10mm:+/-0.05mm; 10mm~200mm: (+/-0.5%H+0.1)mm.
Pipe survey lower limit (steel): ¦µ20mm¡Á2.0mm
Working frequency: 5MHZ
Measuring period: 0.5S
Ultrasonic velocity: 1000-9999m/s
Display: FSTN digital LCD with cold back light
Zero adjustment: auto returning to zero when you press the key after  the probe is put on the specimen.
Linear correction: auto linear correction by the MCU programs (V Path auto-compensation)
Alarm function: setting the measurement limit and alarming for the results beyond the limit.

Data Memory: 200 readings
Working voltage: 2*1.5V
Power off: Auto power off if not working for 2 minutes, and the power key is also available.
Display contents: thickness value, coupling state, power state, CAL calibration state, sound velocity
Shape size: 132 X 76.2 mm
Whole weight: 323g

Main Functional Parameters:

1. Adapted to measure the thickness of good conductor for ultrasonic, such as metal(steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
2. Match with a series of probes with various frequency and crystal size.
3. Automatic zero adjustment, two-point correction and auto correcting system errors.

¡¡ ¡¡

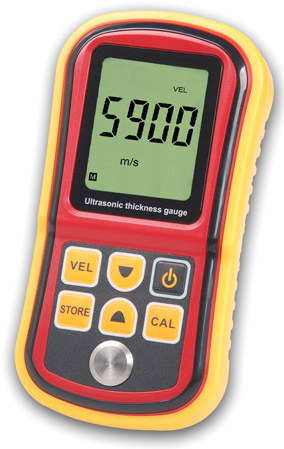

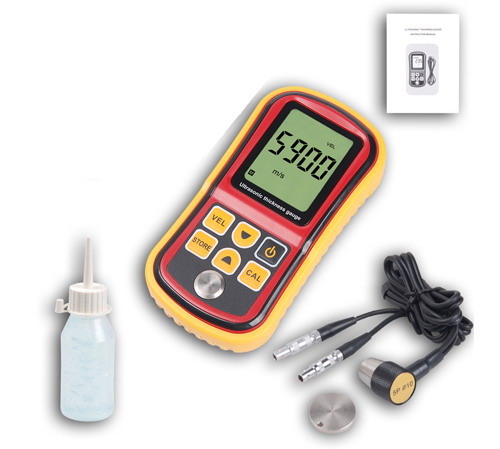

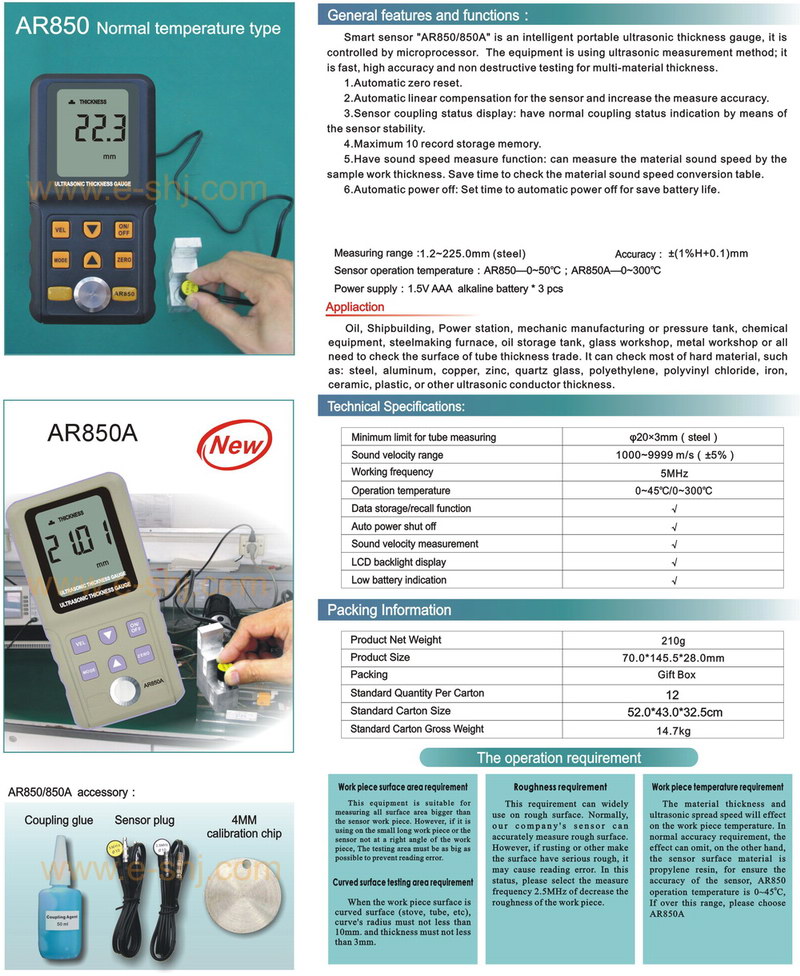

Ultrasonic Thickness Gauge SR8850

Features

Auto Calibration to assure the accuracy

Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer

Use "up" and "down" keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data

Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not

10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area

Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table

12 sound velocity for different material which also adjustable

Low battery indication

Auto power off mode designed to conserve battery life

More than 10000 times long life keys

The unit has a special memory that retains all of its setting even when the power is off

Specification

LCD Digital display: 4 digits

Minimum display unit: 0.1 mm

Working frequency: 5 MHz

Measurement Range: 1.2 ~ 225.0 mm (Steel)

Minimum limit for Tubes measurement: ¦µ20mm x 3mm (Steel)

Accuracy: ¡À (1% H + 0.1 mm) (H denotes the measured thickness)

Sound Velocity Range: 1000 ~ 9999 m/s

Measuring Sound Velocity with a given thickness

Measuring Range: 1000 ~ 9999 m/s

When the given thickness over 20mm, the accuracy is ¡À1%; when the given thickness less than 20mm, the accuracy is ¡À5%

Operating Temperature: 0 ~ 40 ¡ãC (32 ~ 104 ¡ãF)

Power supply: 3 x 1.5 AAA Alkaline Batteries (Included)

Operation Current:

Normal Operation Current ¡Ü 50 mA

With Backlight turn on current ¡Ü 120 mA

Stand-by Current: ¡Ü 20 ¦ÌA

Item Dimensions: approx. 72 (L) x 146 (W) x 29 (H) mm (2.83 x 5.75 x 1.14 inch)

Item Weight: approx. 202 g (7.12 oz) (Batteries and probe included)

¡¡ ¡¡

¡¡

Different Material Velocity for reference when you use Ultrasonic Thickness Gauge

Material

Velocity (m/s)

Material

Velocity (m/s)

Aluminum

6320

Acetate Resin

2670

Zinc

4170

Phosphor Bronze

35830

Silver

3600

Turpentine

4430

Gold

3240

Glass

5440

Tin

3230

Incoloy Alloy

5720

Iron/Steel

5900

Magnesium

6310

Brass

4640

Monel Alloy

6020

Copper

4700

Nickel

5630

SUS

5790

Steel 4330 (mild)

5850

Acrylic Resin

2730

Steel 330

5660

Water (20 ¡ãC)

1480

Titanium

6070

Glycerin

1920

Zirconium

4650

Soluble Glass

2350

Nylon

2620

¡¡
