Ultrasonic Thickness Meter / Ultrasonic Thickness Gauge



Range 0.75-200mm          Range 0.75-300mm          Through coating/paint



For coating thickness meter, click here: coating thickness meter

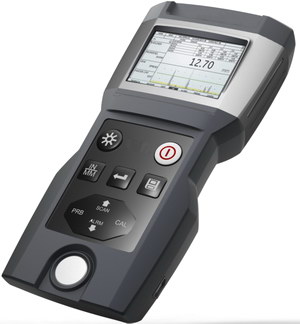

High-precision Ultrasonic Thickness Gauge SR8911

Handy, precise, excellent EMC performance

Instrument Features:
Embedded Bluetooth module, supporting wireless report printing
USB2.0 interface

Achieve precise thickness measurement by using high-precision timing chip
Displaying accuracy of the test result is 0.001mm
Intelligent voice broadcasting of result readings
The brightness and the contrast of the LCD is adjustable
Main Technical Parameters:

Measuring range: 0.75-300mm(steel)
Displaying accuracy: 0.001mm
Measuring error: 1 mm~10 mm:+/-0.03mm; 10mm~300mm:(+/-0.3%H+0.03)mm
Measurement period: fourth per second
Measurement frequency: 5MHZ
Ultrasonic velocity: 1000-9999m/s
Display: FSTN digital LCD with cold back light
Zero adjustment: auto returning to zero when you press the key after t he probe is put on the specimen.
Linear correction: auto linear correction by the MCU programs (V Path auto-compensation)
Alarm function: setting the measurement limit and alarming for the results beyond the limit.

Data memory: 1000 readings
Working voltage: 3.7V
Lithium Battery
Power off: Auto power off if not working for 2 minutes, and the power key is also available.
Display contents: thickness value, coupling state, power state, CAL calibration state, sound velocity
Shape size: 132 X 76.2 mm
Whole weight: 323g
Main Functional Parameters:

1. Adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
2. Match with a series of probes with various frequency and crystal size.
3. Automatic zero adjustment, two-point correction and auto correcting system errors.
4. Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
5. Two working modes: single point measurement and scanning measurement.
6. Able to preset the upper limit and the lower limit for the thickness, alarm when the value is beyond the limit.
7. Coupling state indicating in the display.
8. With LED backlight of display, easily used in dark environment.
9. Indicating remaining battery energy on the LCD for the real-time power energy monitoring .
10.Able to communicate with the PC via USB interface
11. Wireless printing with Embedded wireless module
12. Standard delivery equipped with PC software+USB cable properly, sending the measurement results, managing the measurement store, analyzing the measurement statistics, printing the measurement reports and so on.
13. Adaptive in poor operating environment, compatible with vibrating, impact, and electromagnetic interference.

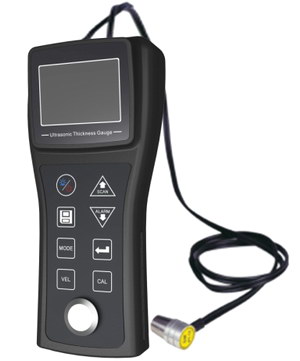

Ultrasonic Thickness Gauge SR8913

Li-ion Battery Powered with USB charging

Instrument features:

USB2.0 interface, able to communicate with PC
Rechargeable Li-ion battery with 5V USB charging
The brightness and the contrast of the LCD is adjustable

Main Technical Parameters:

Measuring range: 0.75-300mm(steel)
Displaying accuracy: 0.01mm, 0.1 mm (optional)
Measuring error: 1 mm~10 mm:+/-0.05mm; 10mm~200mm: (+/-0.5%H+0.1)mm
Measurement period: One per second
Measurement frequency: 5MHZ
Ultrasonic velocity: 1000-9999m/s
Display: FSTN digital LCD with cold back light
Zero adjustment: auto returning to zero when you press the key after t he probe is put on the specimen.
Linear correction: auto linear correction by the MCU programs (V Path auto-compensation)
Alarm function: setting the measurement limit and alarming for the results beyond the limit.

Data memory: 500 readings
Working voltage: 3.7V
Lithium Battery
Power off: Auto power off if not working for 2 minutes, and the power key is also available.
Display contents: thickness value, coupling state, power state, CAL calibration state, sound velocity
Shape size: 132 X 76.2 mm
Whole weight: 230g

Main Functional Parameters:

1. Adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
2. Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
3. Two working modes: single point measurement and scanning measurement.
4. Able to preset the upper limit and the lower limit for the thickness, alarm when the value is beyond the limit.
5. Coupling state indicating in the display.
6. With LED backlight of display, easily used in dark environment.
7. Indicating remaining battery energy on the LCD for the real-time power energy monitoring .
8. Able to communicate with the PC via USB 2.0 interface
9.
Standard delivery equipped with PC software+USB cable properly, sending the measurement results, managing the measurement store, analyzing the measurement statistics, printing the measurement reports and so on.
10. Adaptive in poor operating environment, compatible with vibrating, impact, and electromagnetic interference .



Ultrasonic Thickness Gauge SR8860

Features

Auto Calibration to assure the accuracy

Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer

Use "up" and "down" keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data

Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not

10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area

Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table

12 sound velocity for different material which also adjustable

Low battery indication

Auto power off mode designed to conserve battery life

More than 10000 times long life keys

The unit has a special memory that retains all of its setting even when the power is off

Specification

*Measuring range: 1.2~300mm (Steel)
*Accuracy: \(1%H+0.1) mm
*Resolution: 0.01mm
*Sound velocity range: 1000~9999m/s
*Working frequency: 5MHz
*Minimum limit for tube measuring:

                      10mm probe: Φ20*3mm (Steel)

                        6mm probe: Φ12*2mm (Steel) (optional)
*Auto calibration to assure the accuracy
*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
*Data store/ Data recall/ Data delete function
*Sound velocity measurement
*Low battery indication *Auto power off
*LCD backlight display
*Packing Method: Gift box + PP box
*Power supply: 3pcs*1.5V AAA alkaline batteries
*Weight: 210g *Dimension: 70*145*28mm
Include:
Ultrasonic thickness gauge x 1, 5MHz/10mm probe x 1
5MHz/6mm probe x 1, Standard sample block:4mmx1
Carrying case x 1,
Manual x 1

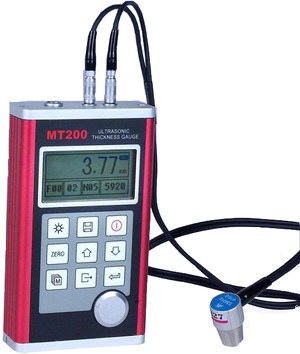

MT200 (0.75 to 300mm)  Ultrasonic Thickness Gauge

  -Durable metal shell
  -LCD matrix display with backlight
  -Mini-thermal printer for fast on-site printing
  -Wide measuring range:0.75-300mm (in Steel)
  -Sound Velocity Range: 1000~9999 m/s
  -Display resolution:0.1/0.01mm (selectable)
  -Accuracy:+-(0.5%Thickness+0.04)mm
  -Software to analysis tested results
  -Units: mm/inch selectable




Product information:

Metal case, dox matrix LCD(menu operation)

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.

Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..

Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.)

Specifications:

Measuring Range

0.75mm-300mm(in steel)

Sound Velocity

1000~9999 m/s

Resolution

0.1/0.01mm (selectable)

Units

mm/inch (selectable)

Storage

20 groups (100 files / group)

Accuracy

\ ( 0.5%Thickness+0.04 ) mm

Alarm

preset upper and lower limit

Work voltage

3V( 2 AA alkaline batteries)

Interface port

RS232

Dimensions

132mm*76mm*33mm

Weight

345g

Display

LCD with backlight

Continuous working period

100 hours (with backlight off)

Standard Deliveries:



Optional Deliveries:

No

Items

Qty



No

Items

Qty

1

Main unit

1



1

N02 probe

1

2

N05/90 probe

1



2

N07 probe

1

3

Couplant

1



3

NHT5 probe

1

5

Instruction manual

1



4

N05 probe

1

6

Warranty card

1



5

Datapro

1

7

Carrying case

1



6

Mini-printer

1

9

Cables

1



7

printer cable

1

10

Batteries

4



8

Communication cable

1

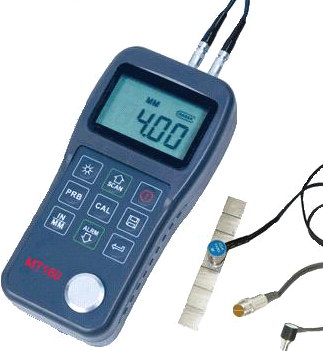

MT160 (0.75 to 300mm) Ultrasonic Thickness Gauge

  -Capable of performing measurements on all ultrasonic sound well-conductive materials: metals, plastic, ceramics, composites, epoxies, glass,etc
  -5 modles of probe are available for coarse grain material and high temperature thickness tests
  -Resolution: 0.1/0.01mm (selectable)
  -Two-Point Calibration function.
  -Single point mode and Scan mode
  -Coupling status indicator
  -Software to analysis tested results on computer
  -Optional thermal mini-printer to print the measured data via port RS232

Product information:

Plastic case, Segement LCD

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.
Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..
Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.)

Specifications:

Measuring Range

0.75mm-300mm(in steel)

Sound Velocity

1000~9999 m/s

Resolution

0.1mm/0.01mm selectable

Units

mm/inch (selectable)

Memory

20 groups (100 files / group)

Accuracy

\ ( 0.5%Thickness+0.04 ) mm

Alarm

preset upper and lower limit

Work voltage

3V( 2 AA alkaline batteries)

Work mode

Single point and scan

Interface port

RS232

Dimensions

150mm*74mm*33mm

Weight

245g

Display

LCD with backlight

Continuous working period

100 hours (with backlight off)

Standard Deliveries:



Optional Deliveries:

No

Items

Qty

No

Items

Qty

1

Main unit

1



1

N02 probe

1

2

N05/90 probe

1



2

N07 probe

1

3

Couplant

1



3

NHT5 probe

1

5

Instruction manual

1



4

N05 probe

1

6

Warranty card

1



6

Mini-printer

1

7

Carrying case

1



9

Cables

1



10

Batteries

4

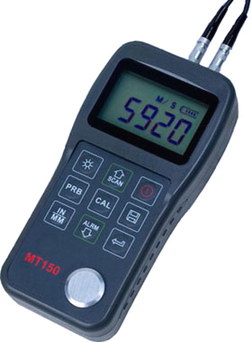

MT150 (0.75 to 300mm) Ultrasonic Thickness Gauge

  -Resolution: 0.1mm
  -Test thickness of all ultrasonic well conductable materials
  -Four probes available for special needs
  -Probe-Zero function and Sound-Velocity-Calibration function
  -Two-Point Calibration function
  -Single point mode and Scan mode
  -Coupling status indicator showing the coupling status
  -Auto sleep and auto power off function
  -Software to analysis the storage datas on the PC


Product information:

Plastic case, Segement LCD

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.

Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..

Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).

Specifications:

Measuring Range

0.75mm-300mm(in steel)

Sound Velocity

1000~9999 m/s

Resolution

0.1mm

Units

mm/inch (selectable)

Memory

20 groups (100 files / group)

Accuracy

\ ( 0.5%Thickness+0.04 ) mm

Alarm

preset upper and lower limit

Work voltage

3V( 2 AA alkaline batteries)

Work mode

Single point and scan

Interface port

RS232

Dimensions

150mm*74mm*33mm

Weight

245g

Display

LCD with backlight

Continuous working period

100 hours (with backlight off)

Standard Deliveries:



Optional Deliveries:

No

Items

Qty



No

Items

Qty

1

Main unit

1



1

N02 probe

1

2

N05/90 probe

1



2

N07 probe

1

3

Couplant

1



3

NHT5 probe

1

5

Instruction manual

1



4

N05 probe

1

6

Warranty card

1



7

Carrying case

1



9

Cables

1



10

Batteries

4

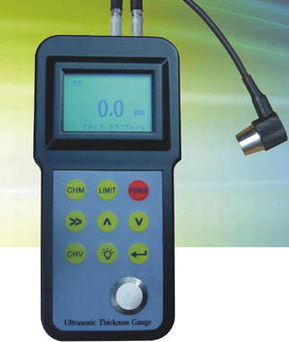

SRTM-098 (0.75 to 300mm) Ultrasonic Thickness Gauge

  -Resolution: 0.1mm
  -Test thickness of all ultrasonic well conductable materials
  -Four probes available for special needs
  -Probe-Zero function and Sound-Velocity-Calibration function
  -Two-Point Calibration function
  -Single point mode and Scan mode
  -Coupling status indicator showing the coupling status
  -Auto sleep and auto power off function


Product information:

Plastic case, Segement LCD

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.

Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..

Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).

Specifications:

Technology parameter

Model

SRTM-098

Operating principle

Ultrosonic

Measure range

0.75~300mm(determined by probe)

Accuracy

\ (0.5%H+0.1)mm

Sound velocity

1000~9999m/s

Lower limit steel pipes

φ20mm*3.0mm(5MHz), φ15mm*2.0mm(10MHz)

To measure velocity by thickness

Measure range

1000~9999m/s

Thickness of the measured sample

−20mm (Accuracy: \5%)

Power

DC1.5V〜2

Environment temperature

0ºC~40ºC

Relative humidity

+85%

Dimension

150mm*73mm*32mm

Weight(Not including battery)

400g

Materials measured

Any hard materials, including steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass,  Gray cast iron and other materials.

Standard Delivery

Main unjit 5Mφ10 transducer Couplant Instruction manual Carring case





Different Material Velocity for reference when you use Ultrasonic Thickness Gauge

Material

Velocity (m/s)

Material

Velocity (m/s)

Aluminum

6320

Acetate Resin

2670

Zinc

4170

Phosphor Bronze

35830

Silver

3600

Turpentine

4430

Gold

3240

Glass

5440

Tin

3230

Incoloy Alloy

5720

Iron/Steel

5900

Magnesium

6310

Brass

4640

Monel Alloy

6020

Copper

4700

Nickel

5630

SUS

5790

Steel 4330 (mild)

5850

Acrylic Resin

2730

Steel 330

5660

Water (20 <C)

1480

Titanium

6070

Glycerin

1920

Zirconium

4650

Soluble Glass

2350

Nylon

2620



Range 0.75-200mm          Range 0.75-300mm          Through coating/paint



( If you need user manual, E-catalogue or picture without watermark for above meters, please ask for at: xiushunjie@gmail.com )

For coating thickness meter, click here: coating thickness meter
