Coating Thickness Meter / Coating Thickness Gauge

¡¡

For ultrasonic thickness meter, please click here: ultrasonic thickness meter / thickness gauge

For through coating ultrasonic thickness meter, please click here: Through coating/paint

¡¡

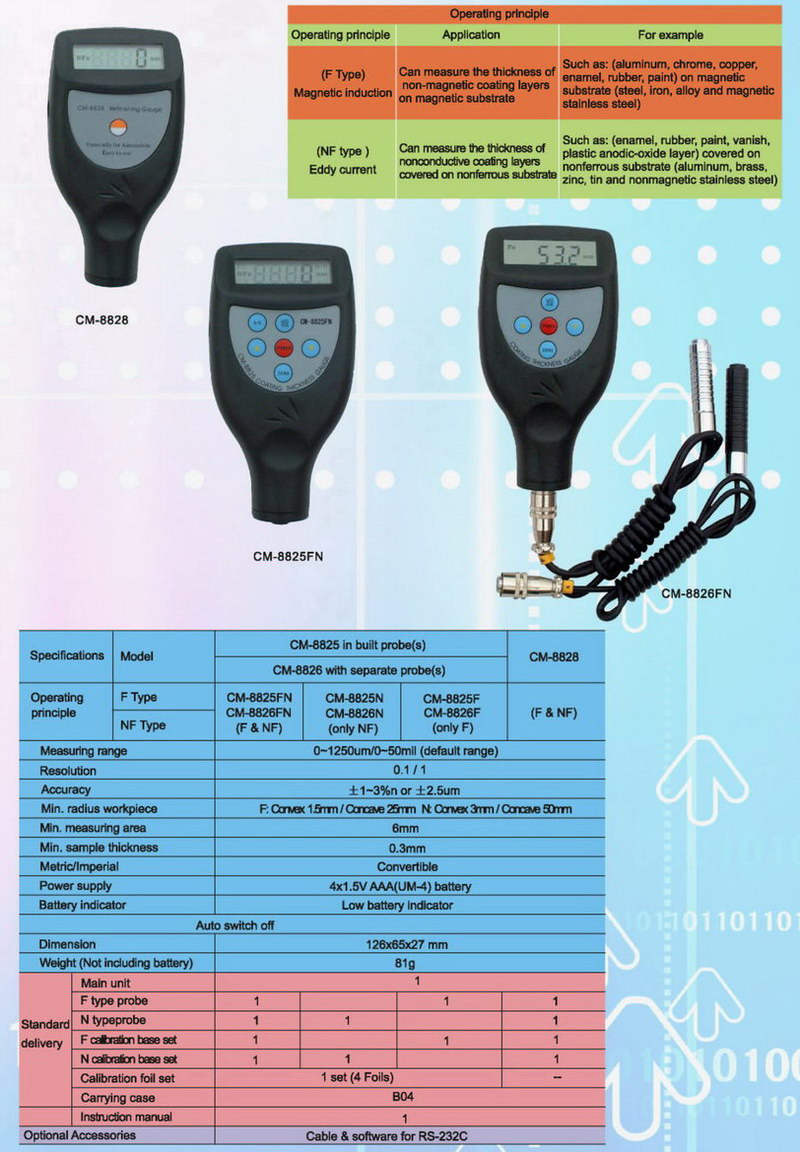

Operating principle

Measuring methods

Application

For example

F type

Magnetic induction

Can measure the thickness of non-magnetic coating layers covered on magnetic substrate

Such as: thickness of layer (aluminum, chrome, copper, zinc, tin, lead, cadmium, porcelain, powder,  enamel, rubber, paint, plastic, anodic-oxide); which covered on magnetic(ferrous) substrate (steel, iron, alloy and magnetic stainless steel).

It doesn't matter if the coating layers are conductive or nonconductive, but must be non-magnetic.

The substrate must be metallic.

NF type

Eddy current

Can measure the thickness of nonconductive coating layers covered on nonferrous substrate

Such as: thickness of layer (enamel, rubber, paint, vanish, plastic, anodic-oxide layer); which covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel, gold, silver)

The coating layers must be nonconductive.

The substrate must be metallic.

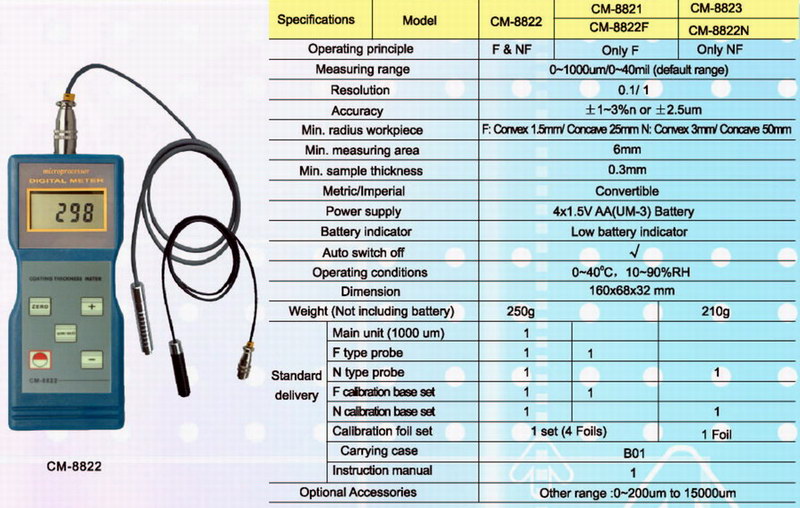

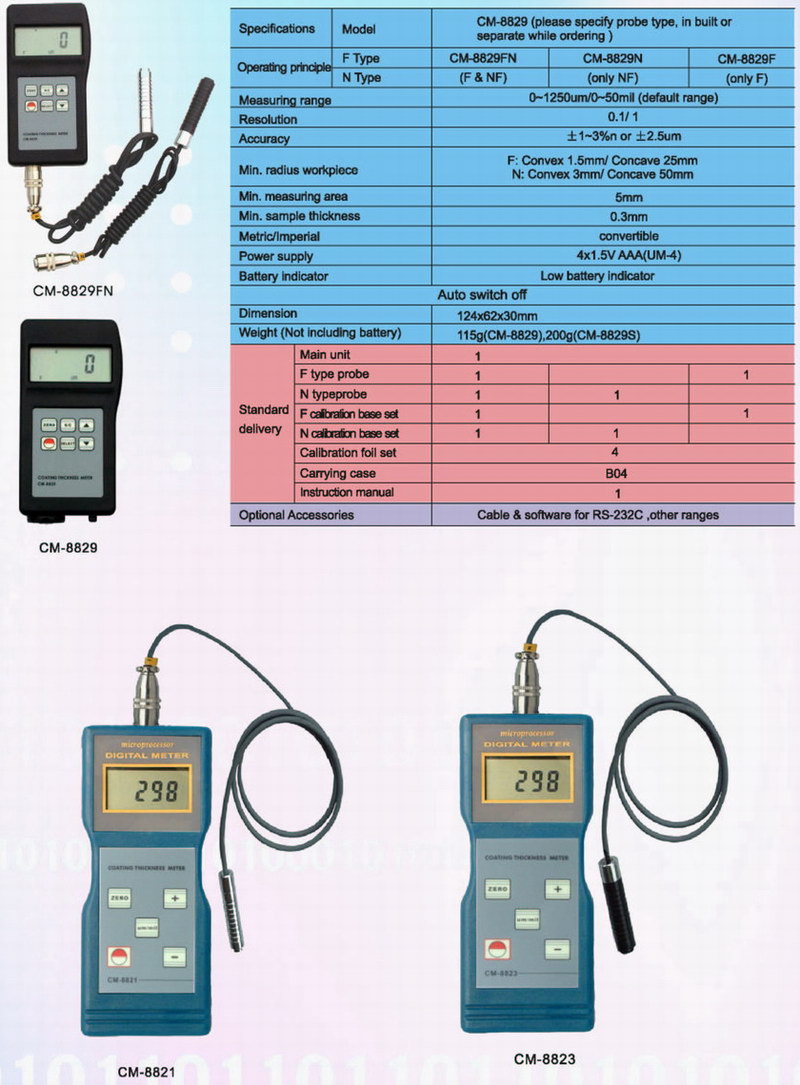

Models explaining:

F (CM-xxxxF) means the meter can use only F TYPE magnetic induction measuring method.

N (CM-xxxxN) means the meter can use only NF TYPE eddy current measuring method.

FN (CM-xxxxFN) means the meter can use both F TYPE magnetic induction and NF TYPE eddy current measuring methods.

Model selecting guide more details please click it!

¡¡

¡¡

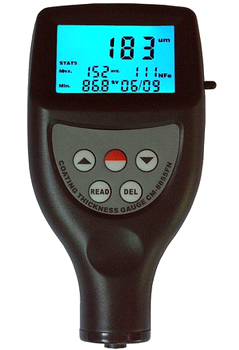

CM8855 coating thickness meter

(with probes in built)

1.FEATURES

* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.

* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.

* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.

* Manual or automatic shut down.

* Two measurement mode: Single and Continuous

* Wide measuring range and high resolution.

* Metric/Imperial conversion.

* Digital backlit display gives exact reading with no guessing or errors.

* Can communicate with PC computer for statistics and printing by the optional cable.

* Can store 99 groups of measurements.

* Statistics is available.

2.SPECIFICATIONS

Display: 4 digits LCD, backlit

Range: 0~1250 ¦Ìm/0~50mil (other ranges can be specified )

Min.radius workpiece: F: Convex 1.5mm/Concave 25mm

N: Convex 3mm/ Concave 50mm

Min. measuring area: 6mm

Min.Sample thickness : 0.3mm

Resolution: 0.1 ¦Ìm (0~99.9¦Ìm); 1 ¦Ìm (over 100¦Ìm)

Accuracy: ¡À1~3%n or 2.5 ¦Ìm or 0.1mil (Whichever is the greater)

Bttery Indicator: Low batter indicator.

PC interface: with RS-232C or USB interface (optional)

Power supply: 2x1.5 AAA(UM-4) battery

Operating condition: Temp. 0~50¡æ .

Humidity <95% .

Size: 126x65x35 mm;  5.0x2.6x1.6 inch

Weight: about 81g(not including batteries)

Standard accessories:

Carrying case ...................1 pc.

Operation manual ............ 1 pc.

F probe in built .................1 pc.

NF probe in built...............1 pc.

Calibration foils ..............1set.

Substrate (Iron) ................1 pc.

Substrate (Aluminium)......1 pc.

Optional accessories: RS-232C cable & software: USB adaptor for RS-232C

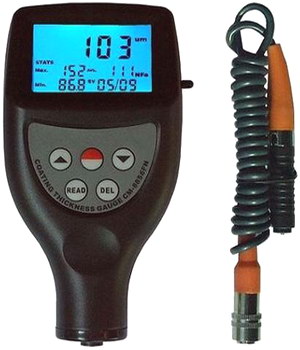

CM8856 coating thickness meter

(with probes separate)

1.FEATURES

* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.

* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.

* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.

* Manual or automatic shut down.

* Two measurement mode: Single and Continuous

* Wide measuring range and high resolution.

* Metric/Imperial conversion.

* Digital backlit display gives exact reading with no guessing or errors.

* Can communicate with PC computer for statistics and printing by the optional cable.

* Can store 99 groups of measurements.

* Statistics is available.

2.SPECIFICATIONS

Display: 4 digits LCD, backlit

Range: 0~1250 ¦Ìm/0~50mil (other ranges can be specified )

Min.radius workpiece: F: Convex 1.5mm/Concave 25mm

N: Convex 3mm/ Concave 50mm

Min. measuring area: 6mm

Min.Sample thickness : 0.3mm

Resolution: 0.1 ¦Ìm (0~99.9¦Ìm); 1 ¦Ìm (over 100¦Ìm)

Accuracy: ¡À1~3%n or 2.5 ¦Ìm or 0.1mil (Whichever is the greater)

Bttery Indicator: Low batter indicator.

PC interface: with RS-232C or USB interface (optional)

Power supply: 2x1.5 AAA(UM-4) battery

Operating condition: Temp. 0~50¡æ .

Humidity <95% .

Size: 126x65x35 mm;  5.0x2.6x1.6 inch

Weight: about 81g(not including batteries)

Standard accessories:

Carrying case ...................1 pc.

Operation manual ............ 1 pc.

F probe separate .................1 pc.

NF probe separate...............1 pc.

Calibration foils ..............1set.

Substrate (Iron) ................1 pc.

Substrate (Aluminium)......1 pc.

Optional accessories: RS-232C cable & software: USB adaptor for RS-232C

¡¡ ¡¡

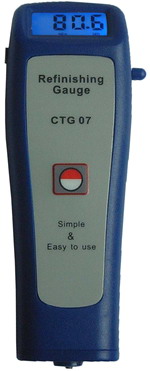

CMCTG07 DIGITAL COATING THICKNESS GAUGE

( F & NF type)

FEATURES
* It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coatings on nonmagnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface .
SPECIFICATIONS
Display: 4 digits, 10 mm LCD
Range: 0~1250 um/0~50mil (other range may be specified)
Resolution: 0.1 um (0~99.9um), 1 um (over 100um)

Accuracy:¡À1~5%n or 3.5 um or 0.1mil (Whichever is the greater)
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50¡ãC, Humidity <80%
Size: 102x35x23 mm (4.0x1.4x0.9 inch)
Weight: about 40 g (in-built probes) (not including batteries)
Accessories:
Carrying case ................1 pc.
Operation manual ......... 1 pc.
F probe..........................1 pc.
N probe.........................1 pc.
Calibration foils.............1set
Substrate (Iron) .............1 pc.
Substrate (Aluminium)...1 pc.
Optional accessories
Cable & software for RS232C

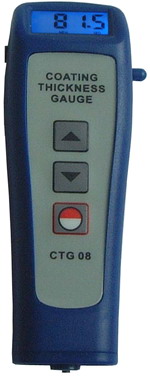

CMCTG08 DIGITAL COATING THICKNESS GAUGE

( F & NF type)

FEATURES
* It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile,

some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coatings on nonmagnetic
metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface .
SPECIFICATIONS
Display: 4 digits, 10 mm LCD
Range: 0~1250 um/0~50mil (other range may be specified)
Resolution: 0.1 um (0~99.9um), 1 um (over 100um)

Accuracy:¡À1~5%n or 3.5 um or 0.1mil (Whichever is the greater)
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50¡ãC, Humidity <80%
Size: 102x35x23 mm (4.0x1.4x0.9 inch)
Weight: about 40 g (in-built probes) (not including batteries)
Accessories:
Carrying case ................1 pc.
Operation manual ......... 1 pc.
F probe..........................1 pc.
N probe.........................1 pc.
Calibration foils.............1set
Substrate (Iron) .............1 pc.
Substrate (Aluminium)...1 pc.
Optional accessories
Cable & software for RS232C

¡¡ ¡¡

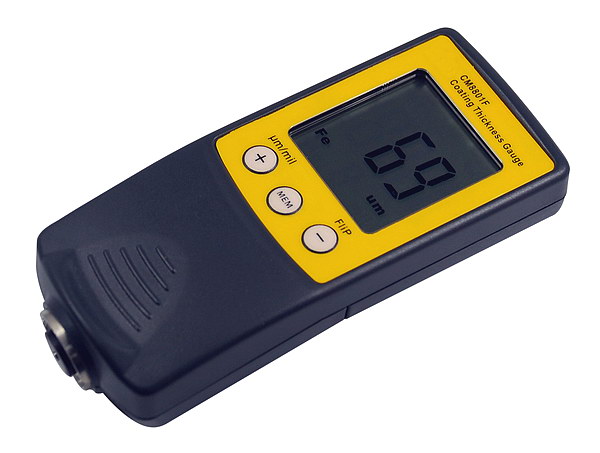

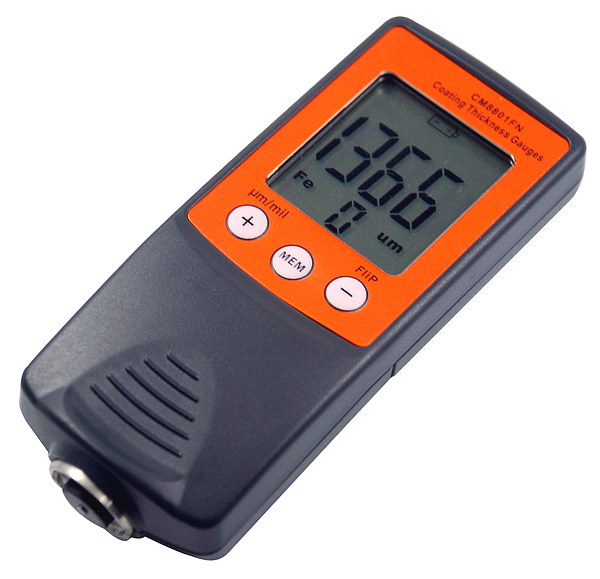

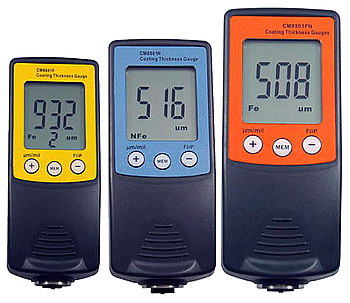

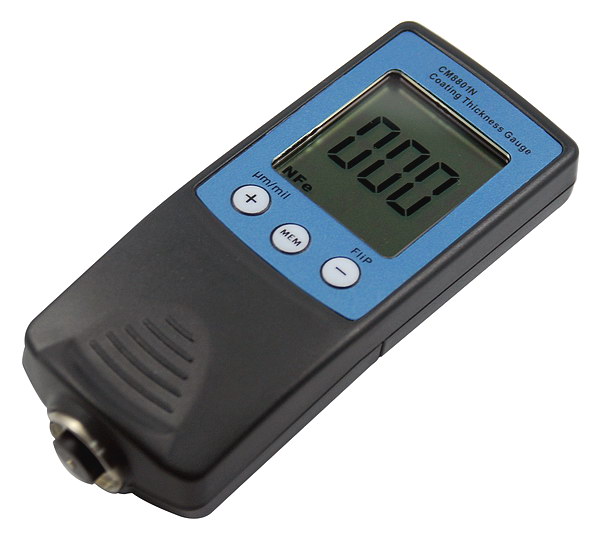

Coating Thickness Gauge CM8801 SERIES

Model: CM8801F, CM8801N, CM8801FN.

Advantage:
-Includes F type (CM-8801F), NF type (CM-8801N) and F/NF 2 in 1 type (CM-8801FN)
-Has CE marking, conforms with the essential health and safety equirements set out by the European Directives
-The F type probe for measuring the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper/aluminum and some ally tiles papers and others.
-The NF type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc. ), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.
-Microcomputer based, auto-detection, no damage to the coating surface.
-Metric/imperial system selectable, Auto power off.
-10 points value memory.
-Flip LCD display

-Suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions.

Feature:
Range: 0 - 1250um; M, 0 - 50mil
Resolution: 1um0.1mils
Accuracy: +/-(3%+2um) or +/-(3%+0.1mils)
Modes: Single & Continuous
Battery Indicator: Low battery indicator
Metric/ Imperial: Convertible.

Specification:

Battery: 1.5V x 1, AAA size (not included)
Packing: Spectacle case, Bandbox

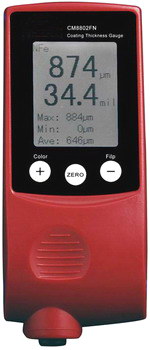

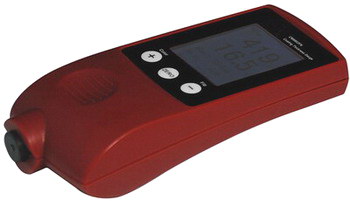

CM8802 Series Coating Thickness Gauge

Model: CM8802F, CM8802N, CM8802FN.
Features

-Includes F type (CM-8802F), NF type (CM-8802N) and F/NF 2 in 1 type (CM-8802FN)
Easy Holding : Well designed housing and shape fits the hand comfortably
Nice Viewing : Dot Matrix display with two colors switchable( Black letter on white background and
Green letter on black background ). Reading is clearly visible on any conditions and angles .
Convenient Measurement : Simultaneously display the current reading in ¦Ìm/mil,

Max, Min and
Average value will be on the bottom of the screen . Makes the measurement more efficient and
comparable.
Easy Calibration : Calibration is unnecessary for most
conditions , if need, only place the probe on the uncoated
surface and press "ZERO" , or adjust the reading by "+" . "-"
Basic Functions
Auto switch on by place the the probe on a surface ,
And Auto goes off after 30s of inaction
Flip display
The MAX . MIN and AVE value are clearable
Low voltage indicator

Specification

Rang

0-1250¦Ìm, 0-49mils

Accuracy

¡À(2¦Ìm+3%H), H is standard thickness

Operation Temperature

-10¡ãC-60¡ãC

Storage Temperature

0-40¡ãC

Packing

Dimensions

109x45x27mm

Weight

150With battery

Power Supply

1.5V AAA X 2

Included Accessories

Carry case; instruction manual; Calibration shims , uncoated substrates

Standard Individual Packing

Gift box with carrying case inside

¡¡ ¡¡

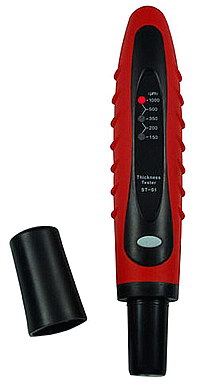

Thickness Tester

Model: ST-01 (Pocket size)
Advantage:
-Pocket size tester which enables checking the condition of car body and approximate determining the thickness of the varnish layer.
-Enables to check whether the car was painted for the second time or the boby was repaired after crash.
-Makes possible finding places where filler was laid and how thick it was done.
-It is possible to check weather the repairs were made in a correct way or the rough places were just filled.
-ST-01 is calibrated in real units; This allows the uesr to estimate the thickness of the varnish in mm.
-6 level skills enable more accurate estimating the thickness of measured layers than in other testers.
-The tester is ready to work without any preparation.
-Waterproof housing enables work even during rain.
-Automatic switch off function protects the batteries against discharging.
-The measurements are possible only on body made of steel.
-The user's manual includes data about varnish thickness on typical cars and information about way of evaluating the quality of repairs.
-Warranty 1 year.

Feature:

 Range (um): 0~150, 150~200, 200~350, 350~500, 500~1000, 1000~1200.
Accuracy: +/-5%

Specification:

Length: 170mm
Diameter: 29mm
Weight: 100g
Power: 3PCS LR44 batteries

Packing: 70PCS/CTN, CTN SIZE: 53x33x37CM, G.W: 18.5KGS

¡¡

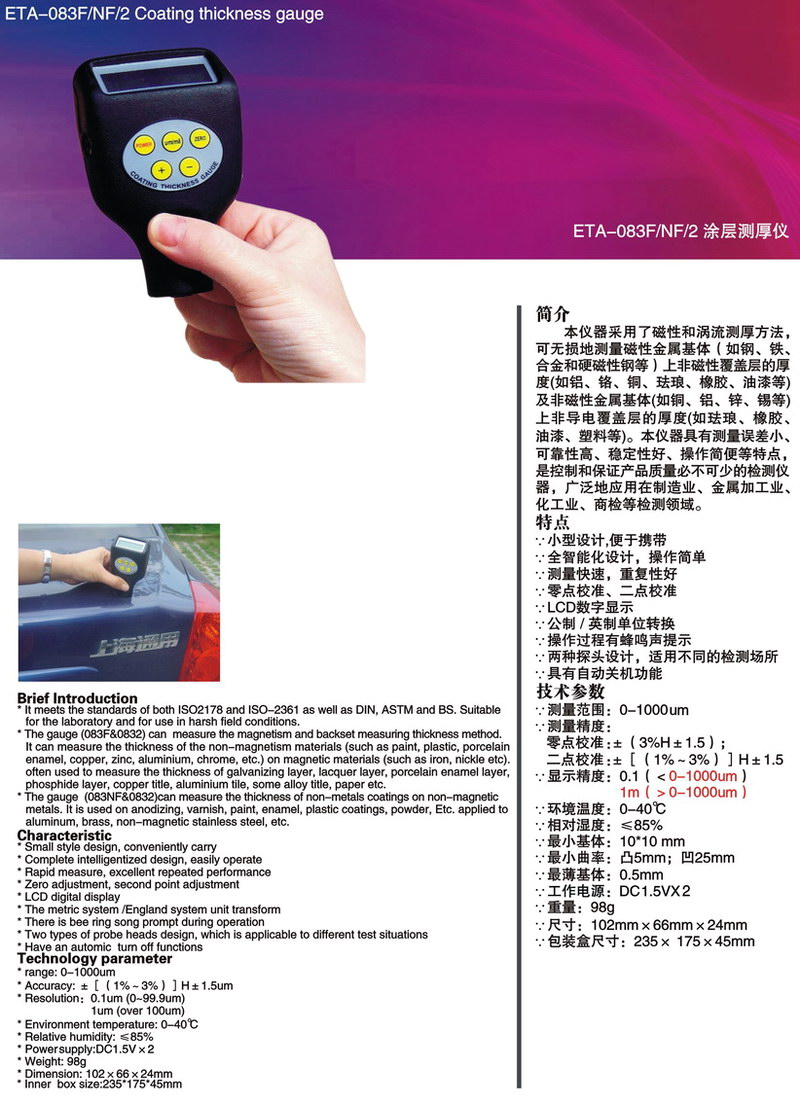

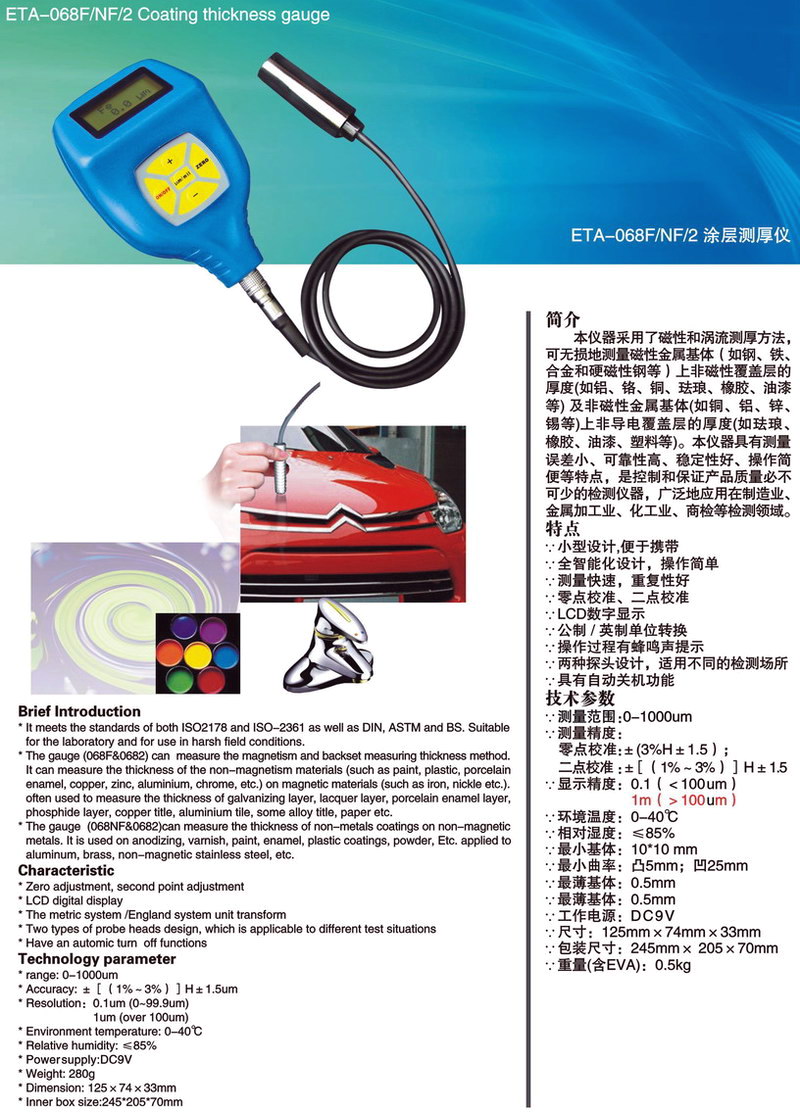

Notice: The CM8828, CM8825FN, CM8826FN, CM8855/56, CM8801FN, ST-01, ETA-0682, ETA-0832 are more suitable for automotive field using.

¡¡

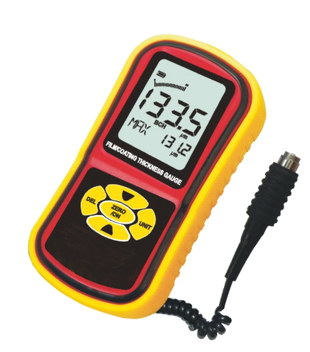

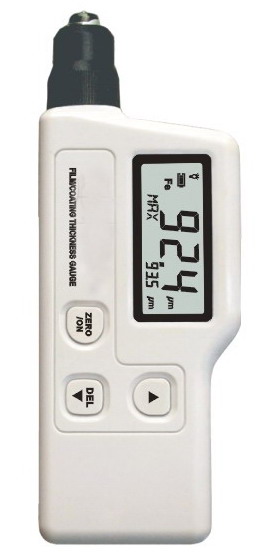

Film/Coating Thickness Gauge CM8830

Measuring range: 0~1800µm
Accuracy: ¡À (3%H¡À1µm)
Resolution: 0.1µm (<100µm) or 1µm(>100µm)
Use Hi-sensibility sensor for precise measurement
Zero point, two point and basic, three different calibration
Measuring mode: Single, Continually and Difference
Data store/ Data recall/ Data delete function
Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
Beep sound indication
Measure in Metric/Imperial
LCD backlight display
Low battery indication
Auto power off

Packing method: Gift box + PP box
Power supply: 9V battery
Weight: 147g (without battery)
Dimension: 67*30*183mm

¡¡

¡¡ ¡¡

Film/Coating Thickness Gauge CM8831

Measuring range: 0~1800µm
Accuracy: ¡À (3%H¡À1µm)
Resolution: 0.1µm (<100µm) or 1µm(>100µm)
Use Hi-sensibility sensor for precise measurement
Zero point, two point and basic, three different calibration
Measuring mode: Single, Continually and Difference
Data store/ Data recall/ Data delete function
Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
Beep sound indication
Measure in Metric/Imperial
LCD backlight display
Low battery indication
Auto power off

Packing method: Gift box + PP box
Power supply: 9V battery
Weight: 147g (without battery)
Dimension: 67*30*183mm

¡¡

¡¡

( If you need user manual, E-catalogue or picture without watermark for above meters, please ask for at: xiushunjie@gmail.com )

For ultrasonic thickness meter, click here: ultrasonic thickness meter / thickness gauge

For through coating ultrasonic thickness meter, please click here: Through coating/paint

¡¡
