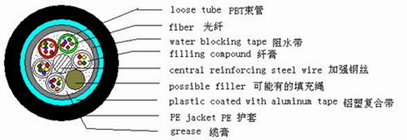

Structure: For the strengthening of
the middle wire, PBT fiber-circular casing around package, the cable
core filled ointment, with water blocking outsourcing,
aluminum-plastic composite armor with wrinkles, and PE jacket. |
|
(The main mechanical properties): |
|
Fiber count (core) |
Fiber Number |
Fiber core Unit |
Number of Fiber (Max) |
Outer diameter (±0.5mm) |
Weigh (Kg/Km) |
Minimum tensile strength (N) |
Crushing (Min) (N/100mm) |
|
GYTA 2-30 core |
2-30 |
5 |
6 |
9.2 |
85 |
600/1500 |
300/1000 |
|
GYTA 32-36 core |
32-36 |
6 |
6 |
10 |
110 |
600/1500 |
300/1000 |
|
GYTA 38-60 core |
38-60 |
5 |
12 |
10.8 |
110 |
600/1500 |
300/1000 |
|
GYTA 62-72 core |
62-72 |
6 |
12 |
11.8 |
138 |
600/1500 |
300/1000 |
|
GYTA 74-96 core |
74-96 |
8 |
12 |
13.6 |
160 |
600/1500 |
300/1000 |
|
GYTA 98-120 core |
98-120 |
10 |
12 |
14.8 |
200 |
600/2500 |
300/1000 |
|
GYTA122-144 core |
122-144 |
12 |
12 |
17 |
260 |
600/2500 |
300/1000 |
|
GYTA146-216 core |
146-216 |
18 |
12 |
17 |
265 |
600/2500 |
300/1000 |
|
(Laying mode): (Duct, Aerial) |
|
(operating temperature): -40℃～+60℃ |
|
Application: Long distance and interoffice communication |
|
(Features): |
1.Reasonable design and precise control over the loose-tube fiber in
the remainder of a long, fiber optic cable with excellent
performance and temperature tensile properties. |
|
2.Core cable filled ointment to ensure that the vertical water
blocking effect. |
|
3.Loose-tube (filled with rope) to strengthen the focus on the
central pieces of SZ-cutter. |
|
4.Double coated Aluminium tide, and has lateral pressure. |
|
5.Loose pieces of casing around the center of
the SZ-cutter. |
