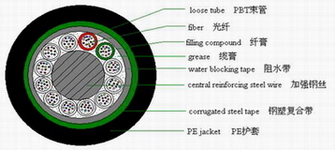

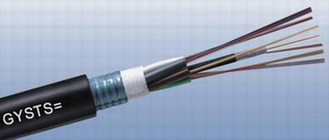

Structure: For
the strengthening of the middle wire, PBT fiber-circular casing around package, the cable core
filled ointment, with water blocking outsourcing, steel-plastic
composite armor with wrinkles, and PE jacket. |
|
(The main mechanical properties): |
|
Fiber Count (core) |
Fiber core
(Unit) |
Fiber Number (Max) |
Outer diameter (±0.5mm) |
Weigh (Kg/Km) |
Minimum tensile strength (N) |
Crushing (Min) (N/100mm) |
|
GYTS 2-30 core |
2-30 |
5 |
6 |
9.6 |
100 |
600/1500 |
300/1000 |
|
GYTS 32-36 core |
32-36 |
6 |
6 |
10.2 |
115 |
600/1500 |
300/1000 |
|
GYTS 38-60 core |
38-60 |
5 |
12 |
11.6 |
150 |
600/1500 |
300/1000 |
|
GYTS 62-72 core |
62-72 |
6 |
12 |
12 |
170 |
600/1500 |
300/1000 |
|
GYTS 74-96 core |
74-96 |
8 |
12 |
14.2 |
220 |
600/2000 |
300/1000 |
|
GYTS 98-120 core |
98-120 |
10 |
12 |
15.4 |
260 |
600/2500 |
300/1000 |
|
GYTS122-144 core |
122-144 |
12 |
12 |
17.6 |
300 |
600/2500 |
300/1000 |
|
(Laying mode): (Duct, Aerial) |
|
(operating temperature): -40℃～+60℃ |
|
Application: Long distance and interoffice
communication |
|
(Features): |
1.Reasonable design and precise control over the
loose-tube fiber in the remainder of a long, fiber optic cable with
excellent performance and temperature tensile properties. |
|
2.Core cable filled ointment to ensure that the
vertical water blocking effect. |
|
3.Loose-tube (filled with rope) to strengthen the
focus on the central pieces of SZ-cutter. |
|
4.Double coated strip tide, and has lateral
pressure. |
