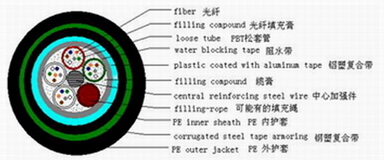

Structure: For the strengthening of the middle
wire, PBT fiber-circular casing around package, the cable core
filled ointment, with water blocking the packet, aluminum-plastic
composites with wrinkles Armored increase in the PE sheath,
outsourcing steel-plastic composite armor with wrinkles equipment,
and PE jacket. |
|
(The main mechanical properties) |
|
Fiber count |
Fiber core (Unit) |
Fiber number of core (Max) |
Outer diameter (±0.5mm) |
Weigh (Kg/Km) |
Minimum tensile strength (N) |
Crushing (Min) (N/100mm) |
|
GYTA53 2-36 (core) |
2-36 |
6 |
6 |
14 |
210 |
1000/3000 |
1000/3000 |
|
GYTA53 38-72 (core) |
38-72 |
6 |
12 |
15.7 |
250 |
1000/3000 |
1000/3000 |
|
GYTA53 74-96 (core) |
74-96 |
8 |
12 |
17.4 |
290 |
1000/3000 |
1000/3000 |
|
GYTA53 98-120 (core) |
98-120 |
10 |
12 |
19 |
345 |
1000/3000 |
1000/3000 |
|
GYTA53 122-144 (core) |
122-144 |
12 |
12 |
20 |
420 |
1000/3000 |
1000/3000 |
|
GYTA53 146-216 (core) |
146-216 |
18 |
12 |
20 |
428 |
1000/3000 |
1000/3000 |
|
(Laying mode): (Direct burial) |
|
(operating temperature): -40℃～+60℃ |
|
Application: Long distance and interoffice
communication |
|
(Features): |
1.Reasonable design and precise control over the
loose-tube fiber in the remainder of a long, fiber optic cable with
excellent performance and temperature tensile properties. |
|
2.Core cable filled ointment to ensure that the
vertical water blocking effect. |
|
3.Loose pieces of casing around the center of the
SZ-cutter. |
|
4.Double tidal sheath structure, improve the
cable-side pressure, impact resistance. |
