Inductive proximity switch page1 page2 page3 page4 page5 page6

Structural category				Angular column type
				LMF10	LMF12	LMF13	LMF15	LMF16
Outward appearance illustration

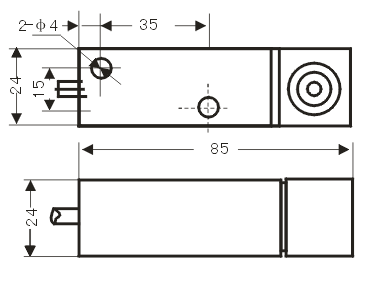

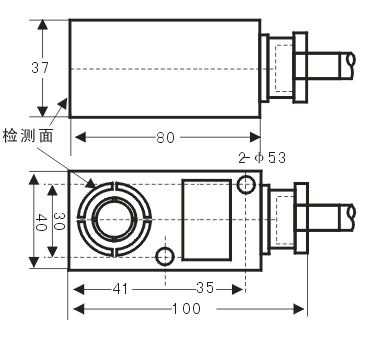

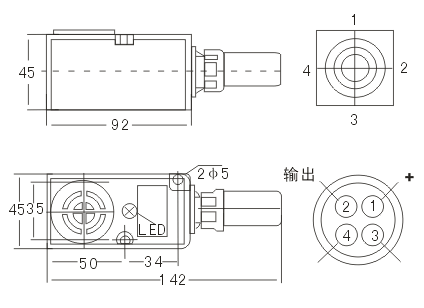

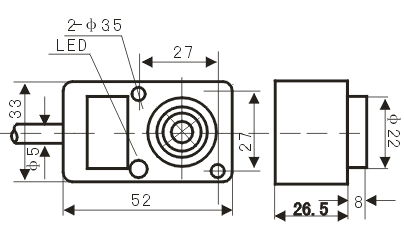

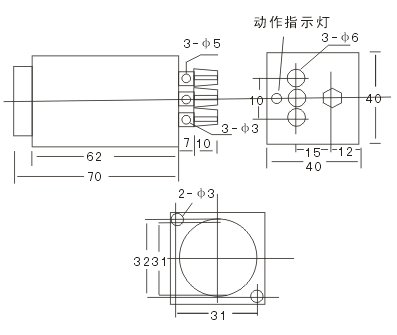

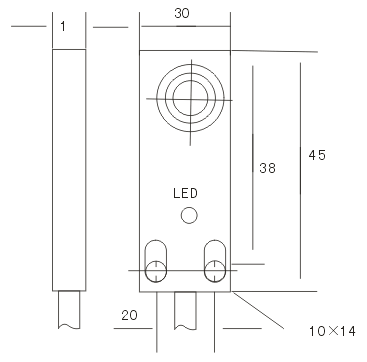

Overall dimensions
Flush	Detection distance			15mm			2mm
	DC 6~ 36 VDC	NPN	NO	LMF10-3015NA			LMF15-3002NA
			NC	LMF10-3015NB			LMF15-3002NB
			NO+NC	LMF10-3015NC			LMF15-3002NC
		PNP	NO	LMF10-3015PA			LMF15-3002PA
			NC	LMF10-3015PB			LMF15-3002PB
			NO+NC	LMF10-3015PC			LMF15-3002PC
		two wire system	NO	LMF10-3015LA			LMF15-3002LA
		two wire system	NC	LMF10-3015LB			LMF15-3002LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO	LMF10-2015A			LMF15-2002A
			NC	LMF10-2015B			LMF15-2002B
			NO+NC	LMF10-2015C			LMF15-2002C
		Relay output
N0n-flush	Detection distance			20mm	8mm	8mm	4mm	15mm
	DC 6~ 36 VDC	NPN	NO	LMF10-3020NA	LMF12-3008NA	LMF13-3008NA	LMF15-3004NA	LMF16-3015NA
			NC	LMF10-3020NB	LMF12-3008NB	LMF13-3008NB	LMF15-3004NB	LMF16-3015NB
			NO+NC	LMF10-3020NC	LMF12-3008NC	LMF13-3008NC	LMF15-3004NC	LMF16-3015NC
		PNP	NO	LMF10-3020PA	LMF12-3008PA	LMF13-3008PA	LMF15-3004PA	LMF16-3015PA
			NC	LMF10-3020PB	LMF12-3008PB	LMF13-3008PB	LMF15-3004PB	LMF16-3015PB
			NO+NC	LMF10-3020PC	LMF12-3008PC	LMF13-3008PC	LMF15-3004PC	LMF16-3015PC
		two wire system	NO	LMF10-3020LA	LMF12-3008LA	LMF13-3008LA	LMF15-3004LA	LMF16-3015LA
		two wire system	NC	LMF10-3020LB	LMF12-3008LB	LMF13-3008LB	LMF15-3004LB	LMF16-3015LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO	LMF10-2020A	LMF12-2008A	LMF13-2008A	LMF15-2004A	LMF16-2015A
			NC	LMF10-2020B	LMF12-2008B	LMF13-2008B	LMF15-2004B	LMF16-2015B
			NO+NC	LMF10-2020C	LMF12-2008C	LMF13-2008C		LMF16-2015C
		Relay output						LMF16-2015JC
Control output		DC		300mA	300mA	300mA	200mA	300mA
Control output		SCR Relay		500mA	500mA	500mA	300mA/1A	500mA/2A
Output voltage dropDC/AC				DC < 3V、AC < 10V
Consumption current				DC < 15mA、AC < 10mA
Standard detected object				45×45×1(A3 iron)	25×25×1(A3 iron)	25×25×1(A3 iron)	15×15×F(A3 iron)	45×45×F(A3 iron)
Repeated precision				0.05	0.04	0.04	0.02	0.05
DC/AC Response frequency				100Hz/25Hz　　　　　　　　　　　　　　　　　　200Hz/25Hz				100Hz/25Hz
Working environment temperature				-25℃ ~+70℃
Insulation resistance				50MΩ
Shell material				ABC Resin
Protection grade				IP67
Alternative model at home and abroad				TL-N20M□	LJ1A-24	LJD-□□	ST-F-□	LJ2-□□/□□□

Structural category				Angular column type
Outward appearance code				LMF17	LMF22	LMF29	LMF35
Outward appearance illustration

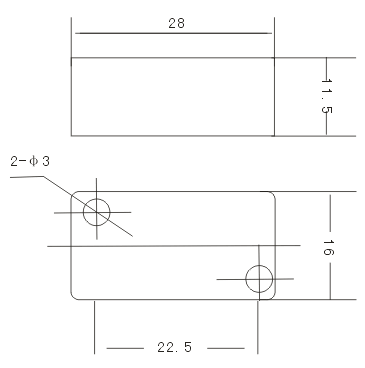

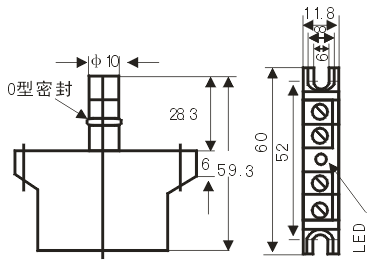

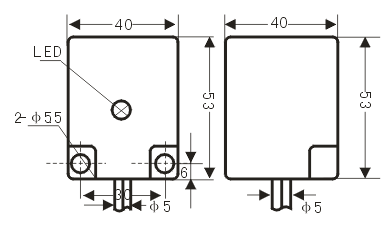

Overall dimensions
Flush	Detection distance				2mm	5mm
	DC 6~ 36 VDC	NPN	NO		LMF22-3002NA	LMF29-3005NA
			NC		LMF22-3002NB	LMF29-3005NB
			NO+NC		LMF22-3002NC	LMF29-3005NC
		PNP	NO		LMF22-3002PA	LMF29-3005PA
			NC		LMF22-3002PB	LMF29-3005PB
			NO+NC		LMF22-3002PC	LMF29-3005PC
		two wire system	NO		LMF22-3002LA	LMF29-3005LA
		two wire system	NC		LMF22-3002LB	LMF29-3005LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO		LMF22-3002A	LMF29-3005A
			NC		LMF22-3002B	LMF29-3005B
			NO+NC
		Relay output
N0n-flush	Detection distance			20mm	4mm	8mm	15mm
	DC 6~ 36 VDC	NPN	NO	LMF17-3020NA	LMF22-3004NA	LMF29-3008NA	LMF35-3015NA
			NC	LMF17-3020NB	LMF22-3004NB	LMF29-3008NB	LMF35-3015NB
			NO+NC	LMF17-3020NC		LMF29-3008NC	LMF35-3015NC
		PNP	NO	LMF17-3020PA	LMF22-3004PA	LMF29-3008PA	LMF35-3015PA
			NC	LMF17-3020PB	LMF22-3004PB	LMF29-3008PB	LMF35-3015PB
			NO+NC	LMF17-3020PC		LMF29-3008PC	LMF35-3015PC
		two wire system	NO	LMF17-3020LA	LMF22-3004LA	LMF29-3008LA	LMF35-3015LA
		two wire system	NC	LMF17-3020LB	LMF22-3004LB	LMF29-3008LB	LMF35-3015LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO	LMF17-2020A			LMF35-2015A
			NC	LMF17-2020B			LMF35-2015B
			NO+NC	LMF17-2020C			LMF35-2015C
		Relay output		LMF17-2020JC
Control output		DC		200mA	200mA	200mA	200mA
Control output		SCR Relay		300mA
Output voltage dropDC/AC				DC < 3V、AC < 10V
Consumption current				DC < 15mA、AC < 10mA
Standard detected object				50×50×1(A3 铁 iron)	15×15×1(A3 铁 iron)	25×25×1(A3 铁 iron)	40×40×1(A3 铁 iron)
Repeated precision				0.05	0.01	0.02	0.05
DC/AC Response frequency				200Hz/25Hz	300Hz	300Hz	200Hz/25Hz
Working environment temperature				-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃
Insulation resistance				≥50MΩ	≥50MΩ	≥50MΩ	≥50MΩ
Shell material				ABS Resin	ABS Resin	ABS Resin	ABS Resinl
Protection grade				IP67	IP67	IP67	IP65
Alternative model at home and abroad							JDK-1.2□
