Structural category
Cylinder type
Outward appearance code
LM18
LM22
LM24
LM30
LM20

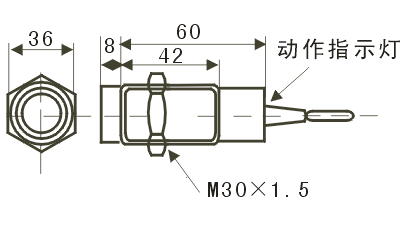

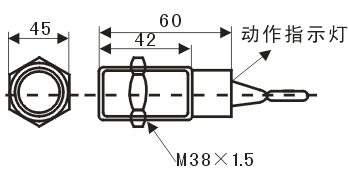

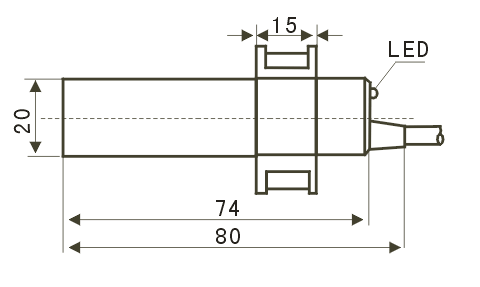

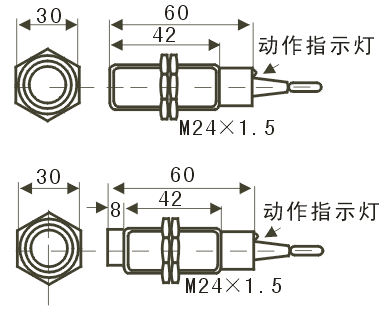

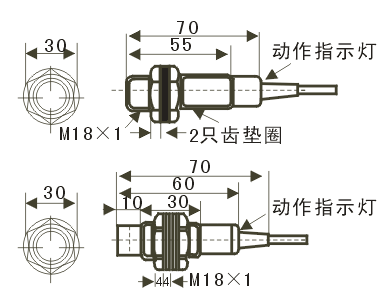

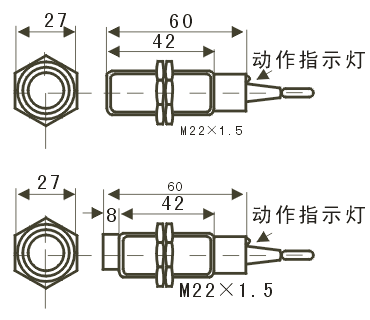

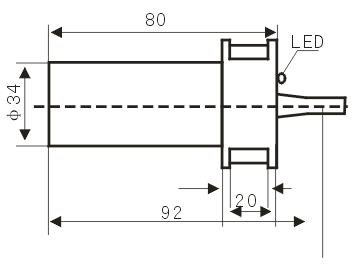

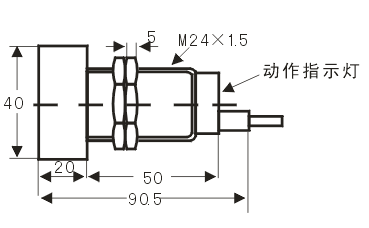

Outward appearance illustration
Overall dimensions
Flush
Detection distance
5mm
7mm
8mm
10mm
DC
6~
36
VDC
NPN
NO
LM18-3005NA
LM22-3007NA
LM24-3008NA
LM30-3010NA
NC
LM18-3005NB
LM22-3007NB
LM24-3008NB
LM30-3010NB
NO+NC
LM18-3005NC
LM22-3007NC
LM24-3008NC
LM30-3010NC
PNP
NO
LM18-3005PA
LM22-3007PA
LM24-3008PA
LM30-3010PA
NC
LM18-3005PB
LM22-3007PB
LM24-3008PB
LM30-3010PB
NO+NC
LM18-3005PC
LM22-3007PC
LM24-3008PC
LM30-3010PC
two wire
system
﹛
NO
LM18-3005LA
LM22-3007LA
LM24-3008LA
LM30-3010LA
NC
LM18-3005LB
LM22-3007LB
LM24-3008LB
LM30-3010LB
AC
90~
250
VAC
SCR
Control-
lable
silicon
NO
LM18-2005A
LM22-2007A
LM24-2008A
LM30-2010A
NC
LM18-2005B
LM22-2007B
LM24-2008B
LM30-2010B
NO+NC
LM18-2005C
LM22-2007C
LM24-2008C
LM30-2010C
Relay output
﹛
﹛
﹛
﹛
N0n-flush
Detection distance
8mm
10mm
10mm
15mm
10mm
DC
6~
36
VDC
NPN
NO
LM18-3008NA
LM22-3010NA
LM24-3010NA
LM30-3015NA
LM20-3010NA
NC
LM18-3008NB
LM22-3010NB
LM24-3010NB
LM30-3015NB
LM20-3010NB
NO+NC
LM18-3008NC
LM22-3010NC
LM24-3010NC
LM30-3015NC
LM20-3010NC
PNP
NO
LM18-3008PA
LM22-3010PA
LM24-3010PA
LM30-3015PA
LM20-3010PA
NC
LM18-3008PB
LM22-3010PB
LM24-3010PB
LM30-3015PB
LM20-3010PB
NO+NC
LM18-3008PC
LM22-3010PC
LM24-3010PC
LM30-3015PC
LM20-3010PC
two wire
system
﹛
NO
LM18-3008LA
LM22-3010LA
LM24-3010LA
LM30-3015LA
LM20-3010LA
NC
LM18-3008LB
LM22-3010LB
LM24-3010LB
LM30-3015LB
LM20-3010LB
AC
90~
250
VAC
SCR
Control-
lable
silicon
NO
LM18-2008A
LM22-2010A
LM24-2010A
LM30-2015A
LM20-2010A
NC
LM18-2008B
LM22-2010B
LM24-2010B
LM30-2015B
LM20-2010B
NO+NC
LM18-2008C
LM22-2010C
LM24-2010C
LM30-2015C
LM20-2010C
Relay output
﹛
﹛
﹛
﹛
Control
output
DC
200mA
200mA
200mA
200mA
200mA
SCR Relay
300mA
300mA
300mA
300mA/1A
300mA/1A
Output voltage dropDC/AC
DC < 3V﹜AC < 10V
Consumption current
DC < 15mA﹜AC < 10mA
Standard detected object
18℅18℅1(A3 iron)
22℅22℅1(A3 iron)
24℅24℅1(A3 iron)
30℅30℅1(A3 iron)
20℅20℅1(A3 iron)
Repeated precision
0.02
0.05
0.05
0.05
0.05
DC/AC Response frequency
200Hz/25Hz
200Hz/25Hz
200Hz/25Hz
100Hz/25Hz
200Hz/25Hz
Working environment temperature
-25⊥ ~+75⊥
-25⊥ ~+75⊥
-25⊥ ~+75⊥
-25⊥ ~+75⊥
-25⊥ ~+75⊥
Insulation resistance
50M次
50M次
50M次
50M次
50M次
Shell material
Metal
Metal
Metal
Metal
ABS Resin
Protection grade
IP67
IP67
IP67
IP67
IP67
Alternative model at home and abroad
LJ18A4-8-↓↓
LJ22A↓-↓-↓↓
LJ24A4-10-↓↓
E2E-X18M↓
