Structural category

Photoelectric switch

Outward appearance code

G66

G73

G115

G180

Outward appearance illustration

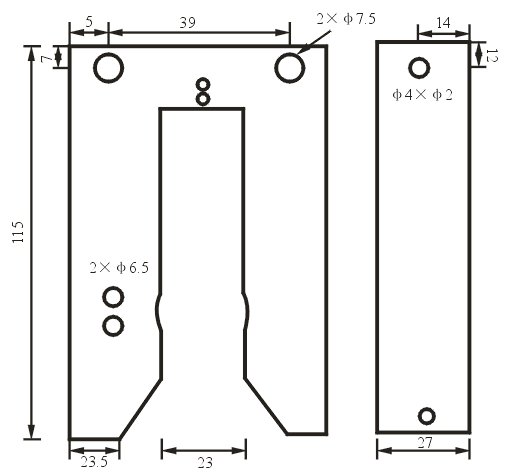

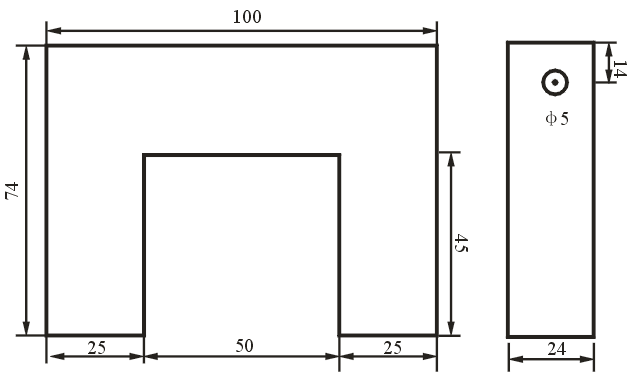

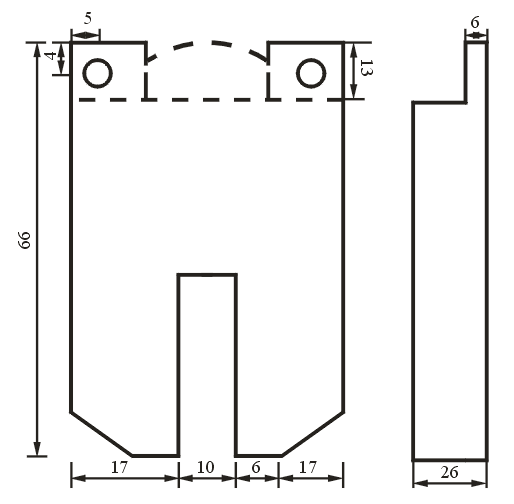

Overall dimensions







Diffuse type

Detection distance







10cm


10-
30
VDC


NPN

NO







G180-3A10NA

NC







G180-3A10NB

NO+NC







G180-3A10NC


PNP

NO







G180-3A10PA

NC







G180-3A10PB

NO+NC







G180-3A10PC


90~
250
VAC

SCR
Control-
label
silicon

NO







G180-2A10LA

NC







G180-2A10LB

Relay output















Retroreflective

type

Detection distance







2m


10-
30
VDC


NPN

NO







G180-3B2NA

NC







G180-3B2NB

NO+NC







G180-3B2NC


PNP

NO







G180-3B2PA

NC







G180-3B2PB

NO+NC







G180-3B2PC


90~
250
VAC

SCR
Control-
label
silicon

NO







G180-2B2LA

NC







G180-2B2LB

Relay output















Through-beam type

Detection distance

1.1cm

5cm

2.6cm

5m


DC
6~
36
VDC

NPN

NO

G66-3E01NA

G73-3E05NA

G115-3E03NA

G180-3C5NA

NC

G66-3E01NB

G73-3E05NB

G115-3E03NB

G180-3C5NB

NO+NC

G66-3E01NC

G73-3E05NC

G115-3E03NC

G180-3C5NC

PNP

NO

G66-3E01PA

G73-3E05PA

G115-3E03PA

G180-3C5PA

NC

G66-3E01PB

G73-3E05PB

G115-3E03PB

G180-3C5PB

NO+NC

G66-3E01PC

G73-3E05PC

G115-3E03PC

G180-3C5PC


AC
90~
250
VAC

SCR
Control-
label
silicon

NO



G73-2E05LA

G115-2E03LA

G180-2C5LA

NC



G73-2E05LB

G115-2E03LB

G180-2C5LB

Relay output



G73-2E05JC

G115-2E03JC



Control output

DC£º2000mA¡¢AC:300mA

Consumption current

DC:£¼15mA¡¢ AC:£¼10mA

DC/AC Response time

DC£¼2mS¡¢ AC:£¼20mS

Directional angle

3¡ã-10¡ã

Detected object

transparent or opaque body

Working environment temperature

-25¡æ~+55¡æ

Intensity of illumination of working environment

Sunlight under 10000LX incandescent lamp under 3000LX

Shell material

Metal

Metal

Metal

Metal

Protection grade

IP60

IP60

IP60

IP60

¡¡

Structural category

Photoelectric switch commonly used in package and textile machinery

Outward appearance code

¡¡

¡¡ ¡¡

Outward appearance illustration

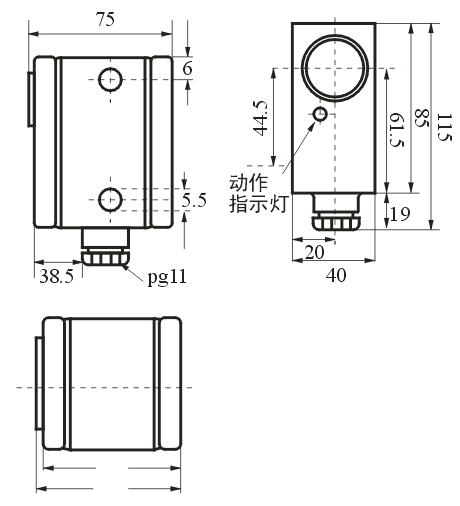

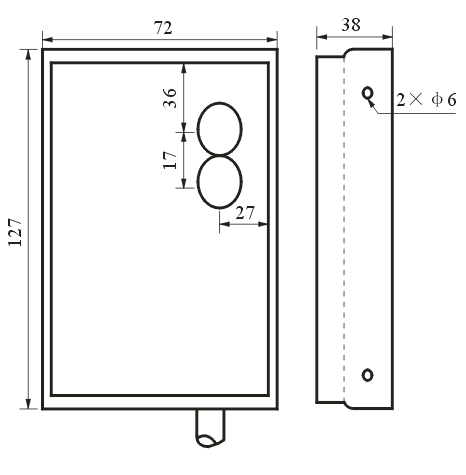

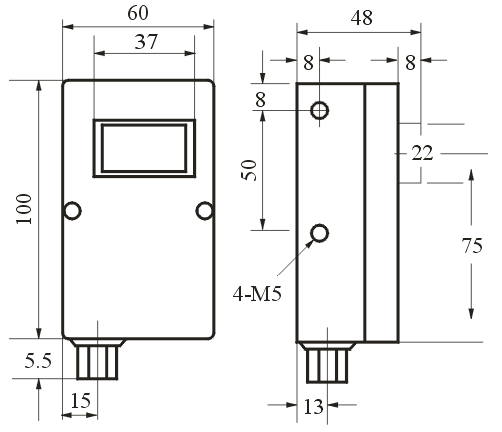

Overall dimensions

Working voltage

AC220V/110V

AC220V

AC220V

Consumption power

3W

Detection distance

500mm.1m.5m

500mm.3m.5m

70cm

Detectable object

opaque body and semitransparent body

Delayed time

1-10S



Control output

AC220V 2A

Intensity of illumination of working environment

Sunlight under 10000LX incandescent lamp under 3000LX

Working environment temperature

while working -15~+55¡æ£¬ while storing£º-25~+70¡æ

Protection grade

IEC standard IP65

Model available

GDN16-CF500W
GDN16-CF1W

GDN15-CT5(10)W
GDN15-CQ3W
GDN15-CF500W

YT523B

Applicable range


Applicable for position detection and
level control, and replaceable for
Model YT523 product in textile
mechanical industry and tobacco
cutter automatic line


This infrared ray diffused type photoelectric switch can take the place
of outdated mercury switch. It can be used together with various unmixed
waste cotton openers to continuously check and automatically control the
cotton height inside the cotton case. In addition, it applies to other automatic
control system at similar occasions and conducts various position detections.
