Structural category
Photoelectric switch
Outward appearance code
G90
G100
G110
G139
Outward appearance illustration

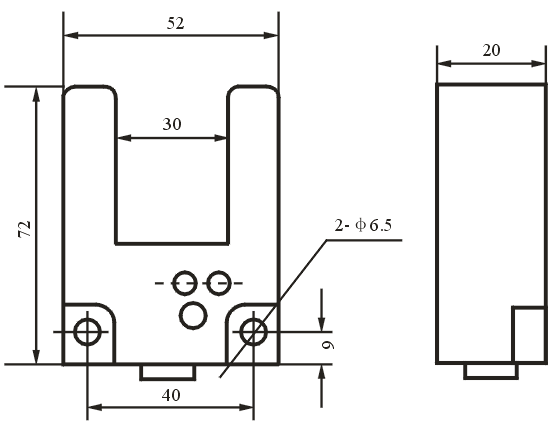

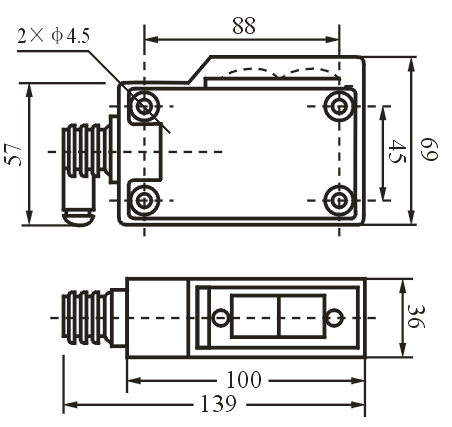

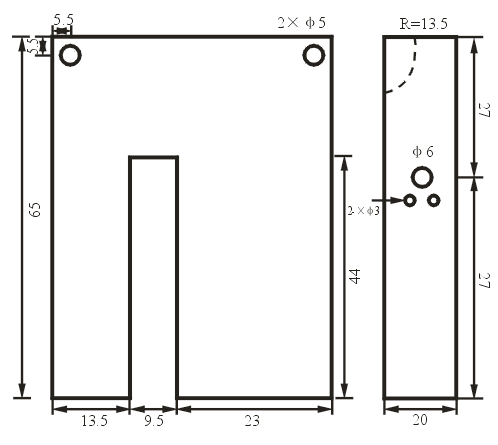

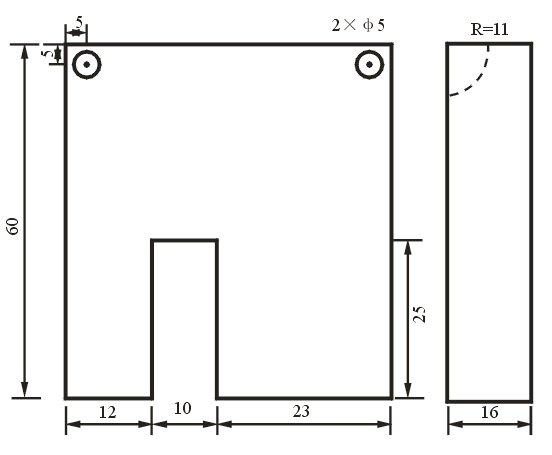

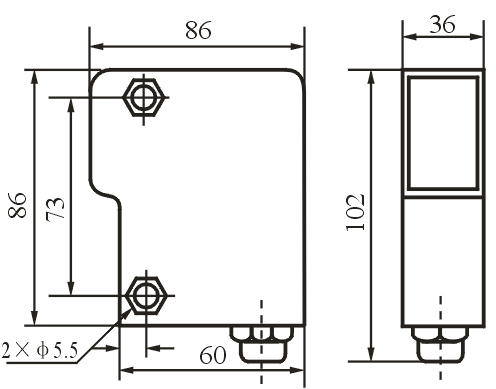

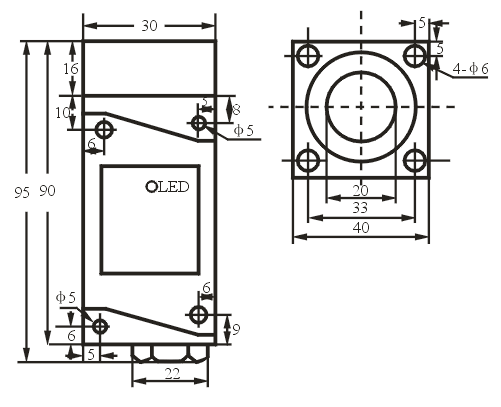

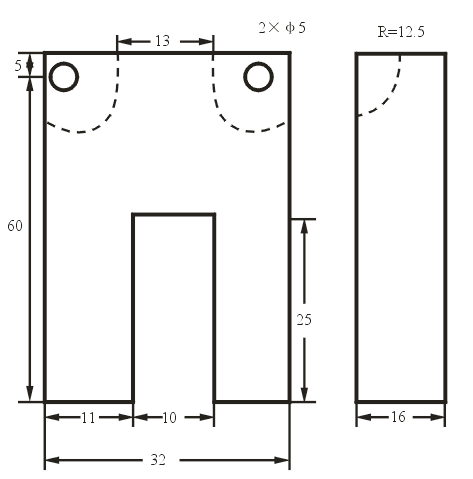

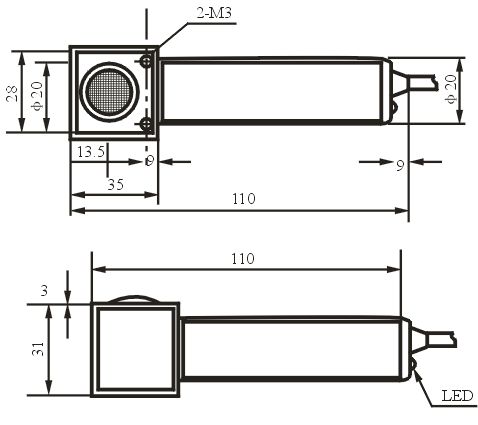

Overall dimensions
Diffuse type
Detection distance
70cm
1m
1m
10-
30
VDC
NPN
NO
G90-3A70NA
G100-3A1NA
G139-3A1NA
NC
G90-3A70NB
G100-3A1NB
G139-3A1NB
NO+NC
G90-3A70NC
G100-3A1NC
G139-3A1NC
PNP
NO
G90-3A70PA
G100-3A1PA
G139-3A1PA
NC
G90-3A70PB
G100-3A1PB
G139-3A1PB
NO+NC
G90-3A70PC
G100-3A1PC
G139-3A1PC
90~
250
VAC
SCR
Control-
label
silicon
NO
G90-2A70LA
G100-3A1LA
G139-2A1LA
NC
G90-2A70LB
G100-3A1LB
G139-2A1LB
Relay output
G90-2A70JC
G100-3A1JC
G139-2A1JC
Retroreflective
type
Detection distance
5m
5m
5m
10-
30
VDC
NPN
NO
G90-3B5NA
G100-3B5NA
G139-3B5NA
NC
G90-3B5NB
G100-3B5NB
G139-3B5NB
NO+NC
G90-3B5NC
G100-3B5NC
G139-3B5NC
PNP
NO
G90-3B5PA
G100-3B5PA
G139-3B5PA
NC
G90-3B5PB
G100-3B5PB
G139-3B5PB
NO+NC
G90-3B5PC
G100-3B5PC
G139-3B5PC
90~
250
VAC
SCR
Control-
label
silicon
NO
G90-2B5LA
G100-2B5LA
G139-2B5LA
NC
G90-2B5LB
G100-2B5LB
G139-2B5LB
Relay output
G90-2B5JC
G100-2B5JC
G139-2B5JC
Through-beam type
Detection distance
10m
10m
5m
10m
DC
6~
36
VDC
NPN
NO
G90-3C101NA
G100-3C101NA
G110-3C5NA
G139-3C101NA
NC
G90-3C101NB
G100-3C101NB
G110-3C5NB
G139-3C101NB
NO+NC
G90-3C101NC
G100-3C101NC
G110-3C5NC
G139-3C101NC
PNP
NO
G90-3C101PA
G100-3C101PA
G110-3C5PA
G139-3C101PA
NC
G90-3C101PB
G100-3C101PB
G110-3C5PB
G139-3C101PB
NO+NC
G90-3C101PC
G100-3C101PC
G110-3C5PC
G139-3C101PC
AC
90~
250
VAC
SCR
Control-
label
silicon
NO
G90-2C101LA
G100-2C101LA
G110-2C5LA
G139-2C101LA
NC
G90-2C101LB
G100-2C101LB
G110-2C5LB
G139-2C101LB
Relay output
G90-2C101LC
G100-2C101JC
G139-2C101JC
output
DC£º2000mA¡¢AC:300mA¡¢relay:2A
Consumption current
DC:£¼15mA¡¢ AC:£¼10mA
DC/AC Response time
DC£¼2mS
Directional angle
3¡ã-10¡ã
Detected object
transparent or opaque body
Working environment temperature
-25¡æ~+55¡æ
Intensity of illumination of working environment
Sunlight under 10000LX incandescent lamp under 3000LX
Shell material
Metal
Metal
Metal
Metal
Protection grade
IP54
IP54
Ip66
IP54
