Structural category
Photoelectric switch
Outward appearance code
G74
G75
G76
G77

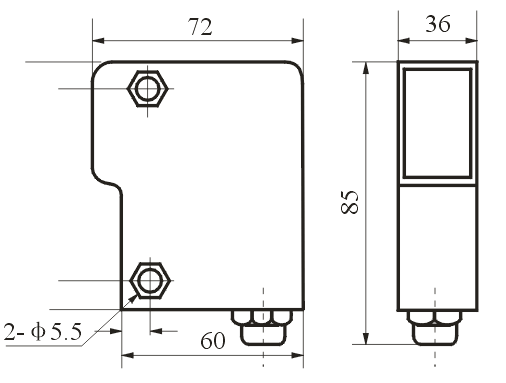

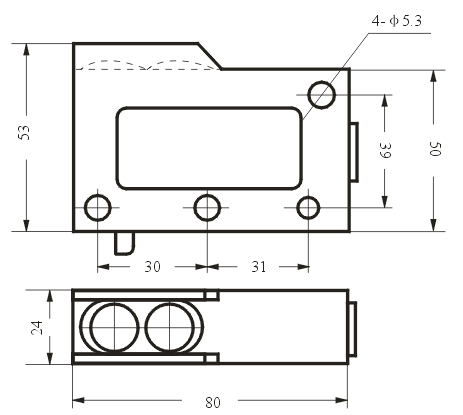

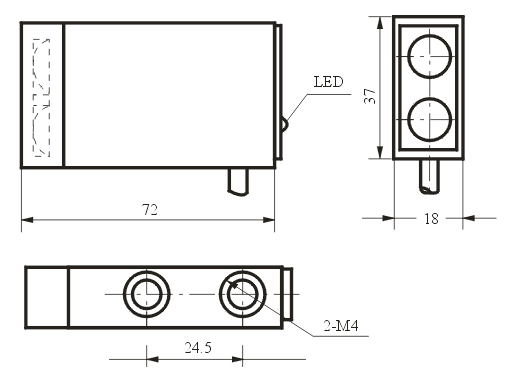

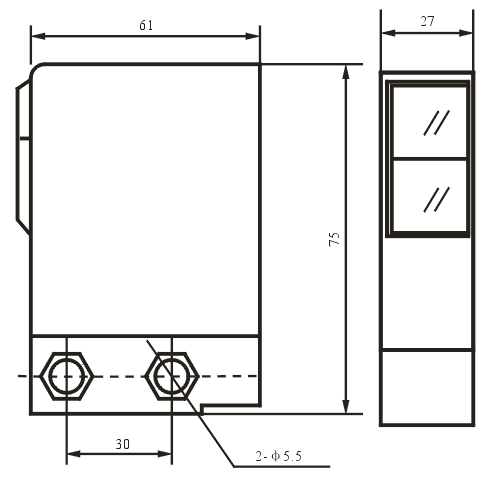

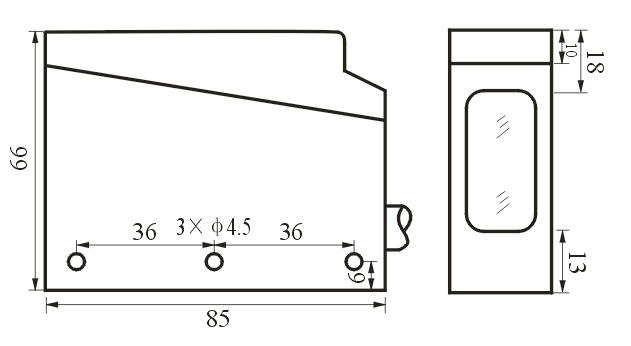

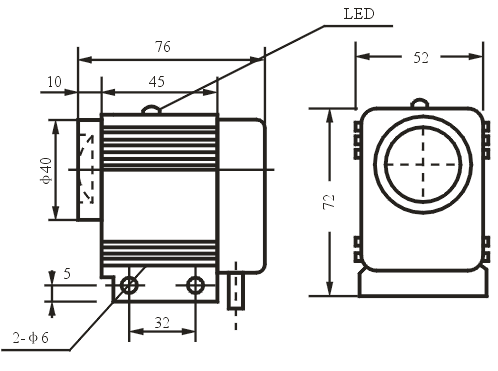

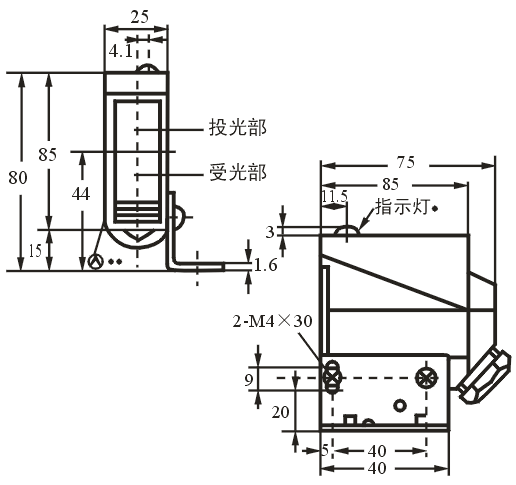

Outward appearance illustration
Overall dimensions
Diffuse type
Detection distance
70cm
80cm
30cm
10-
30
VDC
NPN
NO
G74-3A70NA
E75-3A80NA
G77-3A30NA
NC
G74-3A70NB
E75-3A80NB
G77-3A30NB
NO+NC
G74-3A70NC
E75-3A80NC
G77-3A30NC
PNP
NO
G74-3A70PA
E75-3A80PA
G77-3A30PA
NC
G74-3A70PB
E75-3A80PB
G77-3A30PB
NO+NC
G74-3A70PC
E75-3A80PC
G77-3A30PC
90~
250
VAC
SCR
Control-
label
silicon
NO
G74-2A70LA
E75-2A80LA
G77-2A30LA
NC
G74-2A70LB
E75-2A80LB
G77-2A30LB
Relay output
G74-2A70JC
E75-2A80JC
G77-2A30JC
Retroreflective
type
Detection distance
4m
3m
3m
10-
30
VDC
NPN
NO
G74-3B4NA
E75-3B3NA
G77-3B3NA
NC
G74-3B4NB
E75-3B3NB
G77-3B3NB
NO+NC
G74-3B4NC
E75-3B3NC
G77-3B3NC
PNP
NO
G74-3B4PA
E75-3B3PA
G77-3B3PA
NC
G74-3B4PB
E75-3B3PB
G77-3B3PB
NO+NC
G74-3B4PC
E75-3B3PC
G77-3B3PC
90~
250
VAC
SCR
Control-
label
silicon
NO
G74-2B4LA
E75-2B3LA
G77-2B3LA
NC
G74-2B4LB
E75-2B3LB
G77-2B3LB
Relay output
G74-2B4JC
E75-2B3JC
G77-2B3JC
Through-beam type
Detection distance
8m
8m
10m - 20m
5m
DC
6~
36
VDC
NPN
NO
G74-3C8NA
G75-3C8NA
G76-3C101NA
G77-3C5NA
NC
G74-3C8NB
G75-3C8NB
G76-3C101NB
G77-3C5NB
NO+NC
G74-3C8NC
G75-3C8NC
G76-3C101NC
G77-3C5NC
PNP
NO
G74-3C8PA
G75-3C8PA
G76-3C101PA
G77-3C5PA
NC
G74-3C8PB
G75-3C8PB
G76-3C101PB
G77-3C5PB
NO+NC
G74-3C8PC
G75-3C8PC
G76-3C101PC
G77-3C5PC
AC
90~
250
VAC
SCR
Control-
label
silicon
NO
G74-2C8LA
G75-2C8LA
G76-2C101LA
G77-2C5LA
NC
G74-2C8LB
G75-2C8LB
G76-2C101LB
G77-2C5LB
Relay output
G74-2C8JC
G75-2C8JC
G76-2C101JC
G77-2C5JC
Control output
DC£º2000mA¡¢AC:300mA¡¢relay:2A
Consumption current
DC:£¼15mA¡¢ AC:£¼10mA
DC/AC Response time
DC£¼2mS
Directional angle
3¡ã-10¡ã
Detected object
transparent or opaque body
Working environment temperature
-25¡æ~+55¡æ
Intensity of illumination of working environment
Sunlight under 10000LX incandescent lamp under 3000LX
Shell material
Plastic
Metal
Plastic
Plastic
Protection grade
IP54
IP54
IP54
IP54
