SRT10A |
SRT10A Modern Pocket-Size Digital
Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/300V |
㊣(0.8%+1) |
|
AC Voltage |
4V/40V/300V |
㊣(1.2%+3) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(1%+2) |
|
Capacitance |
4nF/40nF/400nF/4µF/40µF/200µF |
㊣(4%+3) |
|
Frequency |
10Hz/100kHz |
㊣(0.5%+3) |
|
Special Functions |
|
|
|
Auto Ranging
|
|
Yes |
|
Duty Cycle
|
0.1%~99.9% |
Yes |
|
Diode |
|
Yes |
|
Continuity Buzzer
|
|
Yes |
|
Relative Mode
|
|
Yes |
|
Data Hold
|
|
Yes |
|
Full Icon Display |
|
Yes |
|
Sleep Mode
|
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for
DC Voltage Measurement |
Around 10M次
﹛ |
Yes |
|
Max. Display
|
3999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
3V Button Battery (CR2032) |
|
LCD Size |
43 x 22mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
62g |
|
Product Size |
58 x 108 x 12mm |
|
Standard Accessories |
Test Lead, Battery, English
Manual, Vinyl Holder |
|
Standard Individual Packing |
Blister |
|
Standard Quantity Per Carton |
90pcs |
|
Standard Carton Measurement |
528 x 323 x 400mm
(0.068CBM Per Export Carton) |
|
Standard Carton Gross Weight |
12kg |
|
|
SRT12A |
SRT12A
Non-Contact AC Voltage Detectors
SPECIFICATIONS
|
Functions / Features |
SRT12A
|
|
Voltage Sensitivity |
90 ~ 1000VAC |
|
Bandwidth |
50/60Hz |
|
Normal Indicators |
Beep and flashing LED indicate the
presence of voltage |
|
Battery Indication |
The LED will not flash if the battery is
less than 2V. The beep sounds will still
have but may be weaker. |
|
Silent Indicators |
LED flashing only, it could save battery |
|
Auto Power Off |
Around 30 minutes |
|
NCV Detection By |
Hold-on to On/Off Button |
GENERAL CHARACTERISTICS
|
Power |
1.5V Battery (AAA) x 2 |
|
Product Color |
Red and Grey |
|
Product Net Weight |
49g |
|
Product Size |
150 x 109mm |
|
Standard Accessories |
Batteries, English Manual |
|
Standard Individual Packing |
Blister |
|
Standard Quantity Per Carton |
100 pcs |
|
Standard Carton Measurement |
485 x 255 x 470mm
(0.058 CBM Per
Standard Carton) |
|
Standard Carton Gross Weight |
13kg |
|
|
SRT12B |
SRT12B
Non-Contact AC Voltage Detectors
SPECIFICATIONS
|
Functions / Features |
SRT12B |
|
Voltage Sensitivity |
90 ~ 1000VAC |
|
Bandwidth |
50/60Hz |
|
Normal Indicators |
Beep and flashing LED indicate the presence of voltage
(Beep
Indicators: cancelable) |
|
Battery Indication |
The LED will not flash if the battery is less than 2V. The beep
sounds will still have but may be weaker. |
|
Silent Indicators |
LED flashing only, it could save battery |
|
Auto Power Off |
Around 3 minutes |
|
NCV Detection By |
Auto Sense |
GENERAL CHARACTERISTICS
|
Power |
1.5V Battery (AAA) x 2 |
|
Product Color |
Red and Grey |
|
Product Net Weight |
49g |
|
Product Size |
150 x 109mm |
|
Standard Accessories |
Batteries, English Manual |
|
Standard Individual Packing |
Blister |
|
Standard Quantity Per Carton |
100 pcs |
|
Standard Carton Measurement |
485 x 255 x 470mm
(0.058 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
13kg |
|
|

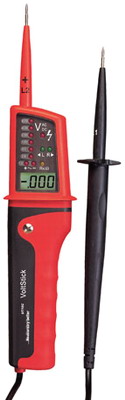

SRT15C
|
SRT15C
Multifunction Voltage Testers
(Waterproof Type)
SPECIFICATIONS
|
Functions/ Features |
SRT15C
|
|
Voltage LED Steps (AC/D) |
12V: between 0 to 12V LED will illuminate
24V: between 19V ㊣ 2V LED will illuminate
50V: between 48V ㊣ 6V LED will illuminate
120V: between 110V ㊣ 20V LED will illuminate
230V: between 200V ㊣ 20V LED will illuminate
400V: between 340V ㊣ 30V LED will illuminate
690V: between 520V ㊣ 30V LED will illuminate |
|
Continuity Test |
Range 0 to 100k次. The continuity LED will
illuminate
and buzzer will sound. |
|
Phase Rotation Test |
50Hz to 60Hz |
|
Range Selection |
Automatic |
|
Polarity Detection |
Positive & Negative |
|
Low Battery Display |
Short circuit two leads, LED and beeper do not
on that means
the battery is low |
|
Torch |
Yes |
|
Single Lead (L2) Voltage
Detection |
It is intended only as a quick check. 100V to
690V;
50Hz to 400Hz |
|
Short Circuit Detection |
Yes |
|
LCD display (AC/DC) |
24V to 690V: ㊣(3%+5) |
GENERAL CHARACTERISTICS
|
Power |
1.5V Battery (AAA) x 2 |
|
LCD Size |
23 x 12mm |
|
Product Color |
Red and Grey |
|
Product Net Weight |
210g |
|
Product Size |
275 x 51 x 30mm |
|
Standard Accessories |
Batteries, English Manual |
|
Standard Individual Packing |
Blister |
|
Standard Quantity Per Carton |
30pcs |
|
Standard Carton Measurement |
440 x 295 x 455mm (0.079CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
17kg |
|
|

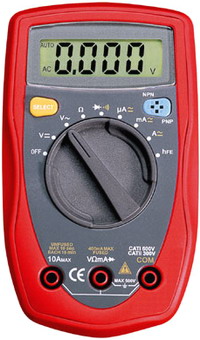

SRT33A |
SRT33A Palm-Size Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/500V |
㊣(0.8%+1) |
|
AC Voltage |
4V/40V/400V/500V |
㊣(1.2%+3) |
|
DC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1%+2) |
|
AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.5%+5) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(1%+2) |
|
Special Functions |
|
|
|
Auto Ranging |
|
Yes |
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Transistor |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for DC
Voltage Measurement |
Around 10M次 |
|
|
Max. Display |
3999 |
|
GENERAL CHARACTERISTICS
|
Power |
1.5V Battery (AAA x 2) |
|
LCD Size |
48 x 16mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
156g |
|
Product Size |
130 x 73.5 x 35mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
60pcs |
|
Standard Carton Measurement |
490 x 356 x 315mm
(Around 0.055 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
18kg |
|
|

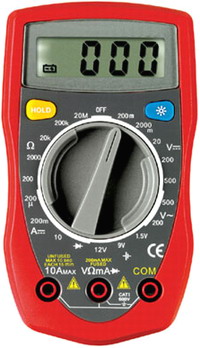

SRT33B |
SRT33B Palm-Size Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2000mV/20V/200V/500V |
㊣(0.5%+2) |
|
AC Voltage |
200V/500V |
㊣(1.2%+10) |
|
DC Current |
200mA/200mA/10A |
㊣(1%+2) |
|
Resistance |
200次/2000次/20k次/200k次/20M次 |
㊣(0.8%+2) |
|
Special Functions |
|
|
|
Battery Test |
1.5V/9V/12V |
㊣(2.5%+2) |
|
Diode |
|
Yes |
|
Data Hold |
|
Yes |
|
Display Backlight |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for DC
Voltage Measurement |
Around 10M次 |
Yes |
|
Max. Display |
1999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
48 x 16mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
156g |
|
Product Size |
130 x 73.5 x 35mm |
|
Standard Accessories |
Test Lead, Battery, English
Manual, Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
60pcs |
|
Standard Carton Measurement |
490 x 356 x 315mm
(Around 0.055 CBM Per Standard
Carton) |
|
Standard Carton Gross Weight |
18kg |
|
|

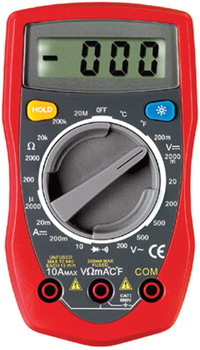

SRT33C |
SRT33C Palm-Size Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2000mV/20V/200V/500V |
㊣(0.5%+2) |
|
AC Voltage |
200V/500V |
㊣(1.2%+10) |
|
DC Current |
2000mA/20mA/200mA/10A |
㊣(1%+2) |
|
Resistance |
200次/2000次/20k次/200k次/20M次 |
㊣(0.8%+2) |
|
Temperature (∼C) |
-40∼C ~ 1000∼C |
㊣(1%+3) |
|
Temperature (∼F) |
-40∼F ~ 1832∼F |
㊣(1%+4) |
|
Special
Functions |
|
|
|
Diode |
|
Yes |
|
Continuity
Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Display
Backlight |
|
Yes |
|
Low Battery
Display |
|
Yes |
|
Input Impedance
for DC
Voltage
Measurement |
Around 10M次 |
Yes |
|
Max. Display |
1999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery
(6F22) |
|
LCD Size |
48 x 16mm |
|
Product Colour |
Red and Grey |
|
Product Net
Weight |
Around 156g |
|
Product Size |
130 x 73.5 x
35mm |
|
Standard
Accessories |
Test Lead,
Battery, English
Manual,
Point Contact
Temperature
Probe, Holster |
|
Standard
Individual
Packing |
Gift Box |
|
Standard
Quantity Per
Carton |
60pcs |
|
Standard Carton
Measurement |
490 x 356 x
315mm
(Around 0.055
CBM Per Standard
Carton) |
|
Standard Carton
Gross Weight |
20kg |
|
|

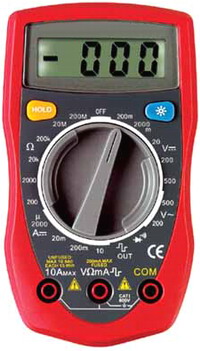

SRT33D |
SRT33D Palm-Size Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2000mV/20V/200V/500V |
㊣(0.5%+2) |
|
AC Voltage |
200V/500V |
㊣(1.2%+10) |
|
DC Current |
2000mA/20mA/200mA/10A |
㊣(1%+2) |
|
Resistance |
200次/2000次/20k次/200k次/20M次/200M次 |
㊣(0.8%+2) |
|
Special Functions |
|
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Square Wave Output |
|
Yes |
|
Data Hold |
|
Yes |
|
Display Backlight |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for DC
Voltage Measurement |
Around 10M次 |
Yes |
|
Max. Display |
1999 |
Yes |
GENERAL
CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
48 x 16mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
156g |
|
Product Size |
130 x 73.5 x 35mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
60pcs |
|
Standard Carton Measurement |
490 x 356 x 315mm
(Around 0.055 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
18kg |
|
|

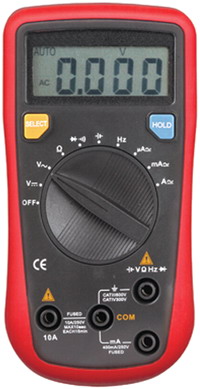

SRT136B |
SRT136B Automatic Range Digital Multimeter
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/500V |
㊣(0.8%+1) |
|
AC Voltage |
400mV/4V/40V/400V/500V |
㊣(1.2%+3) |
|
DC Current |
400uA/4mA/40mA/400mA/4A/10A |
㊣(1.0%+2) |
|
AC Current |
400uA/4mA/40mA/400mA/4A/10A |
㊣(1.2%+5) |
|
Capacitance |
4nF/40nF/400nF/4uF/40uF/100uF |
㊣(4.0%+3) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
㊣(0.5%+3) |
|
Resistance |
400次/4000次/40k次/400k次/4M次/40M次 |
㊣(1.0%+2) |
|
Special Functions |
|
|
|
Duty
Cycle |
0.1%~99.9% |
Yes |
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
﹛ |
|
Auto Power Off |
Yes |
﹛ |
|
Low Battery Display |
Yes |
﹛ |
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Data Hold |
Yes |
﹛ |
|
Max. Display |
3999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
18x49mm |
|
Product Colour |
SRT136B - Grey, Holster - Red |
|
Product Net Weight |
200g (including holster) |
|
Product Size |
72 x 137 x 35mm |
|
Standard Accessories |
Test Lead, Battery, English Manual |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
60 pcs |
|
Standard Carton Measurement |
540 x 310 x 350mm |
|
Standard Carton Gross Weight |
20kg |
|
|

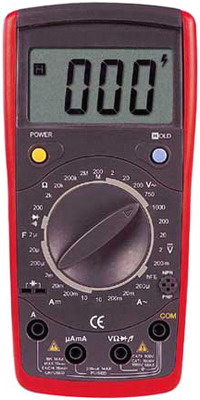

SRT39A |
SRT39A Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
20µA/200µA/2mA/20mA/200mA/10A |
㊣(0.8%+1) |
|
AC Current |
200µA/20mA/200mA/10A |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/200M次 |
㊣(0.8%+1) |
|
Capacitance |
2µF |
㊣(4%+3) |
|
Special Functions |
|
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Transistor |
|
Yes |
|
Data Hold |
|
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for
DC Voltage Measurement |
Around 10M次 |
Yes |
|
Max. Display |
1999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
61 x 32mm |
|
Product Colour |
Grey Holster-Red |
|
Product Net Weight |
310g (Including Holster) |
|
Product Size |
172 x 83 x 38mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
40pcs |
|
Standard Carton Measurement |
598 x 418 x 340mm (0.085CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
21kg |
|
|

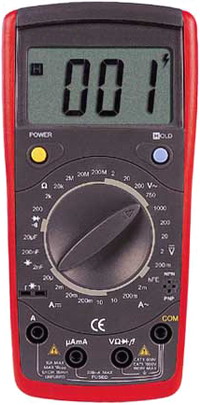

SRT39B |
SRT39B Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
20µA/2mA/20mA/200mA/10A |
㊣(0.8%+1) |
|
AC Current |
2mA/200mA/10A |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Capacitance |
2nF/200nF/20µF |
㊣(4%+3) |
|
Special Functions |
|
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Transistor |
|
Yes |
|
Data Hold |
|
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for
DC Voltage Measurement |
10M次 |
Yes |
|
Max. Display |
1999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
61 x 32mm |
|
Product Colour |
Grey Holster-Red |
|
Product Net Weight |
310g (Including Holster) |
|
Product Size |
172 x 83 x 38mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
40pcs |
|
Standard Carton Measurement |
598 x 418 x 340mm (0.085CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
21kg |
|
|

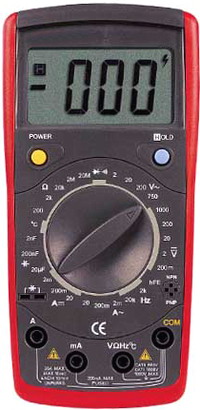

SRT39C |
SRT39C Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
2mA/200mA/20A |
㊣(0.8%+1) |
|
AC Current |
2mA/200mA/20A |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/2M次/20M次 |
㊣(0.8%+10) |
|
Capacitance |
2nF/200nF/20µF |
㊣(4%+3) |
|
Temperature (∼C) |
-40∼C ~ 1000∼C |
㊣(2%+8) |
|
Frequency |
2kHz/20kHz |
㊣(1.5%+5) |
|
Special Functions |
|
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Transistor |
|
Yes |
|
Data Hold |
|
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for
DC Voltage Measurement |
Around 10M次 |
Yes |
|
Max. Display |
|
1999 |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
61 x 32mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
310g (Including Holster) |
|
Product Size |
172 x 83 x 38mm |
|
Standard Accessories |
Test Lead, Battery, English Manual,
Point Contact Temperature Probe, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light , Built-In Test Lead Light , Built-In
Test Lead Light Plus |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
40pcs |
|
Standard Carton Measurement |
598 x 418 x 340mm (0.085 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
22kg |
|
|

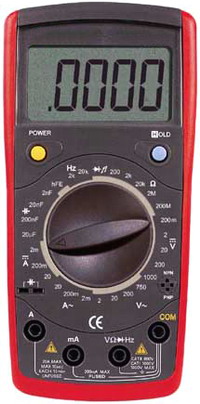

SRT39E |
SRT39E Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.05%+3) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.5%+10) |
|
DC Current |
2mA/200mA/20A |
㊣(0.5%+5) |
|
AC Current |
2mA/200mA/20A |
㊣(0.8%+5) |
|
Resistance |
200次/2k次/20k次/2M次/20M次 |
㊣(0.3%+1) |
|
Capacitance |
2nF/20nF/200nF/20µF |
㊣(4%+3) |
|
Frequency |
2kHz/20kHz |
㊣(1.5%+5) |
|
Special Functions |
|
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Transistor |
|
Yes |
|
Data Hold |
|
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for
DC Voltage Measurement |
Around 10M次 |
Yes |
|
Max. Display |
|
19999 |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
61 x 32mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
310g (Including Holster) |
|
Product Size |
172 x 83 x 38mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
40pcs |
|
Standard Carton Measurement |
598 x 418 x 340mm (0.082CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
22kg |
|
|

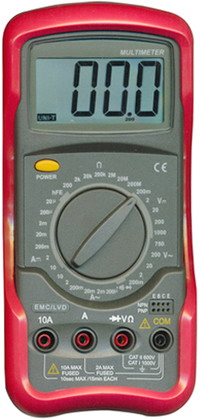

SRT51 |
SRT51 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
200mV/2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
20mA/200mA/2mA/20mA/200mA/2A/10A |
㊣(0.8%+1) |
|
AC Current |
200mA/2mA/20mA/200mA/2A/10A |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Special Functions |
|
|
|
Fused 10A Range |
Yes |
|
|
Transistor |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
1999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT51 - Grey, Holster - Red |
|
Product Net Weight |
560g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light , Built-In
Test Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
17kg |
|
|

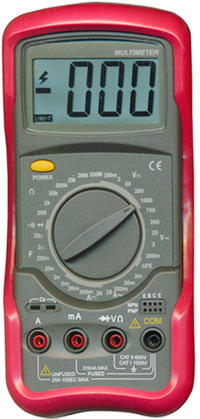

SRT52 |
SRT52 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
200mV/2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
2mA/20mA/200mA/20A |
㊣(0.8%+1) |
|
AC Current |
2mA/20mA/200mA/20A |
㊣(1%+3) |
|
Capacitance |
2nF/20nF/200nF/2mF/20mF |
㊣(4%+3) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Special Functions |
|
|
|
Transistor |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
1999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT52 - Grey, Holster - Red |
|
Product Net Weight |
560g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
17kg |
|
|

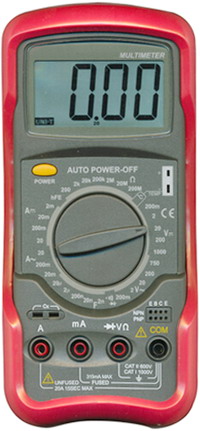

SRT53 |
SRT53 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
200mV/2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
2mA/20mA/200mA/20A |
㊣(0.8%+1) |
|
AC Current |
20mA/200mA/20A |
㊣(1%+3) |
|
Capacitance |
2nF/20nF/200nF/2mF/20mF |
㊣(4%+3) |
|
Temperature (oC) |
-20oC~1000oC |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Special Functions |
|
|
|
Transistor |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
1999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT53 - Grey, Holster - Red |
|
Product Net Weight |
580g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature
Probe, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
17.6kg |
|
|

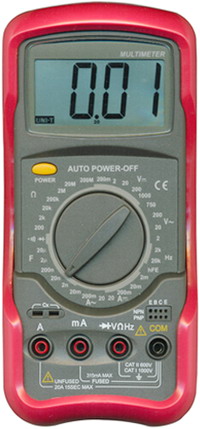

SRT54 |
SRT54 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
2mA/20mA/200mA/20A |
㊣(0.8%+1) |
|
AC Current |
20mA/200mA/20A |
㊣(1%+3) |
|
Capacitance |
2nF/20nF/200nF/2mF/20mF |
㊣(4%+3) |
|
Frequency |
2kHz/20kHz |
㊣(1.5%+5) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Special Functions |
|
|
|
Transistor |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
1999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT54 - Grey, Holster - Red |
|
Product Net Weight |
580g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
17.4kg |
|
|

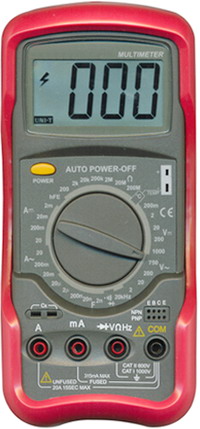

SRT55 |
SRT55 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
2mA/20mA/200mA/20A |
㊣(0.8%+1) |
|
AC Current |
20mA/200mA/20A |
㊣(1%+3) |
|
Capacitance |
2nF/20nF/200nF/2mF/20mF |
㊣(4%+3) |
|
Frequency |
20kHz |
㊣(1.5%+5) |
|
Temperature (oC) |
-20oC~1000oC |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Special Functions |
|
|
|
Transistor |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
1999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT55 - Grey, Holster - Red |
|
Product Net Weight |
580g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature
Probe, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
17.6kg |
|
|

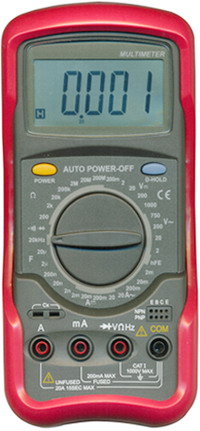

SRT56 |
SRT56 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.05%+3) |
|
AC Voltage |
200mV/2V/20V/200V/750V |
㊣(0.5%+10) |
|
DC Current |
2mA/20mA/200mA/20A |
㊣(0.5%+5) |
|
AC Current |
2mA/200mA/20A |
㊣(0.8%+10) |
|
Capacitance |
20nF/200nF/2mF/20mF |
㊣(4%+20) |
|
Frequency |
20kHz |
㊣(1.5%+5) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.3%+1) |
|
Special Functions |
|
|
|
Transistor |
Yes |
|
|
Diode |
Yes |
|
|
Data Hold |
Yes |
﹛ |
|
Continuity Buzzer |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
19999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT56 - Grey, Holster - Red |
|
Product Net Weight |
540g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature
Probe, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
17.4kg |
|
|

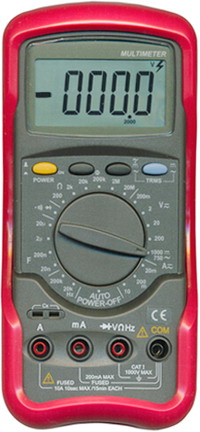

SRT57 |
SRT57 Standard Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.05%+3) |
|
AC Voltage |
200mV/2V/20V/200V/750V |
㊣(0.5%+10) |
|
DC Current |
20mA/200mA/10A |
㊣(0.5%+2) |
|
AC Current |
20mA/200mA/10A |
㊣(1%+20) |
|
Capacitance |
20nF/200nF/2mF/20mF |
㊣(2%+10) |
|
Frequency |
2kHz/20kHz |
㊣(1%+20) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次 |
㊣(0.3%+1) |
|
Special Functions |
|
|
|
Diode |
Yes |
|
|
Fused 10A Range |
Yes |
﹛ |
|
True RMS |
Yes |
﹛ |
|
Data Hold |
Yes |
﹛ |
|
Continuity Buzzer |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
10M次 |
|
|
Max. Display |
19999 |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
33x65mm |
|
Product Colour |
SRT57 - Grey, Holster - Red |
|
Product Net Weight |
540g (including holster) |
|
Product Size |
190 x 88 x 34mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature
Probe, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 362 x 385mm |
|
Standard Carton Gross Weight |
18kg |
|
|

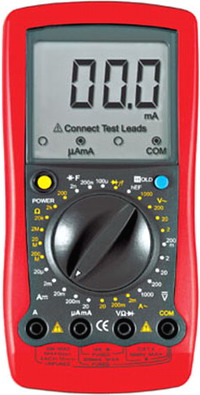

SRT58A |
SRT58A Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
20mA/2mA/20mA/200mA/20A |
㊣(0.8%+1) |
|
AC Current |
2mA/200mA/20A |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/2M次/20M次/200M次 |
㊣(0.8%+1) |
|
Capacitance |
2nF/200nF/100mF |
㊣(4%+3) |
|
Special Functions |
|
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Transistor |
|
Yes |
|
Data Hold |
|
Yes |
|
Full Icon Display |
|
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for DC
Voltage Measurement |
Around 10M次 |
Yes |
|
Max Display |
1999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
60 x 54mm |
|
Product Colour |
SRT58A - Grey, Holster - Red |
|
Product Net Weight |
350g (including holster) |
|
Product Size |
179 x 88 x 39mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Multi-Purpose Socket,
Holster |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
40pcs |
|
Standard Carton Measurement |
598 x 418 x 340mm (0.085 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
27kg |
|
|

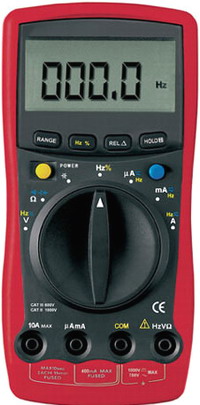

SRT60A-CN |
SRT60A-CN Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.8%+1) |
|
AC Voltage |
4V/40V/400V/750V |
㊣(1%+5) |
|
DC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1%+2) |
|
AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.5%+5) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(1%+2) |
|
Capacitance |
40nF/400nF/4mF/40mF/100mF |
㊣(3%+5) |
|
Frequency |
10Hz-10MHz |
㊣(0.1%+3) |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
|
Fused 10A Range |
|
Yes |
|
Auto Ranging |
|
Yes |
|
Diode |
|
Yes |
|
Continuity Buzzer |
﹛ |
Yes |
|
Relative Mode |
|
Yes |
|
Data Hold |
|
Yes |
|
RS232C |
|
Yes |
|
Full Icon Display |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for DC
Voltage Measurement |
Around 10M次 |
Yes |
|
Max Display |
3999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
63 x 31mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
340g |
|
Product Size |
177 x 85 x 40mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Test Clip, RS232C Interface
Cable, Software |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
40 pcs |
|
Standard Carton Measurement |
595 x 400 x 326mm (0.078 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
24.6kg |
|
|

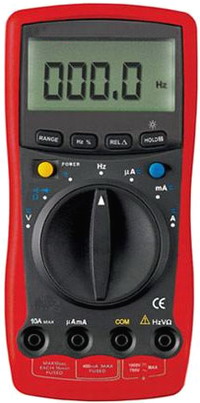

SRT60B |
SRT60B Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.8%+1) |
|
AC Voltage |
4V/40V/400V/750V |
㊣(1%+5) |
|
DC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1%+2) |
|
AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.5%+5) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(1%+2) |
|
Capacitance |
40nF/400nF/4mF/40mF/100mF |
㊣(3%+5) |
|
Frequency |
10Hz-10MHz |
㊣(0.1%+3) |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
|
Fused 10A Range |
Yes |
|
|
Auto Ranging |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Relative Mode |
Yes |
|
|
Data Hold |
Yes |
|
|
Display Backlight |
Yes |
|
|
Full Icon Display |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC
Voltage Measurement |
Around 10M次 |
Yes |
|
Max Display |
3999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
63 x 31mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
340g |
|
Product Size |
177 x 85 x 40mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Test Clip |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
40 pcs |
|
Standard Carton Measurement |
595 x 400 x 326mm (0.078 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
21kg |
|
|

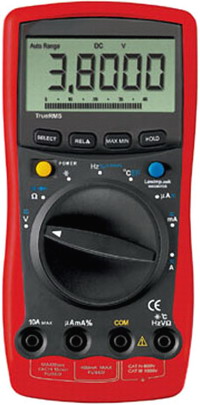

SRT60H |
SRT60H Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
4V/40V/400V/1000V |
㊣(0.1%+5) |
|
AC Voltage |
4V/40V/400V/750V |
㊣(1%+4) |
|
DC Current |
400mA/4000mA/40mA/400mA/10A |
㊣(0.5%+10) |
|
AC Current |
400mA/4000mA/40mA/400mA/10A |
㊣(1.2%+4) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(0.5%+10) |
|
Capacitance |
40nF/400nF/4mF/40mF/400mF/4mF/40mF |
㊣(1.5%+20) |
|
Temperature(oC) |
-40oC ~ 400oC |
㊣(1%+5) |
|
Frequency |
4kHz/40kHz/400kHz/4MHz/40MHz/400MHz |
㊣(0.01%+3) |
|
Special Functions |
|
|
|
Fused 10A Range |
Yes |
|
|
Auto Ranging |
Yes |
|
|
4~20mA Loop |
Yes |
|
|
EF Function |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
True RMS |
AC |
|
|
Max/Min Mode |
Yes |
|
|
Relative Mode |
Yes |
|
|
Data Hold |
Yes |
|
|
Full Icon Display |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Input Impedance for DC Voltage Measurement |
3999 (on functions of AC Voltage, AC Current, Diode and
Continuity Buzzer)
39999 (on functions of DC Voltage, DC Current, Resistance,
Capacitance, Frequency, EF Function and 4-20mA Loop) |
|
|
Analogue Bar Graph |
Yes |
|
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
63 x 31mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
320g |
|
Product Size |
177 x 85 x 40mm |
|
Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature
Probe, Multi-Purpose Socket, Alligator Clip |
|
Optional Accessories* |
Clip-On Test Lead Light, Built-In Test Lead Light, Built-In Test
Lead Light Plus |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
40 pcs |
|
Standard Carton Measurement |
595 x 400 x 326mm (0.078CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
Around 25kg |
|
|

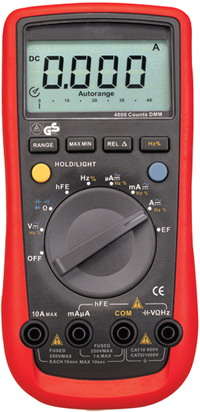

SRT61A |
SRT61A Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
400mV/4V/40V/400V/750V |
㊣(1.0%+3) |
|
AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.2%+5) |
|
DC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.0%+2) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(1.0%+2) |
|
Capacitance |
40nF/400nF/4mF/40mF400mF/4000mF |
㊣(3.0%+5) |
|
Frequency |
10Hz-10MHz |
㊣(0.1%+4) |
|
Frequency Response |
0 |
45~400Hz |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
|
Auto/Manual Ranging |
|
Yes |
|
Diode |
|
Yes |
|
EF Function |
|
Yes |
|
Audion |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Max/Min Mode |
|
Yes |
|
Display Backlight |
|
Yes |
|
REL |
|
Yes |
|
Analogue Bar Graph |
41 |
Yes |
|
Input Protection |
|
Yes |
|
Input Impedance for DC Voltage Measurement |
Around 10M次 |
Yes |
|
Low Battery Display |
≒7.5V |
Yes |
|
Max Display |
4000 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
65 x 43mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
370g |
|
Product Size |
180 x 87 x 47mm |
|
Standard Accessories |
Battery, Test Lead, English Manual, Multi-Purpose Socket |
|
Optional Accessories* |
USB Interface Cable |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20pcs |
|
Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
12kg |
|
|

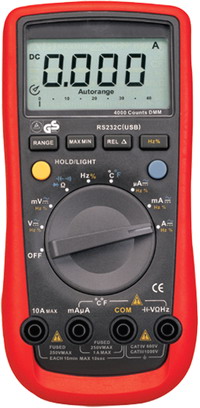

SRT61B |
SRT61B Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
40mV/400mV/4V/40V/400V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
40mV/400mV/4V/40V/400V/750V |
㊣(1.0%+3) |
|
AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.2%+5) |
|
DC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.0%+2) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(1.0%+2) |
|
Capacitance |
40nF/400nF/4mF/40mF/400mF/4000mF |
㊣(3.0%+5) |
|
Frequency |
10Hz-10MHz |
㊣(0.1%+4) |
|
Frequency Response |
0 |
45~400Hz |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Temperature (∼C) |
-40∼C~1000∼C |
㊣(1.2%+3) |
|
Temperature (∼F) |
-40∼F~1832∼F |
㊣(1.2%+4) |
|
Special Functions |
|
|
|
Auto/Manual Ranging |
|
Yes |
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Max/Min Mode |
|
Yes |
|
Display Backlight |
|
Yes |
|
REL |
|
Yes |
|
Sleep Mode |
Around 15 Minutes |
Yes |
|
Analogue Bar Graph |
41 |
Yes |
|
RS232 |
|
Yes |
|
Input Protection |
|
Yes |
|
Input Impedance for DC Voltage Measurement |
Around 10M次 |
Yes |
|
Low Battery Display |
≒7.5V |
Yes |
|
Max Display |
4000 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
65 x 43mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
370g |
|
Product Size |
180 x 87 x 47mm |
|
Standard Accessories |
Battery, Test Lead, English Manual, Multi-Purpose Socket
RS232 Interface Cable, Software, Point Contact Temperature
Proble |
|
Optional Accessories* |
USB Interface Cable |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20pcs |
|
Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
12kg |
|
|
SRT61C |
SRT61C Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
60mV/600mV/6V/60V/600V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
60mV/600mV/6V/60V/600V/750V |
㊣(1.0%+3) |
|
AC Current |
600mA/6000mA/60mA/600mA/6A/10A |
㊣(1.2%+5) |
|
DC Current |
600mA/6000mA/60mA/600mA/6A/10A |
㊣(1.0%+3) |
|
Resistance |
600次/6k次/60k次/600k次/6M次/60M次 |
㊣(1.0%+2) |
|
Capacitance |
40nF/400nF/4mF/40mF400mF/4000mF |
㊣(3.0%+5) |
|
Frequency |
10Hz-10MHz |
㊣(0.1%+4) |
|
Frequency Response |
0 |
45Hz~1kHz |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Temperature
(∼C) |
-40∼C~1000∼C |
㊣(1.2%+3) |
|
Temperature (∼F) |
-40∼F~1832∼F |
㊣(1.2%+4) |
|
Special Functions |
|
|
|
Auto/Manual Ranging |
|
Yes |
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Max/Min Mode |
|
Yes |
|
Display Backlight |
|
Yes |
|
REL |
|
Yes |
|
Sleep Mode |
Around 15 Minutes |
Yes |
|
Analogue Bar Graph |
|
61 |
|
RS232(USB) |
|
Yes |
|
Input Protection |
|
Yes |
|
Input Impedance for DC Voltage Measurement |
Around 10M次 |
Yes |
|
Low Battery Display |
≒7.5V |
Yes |
|
Max Display |
|
6000 |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
65 x 43mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
370g |
|
Product Size |
180 x 87 x 47mm |
|
Standard Accessories |
Battery, Test Lead, English Manual, Multi-Purpose Socket, RS232
Interface Cable,Software, Point Contact Temperature Probe |
|
Optional Accessories* |
USB Interface Cable |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20pcs |
|
Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
12kg |
|
|
SRT61D |

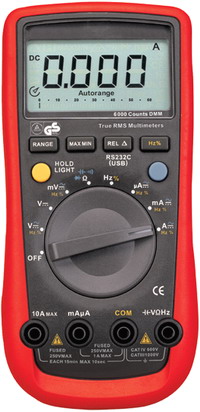

SRT61D Modern Digital Multimeters
|
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
60mV/600mV/6V/60V/600V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
60mV/600mV/6V/60V/600V/750V |
㊣(1.0%+3) |
|
AC Current |
600mA/6000mA/60mA/600mA/6A/10A |
㊣(1.2%+5) |
|
DC Current |
600mA/6000mA/60mA/600mA/6A/10A |
㊣(1.0%+3) |
|
Resistance |
600次/6k次/60k次/600k次/6M次/60M次 |
㊣(1.0%+2) |
|
Capacitance |
40nF/400nF/4mF/40mF/400mF/4000mF |
㊣(3.0%+5) |
|
Frequency |
10Hz-10MHz |
㊣(0.1%+4) |
|
Frequency Response |
0 |
45Hz~3kHz |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
|
Auto/Manual Ranging |
|
Yes |
|
Diode |
|
Yes |
|
RMS |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Max/Min Mode |
|
Yes |
|
Display Backlight |
|
Yes |
|
REL |
|
Yes |
|
Analogue Bar Graph |
|
61 |
|
RS232 |
|
Yes |
|
Input Protection |
|
Yes |
|
Input Impedance for DC Voltage Measurement |
Around 10M次 |
Yes |
|
Low Battery Display |
≒7.5V |
Yes |
|
Max Display |
|
6000 |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
65 x 43mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
370g |
|
Product Size |
180 x 87 x 47mm |
|
Standard Accessories |
Battery, Test Lead, English Manual,
Multi-Purpose Socket, RS232 Interface
Cable,Software |
|
Optional Accessories* |
USB Interface Cable |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20pcs |
|
Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard
Carton) |
|
Standard Carton Gross Weight |
12kg |
|
|
|
|

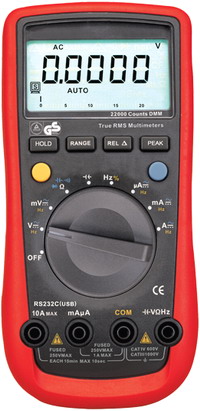

SRT61E |
|
SRT61E Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
220mV/2.2V22V220V/1000V |
㊣(0.1%+2) |
|
AC Voltage |
220mV/2.2V/22V/220V/750V |
㊣(0.8%+10) |
|
AC Current |
220mA/2200mA/22mA/220mA/2.2A/10A |
㊣(0.8%+10) |
|
DC Current |
220mA/2200mA/22mA/220mA/2.2A/10A |
㊣(0.5%+10) |
|
Resistance |
220次/2.2K次/22k次/220k次/2.2M次/22M次/220M次 |
㊣(0.5%+10) |
|
Capacitance |
22nF/220nF/2.2mF/22mF/220mF/
2.2mF/22mF/220mF |
㊣(3.0%+5) |
|
Frequency |
10Hz-220MHz |
㊣(0.01%+5) |
|
Frequency Response |
0 |
45Hz~10kHz |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
|
Auto/Manual Ranging |
|
Yes |
|
Diode |
|
Yes |
|
RMS |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Data Hold |
|
Yes |
|
Peak Value |
|
Yes |
|
Display Backlight |
|
Yes |
|
REL |
|
Yes |
|
Sleep Mode |
Around 15 Minutes |
Yes |
|
Analogue Bar Graph |
|
46 |
|
RS232 |
|
Yes |
|
Input Protection |
|
Yes |
|
Input Impedance for DC Voltage Measurement
|
Around 10M次 |
Yes |
|
Low Battery Display |
≒7.5V |
Yes |
|
Max Display |
|
22000 |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
65 x 43mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
370g |
|
Product Size |
180 x 87 x 47mm |
|
Standard Accessories |
Battery, Test Lead, English Manual,
Multi-Purpose Socket, RS232 Interface
Cable,Software |
|
Optional Accessories* |
USB Interface Cable |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20pcs |
|
Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard
Carton) |
|
Standard Carton Gross Weight |
12kg |
|
|
|
|

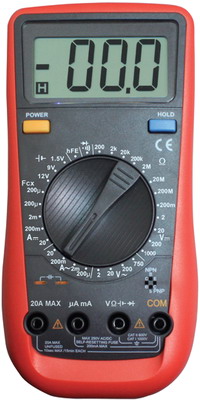

SRT151A |
|
SRT151A Modern Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
220mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
2V/20V/200V/750V |
㊣(0.8%+10) |
|
AC Current |
200µA/2mA/200mA/20A |
㊣(0.8%+10) |
|
DC Current |
200µA/2mA/200mA/20A |
㊣(0.5%+10) |
|
Resistance |
200次/2K次/20k次/200k次/2M次/20M次/200M次 |
㊣(0.5%+10) |
|
Capacitance |
20µF/200µF |
㊣(3.0%+5) |
|
Frequency |
10Hz-220MHz |
㊣(0.01%+5) |
|
Frequency Response |
0 |
45Hz~10kHz |
|
Special Functions |
|
|
|
Display Count |
﹛ |
1999 |
|
Manual Range |
﹛ |
Yes |
|
Battery Test |
12V/ 9V/ 1.5V |
㊣(0.2.5%+2) |
|
Diode |
|
Yes |
|
Auto Power Off |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Low Battery Indication |
|
Yes |
|
Data Hold |
|
Yes |
|
Input Impedance for DCV |
Around 10M次 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
63 x 29mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
300g |
|
Product Size |
186 x 91 x 39mm |
|
Standard Accessories |
Battery, Test Lead |
|
Standard Individual Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
40pcs |
|
Standard Carton Measurement |
645 x 450 x 340mm (0.099 CBM Per Standard
Carton) |
|
Standard Carton Gross Weight |
22.8kg |
|
|
|
|

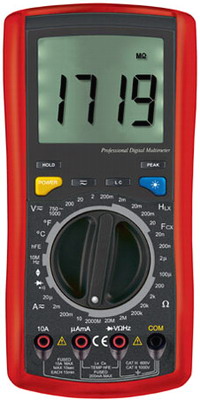

SRT70A |
|
SRT70A Modern Digital Multi-Purpose Meters
|
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.5%+1) |
|
AC Voltage |
200mV/2V/20V/200V/750V |
㊣(0.8%+3) |
|
DC Current |
20mA/2mA/200mA/10A |
㊣(0.8%+1) |
|
AC Current |
20mA/2mA/200mA/10A |
㊣(1%+3) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次/2000M次 |
㊣(0.8%+1) |
|
Capacitance |
20nF/200nF/ 2mF/100mF |
㊣(2.5%+5) |
|
Temperture(∼C) |
-40∼C~1000∼C |
㊣(1%+3) |
|
Temperture(∼F) |
-40∼F~1832∼F |
㊣(1%+4) |
|
Frequency |
2kHz -10MHz(Auto Ranging) |
㊣(0.1%+3) |
|
Inductance |
2mH/20mH/200mH/20H |
㊣(2%+10) |
|
Logic |
TTL (High > 2.0V, Low < 0.8) |
Yes |
|
Special Functions |
|
|
|
Fused 10A Range |
Yes |
|
|
Diode |
Yes |
|
|
Continuity Buzzer |
Yes |
|
|
Transistor |
Yes |
|
|
Peak Hold |
Yes |
|
|
Data Hold |
Yes |
|
|
Display Backlight |
Yes |
|
|
Full Icon Display |
Yes |
|
|
Sleep Mode |
Yes |
|
|
Low Battery Display |
Yes |
|
|
Max. Display |
1999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
62 x 53mm |
|
Product Colour |
SRT70A - Grey, Holster - Red |
|
Product Net Weight |
620g (including holster) |
|
Product Size |
195 x 90 x 40mm |
|
Standard Accessories |
Test Lead, Battery, English
Manual, Point Contact
Temperature Probe, Test Clip,
Multi-Purpose Socket, Holster |
|
Optional Accessories* |
Clip-On Test Lead Light,
Built-In Test Lead Light,
Built-In Test Lead Light Plus,
Carrying Bag |
|
Standard Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
535 x 365 x 380mm (Around 0.074
CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
22.7kg |
|
|
|
|
|
|
SRT533 |
SRT533
Insulation Resistance
Multimeters
|
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
Insulation
Resistance
Measurement
|
50V: 0.1M次 ~
50.0M次
100V: 0.1M次 ~
100.0M次 |
㊣(3%+5)
㊣(3%+5) |
|
250V: 0.2M次 ~
99.9M次
100M次~250M次 |
㊣(3%+5)
㊣(3%+5) |
|
500V: 0.5M次 ~
99.9M次
100M次~500M次 |
㊣(3%+5)
㊣(3%+5) |
|
1000V: 4.0M次 ~
99.9M次
100M次~999M次 |
㊣(3%+5)
㊣(3%+5) |
|
1.00G次
~ 2.00G次
|
㊣(5%+5) |
|
DC Voltage
Measurement |
60mV/600mV/6V/60V/600V/1000V |
㊣(0.09%+6) |
|
AC Voltage
Measurement |
6V/60V/600V/1000V |
㊣(1%+3) |
|
DC Current
Measurement |
60mA/600mA |
㊣(1.0%+2) |
|
AC Current
Measurement |
60mA/600mA |
㊣(1.5%+2) |
|
Resistance
Measurement |
600次/6K次/60K次/600K次/6M次/40M次 |
㊣(0.9%+2) |
|
Capacitance
Measurement |
10nF/100nF/1米F/10米F/100米F |
㊣(3%+5) |
|
Frequency
Measurement |
60Hz/600Hz/6KHz/60KHz/600KHz/1MHz |
㊣(0.1%+3) |
|
Temperature
Testing
|
-40∼C ~ 537∼C
-40∼F ~ 998 ∼F |
㊣(1%+10)
㊣(1%+10) |
|
Special
Functions |
|
|
|
Auto Ranging |
|
Yes |
|
Diode |
|
Yes |
|
Continuity
Buzzer |
|
Yes |
|
True RMS |
|
Yes |
|
Data Hold |
|
Yes |
|
Data Logging |
|
99 |
|
Full Icon
Display |
|
Yes |
|
Display
Backlight |
|
Yes |
|
Max / Min Mode |
|
Yes |
|
Memory Zeroing
|
|
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery
Display |
|
Yes |
GENERAL CHARACTERISTICS
|
Power |
1.5V Battery℅ 6 |
|
LCD Size |
81 ℅ 46mm |
|
Product Color |
Red and Grey |
|
Product Net
Weight |
505g |
|
Product Size |
97 ℅ 203 ℅ 46mm |
|
Standard
Accessories |
Battery, Test
Lead, English
Manual,
Alligator Clip,
Point Contact
Temperature
Probe, Carrying
Bag |
|
Standard
Individual
Packing |
Gift Box |
|
Standard
Quantity Per
Carton |
20pcs |
|
Standard Carton
Measurement |
460 ℅ 310 ℅
368mm (0.053CBM
Per Standard
Carton) |
|
Standard Carton
Gross Weight |
12kg |
|
|
|
|
|
|
SRT71A |
SRT71A Intelligent Digital Multimeters
|
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
㊣(0.1%+8) |
|
AC Voltage |
2V/20V/200V/1000V |
㊣(0.8%+40) |
|
ACBandwidh |
100KHz |
Yes |
|
DC Current
|
200µA/2000µA/20A/200mA/10A |
㊣(0.2%+20) |
|
AC Current |
200µA/2000µA/20A/200mA/10A |
㊣(1%+15) |
|
Resistance |
200次/2k次/20k次/200k次/2M次/20M次 |
㊣(0.5%+20) |
|
Capacitance |
20nF/200nF/2µF/20µF/200µF/2mF/20mF |
㊣(1.5%+20) |
|
Frequency |
20Hz/200Hz/2kHz/20kHz/200KHz/
2MHz/20MHz/200MHz |
㊣(0.1%+15) |
|
Duty Cycle
|
10%~90% |
㊣(1%+30) |
|
4~20mA Loop |
0%~100% |
㊣(1%+50) |
|
Special Functions |
|
|
|
Fused 10A Range |
|
Yes |
|
Auto Ranging
|
|
Yes |
|
Current Measurement
Alarm |
|
Yes |
|
Function Set Up |
|
Yes |
|
Votage & Current :
AC + DC Measurement |
|
Yes |
|
Diode
|
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
True RMS |
|
Yes |
|
Peak Hold
|
|
Yes |
|
Max/Min Mode
|
|
Yes |
|
Relative Mode
|
|
Yes |
|
Data Hold
|
|
Yes |
|
USB |
|
Yes |
|
Double Display
Backlight |
|
Yes |
|
Full lcon Disply
|
|
Yes |
|
Sleep Mode
|
|
Yes |
|
Low Battery Display |
|
Yes |
|
Input Impedance for
DC Voltage Measurement |
DC 200mV: Around
2.5G次
All Other Ranges: 10M次 |
Yes |
|
Max. Display
|
20000 |
Yes |
|
Analogue Bar Graph |
|
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
73 x 50mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
384g |
|
Product Size |
200 x 93 x 40mm |
|
Standard Accessories |
Test Lead, Battery,
English Manual, Alligator Clip,
Test Clip, USB Interface Cable, Software,
Carrying Bag |
|
Standard Individual
Packing |
Gift Box
|
|
Standard Quantity
Per Carton |
20pcs |
|
Standard Carton
Measurement |
530 x 360 x 385mm
(0.073 CBM Per Standard Carton) |
|
Standard Carton
Gross Weight |
22kg |
|
|
|
|
SRT71D |
SRT71D Intelligent Digital Multimeters
|
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.025%+5) |
|
AC Voltage |
4V/40V/400V/1000V |
㊣(0.4%+30) |
|
AC Bandwidth |
100KHz |
Yes |
|
DC Current |
400µA/4000µA/40A/400mA/10A |
㊣(0.08%+8) |
|
AC Current |
400µA/4000µA/40A/400mA/10A |
㊣(0.5%+15) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(0.3%+8) |
|
Capacitance |
40nF/400nF/4µF/40µF/400µF/4mF/40mF |
㊣(1%+20) |
|
Temperature (∼C) |
-40∼C ~ 1000∼C |
㊣(1%+30) |
|
Temperature (∼F) |
-40∼F ~ 1832∼F |
㊣(1.5%+50) |
|
Frequency |
40Hz/400Hz/4kHz/40kHz/
400kHz/4MHz/40MHz/400MHz |
㊣(0.01%+8) |
|
Duty Cycle |
10%~90% |
㊣(1%+30) |
|
4~20mA Loop |
0~100% |
㊣(1%+50) |
|
Power Measurement |
|
|
|
Special Functions |
﹛ |
﹛ |
|
Fused 10A Range |
﹛ |
Yes |
|
Auto Ranging |
﹛ |
Yes |
|
Current Measurement Alarm |
﹛ |
Yes |
|
Function Set Up |
﹛ |
Yes |
|
Auto Ranging |
|
Yes |
|
Votage & Current :
AC + DC Measurement |
﹛ |
Yes |
|
Data Logging |
﹛ |
9999 |
|
Data Recall |
﹛ |
Yes |
|
Diode |
﹛ |
Yes |
|
Continuity Buzzer
|
﹛ |
Yes |
|
True RMS |
﹛ |
Yes |
|
Peak Hold |
﹛ |
Yes |
|
Max/Min Mode |
﹛ |
Yes |
|
Relative Mode
|
﹛ |
Yes |
|
Data Hold |
﹛ |
Yes |
|
USB |
﹛ |
Yes |
|
Double Display Backlight |
﹛ |
Yes |
|
Full Icon Display |
﹛ |
Yes |
|
Sleep Mode |
﹛ |
Yes |
|
Low Battery Display |
﹛ |
Yes |
|
Input Impedance for
DC Voltage Measurement |
DC 200mV : Around 2.5G次
All Other Ranges : 10M次 |
Yes |
|
Max. Display |
40000 |
Yes |
|
Analogue Bar Graph |
﹛ |
Yes |
GENERAL CHARACTERISTICS
|
Power |
9V Battery (6F22) |
|
LCD Size |
73 x 50 mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
384g |
|
Product Size |
200 x 93 x 40mm |
|
Standard Accessories |
Test Lead, English Manual,
Battery, Alligator Clip, USB
Interface Cable,
Software, Point Contact
Temperature, Probe, Carrying
Bag, Test Clip |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20 pcs |
|
Standard Carton Measurement |
542 x 376 x 388mm (0.079 CBM Per
Standard Carton) |
|
Standard Carton Gross Weight |
18kg |
|
|
|
|
|
|
SRT81B |
SRT81B Scope
Digital Multimeters
SPECIFICATIONS
|
Basic Functions |
Range |
Best Accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.8%+8) |
|
AC Voltage |
4V/40V/400V/750V |
㊣(1%+15) |
|
DC Current |
400mA /4000mA/40mA/400mA/4A/10A |
㊣(1%+8) |
|
AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
㊣(1.5%+8) |
|
Resistance |
400次/ 4k次/40k次/400k次/4M次/ 40M次 |
㊣(1%+5) |
|
Capacitance |
40nF /400nF/4mF/40mF/100mF |
㊣(3%+8) |
|
Frequency |
10Hz~10MHz |
㊣(0.1%+3) |
|
Vertical Accuracy |
|
㊣(5%+1) |
|
Input Sensitivity |
20mV/div-500V/div (1-2-5) |
Yes |
|
Horizontal Accuracy |
|
㊣(0.01%+1) |
|
Timebase Range |
100ns/div-5s/div (1-2-5) |
Yes |
|
Bandwidth |
|
8MHz |
|
Display Resolution |
160X160 |
Yes |
|
Real-Time Sample Rate |
|
40MSa/s |
|
Duty Cycle |
0.1%~99.9% |
Yes |
|
Special Functions |
|
|
Diode |
|
Yes |
|
Continuity Buzzer |
|
Yes |
|
Display |
160x160 Monochrome |
Yes |
|
Trigger Types |
Free Run / Normal / Single Shot |
Yes |
|
Memory |
10 screens and setups |
Yes |
|
Contrast and Bright Setup |
|
Yes |
|
Input Impedance For DCVoltage Measurement |
Around 10M次 |
Yes |
|
Sleep Mode |
|
Yes |
|
Low Battery Display |
|
Yes |
|
Display Backlight |
|
Yes |
|
USB |
|
Yes |
|
Max.Display |
3999 |
Yes |
GENERAL CHARACTERISTICS
|
Power |
1.5V Battery (R6) x 6 |
|
LCD Size |
60 x 60mm |
|
Product Color |
Red and Grey |
|
Product Net Weight |
498g |
|
Product Size |
200 x100 x 48mm |
|
Standard Accessories |
Test Lead , Battery, English Manual ,Alligator
Clip﹜
USB Interface Cable, Software, Power Adapter |
|
Optional Accessories* |
Scope Probe, BNC Probe |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
20pcs |
|
Standard Carton Measurement |
490 x 385 x 510mm (0.096 CBM Per Standard
Carton) |
|
Standard Carton Gross Weight |
24kg |
|
|
|
