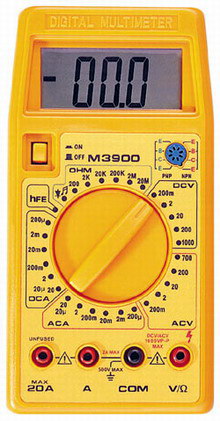

M3900 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-1000V | ＼(0.5%+1dgt) | |
| AC Voltage | 200mV-750V | ＼(1.5%+4dgt) | |
| DC Current | 200µA-20A | ＼(0.5%+1dgt) | |
| AC Current | 200µA-20A | ＼(1.0%+3dgt) | |
| Resistance | 200Ω-20MΩ | ＼(0.8%+1dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Continuity Buzzer | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Maximum Display | 1999 | ||
| Products Size | 172〜88〜36mm | ||
| Standard Accessories | Test Lead, Battery, Manual | ||

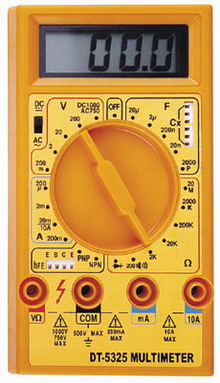

DT5325 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-1000V | ＼(0.5%+1dgt) | |
| AC Voltage | 200mV-750V | ＼(1.5%+4dgt) | |
| DC Current | 200µA-20A | ＼(1.2%+1dgt) | |
| AC Current | 200µA-20A | ＼(1.5%+1dgt) | |
| Resistance | 200Ω-20MΩ | ＼(1.0%+1dgt) | |
| Capacitance | 200p-20µF | ＼(3%+10dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Continuity Buzzer | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Display Size | 16〜48mm | ||
| Maximum Display | 1999 | ||
| Products Size | 130〜71〜35mm | ||
| Product Net Weight | 200g | ||

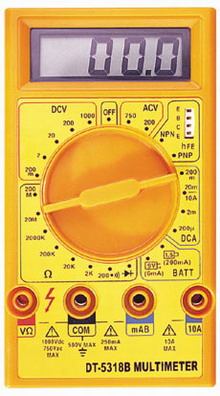

DT5318B 3 1/2 DIGITAL MULTIMETER
|
|
Function
|
Range
|
Accuracy
|
|
DC Voltage
|
200mV-1000V
|
＼(0.5%+1dgt)
|
|
|
AC Voltage
|
200mV-750V
|
＼(1.2%+4dgt)
|
|
|
DC Current
|
200µA-20A
|
＼(1.2%+1dgt)
|
|
|
Resistance
|
200Ω-2MΩ
|
＼(1.0%+1dgt)
|
|
|
Diode Test
|
Yes
|
||
|
Transistor Test
|
Yes
|
||
|
Continuity
Buzzer
|
Yes
|
||
|
Power Supply
|
9V Battery 6F22
|
||
|
Display Size
|
16〜48mm
|
||
|
Maximum Display
|
1999
|
||
|
Products Size
|
130〜71〜35mm
|
||
|
Product Net
Weight
|
200g
|
||

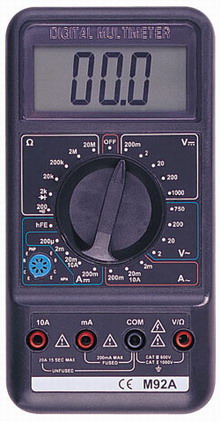

M92A 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-1000V | ＼(0.5%+1dgt) | |
| AC Voltage | 200mV-750V | ＼(0.8%+3dgt) | |
| DC Current | 200µA-20A | ＼(0.8%+1dgt) | |
| AC Current | 2mA-20A | ＼(1.0%+3dgt) | |
| Resistance | 200Ω-20MΩ | ＼(0.8%+1dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Continuity Buzzer | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Maximum Display | 1999 | ||
| Weight | 250g | ||
| Products Size | 160〜82〜30mm | ||
| Standard Accessories | Test Lead, Battery, Manual, Holster | ||

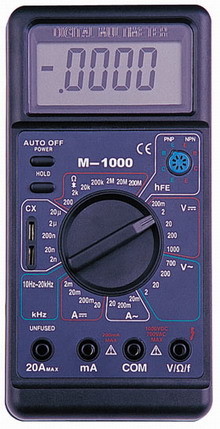

DT930F+ (M1000) 4 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-1000V | ＼(0.5%+3dgt) | |
| AC Voltage | 2V-700V | ＼(0.8%+10dgt) | |
| DC Current | 200µA-20A | ＼(0.5%+2dgt) | |
| AC Current | 2mA-20A | ＼(0.8%+10dgt) | |
| Resistance | 200Ω-20MΩ | ＼(0.2%+1dgt) | |
| Capacitance | 2nF-20µF | ＼(2.5%+3dgt) | |
| Frequency | 20KHz | ＼(1.5%+5dgt) | |
| Diode Test | Yes | ||
| Transistor Test | Yes | ||
| Continuity Buzzer | Yes | ||
| Auto Power Off | Yes | ||
| Data Hold | Yes | ||
| Power Supply | 9V Battery 6F22 | ||
| Maximum Display | 1999 | ||
| Product Net Weight | 320g | ||
| Products Size | 176〜88〜38mm | ||
| Standard Accessories | Test Lead, Battery, Manual, Holster* | ||
| Note: *Available at extra cost | |||
