illumination-refractometer

(Digital Refractometer, Hand-held Refractometer, Hand Held Refractometer, Illumination Hand Held Refractometer, Abbe Refractometer, Bench-top Refractometer, Gem Refractometer, Gemological Refractometer)

ZGR series illumination hand held refractometer has its own light source. With the built-in light source, it makes more convenient to use when in a Dark or Dim room or when doing wide-field work. And it also can use the outside light source to test. It is convenient to replace the batteries when they were use out.

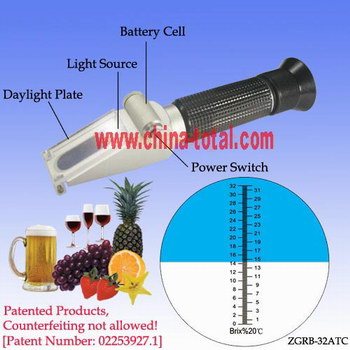

The models with a high resolution Brix scale are developed for most general purpose work. The ZGRB-32ATC has Automatic Temperature Compensation System. ZGRB-32 also can be used in Oil testing, especially in Industry Fluids--Cutting fluids and Lubricating oil. Specification: Measuring Range: 0-32%Brix Minimum Division: 0.2%Brix (ATC) Temperature Compensation Range:10°C--30°C Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x160mm	The models are developed for the measuring of the three common indexed of honey. The three common indexes are sugar content, baume and water content. The ZGRB-90ATC has Automatic Temperature Compensation System. Specification: Measuring Range: Brix: 58-90%Brix Baume: 38Be'-43Be' Water:12%-27%water Minimum Division: 0.2%Brix (ATC) Temperature Compensation Range:10°C--30°C Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x1350mm

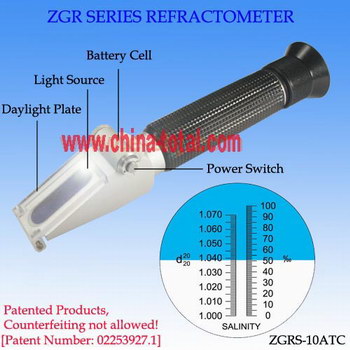

These models with high resolution scale of 0.1% is developed for low concentration use. It can be used to measure the low concentration of salt in brine and prepared food solution and check salt content. The ZGRS-10ATC has Automatic Temperature Compensation System. Specification: Measuring Range: Salinity: 0-10% Refractive Index: 1.000-1.070 Minimum Division: Salinity: 0.1% Refractive Index: 0.001 (ATC) Temperature Compensation Range:10°C--30°C Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x180mm	This models have three scales, scale one is protein in serum, scale two is urine specific gravity, scale three is refractive index. The ZGRC-200ATC has Automatic Temperature Compensation System. Specification: Measuring Range: 0-12g/dl 1.000-1.050sg 1.330-1.360RI Minimum Division: 0.2g/dl 0.005sg 0.0005 RI (ATC) Temperature Compensation Range:10°C--30°C Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x160mm

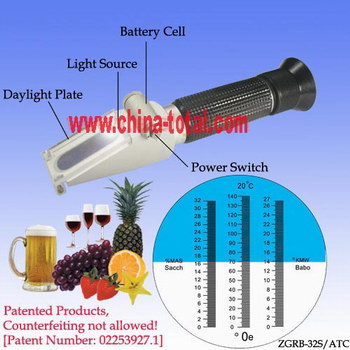

The models with a high resolution Brix scale and ideal for Concentrated Syrups (especially the Original Fruits Juices) and mainly used in Beverage processing. It has three scales: Oechsle(°Oe), KMW(Babo) and Brix(%Sacch.). The ZGRB-32S/ATC has Automatic Temperature Compensation System. Specification: Measuring Range: 0 - 140 °Oe, 0 - 27 KMW (Babo), 0 - 32%Brix (Sacch.) Minimum Division: 1 °Oe,0.2KMW,0.2%Brix (ATC) Temperature Compensation Range:10°C--30°C Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x160mm	The models have only one unit system: °C. With the indication of the percentage we may know the freezing point of either ethylene glycol or propylene glycol based cooling systems. And they can also be used to test the concentration of ethylene glycol or propylene glycol in antifreeze liquids. The ZGRA-200ATC has Automatic Temperature Compensation System. Specification: Measuring Range: Ethylene Glycol: -60°C-0°C 0--66.6% Propylene Glycol: -50°C-0°C 0--62.4% Battery Fluids:1.100-1.400sg Resolution Factor: 5°C, 5°C, 0.01sg (ATC)Temperature Compensation Range:10°C--30°C Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x160mm

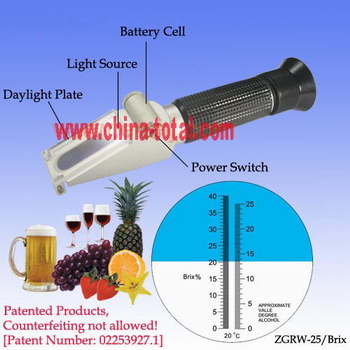

	The models are designed on the improvement on the model RHW-25.With the scale for Brix, we can more easily to know the sugar concentration in the grape. The ZGRW-25BrixATC has Automatic Temperature Compensation System. Specification: Range: 0-25%Vol, 0-40%Brix Minimum Division: 0.2%Vol, 0.2%Brix Accuracy: ±0.2%Vol, ±0.2%Brix Marks: With ATC Power Require: 3 "AAA" Button Cell (1.5V*3) Battery Life: More than 100hours Light Source: White LED Dimension: 27x40x160mm

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
