NTR series hand held refractometer

Traditional Portable Refractometer is professionally designed for testing the concentration of many kinds of solution listed as following: Juices, Beverages, Honey, Oechsle, Salt water, Brine, Vital fluid, Alcohol and Grape, Cleaning fluid, Battery fluid, Antifreeze and Industrial fluids and Milk etc..Our NTR series is designed with a outstanding calibration screw. The calibration in this kind of refractometer is very easy, just by hands will be OK. No screw-driver was required!

Model (click on the model No. to see picture)		Measurement Range	Min. Div.	Accuracy

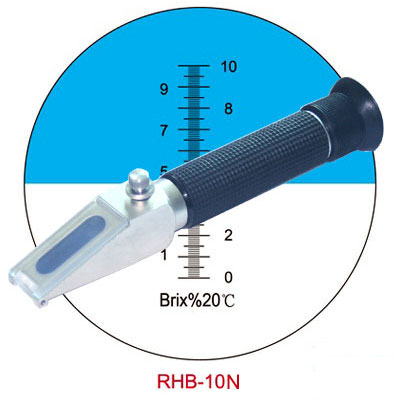

Brix refractometer	RHBN-10/ATC	0-10%Brix	0.1%Brix	±0.10%

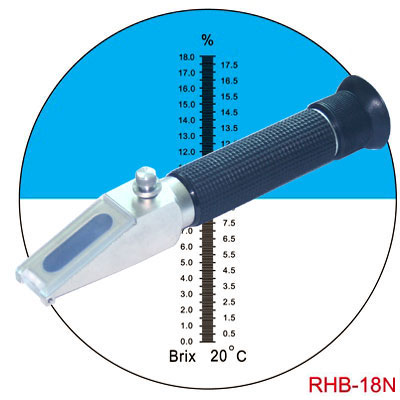

	RHBN-18/ATC	0-18%Brix	0.1%Brix	±0.10%

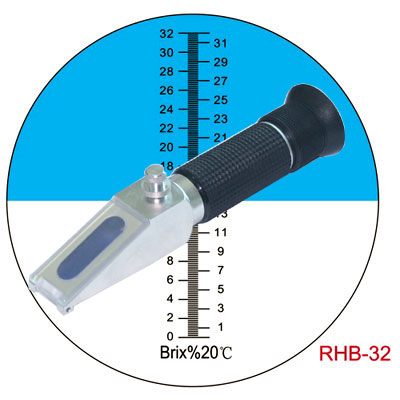

	RHBN-32/ATC	0-32%Brix	0.2%Brix	±0.20%

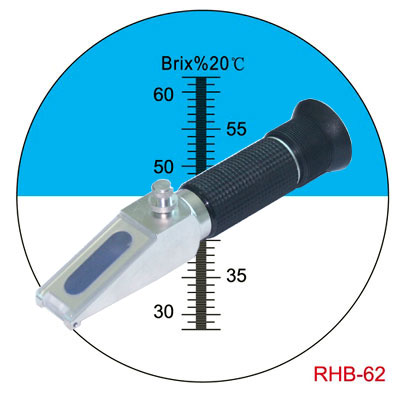

	RHBN-62/ATC	28-62%Brix	0.2%Brix	±0.20%

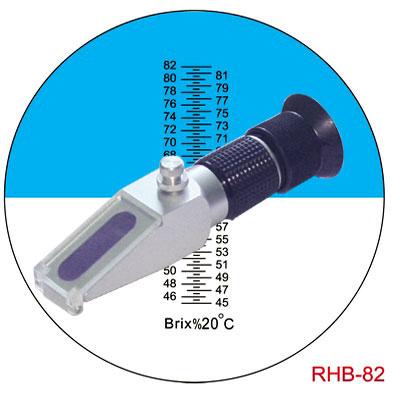

	RHBN-82/ATC	45-82%Brix	0.2%Brix	±0.5%

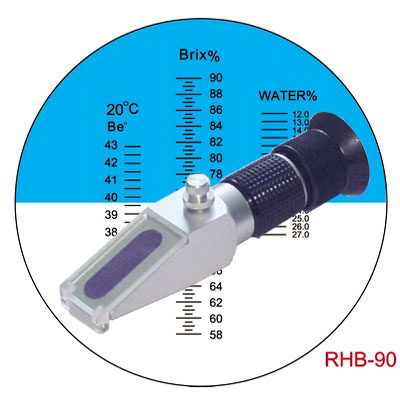

	RHBN-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

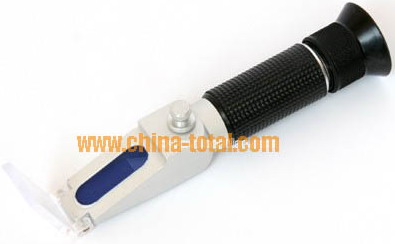

	RHBN-92T/ATC	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

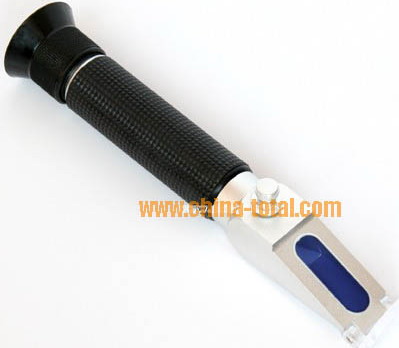

	RHBN-92/ATC	58-92%Brix	0.5%Brix	±0.5%
	RHB0-50	0-50%Brix	1%Brix	±1%Brix

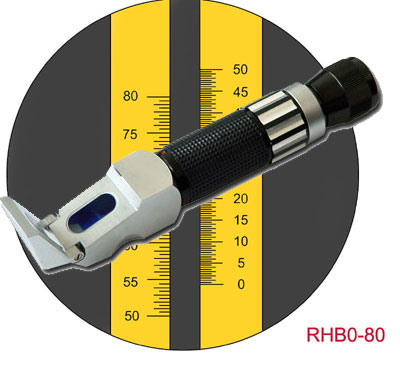

	RHB0-80	0-50%Brix 50-80%Brix	1%Brix	±1%Brix

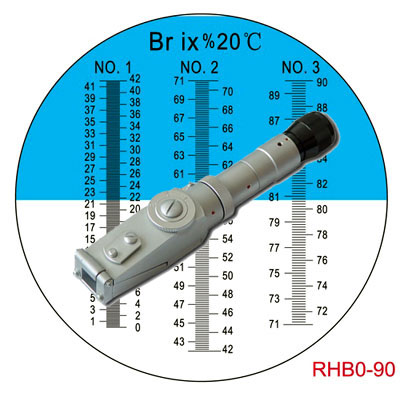

	RHB0-90	0-42%Brix 42-71%Brix 71-90%Brix	0.2%Brix	±0.2%Brix
Industrial Fluid Refractometer	RHBN-10/ATC	0-10%Brix	0.1%Brix	±0.10%
	RHBN-18/ATC	0-18%Brix	0.1%Brix	±0.10%
	RHBN-32/ATC	0-32%Brix	0.2%Brix	±0.20%
Honey Refractometer	RHBN-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHBN-92T/ATC	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHBN-92/ATC	58-92%Brix	0.5%Brix	±0.5%

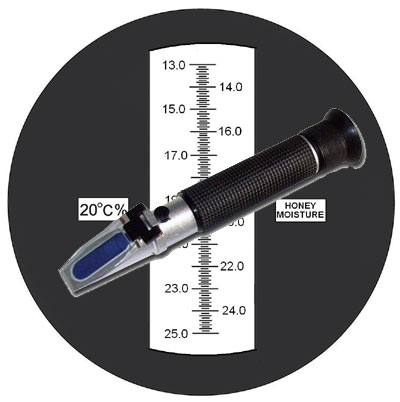

	RHF-30	10-30%water	1%Brix	±1%

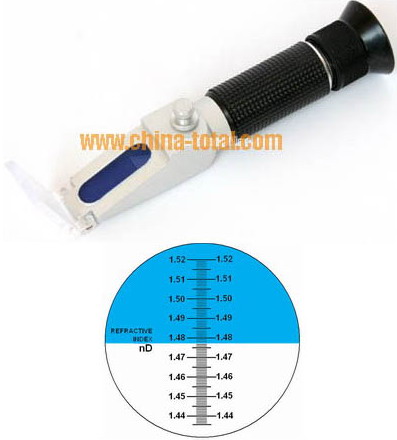

Refractometer for Oil testing	RNDN-025/ATC	1.435-1.520Nd	0.001Nd	±0.002Nd

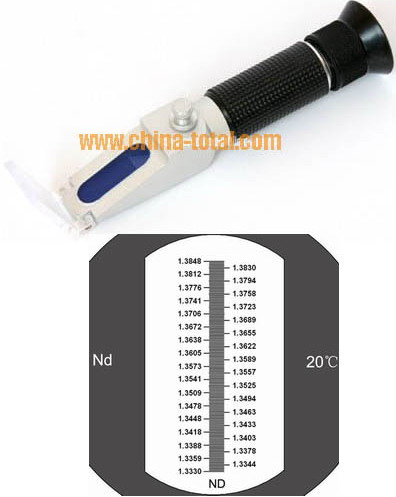

Refractometer for Oil testing	RNDN-027/ATC	1.330-1.3448Nd	0.001Nd	±0.0002Nd

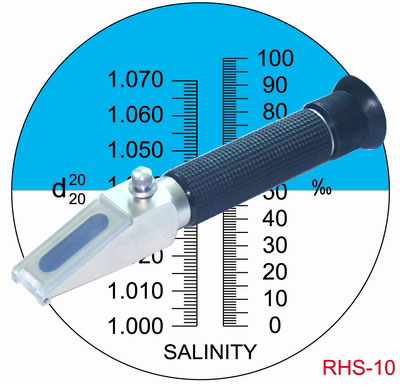

Salinity Refractometer	RHSN-10/ATC	0-10%Salinity 1.000-1.070 RI	0.1%Salinity 0.001 RI	±0.1% ±0.001 RI

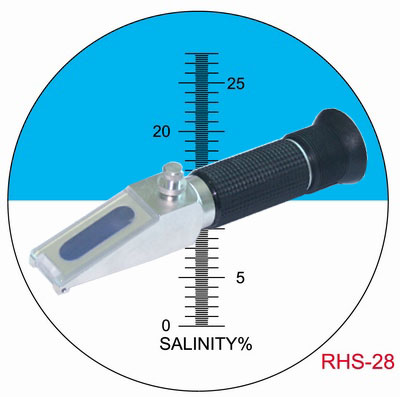

Salinity Refractometer	RHSN-28/ATC	0-28%Salinity	0.2%Salinity	±0.2%

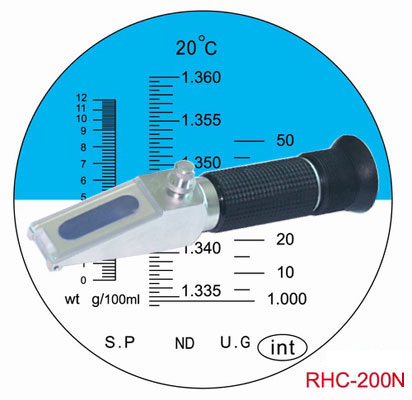

Clinical refractometer	RHCN-200/ATC	0-12g/dl 1.000-1.050sg 1.3300RI-1.3600RI	0.2g/dl 0.005sg 0.0005RI	±0.2g/dl ±0.005sg ±0.0005RI

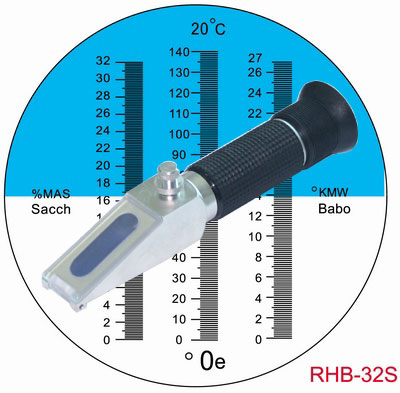

Oe refractometer	RHBN-32S/ATC	0 - 140 °Oe 0 - 27 KMW (Babo) 0 – 32%Brix (Sacch.)	1°Oe 0.2KMW 0.2%Brix	±1°Oe ±0.2KMW ±0.2%Brix

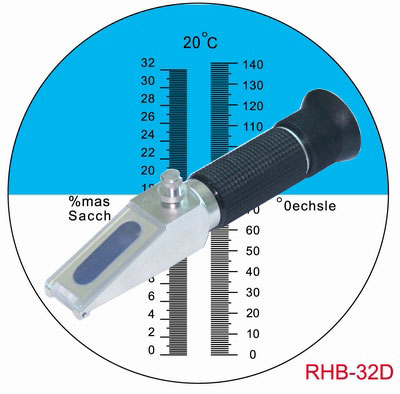

	RHBN-32D/ATC	0 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

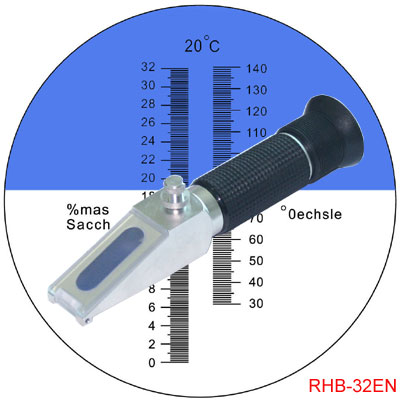

	RHBN-32E/ATC	30 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

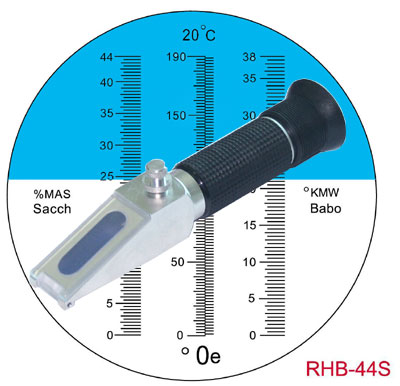

	RHBN-44S/ATC	0 - 190 °Oe 0 - 38 KMW (Babo) 0 – 44%Brix (Sacch.)	2°Oe 0.2KMW 0.5%Brix	±2°Oe ±0.2KMW ±0.5%Brix

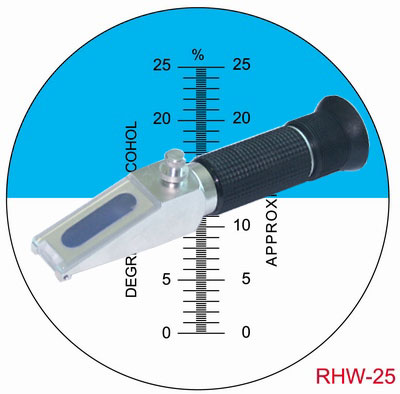

Wine refractometer	RHWN-25/ATC	0-25%Vol	0.2%Vol	±0.20%

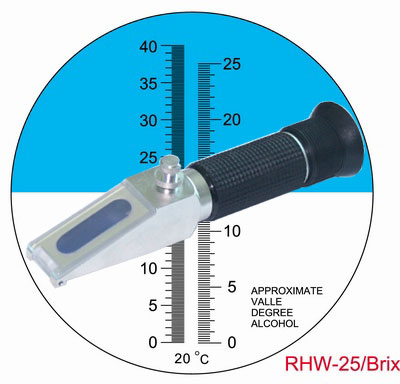

	RHWN-25/Brix/ATC	0-25%Vol 0-40%Brix	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

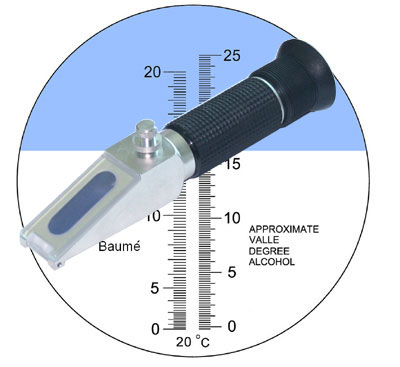

	RHWN-25/Be/ATC	0-25%Vol 0-20 Beo	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

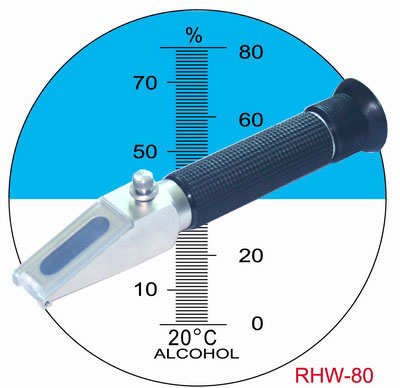

	RHWN-80	0-80%w/w	1%w/w	±1%w/w

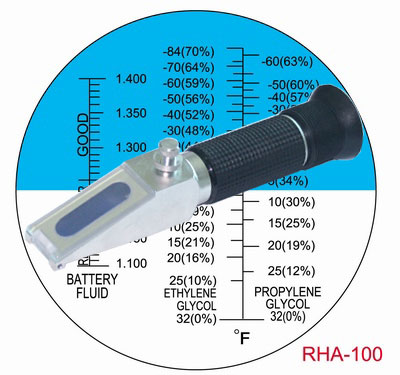

Antifreeze/Battery/ Cleaning Fluids Refractometer	RHAN-100/ATC	E:-84° F-32° F P:-60° F-32° F B:1.100-1.400sg	5° F 5° F 0.01sg	±5° F ±5° F ±0.01sg

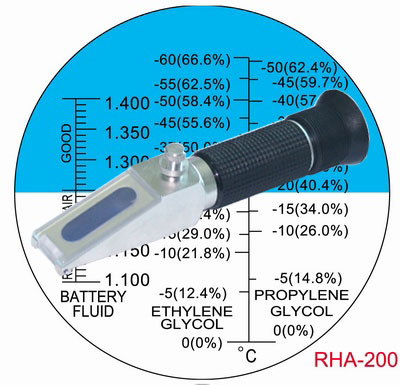

	RHAN-200/ATC	E:-60°C-0°C P:-50°C-0°C B:1.100-1.400sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg
	RHAN-300/ATC	E:-60°F-32°F P:-50°F-32°F B:1.15-1.30sg	10°F 10°F 0.01sg	±10°F ±10°F ±0.01sg

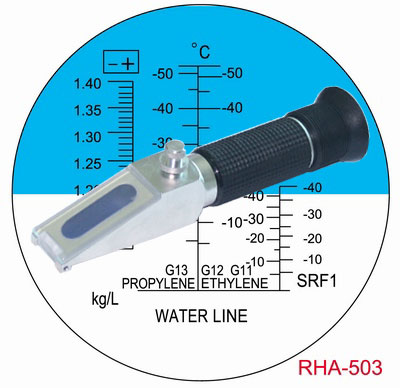

	RHAN-503/ATC	B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C	0.01sg 5°C 5°C 5°C	±0.01sg ±5°C ±5°C ±5°C
Brake fluid refractometer	RBF-020F	DOT 3（standard fluids） Boiling point 250-500F/1-6 H2O High Temp(Fords and Racing) Boiling point 250-570F/1-6 H2O		1% H2O
Brake fluid refractometer	RBF-022C	DOT 4（standard fluids） Boiling point 125-275℃/1-6 H2O PLUS(SUPER) (Fords and Racing) Boiling point 150-275℃/1-6 H2O		1% H2O

Page1 Page2 Page3 Page4 Page5 Page6 Page7

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
