OTR series hand held refractometer

Traditional Portable Refractometer is professionally designed for testing the concentration of many kinds of solution listed as following: Juices, Beverages, Honey, Oechsle, Salt water, Brine, Vital fluid, Alcohol and Grape, Cleaning fluid, Battery fluid, Antifreeze and Industrial fluids and Milk etc..

Model (click on the model No. to see picture)		Measurement Range	Min. Div.	Accuracy

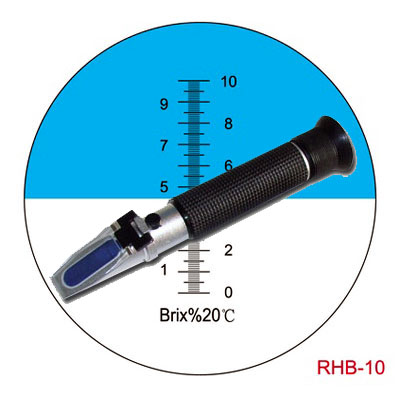

Brix refractometer	RHB-10/ATC	0-10%Brix	0.1%Brix	±0.10%

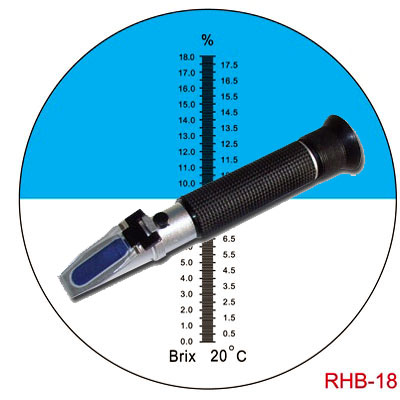

	RHB-18/ATC	0-18%Brix	0.1%Brix	±0.10%

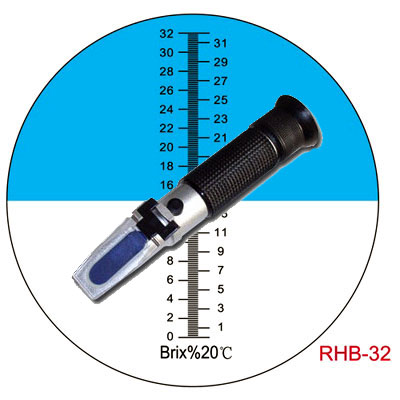

	RHB-32/ATC	0-32%Brix	0.2%Brix	±0.20%

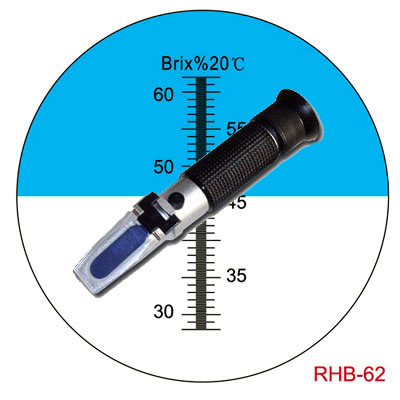

	RHB-62/ATC	28-62%Brix	0.2%Brix	±0.20%

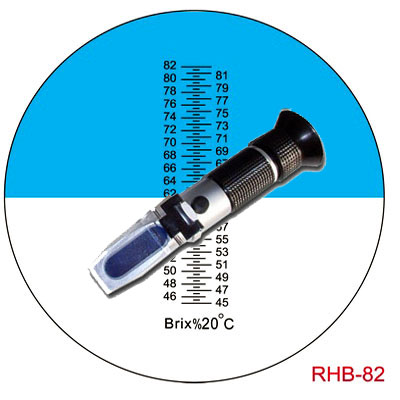

	RHB-82/ATC	45-82%Brix	0.2%Brix	±0.5%

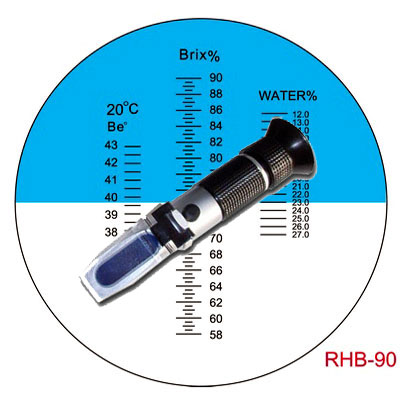

	RHB-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

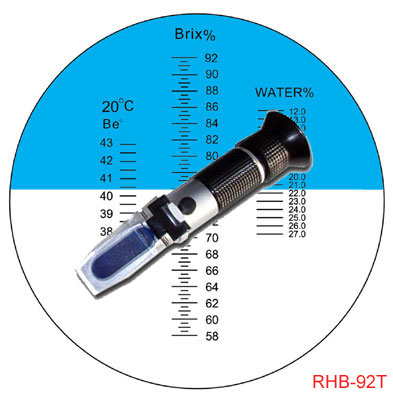

	RHB-92T	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

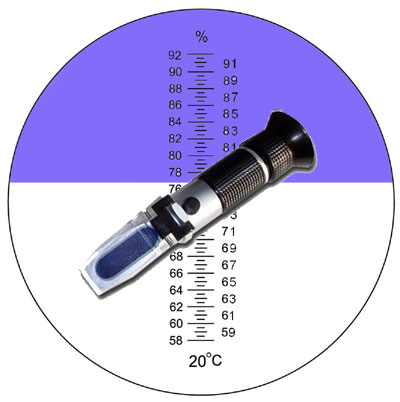

	RHB-92	58-92%Brix	0.5%Brix	±0.5%
	RHB0-50	0-50%Brix	1%Brix	±1%Brix

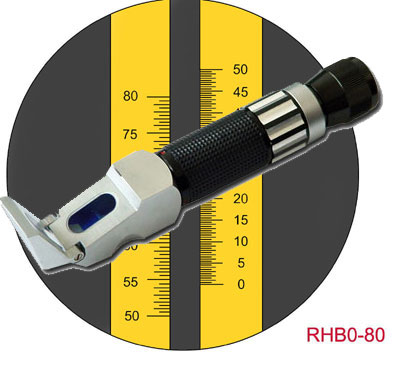

	RHB0-80	0-50%Brix 50-80%Brix	1%Brix	±1%Brix

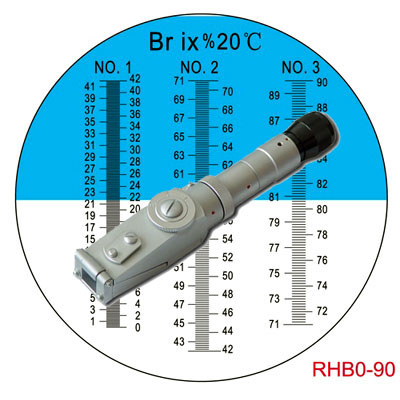

	RHB0-90	0-42%Brix 42-71%Brix 71-90%Brix	0.2%Brix	±0.2%Brix
Industrial Fluid Refractometer	RHB-10/ATC	0-10%Brix	0.1%Brix	±0.10%
	RHB-18/ATC	0-18%Brix	0.1%Brix	±0.10%
	RHB-32/ATC	0-32%Brix	0.2%Brix	±0.20%
Honey Refractometer	RHB-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHB-92T	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHB-92	58-92%Brix	0.5%Brix	±0.5%

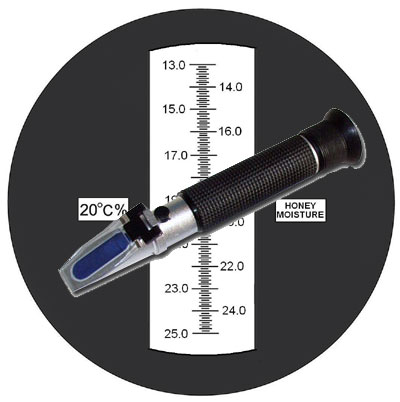

	RHF-30	10-30%water	1%Brix	±1%

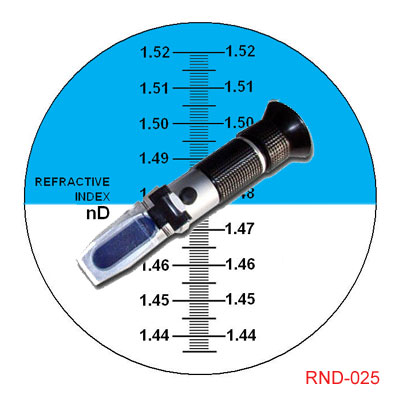

Refractometer for Oil testing	RND-025/ATC	1.435-1.520Nd	0.001Nd	±0.002Nd

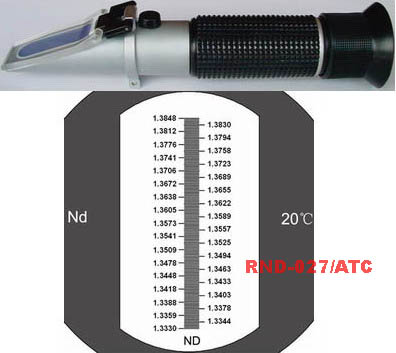

Refractometer for Oil testing	RND-027/ATC	1.330-1..3448Nd	0.001Nd	±0.0002Nd

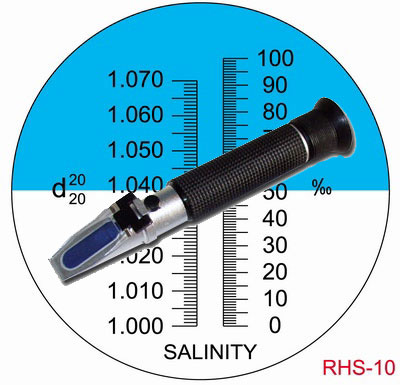

Salinity Refractometer	RHS-10/ATC	0-10%Salinity 1.000-1.070 RI	0.1%Salinity 0.001 RI	±0.1% ±0.001 RI

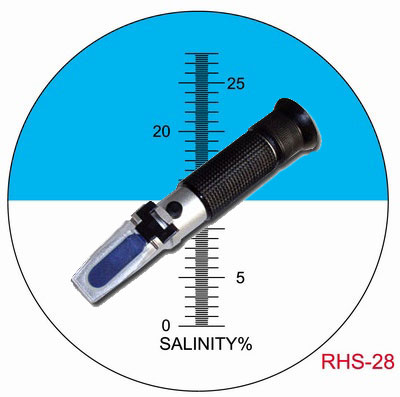

Salinity Refractometer	RHS-28/ATC	0-28%Salinity	0.2%Salinity	±0.2%

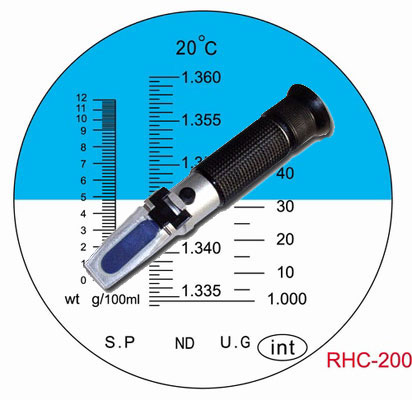

Clinical refractometer	RHC-200/ATC	0-12g/dl 1.000-1.050sg 1.3300RI-1.3600RI	0.2g/dl 0.005sg 0.0005RI	±0.2g/dl ±0.005sg ±0.0005RI

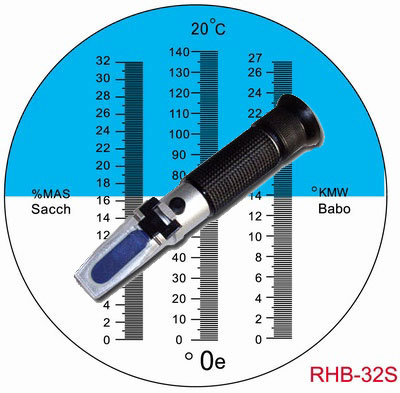

Oe refractometer	RHB-32S/ATC	0 - 140 °Oe 0 - 27 KMW (Babo) 0 – 32%Brix (Sacch.)	1°Oe 0.2KMW 0.2%Brix	±1°Oe ±0.2KMW ±0.2%Brix

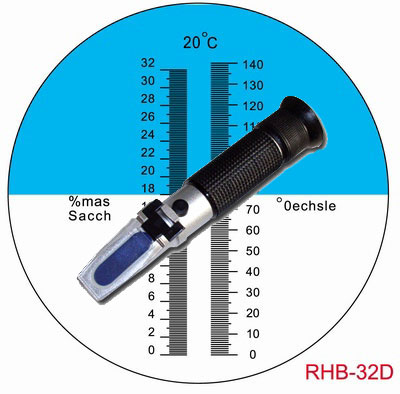

	RHB-32D/ATC	0 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

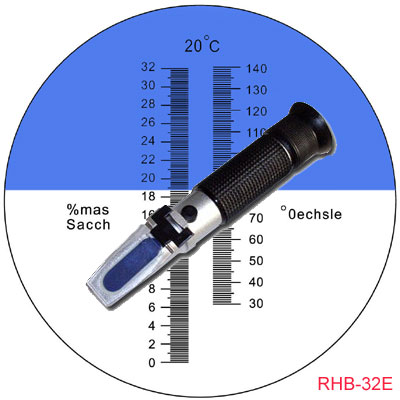

	RHB-32E/ATC	30 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

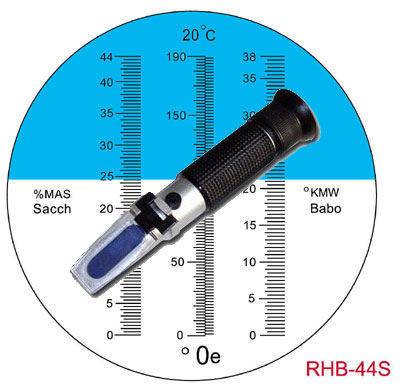

	RHB-44S/ATC	0 - 190 °Oe 0 - 38 KMW (Babo) 0 – 44%Brix (Sacch.)	2°Oe 0.2KMW 0.5%Brix	±2°Oe ±0.2KMW ±0.5%Brix

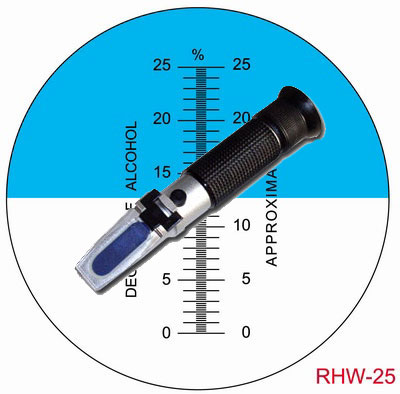

Wine refractometer	RHW-25/ATC	0-25%Vol	0.2%Vol	±0.20%

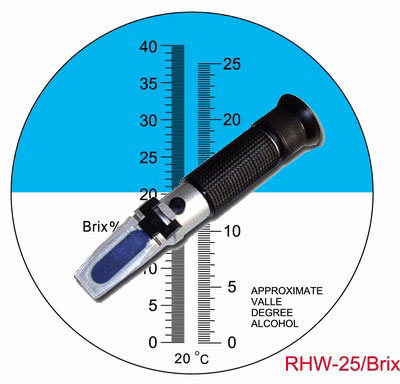

	RHW-25/Brix/ATC	0-25%Vol 0-40%Brix	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

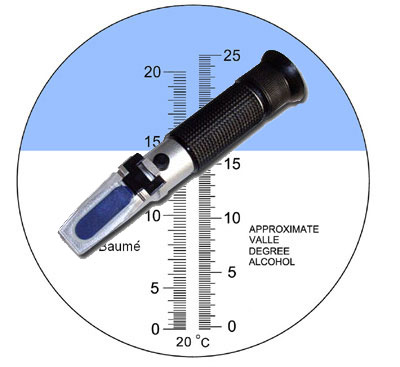

	RHW-25/Be/ATC	0-25%Vol 0-20 Beo	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

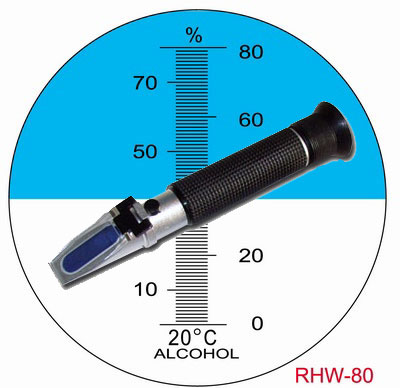

	RHW-80	0-80%w/w	1%w/w	±1%w/w

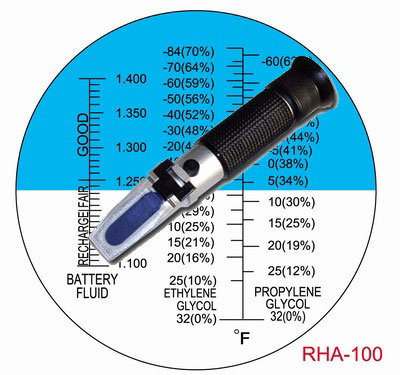

Antifreeze/Battery/ Cleaning Fluids Refractometer	RHA-100/ATC	E:-84° F-32° F P:-60° F-32° F B:1.100-1.400sg	5° F 5° F 0.01sg	±5° F ±5° F ±0.01sg

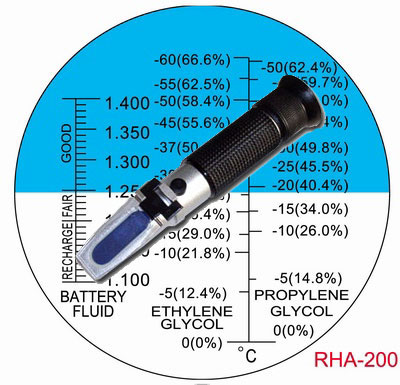

	RHA-200/ATC	E:-60°C-0°C P:-50°C-0°C B:1.100-1.400sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg

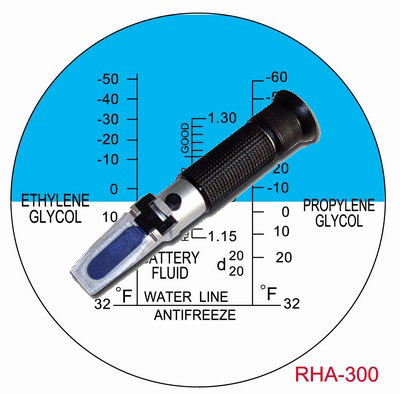

	RHA-300/ATC	E:-60°F-32°F P:-50°F-32°F B:1.15-1.30sg	10°F 10°F 0.01sg	±10°F ±10°F ±0.01sg

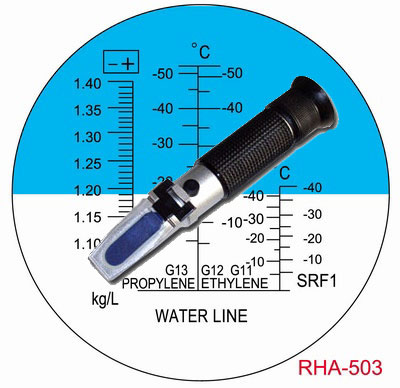

	RHA-503/ATC	B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C	0.01sg 5°C 5°C 5°C	±0.01sg ±5°C ±5°C ±5°C
Brake fluid refractometer	RBF-020F	DOT 3（standard fluids） Boiling point 250-500F/1-6 H2O High Temp(Fords and Racing) Boiling point 250-570F/1-6 H2O		1% H2O
Brake fluid refractometer	RBF-022C	DOT 4（standard fluids） Boiling point 125-275℃/1-6 H2O PLUS(SUPER) (Fords and Racing) Boiling point 150-275℃/1-6 H2O		1% H2O

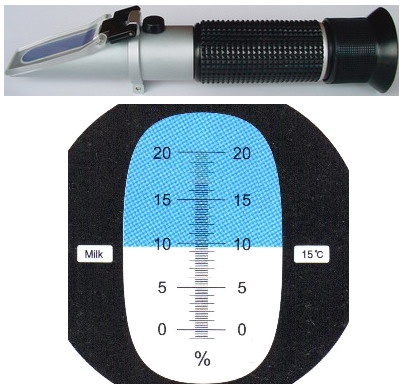

Milk refractometer

HB-611

0~20% milk

0.2% milk

±0.20%

Page1 Page2 Page3 Page4 Page5 Page6 Page7

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
