Moisture Meter

¡¡

( digital Moisture Meter, Moisture Tester, electromagnetic inductive moisture meter, moisture detector, grain Moisture Meter, grain Moisture tester, portable grain Moisture Meter, wood Moisture Meter, timber Moisture Meter, timber water meter, soil Moisture Meter, seed Moisture Meter, temperature Moisture Meter, paper Moisture Meter, tea Moisture Meter )

¡¡

multifunctional moisture meter          grain moisture meter          wood/paper moisture meter          soil moisture meter

¡¡

Model Guide: SR7825G, SR7826G, SR7827G, SR7828G, MC7825G, MC7821, MD7822, MM100G, MM25G

¡¡

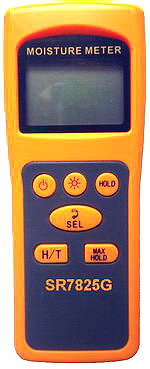

MODEL: SR7825G (grain)
Product Names: Universal grain moisture meter
Measuring mode: Needle type
Way of calibration: automatic calibration at startup
Operating conditions Temperature: -10¡ãC-60¡ãC Humidity: 0-70%Rh
Measuring range for moisture: 2%-31%
Tolerance: ¡À (1%Rh+0.5)
Resolution: 0.50%
Measuring range for temperature: -10¡ãC-60¡ãC (14ºF--140ºF)
Tolerance: ¡À2¡ãC (¡À4ºF)
Resolution: 1¡ãC (2ºF)
Power supply: 4x 1.5v AAA (UM-4) battery
Size of handle: Host165¡Á58¡Á33mm, handle380¡Á42¡Á27mm
Weight: Host 90g (without battery); handle180g
 Features:

*Technology of micro-computer ensures precision;
*Auto temperature compensation lowers the influence of temperature drift on precision;
*Large-sized LCD screen with backlight illumination and unambiguous reading;
*Backlight turned on and off smoothly to save power;
*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;
*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.
Application: applicable to rapidly and precisely measuring the moisture and temperature of grain during allocation and transfer, requisition by purchase, store and process etc. of the packaged grain.
Code   Grain
A         Wheat
B         Paddy
C         Rice
D         Corn
¡¡ ¡¡

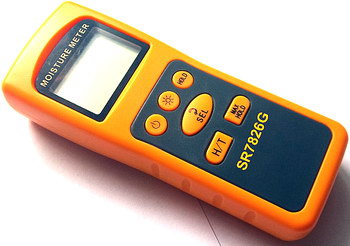

MODEL SR7826G (grain)
Product Names: Specialized grain moisture meter
Measuring mode: Needle type
Way of calibration: automatic calibration at startup
Operating conditions Temperature: -10¡ãC-60¡ãC Humidity: 0-70%Rh
Measuring range for moisture: 2%-31%
Tolerance: ¡À (1%Rh+0.5)
Resolution: 0.50%
Measuring range for temperature: -10¡ãC-60¡ãC (14ºF--140ºF)
Tolerance: ¡À2¡ãC (¡À4ºF)
Resolution: 1¡ãC (2ºF)
Power supply: 4x 1.5v AAA (UM-4) battery
Size of handle: Host165¡Á58¡Á33mm, handle380¡Á42¡Á27mm
Weight: Host 90g (without battery); handle180g
Features:
*Technology of micro-computer ensures precision;
*Auto temperature compensation lowers the influence of temperature drift on precision;
*Large-sized LCD screen with backlight illumination and unambiguous reading;
*Backlight turned on and off smoothly to save power;
*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;
*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.

Application: applicable to rapidly and precisely measuring the moisture and temperature of grain during allocation and transfer, requisition by purchase, store and process etc. of the packaged grain.

Code

Grain

Code

Grain

Code

Grain

Code

Grain

1A

Wheat

2A

Soybean

3A

Ccao

4A

Sunflower seed

1B

Paddy

2B

Barley/Oat

3B

Rapeseed

4B

Pea

1C

Rice

2C

GCoffee

3C

Mustard seed

4C

Hard-shell

1D

Corn

2D

Coffee green

3D

Sorghum/ Broomcorn millet

4D

Buckwheat
¡¡ ¡¡

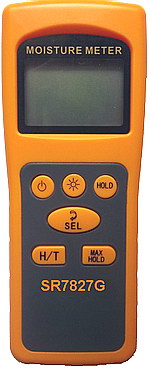

MODEL SR7827G (grain)
Product Names: Multifunctional grain moisture meter
Measuring mode: Needle type
Way of calibration: automatic calibration at startup
Operating conditions: Temperature: -10¡ãC-60¡ãC Humidity: 0-70%Rh
Measuring range for moisture: 2%-31%
Tolerance: ¡À (1%Rh+0.5)
Resolution: 0.50%
Measuring range for temperature: -10¡ãC-60¡ãC (14ºF--140ºF)
Tolerance: ¡À2¡ãC (¡À4ºF)
Resolution: 1¡ãC (2ºF)
Power supply: 4x 1.5v AAA (UM-4) battery
Size of handle: Host165¡Á58¡Á33mm, handle380¡Á42¡Á27mm
Weight: Host 90g (without battery); handle180g
 Features:
*Technology of micro-computer ensures precision;
*Auto temperature compensation lowers the influence of temperature drift on precision;
*Large-sized LCD screen with backlight illumination and unambiguous reading;
*Backlight turned on and off smoothly to save power;
*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;
*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.
Application: applicable to rapidly and precisely measuring the moisture and temperature of grain during allocation and transfer, requisition by purchase, store and process etc. of the packaged grain.

Code

Grain

Code

Grain

Code

Grain

1A

Wheat

4A

Coffee

7A

Flax

1B

Wheat powder

4B

Coffee powder

7B

Pea

1C

Paddy

4C

Coffee green

7C

Pea powder

1D

Paddy powder

4D

Ccao

7D

Hard-shell nut

2A

Rice

5A

Flax seed

8A

Ryegrass seed

2B

Coarse wheat powder

5B

Lentil

8B

Orchard grass seed

2C

Corn

5C

Rapeseed

8C

Soft wheat powder

2D

Corn powder

5D

Mustard seed

8D

Clover white  seeds

3A

Soybean

6A

Sorghum/ Broomcorn millet

9A

Clover white  seeds

3B

Soybean powder

6B

Sorghum/ Broomcorn millet powder

9B

Buckwheat

3C

Barley/Oat

6C

Sunflower seed

9C

Rape

3D

Barley/Oat powder

6D

Beet seed

9D

Bean-shape fruit
¡¡ ¡¡

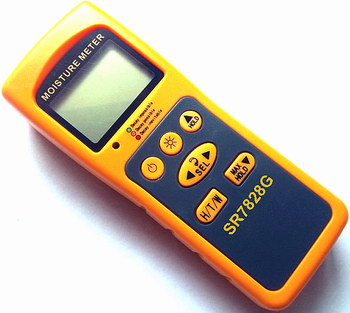

MODEL SR7828G (grain)
Product Names: Intelligent multifunctional grain moisture meter
Measuring mode: Needle type
Way of calibration: automatic calibration at startup
Operating conditions Temperature: -10¡ãC-60¡ãC Humidity: 0-70%Rh
Measuring range for moisture: 2%-31%
Tolerance: ¡À (1%Rh+0.5)
Resolution: 0.50%
Measuring range for temperature: -10¡ãC-60¡ãC (14ºF--140ºF)
Tolerance: ¡À2¡ãC (¡À4ºF)
Resolution: 1¡ãC (2ºF)
Power supply: 4x 1.5v AAA (UM-4) battery
Size of handle: Host165¡Á58¡Á33mm, handle380¡Á42¡Á27mm
Weight: Host 90g (without battery); handle180g
Features:
*Technology of micro-computer ensures precision;
*Auto temperature compensation lowers the influence of temperature drift on precision;
*3-grade warning mechanism indicates the exceeding of limitation (than SR7827G).

One grade is relatively dry, it is safe.

One is a little moist, but not be a problem, is the critical state.

Third is relatively moist, a dangerous state, may be moldy if not drying.
*Large-sized LCD screen with backlight illumination and unambiguous reading;
*Backlight turned on and off smoothly to save power;
*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;
*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.
Application: applicable to rapidly and precisely measuring the moisture and temperature of grain during allocation and transfer, requisition by purchase, store and process etc. of the packaged grain.

Code

Grain

Code

Grain

Code

Grain

1A

Wheat

4A

Coffee

7A

Flax

1B

Wheat powder

4B

Coffee powder

7B

Pea

1C

Paddy

4C

Coffee green

7C

Pea powder

1D

Paddy powder

4D

Ccao

7D

Hard-shell nut

2A

Rice

5A

Flax seed

8A

Ryegrass seed

2B

Coarse wheat powder

5B

Lentil

8B

Orchard grass seed

2C

Corn

5C

Rapeseed

8C

Soft wheat powder

2D

Corn powder

5D

Mustard seed

8D

Clover white  seeds

3A

Soybean

6A

Sorghum/ Broomcorn millet

9A

Clover white  seeds

3B

Soybean powder

6B

Sorghum/ Broomcorn millet powder

9B

Buckwheat

3C

Barley/Oat

6C

Sunflower seed

9C

Rape

3D

Barley/Oat powder

6D

Beet seed

9D

Bean-shape fruit

¡¡

GRAIN MOISTURE METER MM100G

Display:4 digital LCD
Measuring range :7%-30%
Temperature:0-60 ºC
Humidity:5%-90%
Resolusion:0.1
Accuracy: ¡À 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery
Dimensions:
460mm¡Á75mm¡Á35mm
Weight:203g (not including batteries)
Grains:6 kinds

CODE

GRAIN

Cd01

Wheat/Rye

Cd02

Maize/Corn

Cd03

Soya Beans

Cd04

Paddy

Cd05

Rice

Cd06

Barley/Oats

¡¡

GRAIN MOISTURE METER MM25G

Display:4 digital LCD
Measuring range :7%-28%
Temperature:0-60 ºC
Humidity:5%-90%
Resolusion:0.1
Accuracy: ¡À 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery
Dimensions:
460mm¡Á75mm¡Á35mm
Weight:203g (not including batteries)
Grain:25 kinds

CODE

GRAIN

CODE

GRAIN

Cd01

Wheat/Rye

Cd14

Coffee

Cd02

Maize/Corn

Cd15

Coffee Green

Cd03

Soya Beans

Cd16

Cocoa Beans

Cd04

Paddy

Cd17

Linseed

Cd05

Rice

Cd18

Lentils

Cd06

Barley/Oats

Cd19

Ground nuts Hulled

Cd07

Sorghum/Milo

Cd20

Grass Seed/Rye grass

Cd08

Buckwheat

Cd21

Grass Seed/Cocksfoot

Cd09

Peas

Cd22

Clover/White Seed

Cd10

Oilseed Rape

Cd23

Clover/Red Lucerne Seed

Cd11

Mustard Seed

Cd24

Brassicas/Brussels Sprout,Cabbage seed

Cd12

Sunflower seed

Cd25

Beans/Tic/Winter

Cd13

Sugarbeet Seed

¡¡

¡¡

¡¡

¡¡

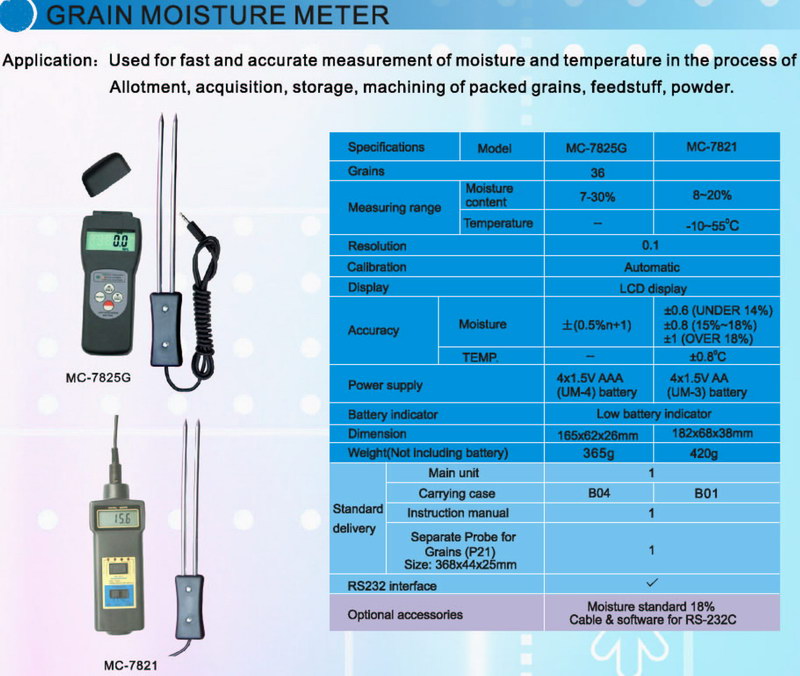

Special Noting: 1, MC-7825G Test code and grain species (while the MC7821 can test ONLY 4 grain species as paddy, rice, corn, wheat). MC7825G is with different probe connecting mouth and can test 36 grains compared with MC7821.

MC7825G can test onion seeds, use code: cd19 Oilseed Rape (Ground).

code

grain

range

code

grain

range

code

grain

range

cd01

Wheat/Rye (Whole)

7-31

cd13

Coffee (Whole)

7-31

cd25

Flax (Whole)

5-21

cd02

Wheat/Rye (Ground)

7-29

cd14

Coffee (Ground)

7-26

cd26

Peas (Progreta) (Ground)

5-21

cd03

Paddy (Whole)

7-29

cd15

Coffee Green (Ground)

7-27

cd27

Peas (Ground)

7-27

cd04

Paddy (Ground)

7-26

cd16

Cocoa Beans (Whole)

4-13

cd28

Ground nuts Hulled (Whole)

5-13

cd05

Rice (Milled)

7-29

cd17

Linseed (Whole)

6-21

cd29

Grass Seed/Rye grass (Whole)

7-28

cd06

Semolina

7-25

cd18

Lentils (Ground/ Whole)

7-21

cd30

Grass Seed/Cocksfoot (Whole)

6-23

cd07

Maize/Corn (Whole)

7-27

cd19

Oilseed Rape (Ground)

5-26

cd31

Flour/Soft Wheat

7-29

cd08

Maize/Corn (Ground)

7-26

cd20

Mustard Seed (Whole)

7-21

cd32

Clover/White Seed (Whole)

6-24

cd09

Soya Beans (Whole)

6-28

cd21

Sorghum/Milo (Whole)

7-28

cd33

Clover/Red Lucerne Seed (Whole)

6-22

cd10

Soya Beans (Ground)

5-22

cd22

Sorghum/Milo (Ground)

7-26

cd34

Buckwheat (Ground)

7-29

cd11

Barley/Oats (Whole)

7-34

cd23

Sunflower seed (Whole)

5-25

cd35

Brassicas/Brussels Sprout (whole/ground),Cabbage seed

5-15

cd12

Barley/Oats (Ground)

7-29

cd24

Sugarbeet Seed (Whole)

6-20

cd36

Beans/Tic/Winter (Ground)

5-15

¡¡

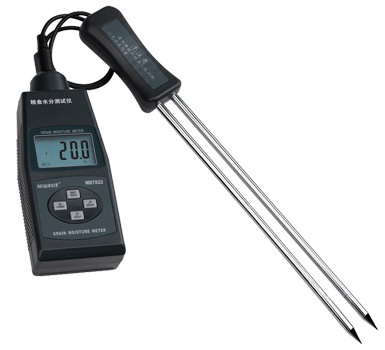

GRAIN MOISTURE METER MD7822

Adoption of CPU makes the measurement
more accurate.Temperature self-compensation.
A big screen LCD with back lighting to ensure
the reading is clear and free from parallax.
Special energy saving backlight control.
Grains that can be tested with the meter: wheat,
paddy, rice and corn.
Moisture measurement range: 2%~30%
¡¡Resolution: 0.5%
Temperature measurement range:
-10~60¡ãC(14~140¡ãF)
Maximum error: ¡À2¡ãC(¡À4¡ãF)
Resolution: 1¡ãC(2¡ãF)
Ambient temperature: -10~40¡ãC(14~104¡ãF)
Ambient humidity: 0~70%Rh
Date hold and can hold value.
Low power symbol automatic indicating.
Battery: 4x1.5V AA battery
Dimensions:
¡¡174L¡Á73W¡Á38Hmm (for main unit)
¡¡365Lx43Wx25Hmm (for measurement probe)

Packing: 15PCS/CTN, CTN SIZE: 56*41*35CM, G.W.: 15KGS, VOLUME WEIGHT: 16.08KGS

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )

¡¡
