Moisture Meter

( digital Moisture Meter, Moisture Tester, electromagnetic inductive moisture meter, moisture detector, grain Moisture Meter, grain Moisture tester, portable grain Moisture Meter, wood Moisture Meter, timber Moisture Meter, timber water meter, soil Moisture Meter, seed Moisture Meter, temperature Moisture Meter, paper Moisture Meter, tea Moisture Meter )

multifunctional moisture meter grain moisture meter wood/paper moisture meter soil moisture meter

Model Guide: MM300, MM310, MM7100, MM7200, SR7825P, SR7825S, SR7825PS, MC7825S, MC7825P, MC7825PS, MC7806, MC7812, MC7825P+(probe P25G),MC7806+(probe P21), MM100C, MM100T, MM100

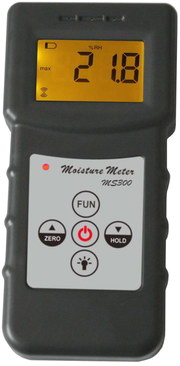

Inductive Moisture Meter MM300

Inductive moisture meter MM300 is used for measuring moisture content of wood, Timber, paper, Bamboo, Carton , concrete, metope, and other materials. It applicable of woodwork, paper making, flakeboard, furniture ,building, timber traders and other relevant industry.

Features:

1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.

1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.

1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.

1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.

1.5.Manual off at any time .Auto power off after 5 minutes from last operation.

1.6 Data hlold function.Low battery alert.

Specification

＊Display:4 digital LCD

＊Measuring range :0-70%

＊Temperature:0-60°C

＊Humidity:5%-90%RH

＊Resolusion:0.1

＊Accuracy: ± 0.5%n

＊Power supply:

4x1.5 AAA size (UM-4) battery

＊Dimensions:140mm×60mm×22mm

＊Weight:119g (not including batteries)

＊ Guarantee:1 year

＊ Material Species: 10 kinds

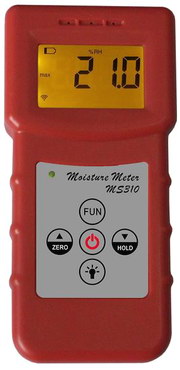

Inductive Moisture Meter MM310

Inductive moisture meter MM310 is used for measuring moisture content of wood, Timber, paper, Bamboo, Carton , concrete, metope, and other materials. It applicable of woodwork, paper making, flakeboard, furniture ,building, timber traders and other relevant industry.

Features:

1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.

1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.

1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.

1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.

1.5.Manual off at any time .Auto power off after 5 minutes from last operation.

1.6 Data hlold function.Low battery alert.

Specification

＊Display:4 digital LCD

＊Measuring range :0-99%

＊Temperature:0-60°C

＊Humidity:5%-90%RH

＊Resolusion:0.1

＊Accuracy: ± 0.5%n

＊Power supply:

4x1.5 AAA size (UM-4) battery

＊Dimensions:140mm×60mm×22mm

＊Weight:119g (not including batteries)

＊ Guarantee:1 year

Material Species:20 kinds

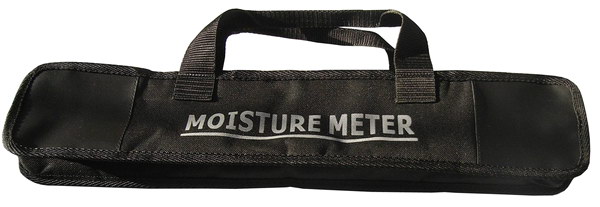

Packing: 18PCS/CTN, CTN SIZE: 43.5*28*65CM,

G.W: 13.5KGS, Volume weight: 16KGS

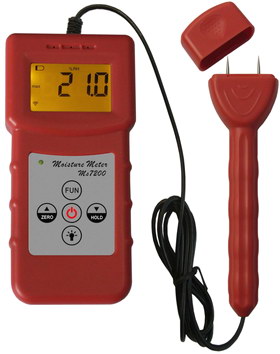

Pin Moisture Meter MM7200

Pin moisture meter MM7200 is used for measuring moisture content of wood ,Timber, paper, Bamboo, Carton, concrete, floor and other materials. It applicable of woodwork,paper making , flakeboard, furniture ,building, timber traders and other relevant industry.

Features:

＊ Compact,portable ,easy to use.

＊ Digital display with backlight.

＊ Manual power off & Auto power off.

Measuring range: 0-80%

Resolution: 0.1

Display: LCD display

Accuracy: ±(0.5%n+0.1)

Power supply: 4x1.5V AAA (UM-4) battery

Battery indicator: low battery indicator

Material code: 3 kinds

Probe length: 8cm (including handle), pin length: 1.5cm

Packing: 2PCS/CTN, CTN SIZE: 50*22*15CM, G.W: 1.5KGS, Volume weight: 3.3KGS;1PCS/CTN, CTN SIZE: 25*21*7CM

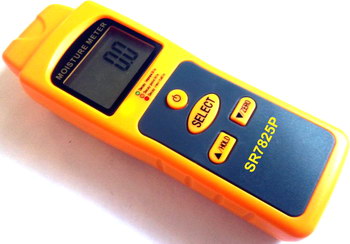

MODEL SR7825P

Product Names: Multifunctional needle wood moisture meter

Measuring mode: Needle type

Way of calibration: automatic calibration at startup

Measurable materials: About 150 non-conducting materials, such as wood, fibre, construction material, etc. (choose the code based on the material)

Monitor: 5-digit 14mm LCD screen and 1-digit color-coding LED to display the data and the value of moisture

Measuring range: 0-70%

Accuracy: ±(0.5%+1)

Resolution: 0.1

Operating conditions: Temperature: 0-50°C Humidity: <90%

Power supply: 4x 1.5v AAA (UM-4) battery

Size of handle: 165×58×33mm

Weight: 110g(without battery)

Features:

*Technology of micro-computer ensures precision;

*Auto temperature compensation lowers the influence of temperature drift on precision;

*Large-sized LCD screen with backlight illumination and unambiguous reading;

*Backlight turned on and off smoothly to save power;

*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;

*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.

Application: Broad application on fibre-based materials, such as buildings, building materials, metal, paper, finished products, traditional Chinese medicine, tobacco, cotton, textile and soil.

Code	Material
CD00	grand fir, D. zeylanicus, dipterocarp, right rue, eucalyptus, spotted gum, tallow wood gum,Minse gum, Sterculiaceae, brown Sterculia nobilis, Sterculia rhinopetala, lodgepole pine, Pinus sylvestris, Dry pine, twisted pine, odgepole pine, scotch pine, European red wood, American red rubber plant, spotted rubber plant, European ash tree,Birch, balsa tree, boxwood, kashiwagi africa Cypress, maple, rosewood(ebony, padauk, etc.), sandalwood, Australian rose wood, fred wood, American walnut, sugar maple, big-leaf maple, summer oak, bamboo and its products.
CD01	red ironbark, willow eucalyptus, araucaria angustifolia, large norfolk island pine, sequoia, merbau, New Zealand white pine, Douglas fir, coast pine, rubber tree, California redwood, American ash trees, west mahogany, Queensland maple, New guinea walnut, new zealand white pine, silkwood, Shorea coriacea, Indian shorea
CD02	Jarrah wood, Australian eucalyptus, African silver birch, Australia silver birch, Avocado, Nigerian two core hematoxylin, oak, Erythrophloeum fordii, White wood, European beech, grevillea, Thuja plicata, North american larch, Japanese larch, matai,Pinus nigra, Corsican black pine, longleaf pine, west yellow pine, red cedar, yellow pine, Ponderosa Pine, caribbean pine, ocote pine, Radiata pine, European spruce, European yew, silver fir, spruce, western hemlock, Tsuga heterophylla, Chinese yew, Ocotea rodioei, Cinnamomum, chestnut tree.
CD03	New Zealand Kauri, New Zealand fir, pyinkado,Turkey oak, Sipo, Kulu, Quercus cerris, American Elm, English elm, Ulmus thomasii Sarg, white elm, afzelia, Lime, podocarpus, totara.
CD04	Tongye maple, pecan, mangrove, sycamore, West American larch, west larch, Padauk, African Padouk, Teak jati, Microcos, hickory, American light microcos.
CD05	Afromosia Assamela, persimmon tree, American persimmon, Pterocarpus vidalianus, Basswood, coach wood, Ramin, Amboyna Burl, amboyna.
CD06	Brazilian poon, guarea, scented guarea.
CD07	Tall fir, Queensland Kauri, African mahogany, African walnut, Swedish birch, croton, sweet cherry, cherry,Shellbark, black guarea, European birch, deodar cedar, Capparis acutifolia.
Cd08	Paper, cardboard
Cd09	Building, wall and concrete

Features:
*Technology of micro-computer ensures precision;
*Auto temperature compensation lowers the influence of temperature drift on precision;
*Large-sized LCD screen with backlight illumination and unambiguous reading;
*Backlight turned on and off smoothly to save power;
*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;
*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.
Application: Broad application on fibre-based materials, such as buildings, building materials, metal, paper, finished products, traditional Chinese medicine, tobacco, cotton, textile and soil.

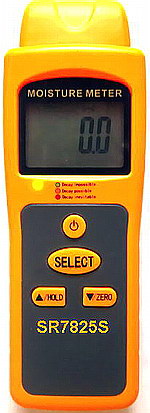

MODEL SR7825S
Product Names: Multifunctional inductive wood moisture meter
Measuring mode: Induction type
Way of calibration: automatic calibration at startup
Measurable materials: About 150 non-conducting materials, such as wood, fibre, construction material, etc. (choose the code based on the material)
Induction depth: 50mm
Monitor: 5-digit 14mm LCD screen and 1-digit color-coding LED to display the data and the value of moisture
Measuring range: 0-70%
Accuracy : ±(0.5%+1)
Resolution: 0.1
Operating conditions: Temperature: 0-50°C Humidity: < 90%
Power supply: 4x 1.5v AAA (UM-4) battery
Size of handle: 165×58×33mm
Weight: 110g(without battery)

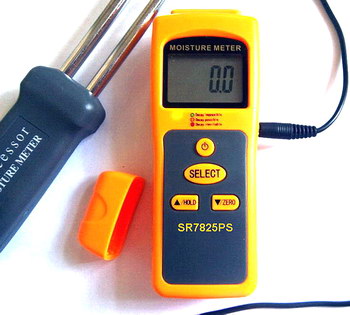

MODEL SR7825PS

Product Names: Multifunctional inductive/needle wood moisture meter

Measuring mode: Induction type/Needle type

Way of calibration: automatic calibration at startup

Measurable materials: About 150 non-conducting materials, such as wood, fibre, construction material, etc. (choose the code based on the material)

Induction depth: 50mm

Monitor: 5-digit 14mm LCD screen and 1-digit color-coding LED to display the data and the value of moisture

Measuring range: 0-70%

Accuracy: ±(0.5%+1)

Resolution: 0.1

Operating conditions: Temperature: 0-50°C Humidity: < 90%

Power supply: 4x 1.5v AAA (UM-4) battery

Size of handle: Host: 165×58×33mm; handle: 216×42×27mm

Weight Host: 110g (without battery); handle: 110g

Features:

*Technology of micro-computer ensures precision;

*Auto temperature compensation lowers the influence of temperature drift on precision;

*Large-sized LCD screen with backlight illumination and unambiguous reading;

*Backlight turned on and off smoothly to save power;

*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;

*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.

Application: Broad application on fibre-based materials, such as buildings, building materials, metal, paper, finished products, traditional Chinese medicine, tobacco, cotton, textile and soil.

Table 1: Materials and Their Corresponding Codes (Probe-Based Measuring)

Code	Material
CD00	grand fir, D. zeylanicus, dipterocarp, right rue, eucalyptus, spotted gum, tallow wood gum,Minse gum, Sterculiaceae, brown Sterculia nobilis, Sterculia rhinopetala, lodgepole pine, Pinus sylvestris, Dry pine, twisted pine, odgepole pine, scotch pine, European red wood, American red rubber plant, spotted rubber plant, European ash tree,Birch, balsa tree, boxwood, kashiwagi africa Cypress, maple, rosewood(ebony, padauk, etc.), sandalwood, Australian rose wood, fred wood, American walnut, sugar maple, big-leaf maple, summer oak, bamboo and its products.
CD01	red ironbark, willow eucalyptus, araucaria angustifolia, large norfolk island pine, sequoia, merbau, New Zealand white pine, Douglas fir, coast pine, rubber tree, California redwood, American ash trees, west mahogany, Queensland maple, New guinea walnut, new zealand white pine, silkwood, Shorea coriacea, Indian shorea.
CD02	Jarrah wood, Australian eucalyptus, African silver birch, Australia silver birch, Avocado, Nigerian two core hematoxylin, oak, Erythrophloeum fordii, White wood, European beech, grevillea, Thuja plicata, North american larch, Japanese larch, matai,Pinus nigra, Corsican black pine, longleaf pine, west yellow pine, red cedar, yellow pine, Ponderosa Pine, caribbean pine, ocote pine, Radiata pine, European spruce, European yew, silver fir, spruce, western hemlock, Tsuga heterophylla, Chinese yew, Ocotea rodioei, Cinnamomum, chestnut tree.
CD03	New Zealand Kauri, New Zealand fir, pyinkado,Turkey oak, Sipo, Kulu, Quercus cerris, American Elm, English elm, Ulmus thomasii Sarg, white elm, afzelia, Lime, podocarpus, totara.
CD04	Tongye maple, pecan, mangrove, sycamore, West American larch, west larch, Padauk, African Padouk, Teak jati, Microcos, hickory, American light microcos.
CD05	Afromosia Assamela, persimmon tree, American persimmon, Pterocarpus vidalianus, Basswood, coach wood, Ramin, Amboyna Burl, amboyna.
CD06	Brazilian poon, guarea, scented guarea.
CD07	Tall fir, Queensland Kauri, African mahogany, African walnut, Swedish birch, croton, sweet cherry, cherry,Shellbark, black guarea, European birch, deodar cedar, Capparis acutifolia.
Cd08	Paper, cardboard
Cd09	Building, wall and concrete

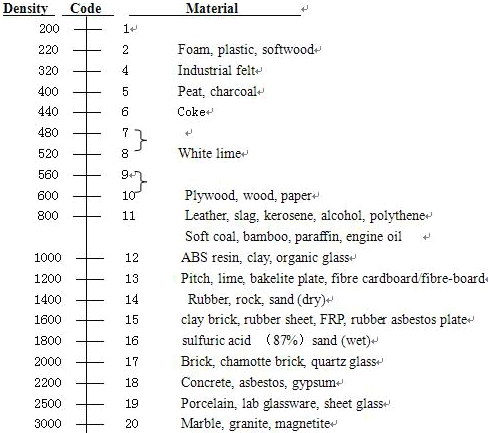

Table 2: Densities and Their Corresponding Codes (Sensor-Based Measuring)

For the factors of uncertainty, this Table is used only for reference.

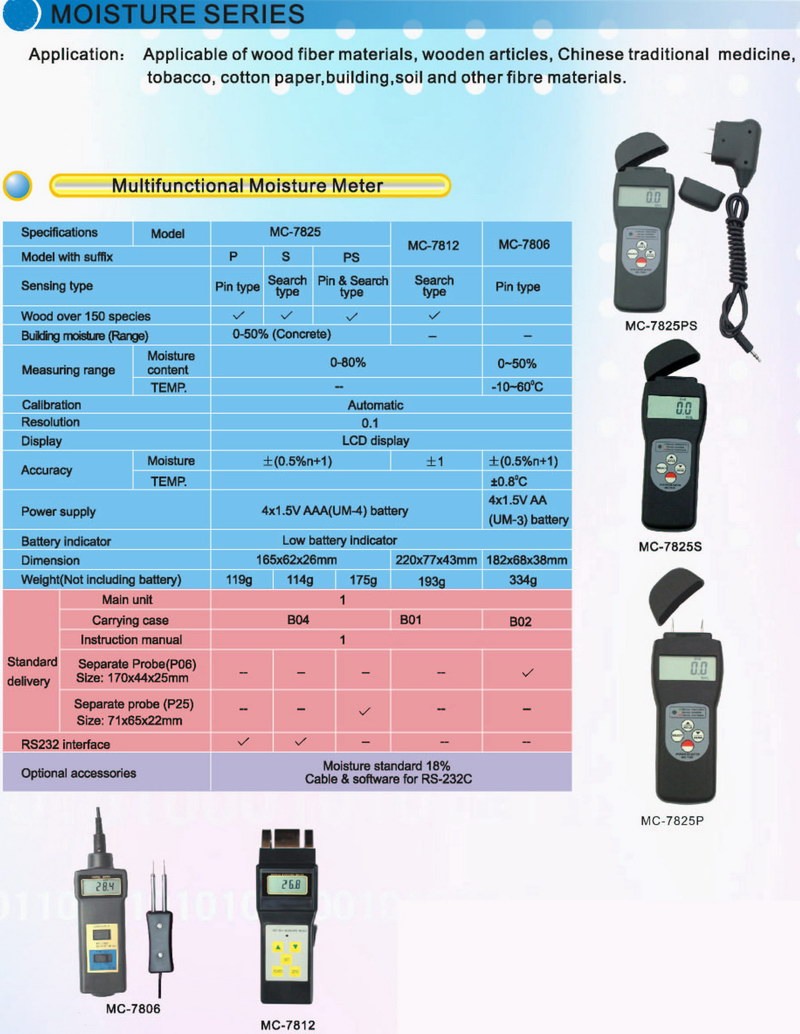

Special Noting: 1, All above MC-xxxx Series is applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton, paper, building, soil and other fibre materials and other materials which are not electric conducting.

Special Noting: 2, MC-7825P can be used to test dry agriculture items (not including dry seefood) such as copra, gambier, and can be used to test straw, silage/feedstuff, when it is equipped with long probe as MC7825G (Seperate Probe P25G Size: 368*44*25mm), order model number is MC7825P+(probe P25G).

MC7806 can be used to test wood dust/wooden meals when it is equipped with long probe as MC7821 (Seperate Probe P21 Size: 368*44*25mm), order model number is MC7806+(probe P21).

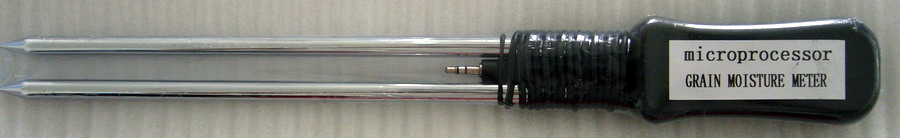

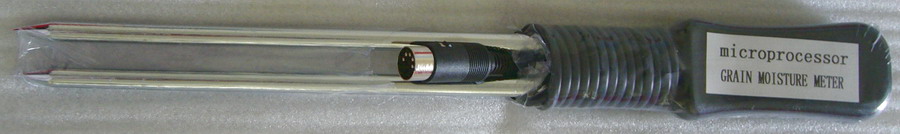

The MC-7825P, S, PS can be equiped with long probe P25G, order model number is MC7825P+(probe P25G), MC7825S+(probe P25G), MC7825PS+(probe P25G).

Special Noting: 3, MC-7825S can be used to test plastic resin, Tea, cheese. It is suggested to use MC7825S to test chemical items.

As buildings are most made of hard materials such as concrete, hard wood floor, we suggest to use search type moisture meter as MC-7825S, MC7812 to test. However, MC-7825S is the best choise, because MC7825S searching sensor is plain, can touch more area and then give more accurate testing. We don't suggest to use pin type to as MC7825P, MC7806 to test, because the hard materials are not good for pin to go into.

For building/concrete tesing, MC-7825S can test up to 80% moisture, but generally the moisture of building/concrete won't be so high.

Special Noting: 4, MC7806's probe pin length is 3cm, MC7825P, MC7825PS is 1cm.

Special Noting: 5, Wood Species List for MC-7825P, MC-7825S, MC-7825PS

Code	Materials
Cd00	Abies grandis, Acer macrophyllum, Maple, Acer saccharum, Pine(scots), yellow Pine, Dalbergia latifolia, Dipterocarpus zeylanicus, Eucalyptus microcorys, Fraxinus excelsior, Cupressus spp, Pinus contorta, Pterygota bequaertii, Quercus robur, Pinus sylvestris, Balsa, Boxwood (maracaibo), red Gum(American), Gum spotted, Gurjun, Birch, Cypress(African) Karri, Oak(European), Oak(Japanese), black Poplar, Redwood(Baltic European), Rosewood (Indian), Pine(lodgepole), Tallowwood, Walnut (American), Kapur
Cd01	Araucaria bidwilli, Eucalyptus crebra, Eucalyptus saligna, Flindersia brayleyana, Fraxinus Americana, Intsia bijuga, Podocarpus dacrydioides, Sequoia sempervirens, Pinus pinaster, Gum(southern), Mahogany (west Indian), Douglas fir, Maple (queensland), red (light or dark) Meranti, white Meranti, Redwood(Californian), Walnut (new guinea), white Pine (new Zealand), Araucaria angustifolia
Cd02	Distemonanthus benthamianus, Jarrah, Endiandra palmerstonii, Erythrophleum spp, Abies alba, Fagus sylvatica, Grevillea robusta, Juglans regia, Larix deciduas, Larix occidentalis, Podocarpus spicatus, Picea abies, Pinus caribaea, Pinus nigra, Pinus palustris, Pinus ponderosa, Pinus radiata, Taxus baccata, Thuja plicata, Tsuga heterophylla, red Cedar (western), Chestnut, Greenheart, Hemlock (western), Larch ( European), Larch (Japanese), Queensland walnut, red Seraya, Spruce, Silky oak( African), Silky oak( Australian), Pine (Corsican), Pine, radiata, Walnut(European), Walnut (queensland), Whitewood, Yew, Pine(ponderosa), Stringybark, Oak (tasmanese)
Cd03	Khaya senegalensis, Podocarpus totara, Quercus cerris, Ulmus American, Ulmus procera, Ulmus thomasii, Afzelia, Kauri( new Zealand), Lime, Elm( English), white Elm, Matai, Oak( Turkey), Pyinkado
Cd04	Acer pseudoplatanus, Carya glabra, Sycamore, Cassipourea elliotii, Dipterocarpus(keruing), Teak, Cordia alliodore, Larix occidentalis, Pterocarpus soyauxii, Hickory, Padauk( African)
Cd05	Afrormosia elata, Diospyros virginiana, Gonystylus macrophyllum, Pterocarpus indicus, Afrormosia, Amboyna, Basswood, Coachwood, Persimmon
Cd06	Calophyllum brasiliense, Guarea cedrata, white Guarea
Cd07	Abies procera, Agathis robusta, Betula pendula, Croton megalocarpus, Prunus avium, Agba, Birch( European), Cedar( west lndian), black Guarea, Kauri (queensland), Walnut( African), Cherry (european), Utile
Cd08	Chipboard, Paper
Cd09	Building, Wall, Concrete

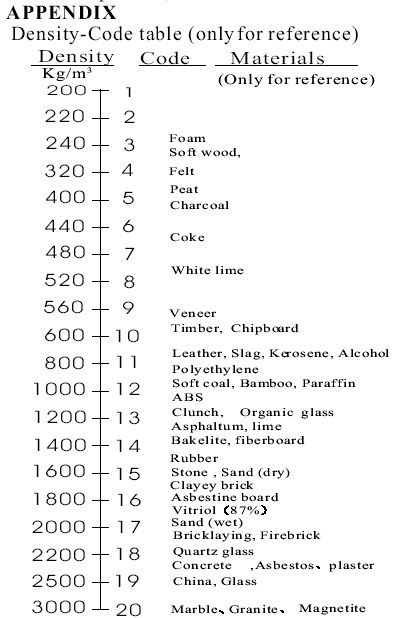

Special Noting: 5, Density code table for MC-7825S, MC-7825PS

Model: MC-7825S

Model: MC-7825PS

Special Noting: 6, all above moisture meters CAN NOT test the moisture of the items which are electric conducting.

Special Noting: 7, MC7825P, S, PS is more professional and accurate and can test more materials than MC7812, MC7806, so it is more expensive.

	FOAM MOISTURE METER Model: MC-7825F * Be a powerful and versatile instrument for measuring and diagnosing dampness in foam through testing the capacitance, the foam moisture can be obtained. * Digital display gives exact reading with guessing or errors while a color coded light(LED)indicates the moisture condition of the Cotton..This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably. * Specially used to test cotton moisture in the process of allotment, acquisition, storage and machining. * Can communicate with PC computer for statistics and printing by the optional cable and software for RS232C interface. * Power off automatically, save electricity. 2. SPECIFICATIONS Display: 4 digits, 10mm LCD With color coded LED indication Green LED represents a safe, air-dry state. Yellow LED represents a borderline State. Red LED represents a damp state. Measurement Range: 0~200% Accuracy: ±(0.5%n +0.5) Resolution: 0.1 Penetration depth: up to 50mm PC interface: RS232C interface Power supply: 4x1.5 AAA size (UM-4) battery Power off : 2 modes Manual off at any time Auto power off after 5 minutes from last key operation Operating conditions: Temperature : 0-50 ºC Humidity : below 90% RH Dimensions: 165x62x26mm or 6.5x2.4x1.0 inch Weight: 119g (not including batteries) Packing: 20PCS/CTN, CTN SIZE: 43.52756.5CM, N.W/G.W: 16/17KGS Optional: cable and software for RS232C (USB) interface

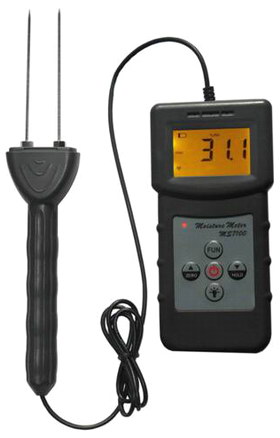

	Cotton Lint Moisture Meter MM7100C The Cotton Moisture Meter is a valuable testing instrument during the cotton collection, processing and when buying or selling cotton. The newly designed MM7100C utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content of cotton, seed-cotton and lint quickly and accurately. Specification: Display: 4 digital LCD Measuring range: 7%-40% Temperature: 0-60°C Humidity: 5%-90% Resolusion: 0.1 Accuracy: ± 0.5%n Operation: Electrical Resistance Method, Automatic temperature Compensation Power supply: 4x1.5 AAA size (UM-4) battery Dimensions: Main Unit: 140mm×60mm×22mm Probe: 72mm×40mm×20mm Pin: 80mm Weight: 195g (not including batteries) Guarantee: 1 year

	COTTON MOISTURE METER MM100C The Cotton Moisture Meter is a valuable testing instrument during the cotton collection, processing and when buying or selling cotton. The newly designed MM100C utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content of cotton, seed-cotton and lint quickly and accurately. Specification Display:4 digital LCD Measuring range :7%-40% Temperature:0-60 ºC Humidity:5%-90% Resolusion:0.1 Accuracy: ± 0.5%n Operation: Electrical Resistance Method, Automatic temperature Compensation Power supply: 4x1.5 AAA size (UM-4) battery Dimensions: 460mm×75mm×35mm Weight:203g (not including batteries) Guarantee:1 year
	TOBACCO MOISTURE METER MM100T The Tobacco Moisture Meter is a valuable testing instrument during the Tobacco collection, processing and when buying or selling. The newly designed MM100T utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content of tobacco quickly and accurately. Specification Display:4 digital LCD Measuring range :8%-40% Temperature:0-60 ºC Humidity:5%-90% Resolution:0.1 Accuracy: ± 0.5%n Operation: Electrical Resistance Method, Automatic temperature Compensation Power supply: 4x1.5 AAA size (UM-4) battery Dimensions: 460mm×75mm×35mm Weight:203g (not including batteries) Guarantee:1 year
	COAL MOISTURE METER MM100 The Moisture Meter MM100 is a high-tech testing instrument in our company. The newly designed moisture meter with extensive probes suits to many materials moisture content testing, just as chemical raw material, plastic granule, soap powder, soil, Chinese traditional medicine and other fibre materials. Specification Display:4 digital LCD Measuring range :0-80% Temperature:0-60°C Humidity:5%-90%RH Resolusion:0.1 Accuracy: ± 0.5%n Operation: Electrical Resistance Method, Automatic temperature Compensation Power supply: 4x1.5 AAA size (UM-4) battery Dimensions: 460×75×35mm 18.3x3x1.4 inch Weight: 203g (not including batteries) Guarantee:1 year

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
