insulation resistance tester / Megohmmeter

　

(insulation resistance tester /meter, insulation meter /tester, Megohmmeter, digital Megohmmeter, megohm meter /tester)

　

Multi function tester

XHST series Insulation Resistance Tester

　

　

AR series Voltage Insulation Tester

Megohmmeter

　

Megohmmeter

　

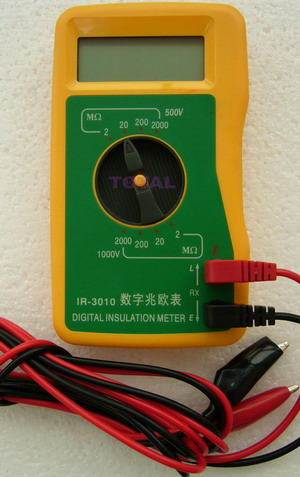

IR3000 series digital megohmmeter

Traditional instrument measuring insulation resistor of the low voltage products, such as elevator, motor, electric switch, cable and so on is replaced with the series of instruments. It includes the following performance: wide range, using is convenient, high reliability, high accuracy, etc.
Specifications:

Model

Specifications

Range

IR3010 (H)

1000/500V

0.01MΩ~2000MΩ

IR3005 (H)

500/250V

IR3001 (H)

100/50V

IR3010 (H)

1000/500V

0.01MΩ~20GΩ

IR3005 (H)

500/250V

IR3001 (H)

100/50V

Measurement voltage:

Voltage

Open circuit voltage

Resistance

Short circuit current

1000V

1000~1100V

5MΩ

1.5mA

500V

500~550V

2MΩ

1.5mA

250V

250~275V

0.5 MΩ

3mA

100V

50~55V

0.2 MΩ

3mA

Accuracy of the resistance measurement:

Range

Measuring range

Accuracy

2 MΩ

0.01~1.999 MΩ

±（5%+1D）

20 MΩ

0.20~19.99 MΩ

±（5%+1D）

200 MΩ

2.0~199.9 MΩ

±（5%+1D）

2000 MΩ

20~1999 MΩ

±（5%+2D）

20 GΩ

0.20~19.99 GΩ

±（10%+5D）

　

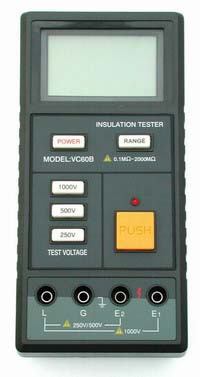

Model VC60B - 3 1/2 Digital Megohmmeter
1999 counts max.
60 x 32 mm LCD display

Test voltage

250V ± 10%

Resistance range

0.1MΩ - 500MΩ

Accuracy

± (4.0%+2)

Short circuit current

1.7mA

Output resistance

2MΩ

Power source: 6F22 (9V) x 1
Dimension: 185 X 80 X 45mm
Weight: Approx. 360g (including battery)

Model VC60D - 3 1/2 Digital Megohmmeter
1999 counts max.
60 x 32 mm LCD display
Test voltage: 1000V/2500V
Resistance range: 200MΩ/2GΩ/20GΩ
Power source: 6F22 (9V) x 1
Dimension: 185 X 80 X 45mm
Weight: approx. 360g (including battery)

Model VC60E - 3 1/2 Digital Megohmmeter
1999 counts max.
60 x 32 mm LCD display
Test voltage: 2500V/5000V
Resistance range: 2GΩ/20GΩ/200GΩ
Power source: 6F22 (9V) x 1
Dimension: 185 X 80 X 45mm
Weight: approx. 360g (including battery)

Megger, Megger Insulation Tester, Handheld Bridge Megger

MEGGER 3060B
Product Features
Shape robust, comfortable, convenient operation
Resistance voltage can be measured, powerful
Data maintenance functions, user-friendly observation and measurement values
Wide measurement range, automatic conversion range.
Super load capacity, maximum operating current of 250mA
Security protection circuit voltage counterattack effectively prevent injury.
General characteristics
Show : 3 1 / 2 LCD display, the subtitles 16mm
Power supply : 6 on the 5th alkaline batteries
Instrument Size : 206 (L) X140 (w) x58 (H) mm
Weight : about studio (excluding batteries)
Annex : Packed boxes, special test line.
Specifications
Functional Range
Uncertainty
Test voltage 250/500/1000V -10%
Resistivity 2M/20M/200M/2000M ±（3%+2d）
AC voltage 750V ±(1.5%+5d)
MEGGER 3060C
Product Features
Shape robust, comfortable, convenient operation
Resistance voltage can be measured, powerful
Data maintenance functions, user-friendly observation and measurement values
Wide measurement range, automatic conversion range.
Super load capacity, maximum operating current of 250mA
Security protection circuit voltage counterattack effectively prevent injury.
General characteristics
Show : 3 1 / 2 LCD display, the subtitles 16mm
Power supply : 6 on the 5th alkaline batteries
Instrument Size : 206 (L) X140 (w) x58 (H) mm
Weight : about studio (excluding batteries)
Annex : Packed boxes, special test line.
Specifications
Functional Range
Uncertainty
Test voltage 500/1000V/2500V -10%
Resistivity 2M/20M/200M/2000M ±（3%+2d）
AC voltage 750V ±(1.5%+5d)

Handheld Bridge 4070

Product Features

Shape strong, durable beauty

Resistance, inductance, capacitance, diodes etc. Measurement

Data maintenance functions, user-friendly observation and measurement values

High accuracy, convenient operation

General characteristics

Show : 3 1 / 2 LCD display, the subtitles 16mm

Power supply : 6 on the 5th alkaline batteries

Instrument Size : 206 (L) X140 (w) x58 (H) mm

Weight : about studio (excluding batteries)

Annex : Packed boxes with folders short Table T,

　

Function

Range

Uncertainty

Capacitance

200p/2n/20n/200n/

±(2%+5d)

2u/20u/200u/2000uF

Inductance

200u/2m/20m/200m/2u/20uH

±（2%+2d）

Resistance

20/200/2k/20k/200k

±(0.8%+2d)

2m/20m/200m

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
