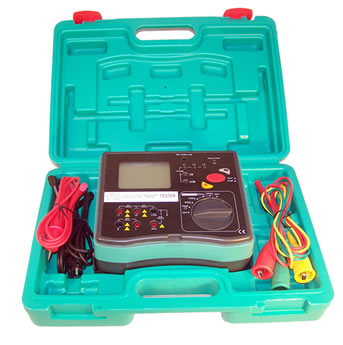

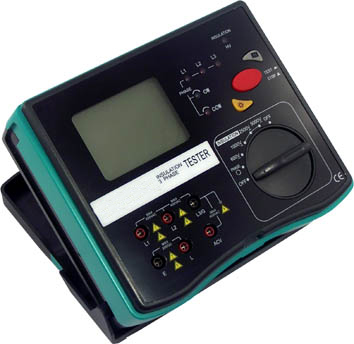

Digital Insulation
3 Phase Tester XHST5103A
![](XHST5103A-ShowRange.jpg) ![](XHST5103Apack-ShowRange.jpg)
The brand new 510 Series instrument can
measure insulation resistance, AC voltage and phase sequence. As a
new generation all mighty electrical test instrument we have
successfully developed recently, it has made fundamental changes to
the circuit industry of conventional insulation resistance.Aided by
the nice and fashionable design, have more and stronger functions
are easier to use and more reliable.
The instrument and accessories are all in the toolbox fit for field
application It can be used to test the insulation resistance of
power system electrical equipment lightning arrester equipment and
measure AC voltage and phase sequence test.
Features:
-Insulation resistance measurement;
-Phase rotation check;
-Voltage measurement;
-Testing voltage up to 5000V;
-LCD background light.
Specifications:
MODEL |
XHST5103A |
Testing Voltage |
1000/2500/5000V |
Insulation Resistance |
0.1~200G次 ㊣(3%+5) |
Phase Rotation Check |
yes |
AC V |
700V ㊣(2%+5) |
Resolution |
0.01M次 |
Auto Range |
yes |
Function Symbol Display |
yes |
Data Hold |
yes |
Low Battery Warning |
yes |
Max Displays. |
1999 |
LCD Backlight |
yes |
General Characteristics:
Power |
AA1.5V*8 |
Product Size |
190*155*75 mm |
Product Net Weight |
900g |
Standard Accessories |
![phase sequence test wires DY40](../dy40.jpg) ![insulation test wires DY38](../dy38.jpg) ![](../dy5.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
6 pcs. |
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
Gross weight of Standard Carton |
14kgs |
|

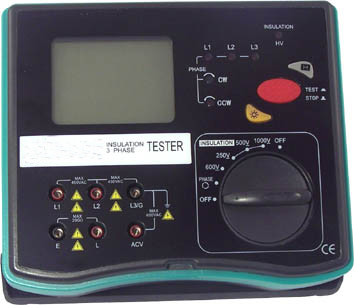

Digital Insulation
3 Phase Tester XHST5101A,
XHST5102A
﹛
![](XHST5101A,5102Apack-ShowRange.jpg)
The brand new 510 Series instrument
can measure insulation resistance, AC voltage and phase sequence. As
a new generation all mighty electrical test instrument we have
successfully developed recently, it has made fundamental changes to
the circuit industry of conventional insulation resistance. Aided by
the nice and fashionable design, have more and stronger functions
are easier to use and more reliable.
The instrument and accessories are all in the toolbox fit for field
application It can be used to test the insulation resistance of
power system electrical equipment lightning arrester equipment and
measure AC voltage and phase sequence test.
Main Features:
-Insulation resistance measurement;
-Phase rotation check;
-Voltage measurement;
Specifications:
MODEL |
XHST5101A |
XHST5102A |
Testing Voltage |
250/500/1000V |
500/1000/2500V |
Insulation Resistance |
0.1~20G次 ㊣(3%+5) |
0.1~20G次 ㊣(3%+5) |
Phase Rotation Check |
yes |
yes |
AC V |
700V ㊣(2%+5) |
700V ㊣(2%+5) |
Resolution |
0.01M次 |
0.01M次 |
Auto Range |
yes |
yes |
Function Symbol Display |
yes |
yes |
Data Hold |
yes |
yes |
Low Battery Warning |
yes |
yes |
Max. Displays |
1999 |
1999 |
LCD Backlight |
yes |
yes |
General Characteristics:
Power |
AA1.5V*8 |
Product Size |
190*155*75 mm |
Product Net Weight |
900g |
Standard Accessories |
![phase sequence test wires DY40](../dy40.jpg) ![insulation test wires DY38](../dy38.jpg) ![](../dy5.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
6 pcs. |
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
Gross weight of Standard Carton |
14kgs |
|

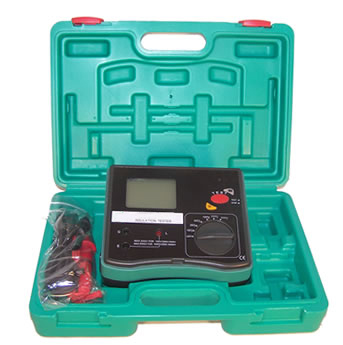

Digital Insulation
Tester XHST5104A,
XHST5105A
﹛
![](XHST5104A,5105A-ShowRange.jpg) ![](XHST5104A,5105Apack-ShowRange.jpg)
Main Features:
-Insulation resistance measurement;
-Voltage measurement;
-LCD background light.
Specifications:
MODEL |
XHST5104A |
XHST5105A |
Testing Voltage |
250/500/1000/2500V |
100/250/500/1000V |
Insulation Resistance |
0.1~20G次 ㊣(3%+5) |
0.1~20G次 ㊣(3%+5) |
AC V |
700V ㊣(2%+5) |
700V ㊣(2%+5) |
Resolution |
0.01M次 |
0.01M次 |
Auto Range |
yes |
yes |
Function Symbol Display |
yes |
yes |
Data Hold |
yes |
yes |
Low Battery Warning |
yes |
yes |
Max. Diplay |
1999 |
1999 |
LCD Background Light |
yes |
yes |
General Characteristics:
Size |
190*155*75 mm |
Weight |
900g |
Standard Accessories |
![insulation test wires DY38](../dy38.jpg) ![](../dy5.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
6 pcs. |
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
Gross weight of Standard Carton |
14kgs |
|

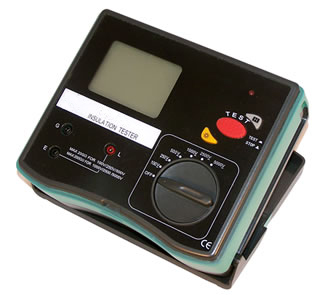

Digital insulation
resistance tester XHST5106A
﹛
![](XHST5106A-ShowRange.jpg) ![](XHST5106Apack-ShowRange.jpg)
Features:
-From 100V to 5000V, wide range;
-Insulation resistance measurement;
-Voltage measurement;
-LCD background light.
Specifications:
MODEL |
XHST5106A |
Testing Voltage |
100/250/500V |
1000/2500/5000V |
Insulation Resistance |
0.1~20G次 ㊣(3%+5) |
0.1~200G次 ㊣(5%+10) |
Resolution |
0.01M次 |
Auto Range |
yes |
Function Symbol Display |
yes |
Data Hold |
yes |
Low Battery Warning |
yes |
Max. Diplay |
1999 |
LCD Backglight |
yes |
General Characteristics:
Power |
AA1.5V*8 |
Product Size |
190*155*75 mm |
Product Net Weight |
900g |
Standard Accessories |
![insulation test wires DY38](../dy38.jpg) ![](../dy5.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
6 pcs. |
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
Gross weight of Standard Carton |
16kgs |
|
Digital Insulation
Resistance Tester XHST30-1/30-2/30-3/30-4/30-5
﹛
![](XHST30-1-ShowRange.jpg) ![](XHST30-2-ShowRange.jpg)
The newly style of Digital Insulation
Resistance Tester is 30 series, including XHST30-1, XHST30-2, XHST30-3,
XHST30-4 and
XHST30-5. It has fashionable design and improved electro circuit, so
that has more fully function, higher precision, easier operation.
The output voltage testing can be changed in 250V/500V/1000V/2500V
for deferent applications. Resistance range can touch 20G ohm.
Alternating current also can be tested.
30-x series apply for all kinds of electric equipment and insulation
materials such as transformer, electromotor, cable, switch,
appliance, etc. It is a perfect electrical testing meter.
Main Features:
-Insulation resistance testing
-Voltage testing
-XHST30-1(250/500/1000V)
-XHST30-2(500/1000/2500V)
-XHST30-3(15/50/100V)
-XHST30-4(100/250/500/1000V)
-XHST30-5(250/500/1000/2500V)
Specifications:
MODEL |
XHST30-1 |
XHST30-2 |
XHST30-3 |
XHST30-4 |
XHST30-5 |
Testing Voltage |
250/500/1000V |
500/1000/2500V |
15/50/100V |
100/250/500/1000V |
250/500/1000/2500V |
Resistance |
0~2000M次 ㊣(3%+5) |
0~20G次 ㊣(3%+5) |
0~100M次 ㊣(3%+5) |
0~2000M次 ㊣(3%+5) |
0‵20G次 |
AC V |
700V ㊣(2%+5) |
700V ㊣(2%+5) |
700V ㊣(2%+5) |
- |
- |
Auto Range |
yes |
Function Symbol Display |
yes |
Data Hold |
yes |
Low Resistance Buzzer |
yes |
Low Battery Warning |
yes |
LCD MAX. Count |
1999 |
General Characteristics:
Power |
AA1.5Vx6(UM3) |
Product Size |
150*100*70 mm |
Product Net Weight |
approx. 680g |
Standard Accessories |
![](leathercase.jpg) |
Standard individual packing |
gift box |
Standard Quantity per Carton |
20 pcs. |
Measurement of Standard Carton |
450*330*413mm (0.061 CBM) |
Gross weight of Standard Carton |
22kgs |
|
Analogue Insulation
Resistance Tester XHST3165/3166
﹛
![](XHST3166-ShowRange.jpg)
The newly style of Analog Insulation
Resistance Tester is 316X series, including XHST3165, XHST3166, etc. It has
fashionable design and improved circuit, so that has more fully
function, higher precision, and easier operation. The 3165 rating
testing voltage is 500V, the XHST3166 rated testing voltage is 1000V.
Resistance ranges up to 2000M ohm. Alternating current also can be
tested.
This Tester apply for all kinds of electric equipment and insulation
materials such as transformer, electromotor, cable, switch
appliance, etc.
It is a perfect, low cost electrical testing meter.
Specifications:
MODEL |
XHST3165 |
XHST3166 |
Testing Voltage |
500V |
1000V |
Insulation Resistance |
1-1000M次㊣5% |
2-2000M次㊣5% |
AC V |
600V ㊣5% |
600V ㊣5% |
Low Battery Warning |
yes |
yes |
General Characteristics:
Power |
AA1.5Vx6(UM3) |
Product Size |
150*100*70 mm |
Product Net Weight |
680g |
Standard Accessories |
﹛![](cf37a.jpg) ![](leathercase.jpg) |
Standard individual packing |
gift box |
Standard Quantity per Carton |
20 pcs. |
Measurement of Standard Carton |
450*330*413mm (0.061 CBM) |
Gross weight of Standard Carton |
20kgs |
|
