PRODUCT SPECIFICATIONS
¡¡
CLASSIFICATION FLOATLESS RELAY
MODEL 61F-G1
DIMESIONS(mm) 79.5H¡Á135W¡Á127D
SOCKET TYPE -
SENSING
MODE
GENDRAL 61F-G
HIGH SENSING -
LONG DISTANCE -
LOW DENSITY -
TWOLINES -
RATED VOLTAGE AC:110V,220V,240V,50/60HZ
INDICATOR OPERATING Two LED's use for two Status
OPERATE VOLTAGE 85~110%of rated voltage
SECND VOLTAGE 8VAC (except highsensing 24VAC)
OPERATE RESISTANCE 4K MIN.(GENERAL)
RELEASE RESISTANCE 15K MIN.(GENERAL)
RESPONSE TIM OPERATE:80 MSEC MAX.RELEASE:160MSEC MAX.
CONTACT RATING 5A,250VAC(RESISTIVELOAD)
LEGTH OF CABLE 1KMMAX.(GENERAL)
LIFE MECHANICAL 3¡Á106TIMES MIN
ELECTRICAL 105 times min
INSULATION RESISTANCE 100M (DC 500V)MIN
DIELECTRIC STRENGTH 1500VAC,50/60HZ,FOR 1MINUTE
CONSUMED POWER 3.2VA
AMBIENT TEMPERATURE -10¡æ~+55¡æ
AMBIENT HUMIDITY 45~85%RH
WEIGHT 750g

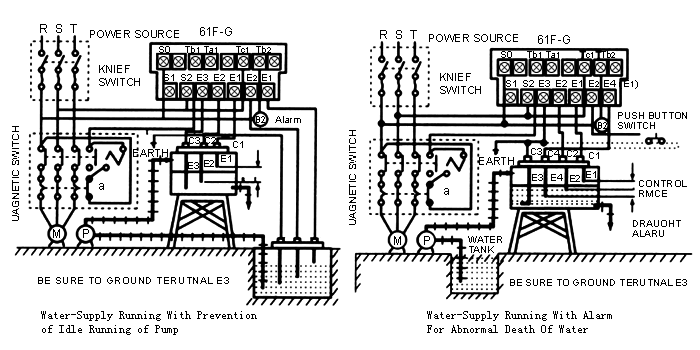

CONNECTION DIAGRAMS&TIMING CHART 61F-G1
