PRODUCT SPECIFICATIONS¡¡
| CLASSIFICATION | FLOATLESS RELAY | |
| MODEL | PM61F-GR | |
| DIMESIONS(mm) | 50W¡Á40W¡Á57.5D | |
| SOCKET TYPE | PF085A PF083A | |
|
SENSING MODE |
GENDRAL | - |
| HIGH SENSING | - | |
| LONG DISTANCE | - | |
| LOW DENSITY | - | |
| TWOLINES | PM61F-GR | |
| RATED VOLTAGE | AC:110V,220V,240V,50/60HZ | |
| INDICATOR OPERATING | Two LED's use fro two status | |
| OPERATE VOLTAGE | 85~110%of rated voltage | |
| SECND VOLTAGE | 8VAC (except highsensing 24VAC) | |
| OPERATE RESISTANCE | 4K MIN.(GENERAL) | |
| RELEASE RESISTANCE | 15K MIN.(GENERAL) | |
| RESPONSE TIM | OPERATE:80 MSEC MAX.RELEASE:160MSEC MAX. | |
| CONTACT RATING | 5A,250VAC(RESISTIVELOAD) | |
| LEGTH OF CABLE | 1KMMAX.(GENERAL) | |
| LIFE | MECHANICAL | 5¡Á106TIMES MIN |
| ELECTRICAL | 105 times min | |
| INSULATION RESISTANCE | 100M (DC 500V)MIN | |
| DIELECTRIC STRENGTH | 1500VAC,50/60HZ,FOR 1MINUTE | |
| CONSUMED POWER | 3.2VA | |
| AMBIENT TEMPERATURE | -10¡æ~+55¡æ | |
| AMBIENT HUMIDITY | 45~85%RH | |
| WEIGHT | 150g | |

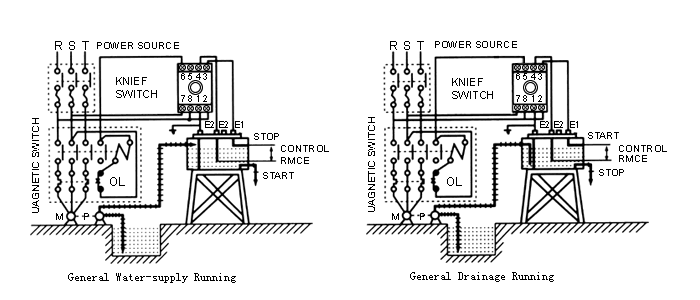

CONNECTION
DIAGRAMS&TIMING CHART PM61F-GR
DIMENSIONS
PM61F-GR
