MOTOR STARTERS   PAGE1   PAGE2   PAGE3

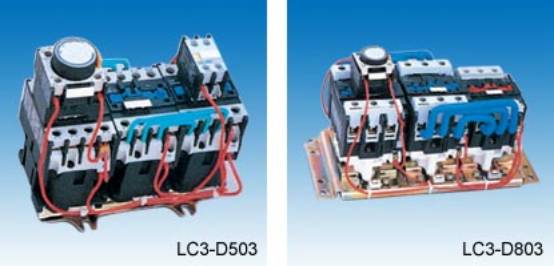

LC3-D STAR-DELTA MOTOR STARTER

APPLICATION
    LC3-D series start-delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz, voltage up to 660V and current up to 95A it is provided with a timer for automatic change over of star delta to reduce the voltage and current of motor starting.

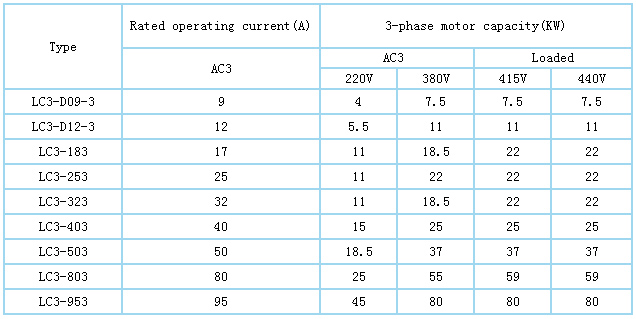

TECHNICAL SPECIFICATION

¡¡

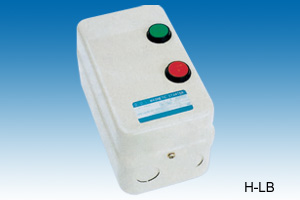

H-LB MOTOR STARTER

APPLICATION
    H-LB series magnetic starter is suitable to be used in the circuit of AC 50/60Hz, voltage up to 660V & current up to 60A, to start, control & stop the remote motor

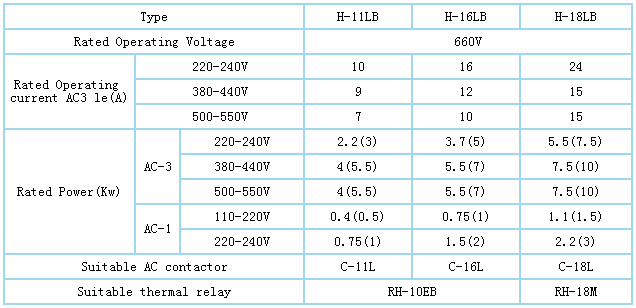

TECHNICAL SPECIFICATION

¡¡

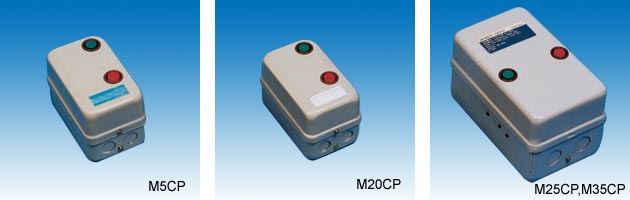

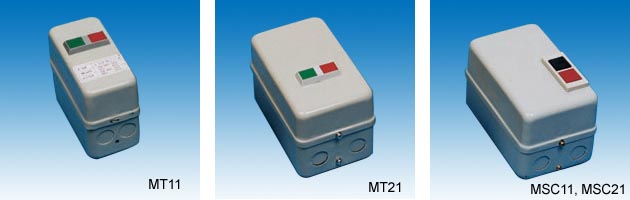

M, MT, MSC MOTOR STARTER

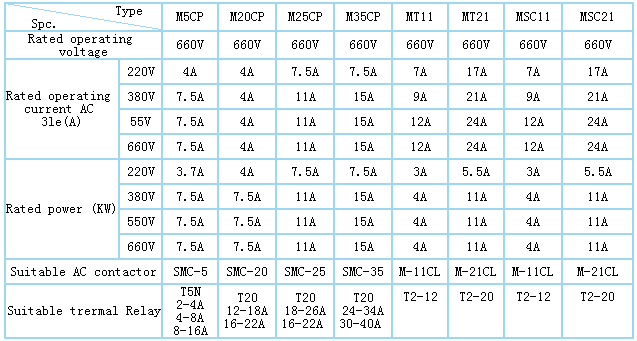

SPECIFICATIONS

MOTOR STARTERS   PAGE1   PAGE2   PAGE3
