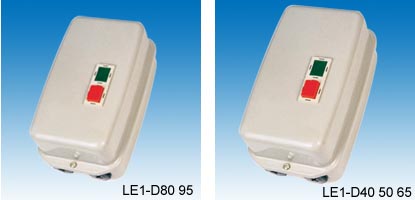

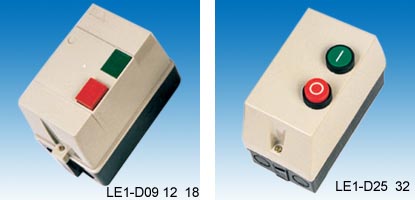

LE1-D MOTOR STARTER


APPLICATION
    LE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance main/king and breaking circuit and frequently starting and controlling motor, it has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance, etc.

SPECIFICATIONS

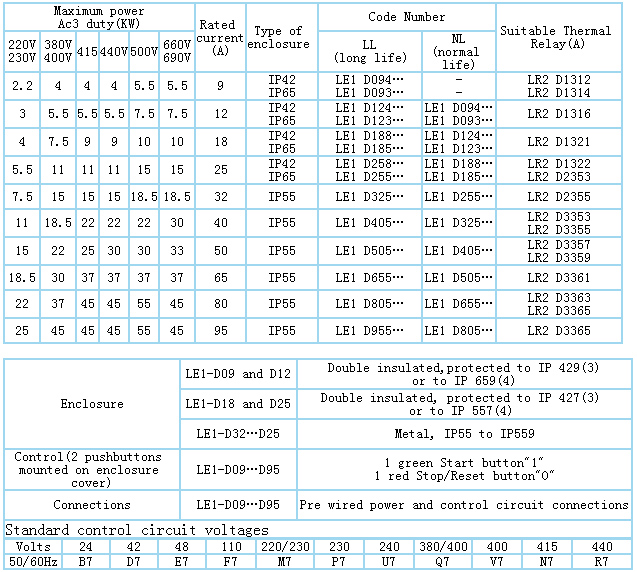

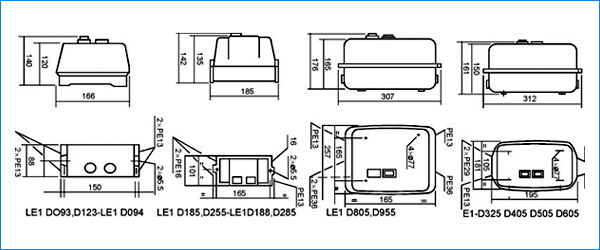

TECHNICAL SPECIFICATION

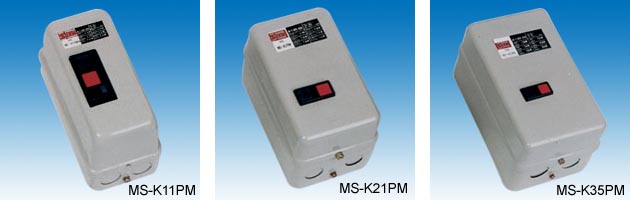

MS-K MOTOR STARTER

APPLICATION
    MS-N & MS-K series magnetic starters are used in a circuit of voltage up to 66oV AC 50-60Hz to start, stop and convert motors, and protect motors from overload and phase failure.

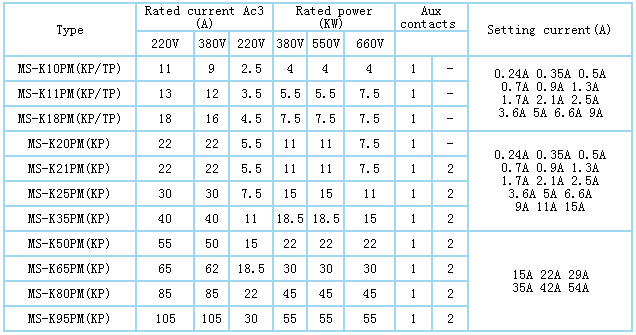

SPECIFICATIONS
