Alcohol Tester

(Alcohol Meter, Breath Alcohol Tester, Alcometer, Alcohol Breathalyzer Test, Alcohol Breathalyzer, Alcohol Test, Alcohol Breath Test)

Digital display models

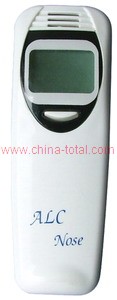

HSAT128 Digital Alcohol Tester

Main Features:

* Advanced hot-wire semiconductor alcohol sensor
* Quick response, excellent accuracy
* Smart MCU control
* Direct testing process LCD Indication
* LCD Indication, Backup Lamp
* Portable design
* No touch health design
* Visible and audio warning beyond pre-set limit
* Power saving design, low battery indication

Technical Information:

*Sensor Type: hot-wire semiconductor alcohol sensor
*Detecting Range: 0.00-2.00g/L; 0.00-0.20%BAC;
0.00~2.0‰BAC; 0.00-1.00mg/L
*Accuracy: ±10% F.S
*Pre-set Level: 0.50g/L; 0.05%BAC; 0.5‰BAC; 0.25mg/L
*Warm-up Time: <10 sec (Initial Warm-up 18 sec)
*Testing Time: < 8 sec
*Display: 3 digitals LCD indication with red backup light
*Power Supply: 3VDC (2 × AAA batteries)
*Working Environment: -10°C - 50°C ≤95%RH No dews
*Dimension: 90mm X 30mm X 16mm @ 45g

Packing: paper box

100pcs/ctn, ctn size: 33*39*45cm, G.W.: 9.00Kgs

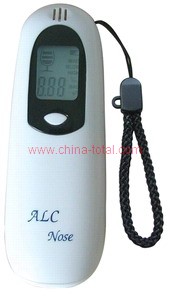

HSAT126 Digital Alcohol Tester

Main Features:

Technical Information:

Packing: paper box

100pcs/ctn, ctn size: 33*39*45cm, G.W.: 9.00Kgs

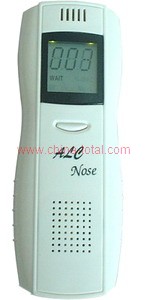

HSAT198 Digital Alcohol Tester

Main Features:

* Advanced Flat surfaced semiconductor alcohol sensor
* Quick response, excellent accuracy
* Smart MCU control
* Direct testing process LCD Indication
* LCD Indication, Backup Lamp
* Portable design
* No touch health design
* Visible and audio warning beyond pre-set limit
* Power saving design, low battery indication

Technical Information:

*Sensor Type: Flat surfaced semiconductor alcohol sensor
*Detection Range: 0.00 - 0.20%BAC, 0.00-2.00‰BAC
0.00 - 1.00mg/L; 0.00 - 2.00g/L
*Accuracy: ±10% F.S
*Pre-set Level: 0.05%BAC; 0.5‰BAC; 0.25mg/L; 0.50g/L
*Testing Time: < 8 Sec
*Display: 3 digitals LCD
*Power: 3VDC (2×AAA batteries)
*Working Environment: -10°C - 50°C ≤95%RH No dews
*Dimension: 102mm X 37mm X 20mm @50g

Packing: paper box

100pcs/ctn, ctn size: 33*39*45cm, G.W.: 9.00Kgs

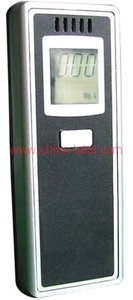

HSAT199 Digital Alcohol Tester

Main Features:

Technical Information:

*Sensor Type: Flat surfaced semiconductor Sensor
*Detection Range: 0.00-2.00‰BAC, 0.00-0.50‰BAC
0.00 - 1.00mg/L; 0.00 - 2.00g/L
*Accuracy: ±10% F.S
*Pre-set Level: 0.05%BAC; 0.5‰BAC; 0.25mg/L; 0.50g/L
*Testing Time: < 8 Sec
*Display: 3 digitals LCD
*Power: 3VDC (2×AAA batteries)
*Working Environment: -10°C - 50°C ≤95%RH No dews
*Dimension: 102mm X 37mm X 20mm @50g

Packing: paper box

100pcs/ctn, ctn size: 33*39*45cm, G.W.: 9.00Kgs

Please be noted: for above alcohol testers HSAT1 series, the testing unit can be only one unit, one from mg/L, g/L, %BAC. It means the test unit can't be seletable by user ownself. When you order them, please let us know which unit you need.

For below XHSTseries models, please select the models with (popular model) to order, as other models are not produced frequently.

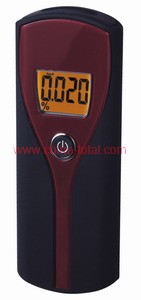

XHST6880S (popular model)

Features:

Design patented

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.000% - 0.199% BAC / 0.000‰-1.990‰ BAC / 0.000- 0.995 mg/l

6 Digital display results (% BAC / ‰ BAC / mg/l)

7 Quick response and resume

8 Auto power-off

9 Orange-colored backlight

10 Low voltage indicator

11 Power input: 3V (2 x AAA alkaline battery, not included)

12 Unit size: 116 x 45 x 15 mm

Print size: 25 x 13 mm

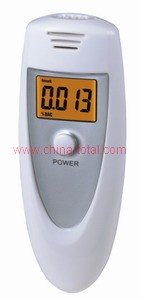

XHST6397S

Features:

Design patented

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.000% - 0.199% BAC / 0.000‰-1.990‰ BAC / 0.000- 0.995 mg/l

6 Digital display results (% BAC / ‰ BAC / mg/l)

7 Quick response and resume

8 Auto power-off

9 Orange-colored backlight

10 Low voltage indicator

11 Power input: 3V (2 x AAA alkaline battery, not included)

12 Unit size: 105 x 40 x 20 mm

Print size: 12 x 12 mm

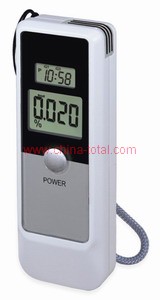

XHST6889

Features:

Design patented

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.000% - 0.199% BAC / 0.000‰-1.990‰ BAC / 0.000- 0.995 mg/l

6 Digital display results (% BAC / ‰ BAC / mg/l)

7 Quick response and resume

8 Auto power-off

9 Low voltage indicator

10 Real time & Alarm clock & Countdown timer

11 Power input:

Tester: 3V (2 x AAA alkaline battery, not included)

Clock: 1.5V (1 x AG13 Cell Button, included)

12 Unit size: 100 x 37 x 18 mm

Print size: 25 x 20 mm

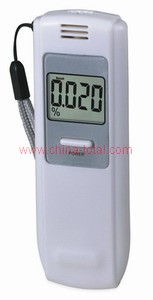

XHST6895N

Features:

Design patented

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.000% - 0.199% BAC / 0.000‰-1.990‰ BAC / 0.000- 0.995 mg/l

6 Digital display results (% BAC / ‰ BAC / mg/l)

7 Quick response and resume

8 Auto power-off

9 Orange-colored backlight

10 Low voltage indicator

11 Power input: 3V (2 x AAA alkaline battery, not included)

12 Unit size: 103 x 38 x 16 mm

Print size: 20 x 24 mm

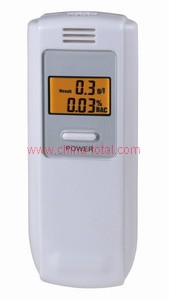

XHST6395S

Features:

Design patented

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.00% - 0.19% BAC / 0.0 - 1.9 g/l

6 Digital display results (% BAC & g/l)

7 Quick response and resume

8 Auto power-off

9 Orange-colored backlight

10 Low voltage indicator

11 Power input: 3V (2 x AAA alkaline battery, not included)

12 Unit size: 98 x 38 x 16 mm

Print size: 20 x 25 mm

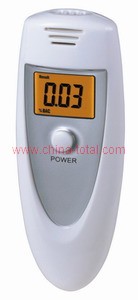

XHST6897S

Features:

Design patented

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.00% - 0.19% BAC / 0.00‰-1.99‰ BAC / 0.00- 0.95 mg/l

6 Digital display results (% BAC / ‰ BAC / mg/l)

7 Quick response and resume

8 Auto power-off

9 Orange-colored backlight

10 Low voltage indicator

11 Power input: 3V (2 x AAA alkaline battery, not included)

12 Unit size: 105 x 40 x 20 mm

Print size: 12 x 12 mm

XHST6389ET (popular model)

Features:

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.00% - 0.19% BAC / 0.0 - 1.9 g/l

6 Digital display results (% BAC & g/l)

7 Quick response and resume

8 Auto power-off

9 Temperature indicator

10 Low voltage indicator

11 Real time & Alarm clock & Countdown timer

12 Power input:

Tester: 3V (2 x AAA alkaline battery, not included)

Clock: 1.5V (1 x AG13 Cell Button, included)

13 Unit size: 100 x 37 x 17 mm

Print size: 20 x 10 mm

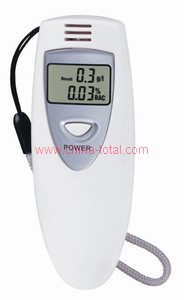

XHST6387 (popular model)

Features:

1 Sensor: Semiconductor alcohol sensor

2 Warm-up time: Within 10 seconds

3 Respond time: Within 5 seconds

4 Operating temperature range: 5 ~ 40 ℃

5 Detection range: 0.00% - 0.19% BAC

6 Digital display results (0.00% BAC, g/L)

7 Quick response and resume

8 Auto power-off

9 Low voltage indicator

10 Power input: 3V (2 x AAA alkaline battery, not included)

11 Unit size: 95 x 36 x 18 mm

Print size: 20 x 18 mm

Description	Contents

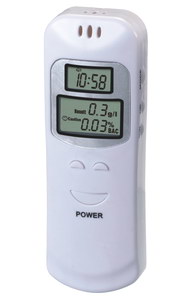

Model No.:	XHST2702
Product:	Dual Digital Breath Alcohol Tester
Size	107 x 37 x 20 mm
Weight	30 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Detection range	0.00% - 0.19% BAC 0.0 - 1.9 g/l

Description	Contents

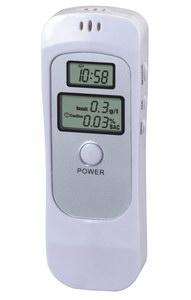

Model No.:	XHST2703
Product:	Dual Digital Breath Alcohol Tester
Size	105 x 38 x 15.8 mm
Weight	30 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Accuracy	+/- 0.01%BAC +/- 0.1g/l
Detection range	0.00% - 0.19% BAC 0.0 - 1.9 g/l

Description	Contents

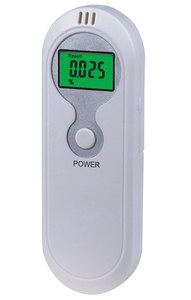

Model No.:	XHST2705
Product:	Digital Breath Alcohol Tester
Size	100 x 38 x 15.5 mm
Weight	20 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Accuracy	+/- 0.010%BAC +/- 0.100 BAC +/- 0.050mg/L BrAC
Detection range	0.000% - 0.199% BAC / 0.000-1.990 BAC / 0.000- 0.995 mg/l
Packing	100PCS/CTN, CTN SIZE: 50.536.532CM, G.W.: 10KGS, VOLUME WEIGHT: 11.80KGS

Description	Contents

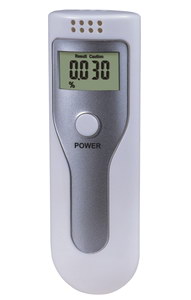

Model No.:	XHST2706
Product:	Digital Breath Alcohol Tester
Size	100 x 31.5 x 19 mm
Weight	20 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Detection range	0.000% - 0.199% BAC / 0.000-1.990 BAC / 0.000- 0.995 mg/l

Description	Contents

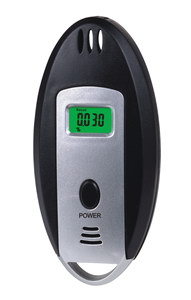

Model No.:	XHST2708
Product:	Digital Breath Alcohol Tester
Size	84.5 x 40 x 18.5 mm
Weight	20 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Accuracy	+/- 0.010%BAC +/- 0.100 BAC +/- 0.050mg/L BrAC
Detection range	0.000% - 0.199% BAC / 0.000-1.990 BAC / 0.000- 0.995 mg/l

Description	Contents

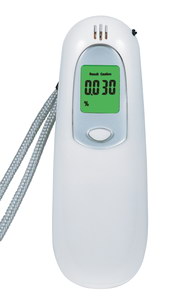

Model No.:	XHST2710
Product:	Digital Breath Alcohol Tester
Size	105 x 40 x 20 mm
Weight	20 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Detection range	0.000% - 0.199% BAC / 0.000-1.990 BAC / 0.000- 0.995 mg/l

LCD display models

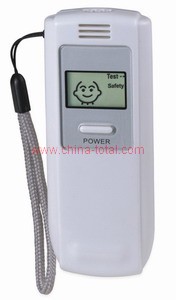

XHST6396

Features:

1).Design patented

2).Sensor: semiconductor sensor

3).Warm-up time within: 10 second.

4).Response time within: 5 second.

5).Operate temperature : 5 ~ 40℃

6).Detection Range: 0.00% ~ 0.19% BAC

7).3-Step test levels show on display with sounds according to alcohol concentration:

Safety: under 0.02% BAC

Caution: 0.02% to 0.05% BAC

Danger: over 0.05% BAC

8).Quick results and Restores.

9).Automatic power-off function.

10).Low-Battery warning.

Battery input: 3V DC(2 × AAA alkaline batteries) not included

Unit size: 98 x 38 x 16 mm

Print size: 20x25mm

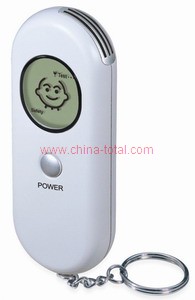

XHST6380

Features:

1).Design patented.

2).Sensor: semiconductor sensor

3).Warm-up time within: 10 second.

4).Response time within: 5 second.

5).Operate temperature: 5 ~ 40℃

6).Detection Range: 0.00% ~ 0.19% BAC

7).3-Step test levels show on display with sounds according to alcohol concentration:

Safety: under 0.02% BAC

Caution: 0.02% to 0.05% BAC

Danger: over 0.05% BAC

8).Quick results and Restores.

9).Automatic power-off function

10).Low-Battery warning.

Battery input: 3VDC(2 × AAA alkaline batteries) not included

Unit size: 105 x 43 x 18mm

Print size:28x25mm

XHST6370

Features:

1).Sensor: semiconductor sensor

2).Warm-up time within: 10 second.

3).Response time within: 5 second.

4).Operate temperature: 5 ~ 40℃

5).Detection Range: 0.00% ~ 0.19% BAC

6).3-Step test levels show on display with sounds according to alcohol concentration:

Safety: under 0.02% BAC

Caution: 0.02% to 0.05% BAC

Danger: over 0.05% BAC

7).Quick results and Restores.

8).Automatic power-off function.

9).Low-Battery warning.

10).Torch function.

11).Key chain function.

Battery input: 3VDC(2 × AAA alkaline batteries) not included

Unit size :100 x 45 x 20 mm

Print size:20x15mm

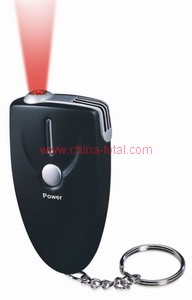

LED indicator models

XHST6340S

Features:

1) Design patent

2) semiconductor sensor inside

3) warm-up time:within 10 seconds

4) response time :within 5 seconds

5) Operation temperature:5-40 ℃

6) 3 test steps with LED indication

7) test result:

Green light: < 0.02% BAC

Yellow light: 0.02% ~ 0.05% BAC

Red light: ≥ 0.05% BAC

8) Battery: 2 x AAA alkaline batteries (not included)

9) Size: 85.2 x 39.2 x 20mm

10) print size: 18 x 25mm

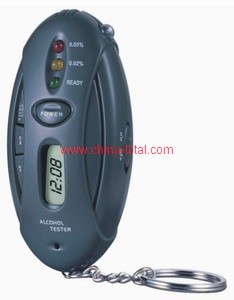

XHST2120 (popular model)

Features:

1) Design patent

2) semiconductor sensor inside

3) warm-up time:within 10 seconds

4) response time :within 5 seconds

5) Operation temperature:5-40 ℃

6) Convenient to carry by keychain

7) Countdown and count-up timer keeps the deadline of your parking

8) 3 test steps with LED indication

9) test result:

Safety: under 0.02% BAC

Caution: 0.02% - 0.05% BAC

Danger: over 0.05% BAC

10) Battery: 2 x AAA alkaline batteries (not included)

11) Clock: uses 1 x AG13 battery (included)

12) Size: 70 x 35 x 21mm

13) Packing: 100PCS/CTN, CTN SIZE: 43*30*25, G.W: 5.5KGS

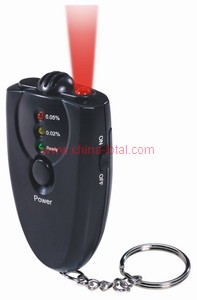

XHST6360A (popular model)

Features:

1) Design patent

2) semiconductor sensor inside

3) warm-up time:within 10 seconds

4) response time :within 5 seconds

5) Operation temperature:5-40 ℃

6) Torch function

7) Key chain

8) 3 test steps with LED indication

9) test result:

Safety: under 0.02% BAC

Caution: 0.02% - 0.05% BAC

Danger: over 0.05% BAC

10) Battery: 2 x AAA alkaline batteries (not included)

11) Size: 73 x 39 x 20mm

12) Print size: 15 x 10 mm

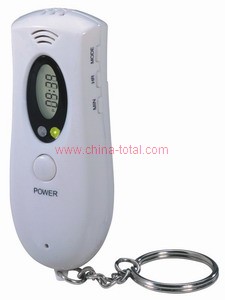

XHST6399

Features:

1) Design patent

2) semiconductor sensor inside

3) warm-up time:within 10 seconds

4) response time :within 5 seconds

5) Operation temperature:5-40 ℃

6) Clock with 12 / 24 formats

7) Alarm time function

8) Convenient to carry by keychain

9) 3 test steps with LED indication

10) test result:

Safety: under 0.02% BAC

Caution: 0.02% - 0.05% BAC

Danger: over 0.05% BAC

11) Battery: 2 x AAA alkaline batteries (not included)

12) Size: 75 x 30 x 20.5mm

13) Print size: 10 x 10 mm

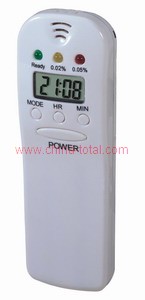

XHST6382

Features:

1) Design patent

2) semiconductor sensor inside

3) warm-up time:within 10 seconds

4) response time :within 5 seconds

5) Operation temperature:5-40 ℃

6) Clock with 12 / 24 formats

7) Alarm time function

8) Convenient to carry by keychain

9) Countdown and count-up timer keeps the deadline of parking

10) 3 test steps with LED indication

11) test result:

Safety: under 0.02% BAC

Caution: 0.02% - 0.05% BAC

Danger: over 0.05% BAC

12) Battery: 2 x AAA alkaline batteries (not included)

13) Clock uses 1 x AG13 battery (included)

14) Size: 91 x 31 x 17.5mm

15) Print size: 20 x 30 mm

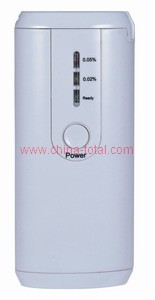

XHST6883S

Features:

1) Design patent

2) semiconductor sensor inside

3) warm-up time:within 10 seconds

4) response time :within 5 seconds

5) Operation temperature:5-40 ℃

6) 3 test steps with LED indication

7) test result:

Green light: < 0.02% BAC

Yellow light: 0.02% ~ 0.05% BAC

Red light: ≥ 0.05% BAC

8) Battery: 2 x AAA alkaline batteries (not included)

9) Size: 102 x 44 x 17.5mm

10) print size: 28x30mm

Description	Contents

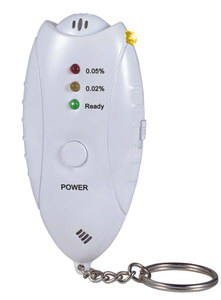

Model No.:	XHST2707 (popular model)
Product:	LED Breath Alcohol Tester
Size	83.5 x 40.5 x 22mm
Weight	15 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Accuracy	+/- 0.01 % BAC at cal. point
Detection range	Safety: under 0.02% BAC Caution: 0.02% - 0.05% BAC Danger: over 0.05% BAC

Description	Contents

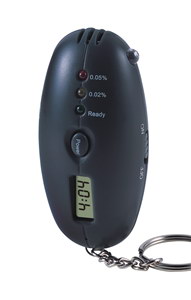

Model No.:	XHST2709
Product:	LED Breath Alcohol Tester
Size	71.5 x 35.5 x 24.5mm
Weight	15 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Accuracy	+/- 0.01 % BAC at cal. point
Detection range	Safety: under 0.02% BAC Caution: 0.02% - 0.05% BAC Danger: over 0.05% BAC

Description	Contents

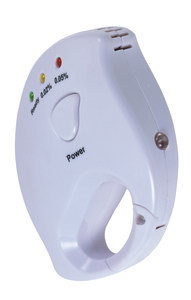

Model No.:	XHST2701
Product:	LED Breath Alcohol Tester
Size	79 x 60 x 25mm
Weight	15 grams including battery
Housing	Shock resistance, molded plastic
Sensor	Semiconductor alcohol sensor
Response time	5 sec.
Warm up time	10 sec.
Recovery time( sensor purge)	60 sec.
Battery life	Over 100 tests
Battery	3V 2 x AAA alkaline battery
Certification	CE & rohs
Accuracy	+/- 0.01 % BAC at cal. point
Detection range	Safety: under 0.02% BAC Caution: 0.02% - 0.05% BAC Danger: over 0.05% BAC

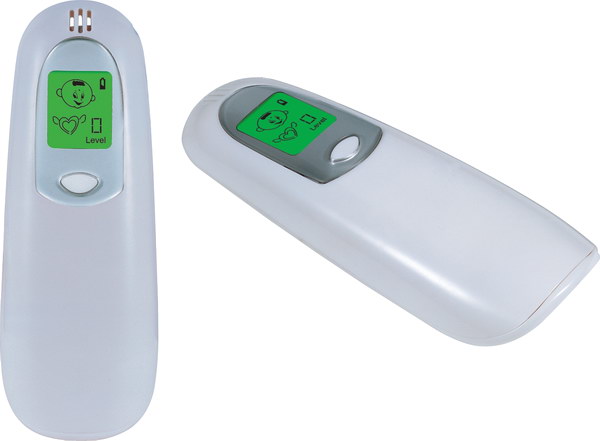

Odor breath tester

OBT200

Odor breath tester is specially designed to check people's breath quality. It adopts semiconductor gas sensor, which with excellent sensitivity and responsibility, simple and convenient to use. It will show the final testing result in digital and cartoon mode, everyone can check themselves by this tester.
Portable design
Healthy No-touch design
Battery saved design, low battery indication
Advanced Nanometer semiconductor gas sensor
Digital LCD and Cartoon indication with backup light
Quick response and resume
Self-checking to show different grad

Sensor type: Semiconductor sensor
Warm up time: 8 S
Blowing time: 3S
Working Environment: Tem -1050, Relative Humidity: ≤95% no dews
Indication manner: Digital and Cartoon LCD indication with green backup
Power: DC3V (2x AAA batteries)
Dimension: 103*37*19mm; ≤46g (including batteries)

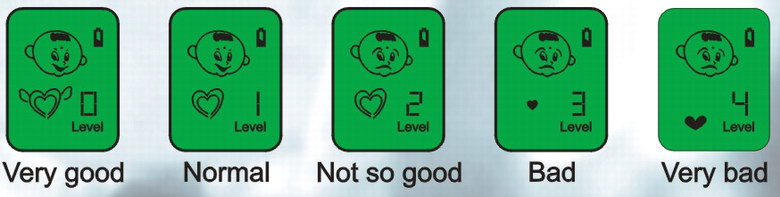

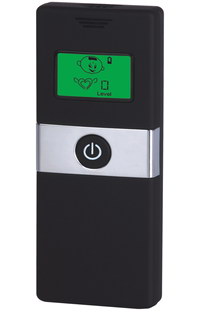

OBT201

Odor breath tester is specially designed to check people’s breath quality. It adopts semiconductor gas sensor, which with excellent sensitivity and responsibility, simple and convenient to use. It will show the final testing result in digital and cartoon mode, everyone can check themselves by this tester.
◆ Portable design
◆ Healthy No-touch design
◆ Battery saved design, low battery indication
◆ Advanced Nanometer semiconductor gas sensor
◆ Digital LCD and Cartoon indication with backup light
◆ Quick response and resume
◆ Self-checking to show different grad
◆ Sensor type: Semiconductor sensor
◆ Warm up time: 8 S
◆ Blowing time: 3S
◆ Working Environment: Tem -10℃～50℃, Relative Humidity: ≤95% no dews
◆ Indication manner: Digital and Cartoon LCD indication with green backup
◆ Power: DC3V (2x AAA batteries)
◆ Dimension: 103*37*19mm; ≤46g (including batteries)

Please be noted: for above alcohol testers XHST sereis, the testing unit can be any unit which is described in the description. Some models, the units are already in-built in the tester, user can choose any one depends on his using, some models, the screen can display 2 units at the same time. On the picture of screen you can find how much units it can show at the same time.

Alcohol Tester Unit Conversion

10-6 mol/mol mg/l (Br AC) % (BAC) ‰ (BAC) g/l

26 0,05 0,01 0,1 0,1

52 0,10 0,02 0,2 0,2

104 0,20 0,04 0,4 0,4

130 0,25 0,05 0,5 0,5

156 0,30 0,06 0,6 0,6

208 0,40 0,08 0,8 0,8

260 0,50 0,10 1,0 1,0

312 0,60 0,12 1,2 1,2

364 0,70 0,14 1,4 1,4

416 0,80 0,16 1,6 1,6

468 0,90 0,18 1,8 1,8

520 1,00 0,2 2,0 2,0

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )

10-6 mol/mol	mg/l (Br AC)	% (BAC)	‰ (BAC)	g/l
26	0,05	0,01	0,1	0,1
52	0,10	0,02	0,2	0,2
104	0,20	0,04	0,4	0,4
130	0,25	0,05	0,5	0,5
156	0,30	0,06	0,6	0,6
208	0,40	0,08	0,8	0,8
260	0,50	0,10	1,0	1,0
312	0,60	0,12	1,2	1,2
364	0,70	0,14	1,4	1,4
416	0,80	0,16	1,6	1,6
468	0,90	0,18	1,8	1,8
520	1,00	0,2	2,0	2,0
