Alcohol Tester
Professional/Police Personal
(Alcohol Meter, Breath Alcohol Tester, Alcometer, Alcohol Breathalyzer Test, Alcohol Breathalyzer, Alcohol Test, Alcohol Breath Test)
Commercial, Professional, Police/Official Alcohol Tester, Breathalyzer
|
|
| ||||||||
|
HSAT8100 (for police application)
(thermal printer is
optional part) Table 1 Allowable error
Packing: hand case 5pcs/ctn, ctn size: 33*35*54cm, G.W.: 9kgs (11kgs including printer) 10pcs mouth pieces/blow tubes |
HSAT8600 (for police application)
(thermal printer is
optional part) Packing: hand case 4pcs/ctn, ctn size: 33*35*54cm, G.W.: 11.5kgs (13.5kgs including printer) 10pcs mouth pieces/blow tubes | ||||||||
|
|
| ||||||||
|
|
| ||||||||
|

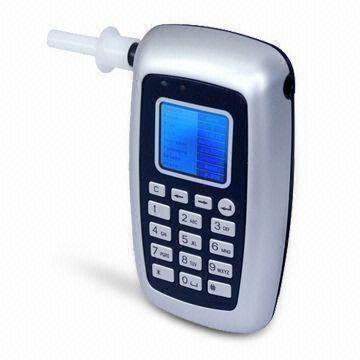

HSAT8800 (for police application)
Electrochemical (fuel cell) sensor,
good reliability and accuracy
thermal
printer
printer
(thermal printer is
optional part) Technical Data:
Sensor type: Electrochemical
(fuel cell) alcohol sensor Certificate:CE, RoHS Package:
Standard: Aluminum Alloy
suitcase packing for each
piece, 5 pcs packed in one
carton. 10pcs mouth pieces/blow tubes |

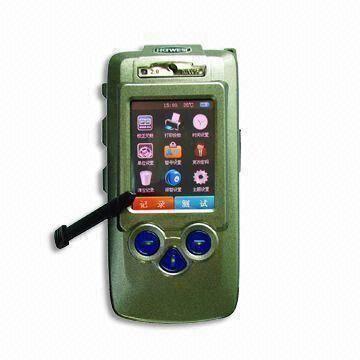

HSAT8900 (for police application) HSAT8900 Law Enforcement Alcohol Tester with built-in/detachable and stand-alone thermal/dot matrix printer. Description:
Fuel
cell sensor:Sensor Module changeable
design 0.000 to 2.000mg/L 0 to 440mg/100mL 0.000 to 4.000g/L 0.000 to 0.400% BAC 0.000 to 2.000% BAC
Auto
flow monitoring: Flow detection
automatically 10pcs mouth pieces/blow tubes | ||||||||
|
|
| ||||||||
|
|
| ||||||||
|
HSAT8050 (for personal, commercial use, police application, Economical) Its design meet France NF standards. HSAT8050 is a high-end alcohol tester for personal use which adopts fuel-cell sensor enables police-grade accuracy As a meaningful gift for close person to show your love and care Type: suitable for personal and commercial use high-End Feature: Electrochemical sensor, good reliability and accuracy Colorful LCD indication Active and passive testing available Real time and temperature indication Two level audible and visible alarm indication Low battery automatic power off function Low pressure and testing rejection function Measurement unit and alarming level adjustable function Testing record review function Records memory, including test time, result and types of result Password management function Adopt anti-return mouthpiece for health and safety Specification: Sensor type: electrochemical (fuel and cell) alcohol sensor Test range: 0.000 to 2.000mg/l (0.400% B.A.C, 4.000% B.A.C and 4.000g/l) Alarming level: Pass level: 0.090mg/L (could be modified) Fail level: 0.250 mg/L (could be modified) Work temperatures: -10 to 50≧ Work humidity: less than 95%RH, no dews Battery: 2 x AA NiMH batteries Rating capacity: 2.1Ah Dimensions: 122 x 67 x 31mm Weight: about 120g excluding battery Accuracy: Less than 0.400, ＼0.032 mg/L 0.400 to 1.000, ＼8% 1.000 to 2.000, ＼30% Compliant with CE standards and RoHS Directive Package: in colorful gift box package, 20 pieces packed in one carton Carton dimensions: 33 x 39 x 45cm Gross weight: 20.00kg/carton (approximately) Standard: colorful gift box, operation manual, and 10pcs mouth pieces/blow tubes |
HSAT8020 (for personal, commercial use, police application, Economical)
Its design meet France NF
standards.
| ||||||||
|
|
| ||||||||
 |
thermal printer for HSAT8 sereis Application: This product specializes in the printing that applied to the alcohol tester Feature:
- Print Performance: | ||||||||
|
|
| ||||||||
|
|
| ||||||||
|

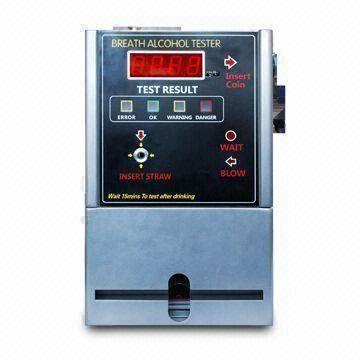

HSAT309 Stand-alone Alcohol Checker HSAT309 is a coin-operated and wall-mount breath alcohol tester which is suitable for public use in bars, restaurants, nightclubs, big companies or anywhere alcohol is consumed. Fuel-cell sensor enables police-grade accuracy and user-friendly operation process ensures users to do their own alcohol tests conveniently. With absolutely no inventory to maintain and its competitive price with reliable performance, it is so easy to make a profitable coin-operated vending business. Feature:
Suitable
for bar or restaurant, hotel, disco
etc Specification:
Sensor
type: Electrochemical (fuel cell)
alcohol sensor, Module changeable Certificate:CE, RoHS Package:
Standard: Carton packing for
each piece. 200pcs blow tube/mouth pieces |

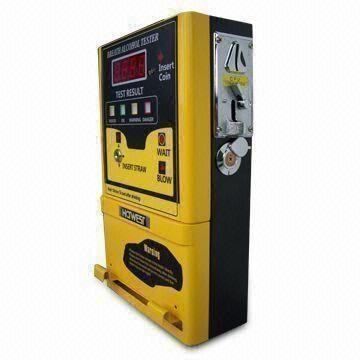

HSAT319 Coin Operated Vending Breathlyzer Feature:
-Fuel
Cell Sensor, sensor module
replaceable -Multi language panel available -Audible and visual warning
-Test
result with 4 digits display
-Setup 1
kind coin with 1-15 pcs Specification -Sensor type: Electrochemical (fuel cell) alcohol sensor -Test Range: 0.000-2.000mg/l (0.400%B.A.C; 4.000%oB.A.C; 4.000g/l;) -Warning level: 0.250mg/L (could be modified by factory, not user) -Accuracy: +/-0.005 @ 0.05%BAC -Work temperature: -10oC-50oC -Work humidity: <95%RH (No Dews) -Indication manner: mg/l,mg/100ml,g/l ,%BAC,%oBAC optional -Coin for single time: 0-15 (For 0, the tester can be tested without coin). -Coin diameter: 20mm-28mm -Coin thickness: 1.2mm-2.5mm -Coins Capacity: about 200 pieces -Straw box capacity: 200pcs(⊄<=7mm) -Breath sampling time: about 5 seconds continuous breath. Package:
Standard: Carton packing for
each piece. 200pcs blow tube/mouth pieces
The biggest difference between HSAT309 and HSAT319 is: 1, The HSAT309 power supply is power cord and switch, the HSAT319 is power adapter. 2, There are different ways of taking out the blowpipe. 3, The HSAT319 add a unit of measurment mg/100ml. 4, The HSAT319 is not easy paint-shedding, because the cover of the HSAT319 is matte surface.
| ||||||||
|
|
| ||||||||
|
|

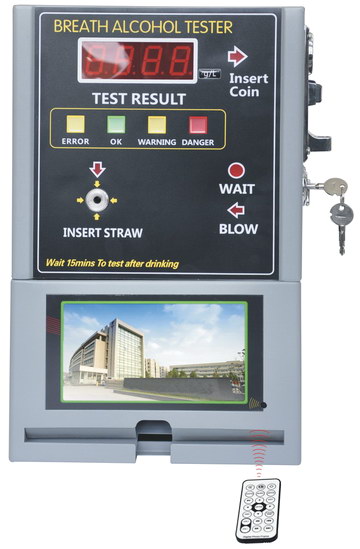

HSAT319V Coin Operated Vending Breathlyzer
With DVD Player
The model HSAT319V specification and detailed data/packing is same as the model HSAT319, the only difference between them is HSAT319V is with a DVD player than HSAT319. When you receive the product HSAT319V, you just need to install the USB card into the instrument, the DVD player can be used. | ||||||||
|
Regarding coin operated alcohol testers questions and answers. 1, Kindly be noted: For coin operated alcohol tester, user can't modify the alarming level by himself, it is setted in factrory. If you want to change it, please tell us when you order. However, user can modify the testing unit by himself. 2, How many times a machine can do that can not be replace sensor module?===1000 times. How many straws goes into the machine?===200pcs. How many coins fit in the machine?===200pcs. How offten I must calibrate the machine?===1000 times. 3, Because one use would be 5 kn so I need that people can insert combination of coins.===When you receive the alcohol machine, you need to set the mother coins. For each time set, you can only use one kind of coin. After the completion of setting, usser can only use the same coin as mother coin to detect his alcohol level. Therefore, when user testing, he can only use one kind of coin. |
|||||||||
Please be noted: for above alcohol testers HSAT8 series and HSAT3 sereis, the testing unit can be any unit of mg/L, g/L, %BAC. These 3 units are already in-built in the tester, user can choose any one depends on his using, but the screen can't display 3 units results at the same time.
Alcohol Tester Unit Conversion
| 10-6 mol/mol | mg/l (Br AC) | % (BAC) | ° (BAC) | g/l |
| 26 | 0,05 | 0,01 | 0,1 | 0,1 |
| 52 | 0,10 | 0,02 | 0,2 | 0,2 |
| 104 | 0,20 | 0,04 | 0,4 | 0,4 |
| 130 | 0,25 | 0,05 | 0,5 | 0,5 |
| 156 | 0,30 | 0,06 | 0,6 | 0,6 |
| 208 | 0,40 | 0,08 | 0,8 | 0,8 |
| 260 | 0,50 | 0,10 | 1,0 | 1,0 |
| 312 | 0,60 | 0,12 | 1,2 | 1,2 |
| 364 | 0,70 | 0,14 | 1,4 | 1,4 |
| 416 | 0,80 | 0,16 | 1,6 | 1,6 |
| 468 | 0,90 | 0,18 | 1,8 | 1,8 |
| 520 | 1,00 | 0,2 | 2,0 | 2,0 |
( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
