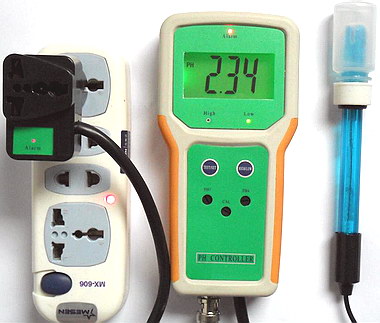

PH7021
PH Controller
Features:
PH7021
is a big screen online control with four backlit LCD display, test
and control a wide
range of with high precision and accuracy .equipped
with a high
performance electrode detection, long term monitoring and
control of PH value,
the use of AC voltage, 110V ~ 240V optional.test and
test & control two functions
,this product has a long-term testing aquarium
pH value, when the pH value is higher or lower than the set value,the power
is switched on automatically for other equipment power supply, such
as the CO2 solenoid valve connected to the supply of CO2 equipment.
Specifications:
Measurement range:
0.00 ~ 14.00 PH
Resolution:
0.01 PH
Precision:
plus or minus 0.1% + 2 digits
Input resistance:
1012次
Setting control
scope: 3.50 ~10.50 PH
Control power
specifications: 5 A / 250 VAC
Correction:
two point correction
Power supply:
AC 110V ~ 240V
Use environment:
-temperature:
0 ~ 50
ºC,
-humidity:
more than 95% |
|
﹛ |
﹛ |
PHC series PH, ORP, CD meter and
controller
(If you need clear
photo withour our watermark, please ask at:
xiushunjie@gmail.com )
﹛ |
HOT
SALES!!! |
Well designed structure, it works very
professionally and functionally at any area, epecially for
aquariums. It is easy to control or test the PH, ORP or salinity.
Description:
1. AC 120V-240V
2. Long-lasting test and controll the PH, ORP,conductivity and
calcium
﹛ data in the water.
3. Light LED display
4. High porfomance electrode
5. Combination funtions on testing and controlling
6. Hig precision and accuracy
7. Suitable for fresh water and saltwater
8. 12pcs/ctn, ctns size: 53.5*44.5*35.5
g.w./ctn: 12 kgs
|
Model |
Product |
Measurement
|
Control range
|
Resolution |
|
PHC200 |
ph
meter |
0-14ph |
﹛ |
㊣0.01ph |
|
PHC201 |
ph
controller |
0-14ph |
0-14ph |
㊣0.01ph |
|
ORPC300 |
orp
meter |
-1999-+1999mv |
﹛ |
㊣0.01mv |
|
ORPC301 |
orp
controller |
-1999-+1999mv |
0-1200mv |
㊣0.01mv |
|
POC231 |
ph-orp controller
|
ph:0-14ph
orp:
-1999+1999mv |
ph:0-14ph
orp: 0-+1200mv |
ph:㊣0.01ph
orp:㊣0.01mv |
|
CDC400 |
conductivity meter
|
0-199.9ms |
﹛ |
㊣0.1ms |
|
CDC401 |
conductivity controller
|
0-199.9ms |
0-100ms |
㊣0.1ms |
|
KCC500 |
calcium meter
|
100-600ppm |
﹛ |
㊣1ppm |
|
KCC501 |
calcium controller
|
100-600ppm |
200-500ppm |
㊣1ppm |
﹛ |
|
﹛ |
﹛ |
|
 |

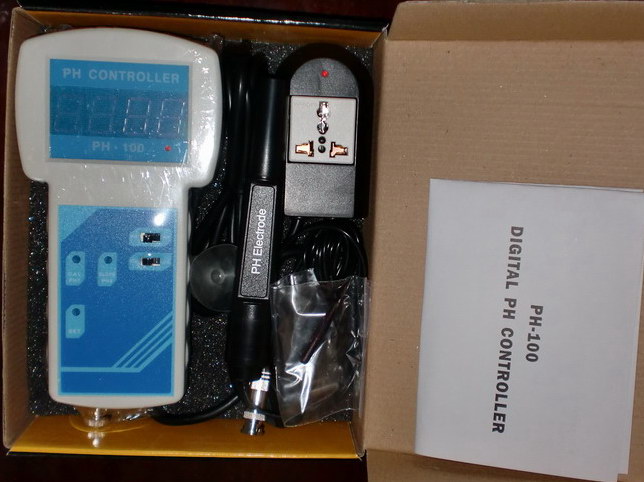

PH-100 Digital pH Controller
|
Model |
PH-100 |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
㊣0.02PH |
|
Resolution |
0.01PH |
|
Set Range |
3.50~10.50PH |
|
Relay contact |
5A/240VAC |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
4-digital LED |
|
Input Impedance |
1012次 |
|
Power Supply |
220V㊣10%50Hz㊣2% |
|
Dimensions |
108℅210℅48 (mm3) |
|
Weight |
550g |
﹛ |
|
﹛ |
﹛ |
|
 |
ORP-200C Digital ORP Controller
|
Model |
ORP-200C |
|
Measuring range |
0~㊣1999mV |
|
Accuracy |
㊣0.1%+2 digits |
|
Resolution |
1mV |
|
Output current |
-500~500mV |
|
Relay contact |
AC220V/5A |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
4-digital LED |
|
Input Impedance |
1012次 |
|
Power Supply |
110Vor220V㊣10%50/60Hz㊣2% |
|
Dimensions |
108℅210℅48(mm3) |
|
Weight |
550g |
|
|
﹛ |
﹛ |
|
 |

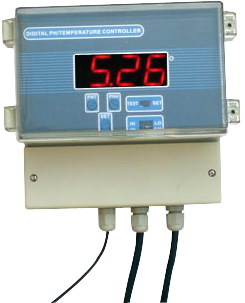

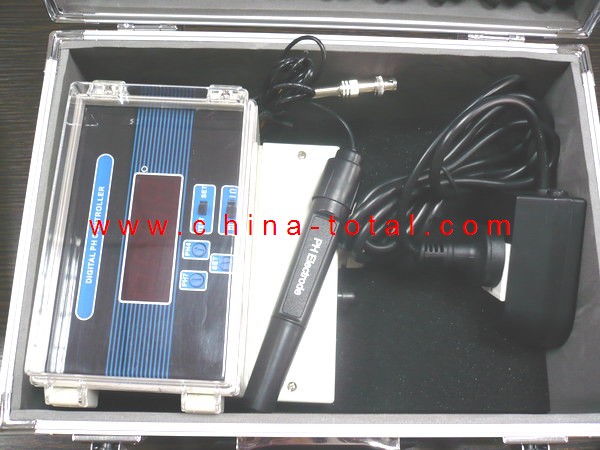

PH-201W Digital Waterproof pH
Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing,
Photography, Laboratory, Paper Industry, Swimming Pool, Plating
Industry
Same function as
PH-201, but it is waterproof than PH-201.
|
Model |
PH-201W (waterproof) |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
㊣(0.1%+2 digits)
after calibration |
|
Resolution |
0.01PH
|
|
Set Range |
3.50~10.50PH |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
165mmx158mmx121mm |
|
Net Weight |
580g |
|
Gross Weight |
2.7kgs |
﹛ |
|
﹛ |
﹛ |
|
 |

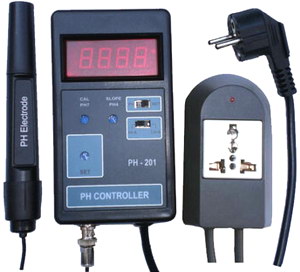

PH-201 Digital pH Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing,
Photography, Laboratory, Paper Industry, Swimming Pool, Plating
Industry
|
Model |
PH-201 |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
㊣(0.1%+2 digits)
after calibration |
|
Resolution |
0.01PH
|
|
Set Range |
3.50~10.50PH |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
150mm℅85mm℅40mm |
|
Weight |
580g |
|
|
﹛ |
﹛ |
|
 |

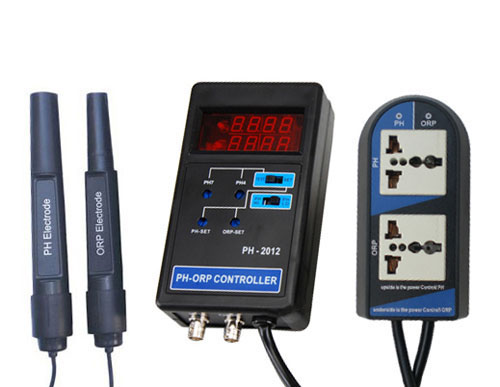

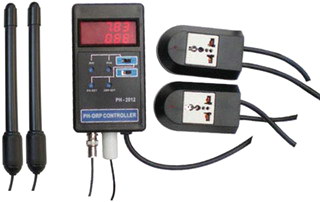

PH-2012 Digital pH and ORP Controller
Technical Specification
|
Model
|
PH-2012
|
|
Measuring range |
PH |
0.00~14.00PH |
|
ORP |
-1999~1999mV |
|
Accuracy |
PH |
㊣0.1%+0.02PH |
|
ORP |
㊣5 mV |
|
Resolution |
PH |
0.01PH |
|
ORP |
1mV |
|
Set Range |
PH |
3.50~10.50PH |
|
ORP |
-500~500mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
double 4 LED display reading |
|
Power Supply |
220V㊣10% 50Hz㊣2% |
|
Dimensions |
150mm℅85mm℅40mm |
|
|
﹛ |
﹛ |
|
 |

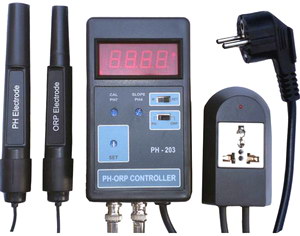

PH-203 Digital pH/ORP
Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water
Conditioning,
School & colleges.
|
Model |
PH-203 |
|
Measuring range |
PH |
0.00~14.00PH |
|
ORP |
0~㊣1999mV |
|
Accuracy |
PH |
㊣(0.1%+2 digits) after
calibration |
|
ORP |
㊣5 mV |
|
Resolution |
PH |
0.01PH |
|
ORP |
1mV |
|
Set Range |
PH |
3.50~10.50PH |
|
ORP |
0~1000mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
150mm℅85mm℅40mm |
|
|
﹛ |
﹛ |
|
 |
﹛

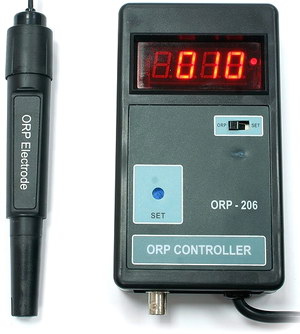

ORP-206 Digital ORP
Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water
Conditioning,
School & colleges.
|
Model |
ORP-206 |
|
Measuring range |
0~㊣1999mV |
|
Accuracy |
㊣5 mV |
|
Resolution |
1mV |
|
Set Range |
-500~500mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
150mm℅85mm℅40mm |
|
Weight |
580g |
|
|
﹛ |
﹛ |
|
 |

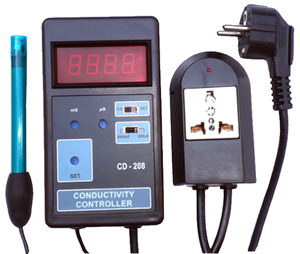

CD-208
Digital Conductivity Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water
Conditioning,
School & colleges.
|
Model |
CD-208 |
|
Measuring range |
0~1999us/cm,
0~199.9mS |
|
Accuracy |
㊣(1.5%+2 digits)
after calibration |
|
Resolution |
1us, 0.1mS |
|
Set Range |
0~1000us,
0~100.0mS |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
150mm℅85mm℅40mm |
|
|
﹛ |
﹛ |
|
|

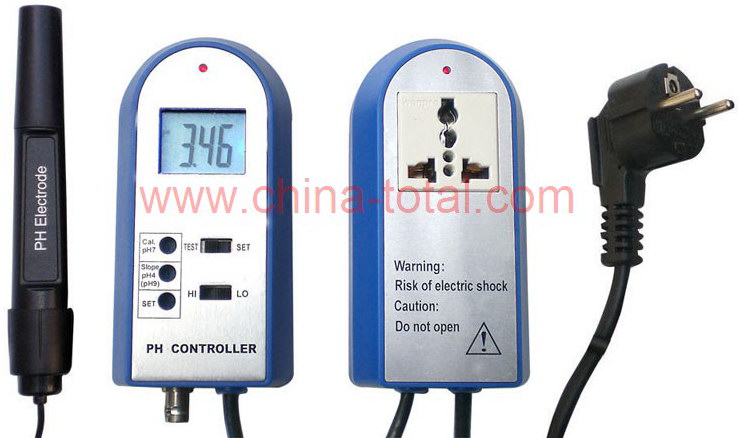

PH-211 Digital
pH Controller
(Backlitght display)
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
㊣(0.1%+2 digits)
after calibration |
|
Resolution |
0.01PH
|
|
Set Range |
3.50~10.50PH |
|
Environment |
Temperature:0~50∼C Humidity<95% |
|
Power Supply |
220V㊣10% 50Hz㊣2% |
|
Dimensions |
130mm℅65mm℅40mm |
|
Weight |
600g |
|
Packing |
20PCS/CTN,
CTN SIZE: 50*42*37CM, G.W.: 18KGS
|
|
|
﹛ |
﹛ |
|
 |
HL-233 LEVEL CONTROLLER
|
Model |
HL-233 |
|
Power Supply |
AC 220V 50Hz |
|
Environment |
Temperature: 0~50ºC, Humidity<95% |
|
Power Consumption |
2
watts |
|
Dimensions |
150mm℅85mm℅42mm |
|
Weight |
690g |
﹛ |
|
The electronic level controller
with 2 sensors will automate aquarium water top off. Since
safety is our number one concern, we include two float switch
sensors with our electronic water level controller. The first
float switch sensor triggers the feed pump (sold separately) to
maintain the desire water level. The second float switch sensor
ensures dependability and offers overflow protection. Our water
level controller can also be used to protect pump from running
dry. It can be utilized in three ways :

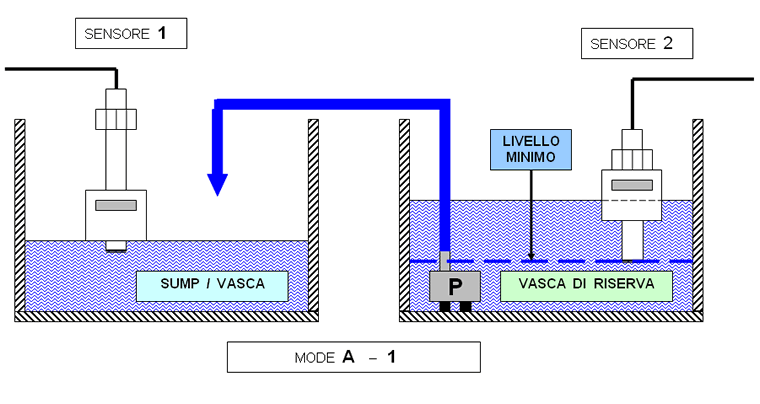

1.In this mode the power supply will turn on if the water level
in the sump is low AND there is enough water in the storage
tank. The power supply will turn off if the water level in the
sump is high AND there is not enough water in the storage tank.
(View Operation
diagram, MODE A-1)
With this set up the power supply will turn on as soon as the
water level in the sump drops below the set level. The power
supply will turn off if the water level in the sump is high the
set level.
(View Operation
diagram, MODE A-2)
2. The power supply will turn on when the level falls below the
minimal level of float sensor1 and will turn off when water
rises the set point of the flow sensor1. The float sensor2 acts
as a backup sensor in the event the float sensor1 is stuck. The
level controller will not allow the power supply to turn on if
the water level in the sump reaches the maximum level of float
sensor2.
(view Operation
diagram, MODE B)

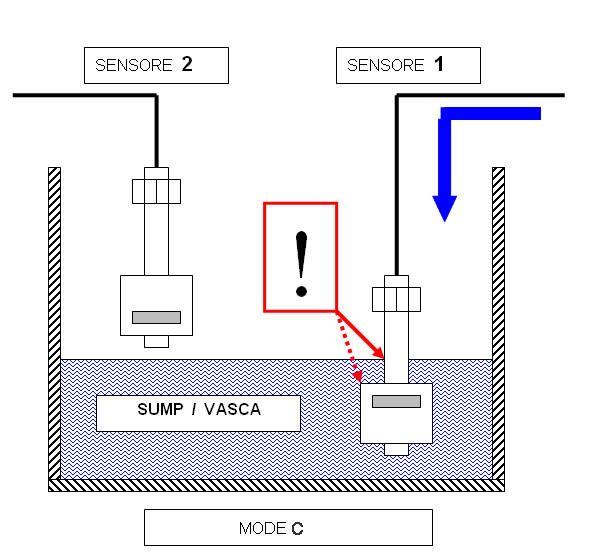

3. Immerse the sensor1 and sensor2 in the measured solution
(sump).With this set up the power supply will turn on when both
sensors detected that the water level is below the minimum level
and stop only when the water rises the maximum level of both
sensor.
(View Operation diagram, MODE
C) |
|
﹛ |
﹛ |
|
 |

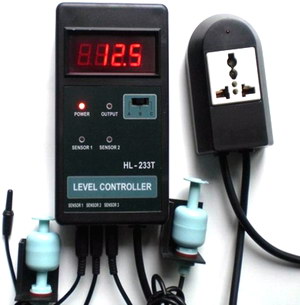

HL-233T LEVEL CONTROLLER
(with temperature display)
|
Model |
HL-233T
|
|
Temp Range |
0~80ºC |
|
Resolution |
0.1ºC |
|
Accuracy |
㊣1ºC |
|
Environment |
Temperature: 0~50ºC, Humidity<95% |
|
Power Supply |
AC 220V 50Hz |
|
Dimensions |
150mm℅85mm℅42mm |
|
Weight |
690g |
﹛
|
|
﹛ |
﹛ |
|
 |

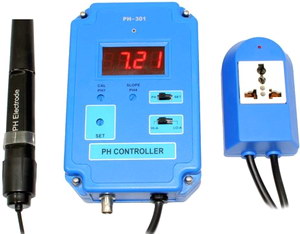

PH-301 Digital pH Controller
|
Model |
PH-301 |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
㊣0.1%+2 digits |
|
Resolution |
0.01PH |
|
Set Range |
3.50~10.50PH |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
160mm℅102mm℅40mm |
|
Weight |
772g |
|
|
﹛ |
﹛ |
|
 |

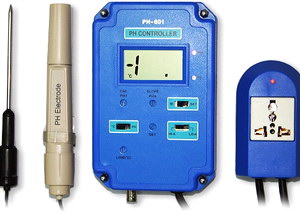

PH-601 Digital pH/Temperature
Controller
|
Model |
PH-601 |
|
Measuring range |
PH |
0.00~14.00PH |
|
Temperature |
0~100ºC |
|
Accuracy |
PH |
㊣0.1%+2 digits |
|
Temperature |
㊣0.4ºC |
|
Resolution |
PH |
0.01PH |
|
Temperature |
0.1ºC |
|
Set
Range |
PH |
3.50~10.50PH |
|
Display |
4-digital LED |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10% 50Hz㊣2% |
|
Dimensions |
160mm℅102mm℅40mm |
|
|
﹛ |
﹛ |
|
 |
PH-803
Digital pH/ORP Controller
|
Model
|
PH-803
|
|
Measuring range |
PH |
0.00~14.00PH |
|
ORP |
-1999~1999mV |
|
Accuracy |
PH |
㊣0.1%+0.02PH |
|
ORP |
㊣5 mV |
|
Resolution |
PH |
0.01PH |
|
ORP |
1mV |
|
Set Range |
PH |
3.50~10.50PH |
|
ORP |
-500~500mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
double 4 LED display reading |
|
Power Supply |
220V㊣10% 50Hz㊣2% |
|
Dimensions |
160mm℅102mm℅40mm |
|
Weigh |
872g |
Note: this meter display
and controll ph/orp simultaneously. |
|
﹛ |
﹛ |
|
 |
PH-303 Digital pH/ORP
Controller
|
Model |
PH-303 |
|
Measuring range |
PH |
0.00~14.00PH |
|
ORP |
0~㊣1999mV |
|
Accuracy |
PH |
㊣0.1%+2 digits |
|
ORP |
㊣5 mV |
|
Resolution |
PH |
0.01PH |
|
ORP |
1mV |
|
Set Range |
PH |
3.50~10.50PH |
|
ORP |
0~1000mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
160mm℅102mm℅40mm |
Note: this meter display
and controll ph/orp not simultaneously, need switch from display to
controll. |
|
﹛ |
﹛ |
|
 |
ORP-306
Digital ORP Controller
|
Model |
ORP-306 |
|
Measuring range |
0~㊣1999mV |
|
Accuracy |
㊣5 mV |
|
Resolution |
1mV |
|
Set Range |
-500~500mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
160mm℅102mm℅40mm |
|
Weight |
772g |
﹛ |
|
﹛ |
﹛ |
|
 |
CD-308
Digital Conductivity Controller
|
Model |
CD-308 |
|
Measuring range |
0~1999us/cm,
0~199.9mS |
|
Accuracy |
㊣1.5%+2 digits |
|
Resolution |
1us, 0.1mS |
|
Set Range |
0~1000us,
0~100.0mS |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V㊣10%
50Hz㊣2% |
|
Dimensions |
160mm℅102mm℅40mm |
﹛ |
|
﹛ |
﹛ |
 |

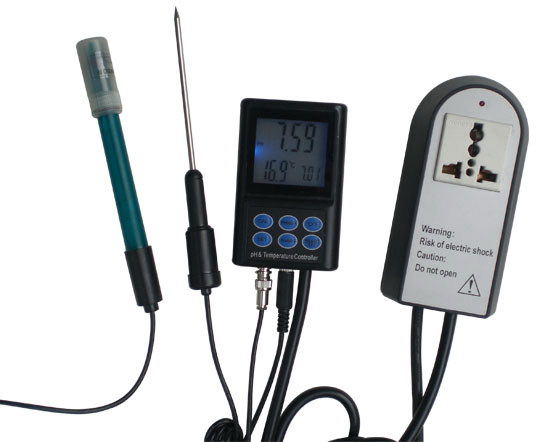

PH-221 Digital pH and Temperature
Controller
Technical Specification:
|
MODEL |
PH-221 |
|
Measuring range |
pH |
0.00 ~ 14.00 pH |
|
Temp |
0~50∼C
(32ºF-122ºF) |
|
Resolution |
pH |
0.01 pH |
|
Temp |
0.1ºC (0.2ºF) |
|
Accuracy |
pH |
㊣0.02pH |
|
Temp |
㊣0.5ºC |
|
Display |
pH |
4-digital LCD |
|
Temp |
3-digital LCD |
|
Automatic Temperature
Compensation |
0 ~ 50∼C |
|
Calibration |
2 points with auto
buffer recognition |
|
Set Range |
0 ~ 14PH (High or Low) |
|
Relay contact |
5A/240VAC |
|
Environment |
Temperature:0~50ºC
Humidity<95% |
|
Power Supply |
220V㊣10% 50Hz㊣2% |
|
Dimensions |
95 x 61 x 20 mm |
|
Weight |
550g |
|
|
﹛ |
﹛ |
|
Please be noted: for above controllers, PH-211, PH-601, PH-221
are with LCD displaying, other models are with LED displaying. |
|
﹛ |
﹛ |
|
 |

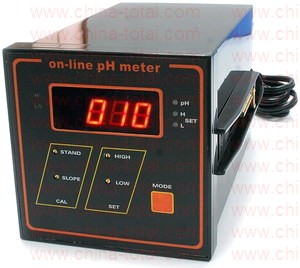

PH-018 Industrial Online pH
Controller
It is an accurate secondary instrument
with LED digital display. it is applicable to determine pH value of
water solution in departments of petroleum, chemical, medicine-produce
ect. Automatic temp. Compensation
|
Model |
PH-018 |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
㊣0.02PH |
|
Resolution |
0.01PH |
|
Output current |
4-20mA |
|
Automatic temperature
compensation |
0~100ºC |
|
Warning accuracy |
㊣0.02PH |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
4-digital LED |
|
Input Impedance |
1012次 |
|
Power Supply |
220V㊣10% 50Hz㊣2% |
|
Dimensions |
96℅96℅160(mm3) |
|
Weight |
950g |
﹛ |
|
﹛ |
﹛ |
|
 |
ORP-019 Industrial On-line ORP
Controller
|
Model |
ORP-019 |
|
Measuring range |
0~㊣1999mV |
|
Accuracy |
㊣(0.1%+2 digits) after calibration |
|
Resolution |
1mV |
|
Output current |
4-20Ma(max charge:50次) |
|
Relay contact |
two
220V5A |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
4-digital LED |
|
Input Impedance |
1012次 |
|
Power Supply |
110Vor220V㊣10%50/60Hz㊣5% |
|
Dimensions |
96℅96℅160(mm3) |
|
Weight |
950g |
|
|
﹛ |
﹛ |

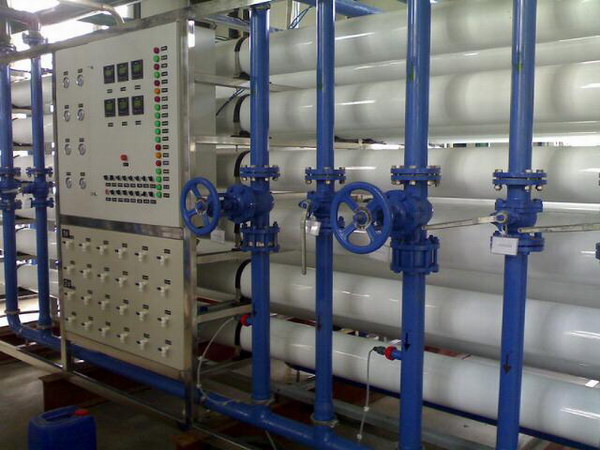

Application:
Widely used in thermal power, wastewater treatment, purified
water, circulating water, boiler water systems and
electronics,electroplating printing and dyeing, chemical, food,
pharmaceutical and other process areas,performance in large
sewage treatment plants, industrial process control applications
Features:
-Large-screen multi-parameter LCD
backlit display (and display the current PH value, temperature /
output current)
-The factory standard configuration Chinese language interface,
the language menu, England switch
-PH / ORP measurement, upper and lower control 4-20mA isolated
output (migration), and digital communications
-Instrument mode to isolate the transmission port, the maximum
loop resistance greater than 300次 |
Online PH / ORP Controller PHC030
-Can be set to automatic temperature
compensation or manual compensation of pH high alarm and low limit
alarm Dual relay, high and low relay disconnected the value of
independence and freedom to adjust
-Voice alarm can switch function, set on or off through the
interface options
-LCD backlight selectable power saving mode, timing turn off
automatically
-High-performance CPU, good electromagnetic compatibility
-Password management functions, to prevent the misuse of
non-professionals
Technical parameters:
Measuring
range: PH
(0 - 14
pH); ORP (-1900
- +1900
mV)
Accuracy: + 0.02
pH; + 1
mV
Resolution: 0.01pH;
1mV
Stability: ≒
0.02 pH/24 hours;
≒ 3
mV/24 hours
PH standard solution:
4.01/6.86/9.18
Display: 128 * 64 dot
matrix LCD
0-100
∼ C
temperature compensation
manual / automatic
(10k)
Signal output: 4-20mA
isolated to protect the
output maximum
loop resistance of
300次
Alarm output:
high and low alarm contacts group
(3A/250 V AC)
normally open contact relay (0-14PH; ㊣ 1999mV wide pull the
disconnect value)
Power supply:
AC 220V ㊣ 10% 50Hz / 24VDC
Power consumption:
≒ 3W
MODBUS standard
protocol for RS485 communication (optional)
Environmental
conditions: 1. Temperature 0 ~ 60
∼ C
2. Humidity ≒ 85% RH
Dimensions: 96 *96
*110mm (H * W *
D)
Hole size: 92 * 92mm
(H * W) |
|
﹛ |
﹛ |
Features:
-TI's chip, 96 ℅ 96 international
standard housing, 90% of the parts of international brands;
-Optocoupler isolation to protect the output, input and output
signals without interference;
- -96F series instrument microcontroller control (microcomputer)
backlit LCD display
-EEPROM memory (power and memory, without the backup battery,
the data can still save more than a decade)
-Drift is small, stable and precise;
key audio feedback |

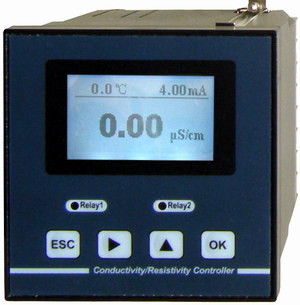

Industrial electrical conductivity /
resistivity Controller CDC09
-Have an error indication; automatic
temperature compensation; two-point correction; Isolated 4 to 20 ma
current output; dual relay control, high and low alarm indicator
Technical Parameters:
Range:
K=0.01: 0.50~20.00MW
K=0.1:0-19.99 us/cm; 0-199.9 us/cm; 0-1999 us/cm; 0-19.99 ms/cm
K=1:0-199.9 us/cm; 0-1999 us/cm; 0-19.99mS/cm; 0-199.9 ms/cm
K=10: 0-1999 us/cm; 0-19.99 ms/cm; 0-199.9mS/cm; 0-1999 ms/cm
Resolution: Range segment decimal 0.01MW
Accuracy: ㊣ 0.5% FS
Automatic temperature compensation: 0 ~ 60.0
∼ C,
1.91% / ∼ C
Conductance constant: K = 0.01,0.1,1.0,10
Isolation to protect the output: 4 ~ 20mA isolated to protect the
output
Current output load: maximum allowable load for 450W
Control output mode: ON / OFF relay output contacts
Relay withstand the load: the Max AC 230V 5A Max AC 115V 10A
Ground voltage insulation degree: minimum load 500VDC
Operating voltage: 230/115VAC ㊣ 10% 50/60Hz ㊣ 1Hz
Size: 96 ℅ 96 ℅ 115mm
Hole size: 1/4DIN
Normal operating conditions of the instrument:
Ambient temperature: 5~45∼ C
Air relative humidity: ≒ 85%
In addition to the Earth's magnetic field around a strong magnetic
field interference. |
|
﹛ |
﹛ |
Application:
BSC-96DS Chinese online Dissolved Oxygen Meter is an online
company to the introduction of foreign technology to produce
intelligent dissolved oxygen detector, the use of imported
components and dissolved oxygen in the first film, based on the
latest polarographic analysis techniques, and advanced
production technology and surface-mount technology. Using this
series of advanced analytical techniques to ensure that the
instrument stable and reliable long-term work and accuracy.
Chinese menu, Notepad storage of measured data, 485
communications and other functions. Can be widely used,
continuous monitoring of chemical fertilizer, metallurgy,
environmental protection and water treatment engineering,
pharmaceutical, biochemical, food, farming and running water,
and dissolved oxygen in solution.
Features:
-Big screen dot matrix LCD, Chinese menu.
-Multi-parameter: The value of dissolved oxygen, temperature,
output current, alarm points at the same time display, intuitive
and easy to read, and range overrun prompted. |

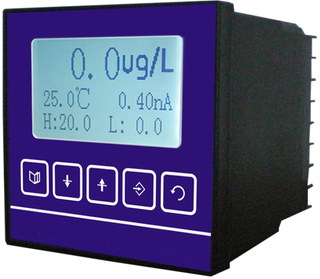

Industrial dissolved oxygen analyzer/controller
DOC09
-Screen displays alarm status and accompanied by a switch ON / OFF
signal output.
-Automatic Temperature Compensation: Automatic 0 to 60 ∼C.
-Communication: RS-485 communication interface (optional MODBUS
protocol is partially compatible with) can be converted to RS-232. 4
to 20 mA current out put corresponding to the DO value can be set.
-Notepad: can store 50 measurements, the user may need to record the
measurement data.
-Hysteresis amount of any setting, to avoid frequent switching relay
action.
-Watchdog function: to ensure that the instrument will not crash.
-Core devices from the famous foreign brands.
-Restore the factory settings available.
-Power-down protection > 10 years
Technical Parameters:
-A measuring range: 0~200.0 ug/Lㄛ0~20.00 mg/L, Automatic range
switching; 0 ~ 60 ∼ C, Resolution: 0.1ug/L,0.0 1mg/L,0.1∼ C
-Accuracy: ug/L:㊣1.0%FS;mg/L:㊣0.5%FSㄛ㊣0.3∼ C
-Automatic temperature compensation: 0~60∼ C
-Control Interface: two sets of ON / OFF relay contact is divided
into a high point; low alarm signal is optically isolated output.
-Signal output isolation: optocoupler isolation to protect 4 ~ 20mA
signal output
-Relay: relay lag arbitrarily set, the relay load 10A 220VAC
-Working conditions: ambient temperature 0 to 60 ∼ C, relative
humidity ≒ 90%
-Output load: load <500次 (0-10mA), load <750次 (4-20mA)
-Working voltage: 220VAC ㊣ 10%, 50/60Hz
-Size: 96 * 96 * 115 mm,
-Hole Size: 91 *91mm
-Weight: 0.9 kg
-Standard configurations: the second table a fixed locking bar two,
a user manual electrode one, two alternate first film (limited to
ordinary sewage membrane electrode), an alternate electrolyte bottle |
|
﹛ |
﹛ |
|
 |

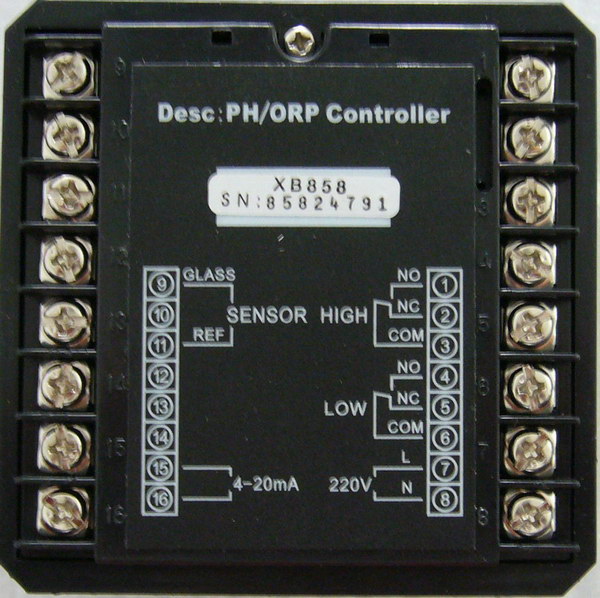

PH/ORP INDUSTRIAL ON-LINE CONTROLLER
PH/ORP-6658H
|
Power supply |
AC
220V(160-250V)50Hz |
|
Power unit |
<5W |
|
Accuracy |
0.01PH 1mV |
|
Measurement range |
0-14PH
-999mV~+999mV |
|
Set point |
2 |
|
Environmental
temperature |
0~50∼C |
|
Display |
Four-level LED
LCD instructions |
|
Environmental
humidity |
35-85%RH |
|
Parameters
preservation |
10 years |
|
Output model |
ON/OFF
4-20mA |
|
Output capacity |
AC 250v/3A
DC30V/3A |
|
Input impedance |
≡1012次 |
|
Insulation R |
≡10M次 |
|
Size |
96mmX96mmX120mm |
|
Weight |
600g |
Optional electrode:
CT-1001 for PH,
CT-2001 for ORP (click here to check)
|
|
﹛ |
﹛ |
|
 |
PH/ORP INDUSTRIAL ON-LINE
CONTORLLER
PH/ORP-2000
Range: 0-14PH, -1000-1000mV
Accuracy: ㊣(0.1%+2 dit)
Resolution: 0.01 pH/1mV
Display: LCD (Blue back light)
Set point: 2
Power Cap: Max3A / 220 VAC.
Power supply: AC110V 50Hz, AC220V 60 Hz.
Power: 2 W
New weight: 0.2KG
Output: DC4-20mA, MAX. LOAD 1K
Optional electrode:
CT-1001 for PH,
CT-2001 for ORP (click here to check)
|
|
﹛ |
﹛ |
|
Widely used for the monitoring
systems in Environment protection, Chemical, Water treatment
and Industrial manufacturing Process
PH and ORP measure and control
Three points buffer solution
calibration, 4.00, 6.86, and 9.18
Nice appearance ,reliable
installation,hight quality with low price
Isolated Meter mode/Transmitter
Mode output which is compatible with all types of PLC
Double channels control
contacts,pH/ORP backlash/dead area control
Complete EMC design; strong
ability of anti-interference
Sealed case ensures the
operation in wet and salinity fog enviorment
Power supply 24V DC to satisfy the
security of the site.
|
PH-8151 Controller
ORP-8151 Controller
Measurement items PH,
and ORP
auxiliary electrode Double
/ triple combination PH,ORP Electrode
electrode structure Glass
electrode, Industrial sheath ele-ctrodes, bio-fermentation
electrode
Measurement range
pH : 0.00~14.00pH
ORP: -1999mV~+1999mV
Temperature: 0.0~99.9∼C
Resolution
pH : 0.01pH
ORP: 1mV
Temperature: 0.1∼C
Accuracy
pH : ≒㊣0.1
ORP: ≒㊣5mV
Temperature: ≒㊣1∼C
Stability
pH : ≒0.05pH/24h
ORP: ≒3mV/24h
Temperature: ≒0.2∼C/24h
Input resistance
≡1.5℅1012次
Temperature compensation
Manual /Auto Temperature compensation range: 0~99.9∼C
Working conditions Temperature
: 0~50∼C; Humidity: ≒85%RH
Standard buffer solution 4.01,
6.86, 9.18(at 25∼C)
Current output
Isolated4~20mAoutput, Maximum loop resistance600次
Communication output
RS485
Control output
Hi/low limite double relay control output
Contact Capacity AC250V/3Amax;
AC125V/5Amax
Power supply DC
18~36V
Protection Level IP65(with
rear cover)
Dimension 96mm℅96mm℅105mm(H℅W℅D)
Slot dimension
91mm℅91mm(H℅W)
Installation Panel
mounted,fast installation clamp |
|
﹛ |
﹛ |
%20Controller-ShowRange.JPG) |
CCT-3300 series Conductivity (TDS) Controller
CCT-3300 series
conductivity (TDS) measurement controller is a high-technology
innovative product. Product performance and function updated to a
new level. It is a product with high performance and price ratio
for inline water quality conductivity analysis.
Applications
This series is widely used for the water treatment control and
monitoring of water treatment (high salt content), concentrated
solution, recirculating cooling water and etc. |
Main Technical Index
l
No
adjustable component inside the instrument, totally programmed
automatic
calibration, higher reliability;
l
Automatic measurement range shift, digital temperature
compensation.
l
Support conductivity cell constant (0.1 cm-1, 1.0 cm-1,
5.0 cm-1, 10.0 cm-1), measurement range
compatible with liquid from pure water to concentrated solution,
named online conductivity superman.
l
Conductivity (uS/cm) or TDS (ppm) engineering unit display can
be chosen in operation.
l
present water temperature
(⊥)
/ transmitting current (4~20mA) can be check onsite.
l
Measurement and calibration program for calculation and
measurement inspection organization.
l
Isolated, transferable 4~20mA
current output, two points transmitting range random setting
within full scope. Support all the two wire PLC system under
transmitter model.
l
Conductivity high limit alarm, high limit value and backlash
value random setting within full measurement scope.
l
Patent short housing and fast installation method to save more
space for the project,
l
High illumination, pure white backlight LCD display in
accordance with international trend.
l
Industrial standard wire contact,
EMC electromagnetic compatible design, platform design
development, serial product classification.
l
Meeting international electronic
power supply regulation, AC ,DC current input which with non
polarity wire connection,
l
Our
products with strict quality management , SMT (Surface Mounted
Technology), AOI (automatic
optical inspection (system),
ICT ＃
l
Complete manufacturing technique
management, and quality management.
l
Electrode will be calibrated,
tested, packed one by one.
Products classification
|
Model |
Power supply |
Frequency(Hz) |
Current loop
modes |
Constant
selection |
Display |
|
CCT-3300E |
DC 24V |
--------------- |
Instrument/Transmitter |
0.1-1.0 |
Three digits and
a half |
|
CCT-3310E |
AC 110V |
50/60 |
Instrument/Transmitter |
0.1-1.0 |
Three digits and
a half |
|
CCT-3320 |
AC 220V |
50/60 |
Instrument/Transmitter |
0.1-1.0 |
Three digits and
a half |
|
CCT-3320E |
AC 220V |
50/60 |
Instrument/Transmitter |
0.1-1.0 |
Three digits and
a half |
|
CCT-3320T |
AC 220V |
50/60 |
Instrument/Transmitter |
0.1-1.0 |
Three digits and
a half |
Note: The model with E is the EMC
enhancement type.
CCT-3320T(Conductivity Monitor)
without any control outputs.
Main technical feature
|
Name of product |
CCT-3300 series of conductivity/TDS
Controller |
|
Display |
LCD display |
|
Auxiliary electrode Constant |
0.10 cm-1 |
1.000 cm-1 |
5.000 cm-1 |
10.0 cm-1 |
|
Electrode coefficient range |
0.070- 0.130 cm-1 |
0.70 -1.30 cm-1 |
3.50 -6.50 cm-1 |
7.00 -13.0 cm-1 |
|
Auxiliary electrode accuracy
measurement range |
0.5~199.9米S/cm |
1.0~1999米S/cm |
0.05~9.99mS/cm |
0.5~19.99mS/cm |
|
Measurement range |
conductivity |
0.5米S/cm ~
19.99mS/cm |
|
TDS |
0.25ppm~
9.99 ppt |
|
temperature |
0.0~50.0⊥ |
|
Resolution |
conductivity |
0.01米S/cm |
|
TDS |
0.01ppm |
|
temperature |
0.1⊥ |
|
Accuracy |
conductivity |
1.5level |
|
TDS |
1.5level |
|
temperature |
㊣0.8⊥ |
|
Temperature compensation |
﹛ |
|
﹛ |
|
NTC10K temperature component |
|
Working Environment |
Temp.0~50⊥
Relative Humidity: ≒80%RH |
|
Transmitting outputㄗ4~20mAㄘ |
isolated/transferable/reversible
/transmitter mode/meter mode |
|
Loop resistance 0--400次 accuracy:
㊣0.1mA |
|
Control output |
Output port |
double contact relay output
(ON/OFF) |
|
load capacity |
AC 220V/AC110V/DC24V 3A Max |
|
Power consumption |
<2.5W |
|
Power supply |
CCT-3300E |
CCT-3310E |
CCT-3320/CCT-3320E |
CCT-3320T |
|
DC 24V ㊣4V |
AC 110V ㊣10% |
AC 220V ㊣10% |
AC 220V ㊣10% |
|
FrequencyㄗHzㄘ |
------ |
------ |
50/60 |
50/60 |
|
Installation |
﹛ |
|
﹛ |
|
Panel mounted ,fast installation
clamp |
|
Dimension |
48mm℅96mm℅80mm(H℅W℅D) |
|
Slot dimension |
44mm℅92mm(H℅W) |
|
Weight |
0.27kg |
|
|
﹛ |
﹛ |
|
Performance features:
Temperature + conductivity + resistivity controller. Electrode
consistent check can be met by jam-in Microchip. Conductivity/resistivity
can be displayed optionally. Conductivity/resistivity and
temperature over limit alarm can be set optionally. Conductivity/resistivity
can be displayed at the same time with double-line LED digital
canal. With function of digit calculating temperature compensation,
it can preset and modify compensation parameters. Conductivity/resistivity
at temperature of 25ºC or 90ºC can be displayed optionally. It is
with features of stability of high temperature and reliable long. |

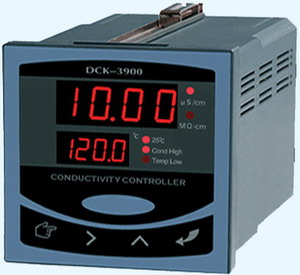

DCK-3900 Conductivity Controller (new
model No. CCT7320A)
Main Technical Specifications
-Measuring range:
-Conductivity: 0~20米S/cm Resistivity: 0.05~18.25 M次﹞cm
-Accuracy: ㊣1.0%(FS)
-Stability: ㊣2℅10-3(FS)/24h
-Auxiliary electrode: 0.1cm-1 High temperature sanitation 316 L
stainless steel
-Medium temperature: 70~150ºC
-Temperature compensation: Automatic temperature compensation:
calculate compensation with 90ºC as standard condition
-Power supply: AC 220V㊣10% 50Hz
-Power consumption: ≒4W
-Data connection port: RS485 port, Modbus agreement
-Output current signal: isolated output 4~20mA, switchable between
active and passive output
-Maximum load impedance: 500次 Max@ 24V DC
-Display mode: Red LED digit double-window display
-Contact capacity: 5A/250V AC (for resistive load)
-Environment conditions: temperature: 0~50ºC; humidity: ≒85%RH
-Screw thread size: 1/2"NPT (pipe thread)
-Cable structure: RVP+ coaxial cable 75-2 (double shielding)
-Cable length: normal 5m or specified as ---m
working pressure of conductance cel:0~1.0MPa
-Control output: ON/OFF double channels relay output.
-Load capacity of the relay:AC230V/7A Max; AC115V/10A Max.
-Auxiliary printer: WDJ-4680 paperless recorder+ printer
-Dimensions: 96℅96℅130mm (height ℅ width℅ depth)
-Slot dimensions for installation: 91℅91mm (height ℅width)
-Installation: Jam-in |
|
﹛ |
﹛ |
|
 |

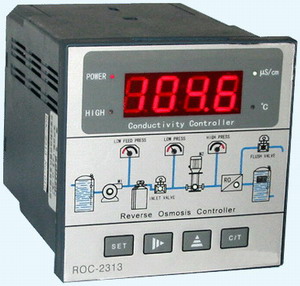

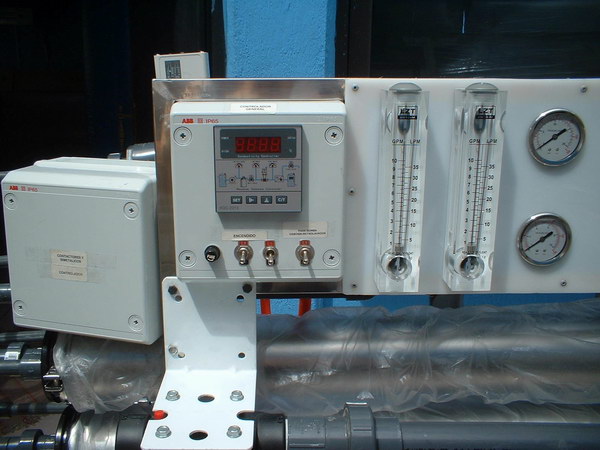

ROC-2313 RO Controller (new model
No. CCT7320)
General
The instrument is a combined control instrument of a reverse osmosis
controller and an on-line conductivity instrument. It can perform
the operation test, status control and on-line monitoring of water
quality conductivity (combining PLC controller and conductivity
meter). It takes multiple anti-interference measures, adopts unique
process flow and graphical control panel with LED indicator lamp
embedded, the interface is friendly; menu-driven operation is used,
multiple groups of parameters can be set and modified, the
requirements of automatic operation are met.
Main technical specifications:
1. Power voltage: AC 220V㊣15% 50Hz Power consumption: ≒3W
2. Environment conditions: 1) temperature: 0~50ºC; 2) humidity:
≒85%RH
3. Measuring range: 0~200米S /cm accuracy: 1.5 level
4. Load capacity of output contact: 3A/250V AC (the magnetic valve
should be driven through intermediate relay)
5. Operation pressure of conductance cell: 0~0.5Mpa
6.Medium temperature:5~50ºC
7.Temperature compensation: automatic temperature with 25ºC as
reference temperature
8. Distance of measuring range: less than 30m (the ex-factory
configuration of electrode cable is 5m unless there is a special
agreement)
9. Display mode: 3 1/2-digit LED digital display
10. Electrode selected: 1.0cm-1
11. outline dimensions: 96℅96℅110mm (height ℅ width ℅ depth)
12.meter board hole: 92℅92mm (height ℅ width) |
|
﹛ |
﹛ |
|
Performance Features:
The instrument is combination of two stage reverse osmosis
controller and on-line conductivity monitor. It is a special-purpose
measurement and control system. This system has the functions of
automatic test, operation test, status control, display, letter
hint, indicating light display etc. The controller aggregates all
the advantages of PLC controller and the meter for measuring water
quality. |

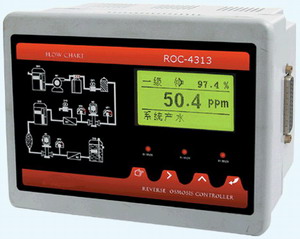

ROC-4313 RO Controller (new model
No. CCT9300)
Main Technical Specifications:
-Reverse osmosis collecting point: Raw water tank level, middle tank
level, no water protection, handle/automatic control, first stage
pressurization pump low/high pressure protection, second stage
pressurization pump high pressure protection, and so on.
-Collecting input signal: Direct current power supply, pull
electrical digit, all terminals are isolated .
-Reverse osmosis controlling point: Feed water pump, first-grade
pressurization pump, second-grade pressurization pump, inlet water
valve, pretreatment valve, flushing valve, first-grade over-limit
outflow valve, second-grade over-limit outflow valve.
-Measuring collection point: Raw water conductivity collect
,first-stage outlet water conductivity collect, and second-stage
outlet water as well as temperature collection .
-Measuring range: Raw water conductivity 0~20mS/cm, 0~2000米S/cm
(match 10cm-1 or 1.0cm-1 electrode) first-stage reverse osmosis
conductivity 0~200米S/cm (match 1.0 cm-1 electrode) second-stage
reverse osmosis conductivity 0~20米S/cm (match 0.1cm-1 electrode)
-Power supply voltage: 24V DC (switch should be installed outside
when designing)
-Accuracy:1.5 level
-Output control mode: ON single contactor output
-Load capacity of output contact: 5A/250V AC 3A/24V DC
-Rate of renewal of connecting result: ≒1second\time
-Operation pressure of conductance cell:0~0.5Mpa
-Temperature compensation: automatic temperature with 25ºC as
reference temperature
-Outline dimensions: 130℅180℅60mm(height ℅width ℅depth)
-Slot dimension for installation: 122℅172mm (height℅ width)
-Installation: Control plate panel |
|
﹛ |
﹛ |
|
 |
RO-2008 RO Controller
1 General
RO-2008 controller combines the typical
operation modes of various medium and small reverse osmosis systems,
adopts high-performance computer chip and takes multiple reliability
measures, the technology is mature and operation reliable; the
control panel visually displays the operation status of the system
by visual flow chart with LED Indicator embedded. RO controller
operates with Five RO collect points and Four RO control points.
2 Main Technical Specifications
Power voltage: AC 220V㊣15% 50Hz
Power consumption: ≒2W
Environment conditions: 1) temperature: 0~50ºC; 2)
Humidity: ≒85%RH
Load capacity of output contact: 5A/250V AC (resistive load)
Outline dimensions: 48℅96℅100mm(height℅width℅depth)
Hole dimension: 45℅91mm(height℅width) |
|
RO-2008 RO Controller
Main functions
|
NO water protection |
The protection can be used
for monitoring the raw water status. The controller
will stop the systems running to protect the controller
from damage when there is no raw water supply (Low water
level in Storage Tank, therefore, low pressure in
pipeline). At the meaning time, the LOW FEED PRESS
indicator is bright, the buzzer buzzing, and then the
controller will continue to check the NO WATER SWITCH
until water supply return to normal. And then reboot
the systems. |
﹛ |
|
﹛ |
|
﹛ |
|
﹛ |
|
﹛ |
|
Low pressure protection |
The controller will stop all the RO
system temporarily if system under low pressure when
pretreatment was flushing, filter was block. At the same
time, LOW PRESS indicator is bright, the buzzer buzzing.
Then the systems will keep testing the Low pressure.
The system will return to work in one
minute after pressure return to normal.
The above process will be come again if keep in low
pressure. There are three times start up for the
systems, if all failed, the system will be locked. At
the same time, the indicators keep warning. Please
press reboot to release the lock.
|
﹛ |
|
﹛ |
|
﹛ |
|
﹛ |
|
﹛ |
|
High pressure protection
|
If the systems under High-pressure protection, if
over-pressure, the controller will close all the RO
system automatically. At the meanwhile, HIGH PRESS
indicator is bright, the buzzer buzzing. The system
will start to run in one minute after over-pressure
released. If the system keeps in over-pressure, the
protection will continue. There are three times Star-up
under High pressure program; the systems will be locked
after three times failed! If the system do not need
High-pressure protection, please short circuit this
terminal (COM1+HP) |
﹛ |
|
﹛ |
|
﹛ |
|
﹛ |
|
﹛ |
|
Water level of pure water
Tank |
The controller will start
the RO produce water when Pure water tank in the low
level (of pretreatment). The controller will finish
membrane flushing when the Tank is in high level, and
then standby automatically. |
﹛ |
|
Membrane flush |
First time membrane flush
will be running when power- on under normal conditions
of protection and operation. And then, the membrane
flush will be running each time when low level produce
water. The flush will be over after water full.
|
﹛ |
|
|
﹛ |
﹛ |
|
Dissolved oxygen measure in
industrial boiler inlet water, industrial ferment measure,
water measure of environment protection
Chinese display interface,
language menu
Some of the data can be set,
such as elevation, salinity etc; automatic temperature
compensation
Memory function in case of power
off, no need to reserve a battery, data can be saved for
more than 10 years
Isolated, double channels 4~20mA
output, digital communication terminal
Pt 1000 temperature compensation
component, with temperature control/communication function
Double channels OCT
configuration control output, with pulse frequency
conversion output function, high/low limit alarm
DC 24V power supply ,which meet the
satety regulation even in damp site |
Dissolved Oxygen
transmitting controller
﹛
Model
DOC-8600/DO-8601
Measure range 0.00~19.99mg/L
0.0~199.9%
Resolution ratio
0.01 mg/L 0.01%
Temperature
compensation 0~45∼C
Output signal
Isolated 4~20mA output
Working environment temperature
:ㄟ~50∼C Humidity : ≒ 90%RH
Power supply
AC/DC 24V㊣15%
Protection
level IP65(when the
back cover was covered)
Outline
dimension
96mm℅96mm℅105mm(H℅W℅D)
Fix mode
Panel mounting
DOC-8600 Dissolved oxygen
transmitting controller, industrial pipeline measure
DOC-8601 Dissolved oxygen
transmitting controller, sampling measure
DO3120A mg/L thread sensor
DO3120B ug/L thread sensor
DO3420A mg/L stainless steel
sensor
DO3420B ug/L stainless steel
sensor
P33 series flow adjustment
integration device for pH sensor installation
﹛
|
.JPG)
.JPG)
