pH electrode of lab

type

measure range

applicable temperature

application (it can be add temperature compensation element according to client's need.)

E-201

BNC + 1m cable

0~14pH

0~60°C

The crust of PC be able to endure hit, gelatin KC1 electrolytic liquid dispense with complementarity ,in order laboratory and locale general use. *(For PH-013, PH-2601, 2602, 2603)

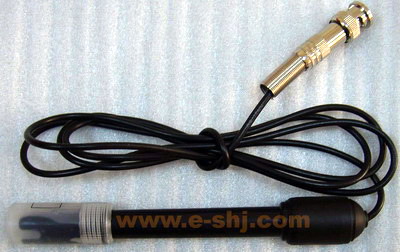

E-201C/E-210C

BNC + 1m cable

0~14pH

0~60°C

The crust of PC be able to endure hit, it can supplement electrolytic liquid, in order laboratory and locale general use, superior testing accuracy.

0~14pH

0~60°C

Temperature electrode (for PH meters)

E-0101 (for PH(KL)-0101)

pH/ORP electrode for inline monitor

type

measure range

applicable temperature

application

Click it for big pitcutre E201WM PH

Click it for big pitcutre    E201WM ORP

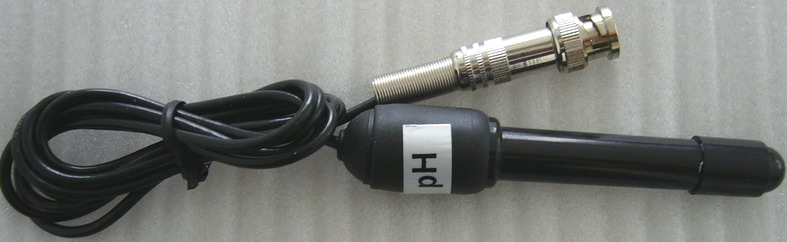

E201WM PH

Dia.14×length 85mm BNC

0~14pH

0~60°C

 *(For PHT-026, 027, 028, PH-025,

PH-02636, PH-02736, PH-0253,

PH-025M, PH-025N)

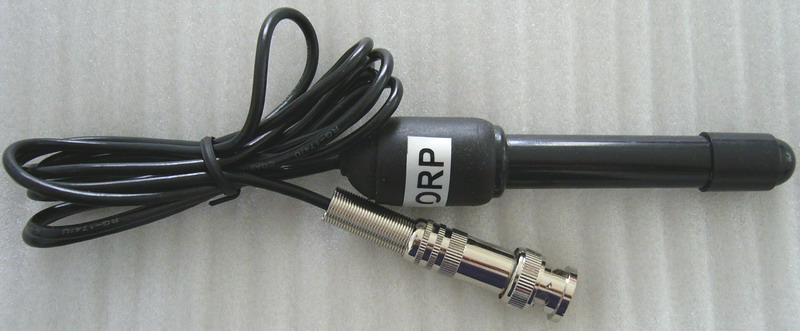

E201WM ORP

Dia.14×length 85mm BNC

0~60°C

*(For PHT-027, 028)

pH/ORP electrode for Online controller

type

measure range

applicable temperature

application

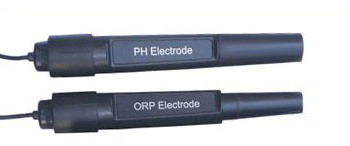

201DH PH

165mm×26mm×26mm

0~14pH

0~60°C

 *(For Online controller)

Note: Waterproof, Suitable for Aquarium.

201DH ORP

165mm×26mm×26mm BNC

0~60°C

 *(For Online controller)

Note: Waterproof, Suitable for Aquarium.

Conductivity electrode for Online controller

type

measure range

applicable temperature

application

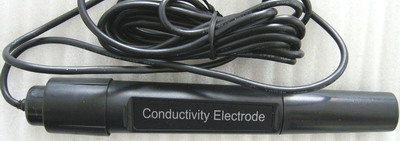

208DH Conductivity electrode

165mm×26mm×26mm BNC (or cut-off ends)

0~60°C

 *(For CD-208, CD-308)

Note: Waterproof, Suitable for Aquarium.

SP300

0~14pH

0~80°C

vitreous material, using in measure of laboratory precision pH, The measure solution contains organic impregnant and occasion of superior temperature. it can complement KC1 electrolytic liquid.

SP600

0~14pH

0~80°C

The crust of PC be able to endure hit, gelatin KC1 electrolytic liquid dispense with complementarity, the sensitive velum of special plan. it is applicable to determine surface pH value of paper making, piece goods, skin, fruit ect.

ORP electrode of lab

type

direction electrode

applicable temperature

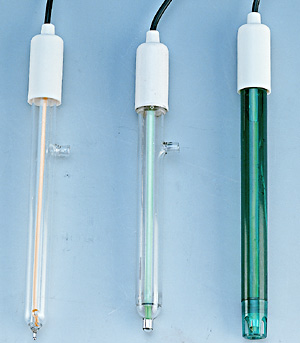

SO100

ф6×2.5mm
platinic golden loop

-5~60°C

The crust of PC be able to endure hit, it can supplement electrolytic liquid, in order laboratory and locale general use to measure the oxidable reductive electricity of solution. it use to reductive medium currently.

SO300

ф6×2.5mm
platinic golden loop

-5~100°C

vitreous material, in order laboratory and locale general use to measure the oxidable reductive electricity of solution. The measure solution contains organic impregnant and occasion of superior temperature. it use to reductive medium currently. it can complement KC1 electrolytic liquid.

ion selective electrode

type

measure range

applicable temperature

application

6801 natrium electrode

0~6pNa

20~40°C

It is use in the department of thermoelectric mill, paper mill, hospital and aquaculture ect.

701 complex natrium electrode

0~6pNa

20~40°C

The complex electrode is made of natrium electrode and reference electrodes, use expediently.It is use in the department of thermoelectric mill, paper mill, hospital and aquaculture ect.

conductance electrode of lab

type

constant of conductance pool

measure range

application (it can be add temperature compensation element according to client's need.)

The conductance electrode is measure element of conductivity meter. It is use to measure conductivity of solution. it can be add temperature compensation element to increase the measure precision according to client's need. and it is provided with the capability of temperature compensation. It is mostly applicable to electricity factory, semiconductor, pharmacy, pure-water processing, chemical industry, foodstuff drink, paper making and sewage-water processing ect.

DJS-1-1

1±0.2

5~10,000μ S

DJS-10

10±2

500~200,000μS

industrial pH electrode

type

constant of conductance pool

measure range

application (it can be add temperature compensation element according to client's need.)

Click it for big pitcutre

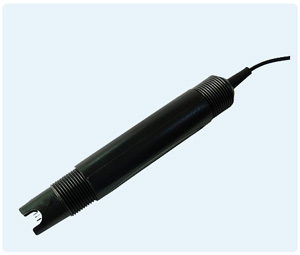

The electrode adopts connector way with the 3/4 inches standard screw thread.

Connector can be BNC or Y connector, please indicate when you order.

Click it for big pitcutre

GP400 pH complex electrode (pure-water)

2~12pH

0~60°C

The complex electrode is not need complement KCL. It is mostly used in supply water of boiler and concentrated water of smoke ect.

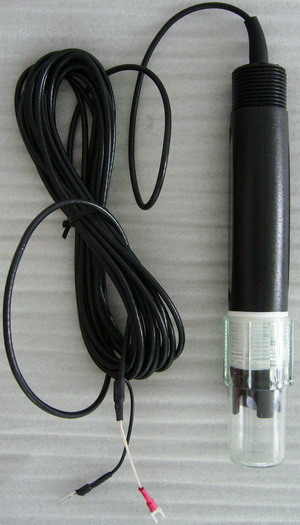

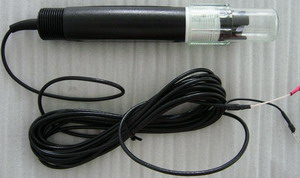

GP500 complex electrode of high temperature strong acid

0~9pH

20~100°C

It is made of reference electrodes with special sensitive glass-velum and capillary Ag/AgCl of use chronically. It is applicable to the medium of high temperature strong acid.

The electrode adopts connector way with the 3/4 inches standard screw thread.

Connector can be BNC or Y connector, please indicate when you order.

industrial ORP electrode

type

direction electrode

applicable temperature

application

Click it for big pitcutre

The electrode adopts connector way with the 3/4 inches standard screw thread.

Connector can be BNC or Y connector, please indicate when you order.
