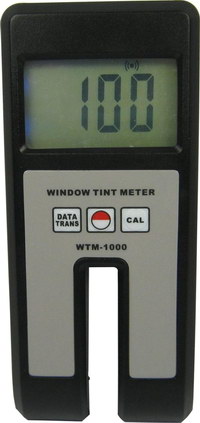

Window Tint Meter WTM1000
กก
Applications:
It measures the total amount of Visual Light Transmission(henceforth
referred to as VLT) through a window and any coatings (tint film) on
that window.
Specifications
Display: 10mm LCD
Accuracy: 0.1
Wavelength: 550 Nanometers
Measurement Range: 0 to 100% Light Transmission
Interface: RS232C
Sample Thickness: Less than 10mm/0.4inch
Sample Size: 50กม 50mm Minimum
Time of Testing: Maximum of 4 Seconds
Effects From Stray Light: Not Effected by Stray Light
Lamp Life: 10 Years
Operating conditions: 0-50C, <90%RH
Power Source: 4กม 1.5vAAA Batteries
Weight: 100g(not including batteries)
Dimensions: 126กม 65กม 27mm(5.0กม 2.6กม 1.1inch)
Standard accessories included:
Carrying case: 1PC
Operation manual: 1PC
Optional accessories:
Cable and
software for RS232C, USB adaptor |
