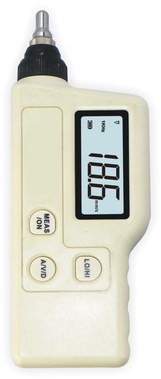

MODEL: VM63A Vibration meter

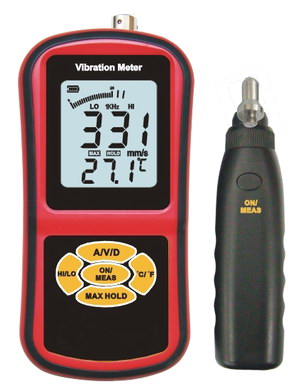

MODEL: VM63B Vibration meter

Features

Specifications

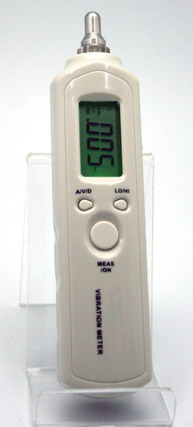

MODEL: VM63C Vibration meter

Features

Specification

- Measuring vibration velocity, displacement and acceleration.

- Small size, transducer included, battery powered, no other component required.

- Optional for inner or external Accelerometer.

- One button control both power and measurement. Very easy for use.

- 3 1/2 LCD digital display, sampling per second.

- Holding function.

- Automatic power off.

- Suitable for monitoring machinery vibration caused by out-of- balance, misalignment, gear damage, bearing faults and etc.

- Amplitude Ranges:

  Displacement: 1—1999 µm (or 200 mil)peak-peak
  Velocity: 0.1—199.9 mm/s (or 20 in/s) true RMS
  Acceleration: 0.1—199.9 m/s2 (or 20 g) Peak
- Overall accuracy: +5%

- Temperature range: 0 - 40 ⁰C

- Frequency response:

  Displacement: 10-500Hz
  Velocity: 10-1000Hz
  Acceleration: 10-1000Hz (Inner accelerometer 908B)
                      10-10000Hz (Depending on external   accelerometer model)

- Battery: 9V 6F22, 25 hours of continuous operation.

- Pickup: Accelerometer with handheld probe and /or magnetic base

- Dimensions: 13×6×2.3 cm; Weight: 200 g

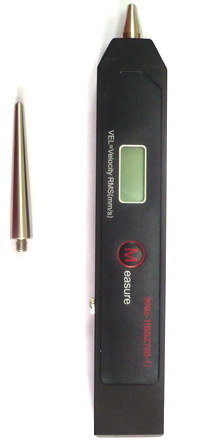

MODEL: SRVM6909Z-1V vibration meter

Features:

- Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. It measures overall vibration level by velocity RMS. This easy to use instrument requires little operator training.

- It features with one-button operation, holding function and automatic power off.

Specifications:

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual

4. Battery (Inside meter) 5.remote switch 6, magnet basse

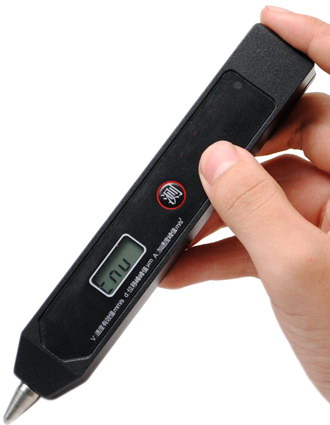

MODEL: SRVM6909Z-3 3 Parameter Vibration meter

Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. It measures overall vibration level by Velocity RMS, Displacement Peak_Peak & Acceleration Peak. This easy to use instrument requires little operator training.

It features with one-button operation, holding function and automatic power off. It is with remote switch and magnet base to avoid handheld problem, get reliable and consistent data.

Specifications:

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual

4. Battery (Inside meter) 5.remote switch 6, magnet basse

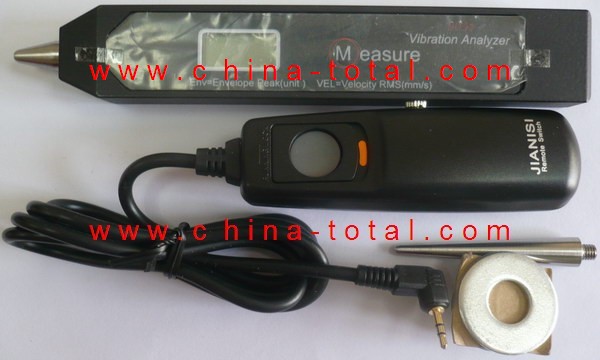

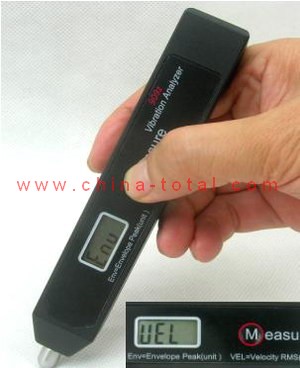

MODEL: SRVM6909Z Pen-size Bearing Condition Detector

Features:
- Measure vibration velocity for overall evaluation of the machine health (caused by rotational and structural problems like imbalance, misalignment, looseness, etc.)
- Measure acceleration envelop in higher frequencies (caused by rolling element bearing or gear mesh problems).
- Small Pen size, Sener included
- One button control both power, parameter selection, measure- ment and holding. easy to use.
- 4 LCD digital display
- Holding function.
- Automatic power off.
- True RMS measurement.
- Metal case, Robust, Reliable
- Both Metric & English Unit

Specifications:
- Amplitude Ranges:

  Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS
  High Frequency Acceleration Enveloping: 0.1—20 units
- Linearity Accuracy: + 5% and 2 digits
- Temperature range: 0 - 50°C
- Frequency response (+ 10%) :

  Velocity: 10-1000Hz
  Acceleration Enveloping: 5-2000Hz demodulated from 3kHz-10kHz
- Battery: 1/2 AA, 3.6V, 4-7mA, >100 hours of continuous operation.
- Pickup: Accelerometer with handheld probe and/or magnetic mount
- Dimensions: 160×25×17 mm; - Weight: 120 g (Including battery)
- Warranty: 3 years free

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual

4. Battery (Inside meter) 5.remote switch 6, magnet basse

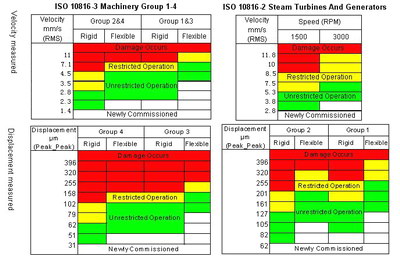

(Indicator for machine health according to ISO 10816-2/3)

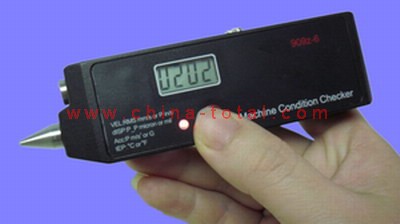

MODEL: SRVM6909Z-6 Multi-Parameter Machine Condition Checker
Features:
- Multi-parameter vibration, bearing parameter (acceleration envelope) & IR temperature measuring
- One button control power, parameter selection, ISO10816 group selection, measurement and holding.
- With remote switch and magnet base to avoid handheld problem to get reliable and consistent data.
- Measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green LED indicator
- Build-in ISO10816-2 & -3 groups selectable
- 4 digital LCD display
- Optional magnet base and remote switch
- Sensor included, Easy to use.
- Automatic power off.
- Metal case, Robust, Reliable
- Both Metric & English Unit

Specifications:
- Accuracy + 5% +2 digits
- Measurement Range & Frequency response :
  Acceleration: 0.1 to 100 m/s2 / 0.01 to 10 g / 10Hz~1kHz
  Velocity:0.1 to 250 mm/s / 0.01 to 15 inch/s / 10Hz~1000Hz
  Displacement: 1 to 3000 µm / 0.03 to 120 mil / 10 Hz~500Hz
  Enveloped Acceleration: 0.1 to 25 unit / 5Hz~2kHz demodulated    from 3kHz~10kHz
  Temperature:-33 to 220 ºC / -27.4 to 428 oF
- Battery: 1/2 AA, 3.6V, 20-29mA, >100 hours of continuous operation.
- Pickup: Integrated accelerometer with extension stinger
- Dimensions: 110x35x17 mm; Weight: 100 g (Including battery

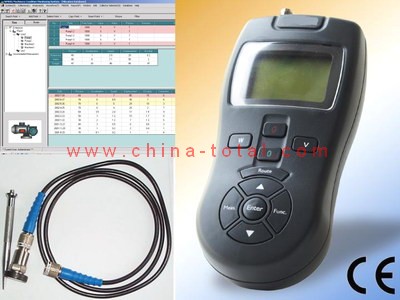

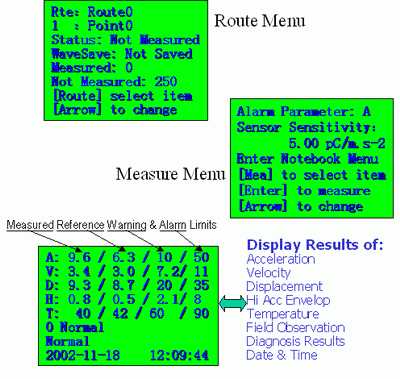

MODEL: SRVM6911/SRVM6911D Economic Vibration data collector

Features:

- Full automatic measurement of Vibration
- Automatic diagnosis of machinery faults by time domain characteristics: Askew index, Kurtosis index
- Envelope demodulation of acceleration for gears and bearings diagnosis
- Built-in ISO standard for machine health evaluation
- Full function Route Management with MCMe2 (SRVM6911) MCMe3 (SRVM6911D)
- Optional Laser-aimed infrared non-contact temperature measurement module.

Specifications:

2.1 Maximum measurement range / frequency range: (when the sensitivity of the sensor is 5pC/ ms^-2)

2.2 Accuracy:

Noise Level (without vibration input): ACC<0.25 m/s², VEL<0.5mm/s, Disp<3mm

Frequency response accuracy: ±5%, ±10% for ACC 4.5kHz - 10kHz

Non-linearity: ±5%

2.3 Type of sensors: Piezoelectric accelerometer.

2.4 Range of frequency analysis: 100, 200, 500, 1k, 2k, 5k, 10k (Hz).

2.5 The sampling frequency is 2.56 times of the analysis frequency range.

2.6 Anti-aliasing filter: 8-order ellipse

2.7 Power supply: Nickel-Hydrogen battery. Work for at least 8 hours continuously after fully charged. Storage capacity for 320 sets of data (including sequential number, peak of acceleration, RMS of velocity, peak-peak of displacement, and RMS of envelope) and 48 x 1024-points vibration waveforms.

Dimensions: 196 x 101 x 45 (mm)

Weight: 1100 grams (including battery)

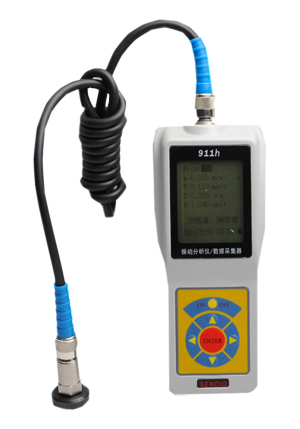

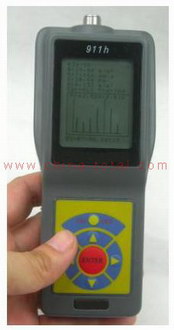

MODEL: SRVM6911H Bearing Vibration FFT Analyzer / Data Collector

SRVM6911H is a small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, vibration spectrum analysis & machinery condition monitoring. Measurement of high frequency acceleration envelope makes it very effective for bearing fault detection. The data can be sent to computer for database and trending analysis.

Features:
- All in 1 screen, a very easy to use spectrum analyzer
- Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector
- Download from computer database point / location ID & upload overall value to database for trending
- Standard maintenance software MCMe2/MCMe3
- 400 line spectrum analysis,
- Parameter selection of Acceleration, velocity, displacement and acceleration envelope
- USB 2.0 interfaces to computer
- Date/Time & Battery Status Display
- True RMS measurement

Specification:
Maximum measurement range / Resolution / frequency range:

Accuracy:
Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1mm
Frequency response accuracy: ±5% + 2 digits
Non-linearity: ±5% + 2 digits
- Rechargeable battery powered, Automatic power off, >12 hours operation time
- Operation temperature range: 0 - 50°C
- Pickup: Accelerometer with extension stinger and magnetic mount
- Storage: 60 sets of ID, acceleration, velocity, displacement, envelope & spectrum
- Size: 196 x 101 x 45 (mm)
- Weight: 230 gram (including battery)
- Warranty: 3 years free

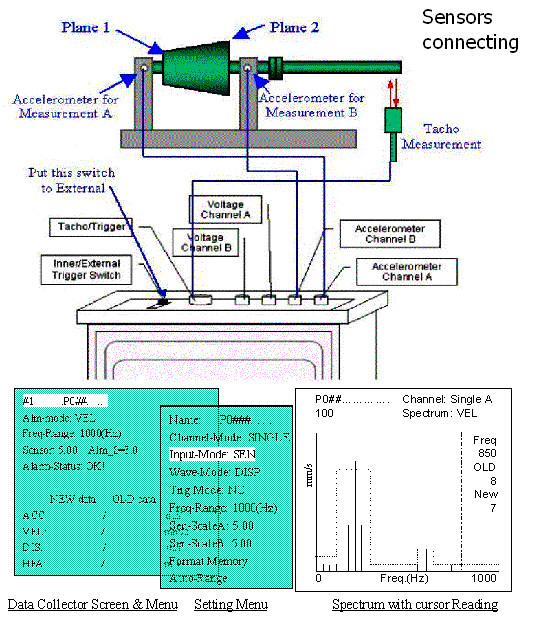

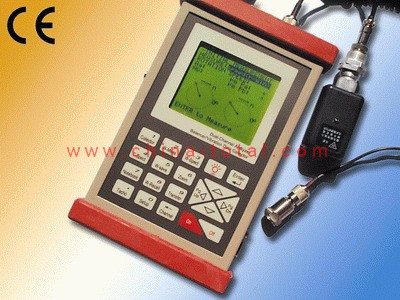

MODEL: SRBA6904 2 channel data collector/analyzer/balancer

FEATURES:

- Easy to use data collector
- 2 channels simultaneous sampling & display
- On-site 400-lines FFT spectrum and waveform display; Transfer function analysis;
- Data storage: 62 1024-point time waveforms and 240 data sets
- Acceleration envelope demodulation for rolling bearing and gear-box diagnosis
- On-site spectrum comparison function
- Inner or external trigger selectable

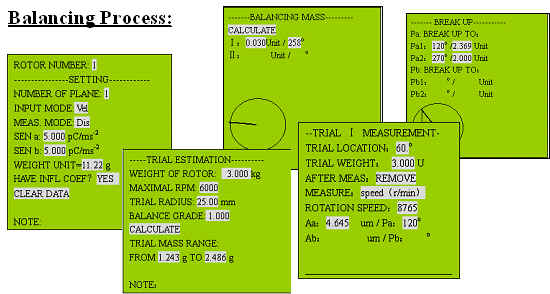

- Full featured 1 and 2-planes field balancing (10 sets balancing data storage; balancing process clarified by vector graph; trial weight estimation; can remain or remove trial after balancing; balancing weight decomposition)
- Balancing report automatic generation.
- with communication port for computer and the software capability

MODEL: SRBA6907 2 channel data collector/analyzer/balancer

FEATURES:

- 1or 2 plane On-site Balancer
- 10 sets balancing data storage
- Process clarified by vector graph
- Trial weight estimation
- Trial can remain or be removed
- Trial validity test
- Balancing weight can be broken up to 2 required position
- Rechargeable battery for more than 10 hours continuous operation
- Dual-channel vibration Analyzer
- 400 lines FFT spectrum
- Acceleration envelope demodulation
- Storage: 240 vibration values & 62 waveforms of 1024 samples

- SRBA6907 is the same instrument as SRBA6904, but without communication port for  computer  nor the software capability

Specifications

l        Rotation speed range for dynamic balancing: 180-24,000 r/min

l        Auto-range and manual-range selectable

l        Measurement accuracy:

n     Noise Level (without vibration input): ACC<0.25 m/s², VEL<0.5mm/s, Disp<3mm

n        Frequency response accuracy: ±5%, ±10% for ACC 4.5kHz - 10kHz

n        Non-linearity: ±5%

l        Sensors: Piezoelectric accelerometer, Magnetoelectricity velocity, Eddy displacement and etc.

l        8^th-order ellipse anti-aliasing filter, RPM band-pass filter

l        Input signal: Accelerometer, and voltage

l        Amplitude spectrum analysis: 100 lines to 400 lines (zoom), Hanning windowed

l        Frequency span of spectrum analysis: 100, 200, 500, 1k, 2k, 5k, 10kHz(only for 1-channel sampling)

l        Data storage: 62 waveforms of 1024-points and 240 data sets

l        Amplitude ranges & Frequency Response for overall vibration measurement:

l        Notepad: 10 condition codes for visual inspection, Output: RS232C for communication with PC

l        Power: Ni-MH rechargeable battery for 8 hours continuous operation, low battery warning

l        Operating Environment: 0~55 ^oC, 90% humidity non-condensing, Rotating speed measurement with photocell sensor

l        Dynamic Range: 60dB with 48dB adjustable gain range, Dimensions: 21×13×4 cm; Weight: 1.2 kg (Include batteries)

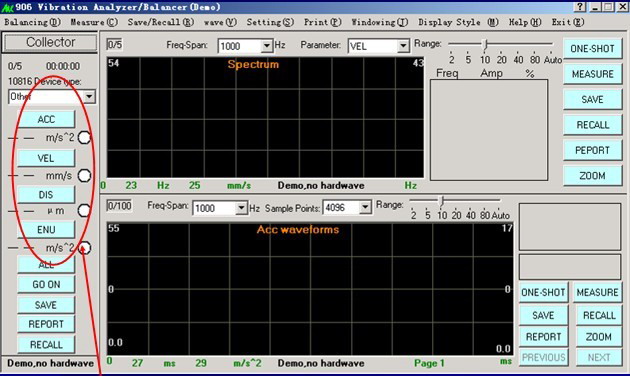

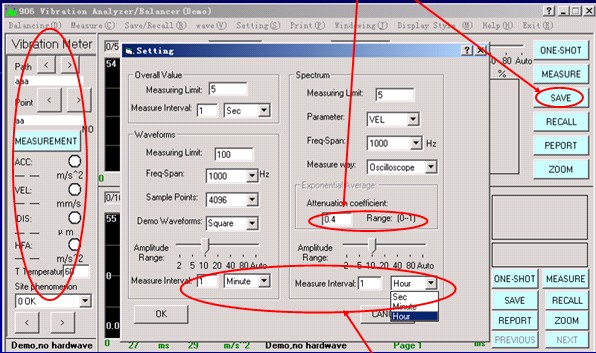

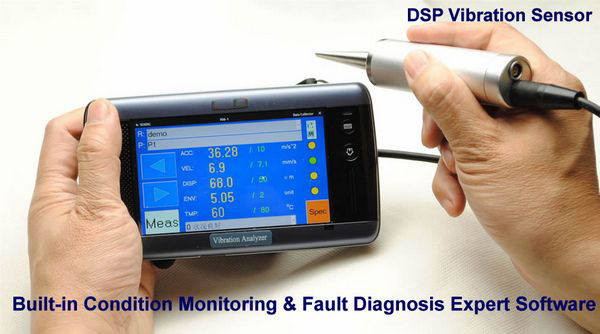

SRVM6906 including two kinds of models : SRVM6906-1, there is no balancing function; SRVM906-1D with balancing feature.

Features
• Based on 7(or 9) inch screen Ultra Mobile Computer, Window XP operating system
• DSP intelligent sensor, USB interface, No battery required for the sensor
• ISO-10816 Standard for machine health evaluation. After velocity or displacement measurement, LED will show its severity according to selected ISO10816 group(See standard ISO10816)
• The average function with a continuous measurement makes the spectrum more accurate
• You can customize the time interval of the long-term data record (> 30G storage capacity)
• Route management as a full-featured data collector, an infinite number of measurement points allowed
• Frequency range 100,200,500,1 k, 2k, 5k Hz      • Spectral lines resolution 400-1600 lines

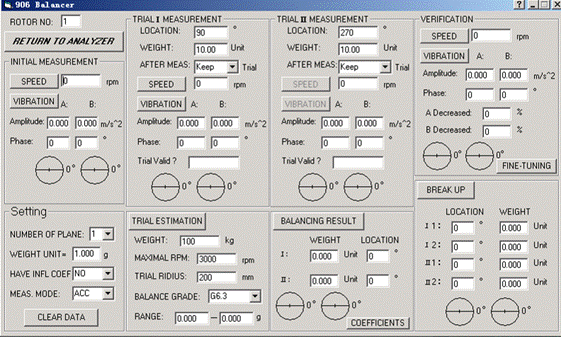

• Full-featured 1- / 2- planes Balancing Instrument (optional, 906-1D). All balancing process data/graphics displayed in 1 screen

• Single-channel vibration measurements, 12-bit AD
• Built-in condition monitoring software MCM906, fault diagnosis expert system software SDES
• Envelope demodulation for bearing & gear box fault detection and diagnosis, direct red, yellow, green alarm light display
• Optional RPM measurement, phase measurement and diagnosis (optional, SRVM6906-1D)

Safety
SRVM6906-1D can not be in direct contact with the mechanical part in running.

Specifications
1 Maximum measuring range / Best Resolution
Acceleration Peak       180m/s²    0.1m/s²
Velocity RMS          200mm / s   0.1mm / s
Displacement p-p value  5000μm     1μm
Envelope RMS         25unit      0.1unit
2 Frequency range, frequency response error:
Acceleration Peak       10 ~ 2kHz: +/- 5%; 2k-3k Hz: +/- 10%; 3k-5kHz: +/- 30%
Velocity RMS           10 ~ 1000Hz, +/- 5%
Displacement p-p value   10 ~ 500Hz, +/- 5%

High Frequency Acceleration Envelope 5Hz-2kHz demodulated from 3kHz-10kHz
3 Signal dynamic range:     72dB
4 Rotation speed measuring range (optional, 906-1D):  60 ~ 24000 r / min
5 8-order elliptic anti-aliasing filter
6 Whole system powered by mobile computer, continuous operation for 2-3 hours, easy to replace the battery
7 mobile computer size: 190x120x28mm (7-inch screen), weight: 880 grams (including vibration sensors)
8 working condition: Temperature 0 ^oC ~ 50 ^oC, Not more than 85% relative humidity, non-saturated, No corrosive gases
No strong Electric-magnetic field interference and strong vibration, shock source
