TP-01K
TP-01
TP-01B
TP-01C
TP-01A
Thermocouples
(Surface thermocouple, immersion thermocouple, K type thermocouple, type K thermocouple, Surface / Insertion Probes, Surface and Insertion Probes,thermocouple probe, Temperature probe, Handheld Thermocouples, Surface Probes, thermocouple connector)
|
TP-01K |
TP-01 |
|
TP-01B |
TP-01C |
|
TP-01A |
|
Model Number |
Temperature Range |
Size |
Hot response time |
Application |
|

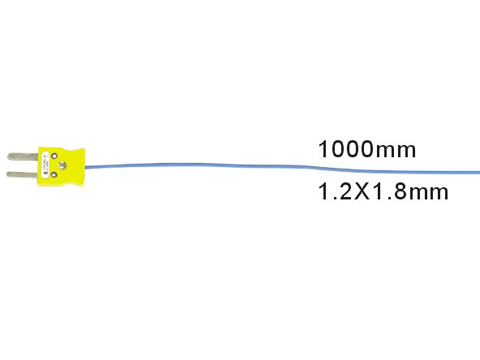

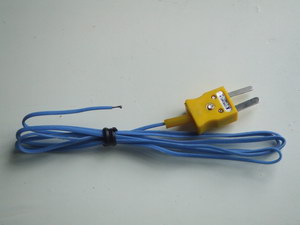

TP-01K |
-50~204oC |
|
< 5 seconds |
Suitable for quickly measuring of air and gas, not suitable for liquid measuring. |
|

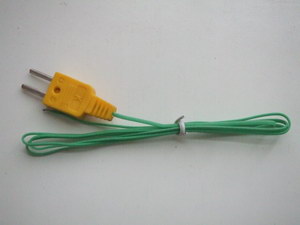

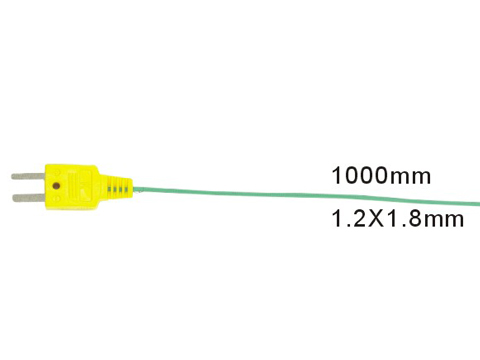

TP-01 |
-50~204oC |
|
< 5 seconds |
Suitable for quickly measuring of air and gas, not suitable for liquid measuring. |
|

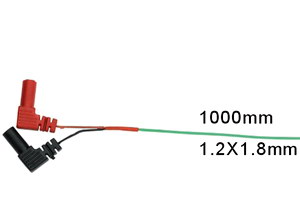

TP-01A |
-50~204oC |
|
< 5 seconds |
Suitable for quickly measuring of air and gas, not suitable for liquid measuring. |
|

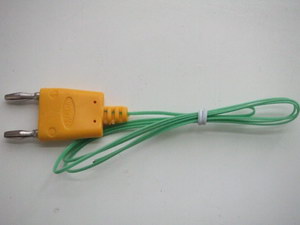

TP-01B |
-50~204oC |
19mm plug |
< 5 seconds |
Suitable for quickly measuring of air and gas, not suitable for liquid measuring. |
|

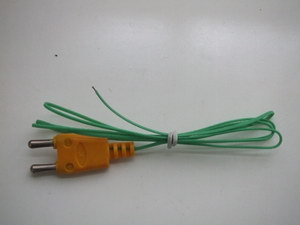

TP-01C |
-50~204oC |
12mm plug |
< 5 seconds |
Suitable for quickly measuring of air and gas, not suitable for liquid measuring. |
|

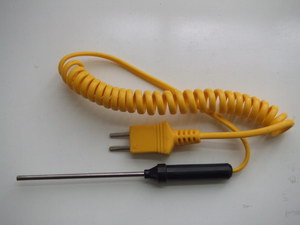

TP-02 (spring wire) |

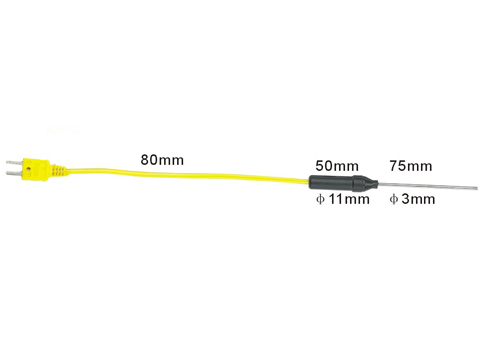

TP-02 (straight wire) |
|
TP-02A (spring wire) |
TP-02A (straight wire) |
|
TP-02B (spring wire) |
TP-02B (straight wire) |
|
Model Number |
Temperature Range |
Size |
Hot response time |
Application |
|
TP-02 (spring wire) |
-50~400oC |
3mm*8cm |
< 15 seconds |
Suitable for measuring the temperature of liquid and gel. |
|
TP-02 (straight wire) |
-50~400oC |
3mm*8cm |
< 15 seconds |
Suitable for measuring the temperature of liquid and gel. |
|

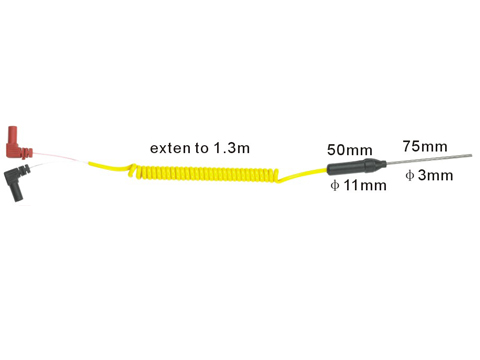

TP-02A (spring wire) |
-50~400oC |
3mm*8cm |
< 15 seconds |
Suitable for measuring the temperature of liquid and gel. |
|

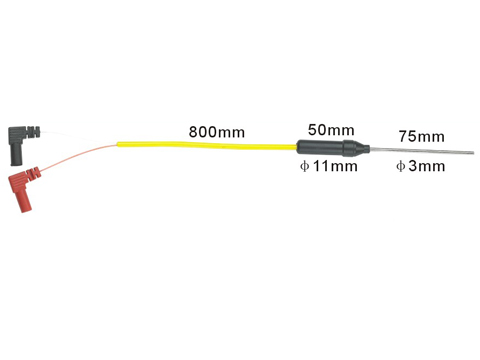

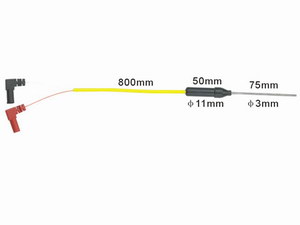

TP-02A (straight wire) |
-50~400oC |
3mm*8cm |
< 15 seconds |
Suitable for measuring the temperature of liquid and gel. |
|

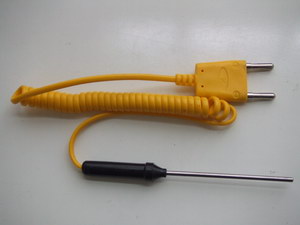

TP-02B (spring wire) |
-50~400oC |
3mm*8cm |
< 15 seconds |
Suitable for measuring the temperature of liquid and gel. |
|

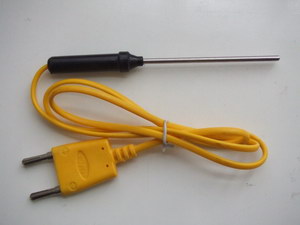

TP-02B (straight wire) |
-50~400oC |
3mm*8cm |
< 15 seconds |
Suitable for measuring the temperature of liquid and gel. |

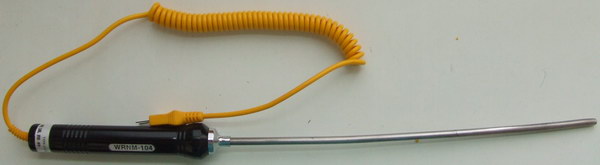

WRNM-104
|
Model Number |
The limited temperature |
Size |
Hot response time |
Application |
| WRNM-104 | 800oC | dia3mm*20CM |
10 seconds |
Suitable for measuring the inner temperature within the flowings, such as liquid and vapour etc. |
|
WRNM-104 |
800oC |
dia3mm*30CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia4mm*30CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia5mm*30CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia6mm*30CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia3mm*50CM |
10 seconds |
|
|
WRNM-104 / TP-03 |
800oC |
dia4mm*50CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia5mm*50CM |
10 seconds |
|
|
WRNM-104 / TP-04 |
800oC |
dia6mm*50CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia3mm*100CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia4mm*100CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia5mm*100CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia6mm*100CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia3mm*150CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia4mm*150CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia5mm*150CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia6mm*150CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia3mm*200CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia4mm*200CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia5mm*200CM |
10 seconds |
|
|
WRNM-104 |
800oC |
dia6mm*200CM |
10 seconds |
|
WRNM-101 |
WRNM-106 |
WRNM-108 |
|
Model Number |
The limited temperature |
Size |
Hot response time |
Application |
|

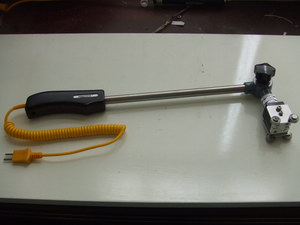

WRNM-101 |
250oC |
|
< 5 seconds |
Suitable for measuring the temperature with smooth metal, plastic cylinder or roll's outside surface which is more than 130mm. |
|

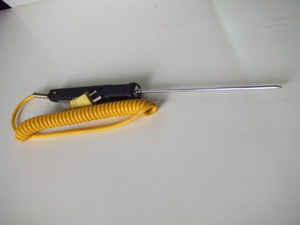

WRNM-106 |
500oC |
dia3mm (dia4, 5, 6mm is available) |
10 seconds |
Suitable for measuring semi-solid flowing material, plastic, clay and so on, and it also can be used in food industry. |
|

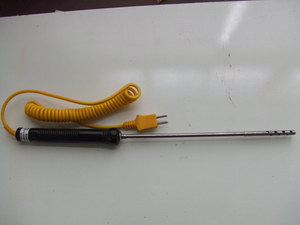

WRNM-108 |
700oC |
|
< 10 seconds |
Suitable for measuring the inner temperature within the flowing gas and vapour. |
WRNM-202 / TP-202
|
WRNM-201 |
WRNM-202 / TP-202 |
WRNM-203 |
|
WRNM-205 |
WRNM-209 (square end) |

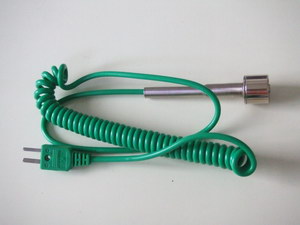

WRNM-209 (round end) |
|
Model Number |
The limited temperature |
Size |
Hot response time |
Application |
|

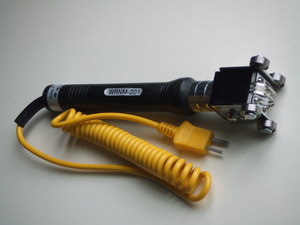

WRNM-201 |
250oC |
|
< 5 seconds |
Suitable for measuring the temperature with smooth metal, plastic cylinder or roll's outside surface which is more than 130mm. |
|

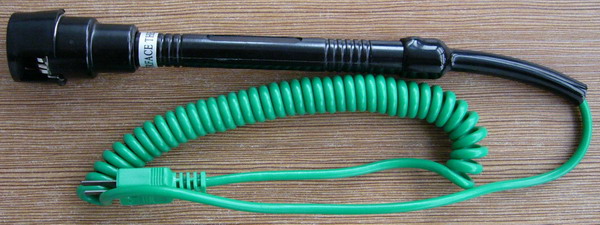

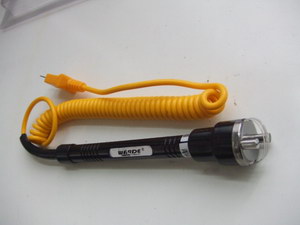

WRNM-202 / TP-202 |
500oC |
|
< 5 seconds |
Most suitable for measuring the surface temperature of mould, mould for casting, old fashioned and inflexible glass ware, bearing and other static solid. |
|

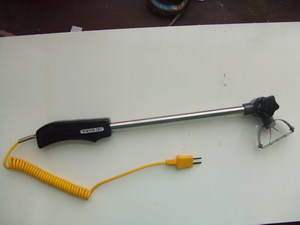

WRNM-203 |
250oC |
|
< 10 seconds |
The end of the bow-shape pop head is specially used to measure roller bearing, pipeline, cylinder and extremely crooked surface. |
|

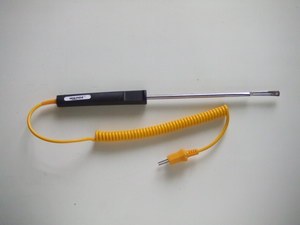

WRNM-205 |
200oC |
|
< 3 seconds |
The end of the thin shape slice pop head is suitable for the narrow and small chink, so it is the ideal tool that measures the temperature of mould, bearing, and the mechanical equipment. |
|

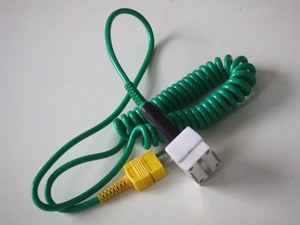

WRNM-209 |
400oC |
|
< 10 seconds |
Magnetic pop head can absorb various kinds of metal, and measuring the surface temperature. |
|
NR-81510 |
NR-81530 |
|
NR-81530A |
NR-81530B |
|
Model Number |
The limited temperature |
Size |
Hot response time |
Application |
|

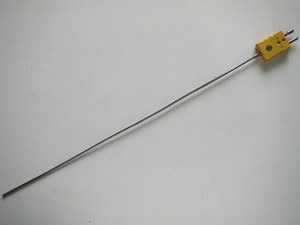

NR-81510 |
700oC |
dia3.2mm*(20cm-50cm) |
15 seconds |
Suitable for measuring the liquid and air temperature. |
|

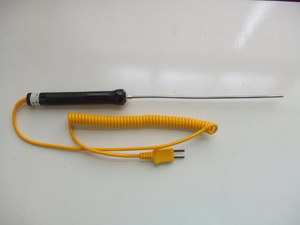

NR-81530 |
700oC |
dia3mm*20cm |
10 seconds |
Suitable for measuring the liquid and air temperature. |
|
NR-81530 |
700oC |
dia4mm*20cm |
10 seconds |
Suitable for measuring the liquid and air temperature. |
|
NR-81530 |
700oC |
dia5mm*20cm |
10 seconds |
Suitable for measuring the liquid and air temperature. |
|
NR-81530 |
700oC |
dia6mm*20cm |
10 seconds |
Suitable for measuring the liquid and air temperature. |
|

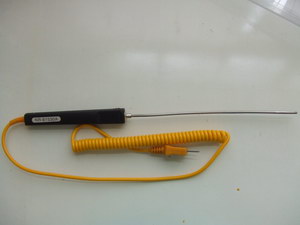

NR-81530A |
1090oC |
GH30 alloy steel; dia3mm*20cm |
10 seconds |
Suitable for measuring the liquid of high temperature. |
|

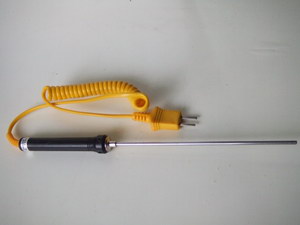

NR-81530B |
700oC |
dia3mm*15cm |
15 seconds |
Suitable for measuring the liquid and air temperature. |
|
NR-81530B |
700oC |
dia3mm*20cm |
15 seconds |
Suitable for measuring the liquid and air temperature. |
|
NR-81531A |
NR-81531B |
NR-81531C |
|
NR-81532B |
NR-81532A |
NR-81533A |
|
Model Number |
The limited temperature |
Size |
Hot response time |
Application |
|

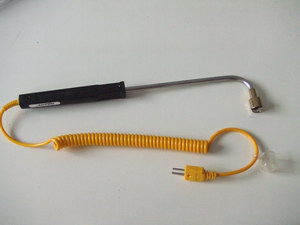

NR-81531A |
400oC |
|
< 5 seconds |
Suitable for measuring the temperature of smaller flat surface and crooked surface. |
|

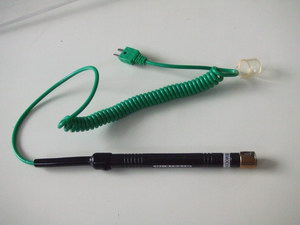

NR-81531B |
400oC |
|
< 5 seconds |
Suitable for measuring the temperature of smaller flat surface and crooked surface. |
|

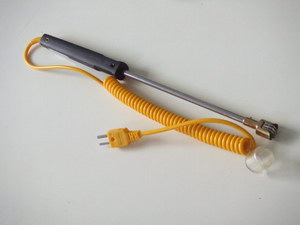

NR-81531C |
400oC |
|
<10 seconds |
Suitable for measuring the temperature of smaller flat surface and crooked surface. |
|

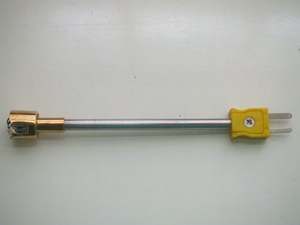

NR-81532B |
400oC |
|
< 5 seconds |
Suitable for measuring the temperature of smaller flat surface and crooked surface. |
|

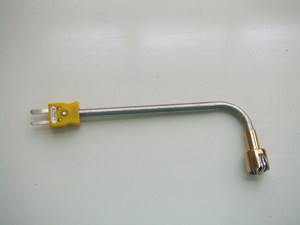

NR-81532A |
400oC |
|
< 5 seconds |
Suitable for measuring the temperature of smaller flat surface and crooked surface. |
|
NR-81533A |
200oC |
|
< 3 seconds |
Most suitable for measuring the temperature of various kinds of small static plane, and the hot response is very fast. |
( If you need prices, pictures without our warter mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
