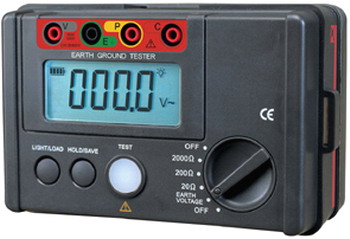

Digital Earth Tester
XHST5521
﹛
![](XHST5521_ShowRange.jpg)
SPECIFICATIONS
Basic Functions |
Range |
Best Accuracy |
Earth Resistance Testing |
0 ~ 20W
0 ~ 200W
0 ~ 2000W |
㊣2%rdg㊣0.1W
㊣2%rdg㊣3dgt
㊣2%rdg㊣3dgt |
Earth Voltage Testing |
0~200Vac(50/60Hz) |
㊣1%rdg㊣4dgt |
Special Functions |
|
|
Data Hold |
|
﹟ |
Backlight Display |
|
﹟ |
Data Logging |
20 |
﹟ |
Battery Check |
|
﹟ |
Sleep Mode |
Around 10 Minutes |
﹟ |
Full Icon Display |
|
﹟ |
Over-range Display |
Display "OL" |
﹟ |
Contact Badness Display |
C Port or E Port don't contact Display"- - -
- W" |
﹟ |
Simple 2-Wires Testing |
|
﹟ |
Precision 3-Wires Testing
|
|
﹟ |
Double Insulation Protection
|
|
﹟ |
GENERAL CHARACTERISTICS
Power |
1.5V Alkaline Battery (AA) x 6 |
LCD Size |
70.6 mm x 34 mm |
Product Color |
Grey |
Product Net Weight |
560g |
Product Size |
160 x 100 x 70.5 mm |
Standard Accessories |
Battery, Three Test Lead (Green + Yellow +
Red), English Manual, Simple Test Lead,
Carrying Bag, Test Probe 2 pcs |
Standard Individual Packing |
Gift Box |
Standard Quantity Per Carton |
4 pcs |
Standard Carton Measurement |
615 x 530 x 190 mm (0.062 CBM Per Standard
Carton) |
Standard Carton Gross Weight |
15kg |
|
|
|

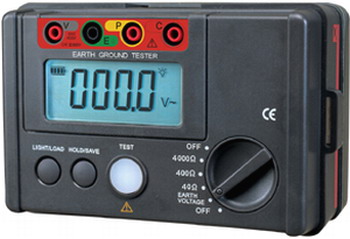

Digital Earth Tester
XHST5522
﹛
![](XHST5522_ShowRange.jpg)
SPECIFICATIONS
Basic Functions |
Range |
Best Accuracy |
Earth Resistance Testing |
0 ~ 40W
0 ~ 400W
0 ~ 4000W |
㊣2%rdg㊣0.2W
㊣2%rdg㊣3dgt
㊣2%rdg㊣3dgt |
Earth Voltage Testing |
0~400Vac(50/60Hz) |
㊣1%rdg㊣6dgt |
Special Functions |
|
|
Data Hold |
|
﹟
|
Backlight Display |
|
﹟ |
Data Logging |
20 |
﹟ |
Battery Check |
|
﹟
|
Sleep Mode |
Around 10 Minutes |
﹟
|
Full Icon Display |
|
﹟
|
Over-range Display |
Display "OL" |
﹟
|
Contact Badness Display |
C Port or E Port don't contact Display"- - -
- W" |
﹟
|
Simple 2-Wires Testing |
|
﹟
|
Precision 3-Wires Testing
|
|
﹟ |
Double Insulation Protection
|
|
﹟ |
GENERAL CHARACTERISTICS
Power |
1.5V Alkaline Battery (AA) x 6 |
LCD Size |
70.6 mm x 34 mm |
Product Color |
Grey |
Product Net Weight |
560g |
Product Size |
160 x 100 x 70.5 mm |
Standard Accessories |
Battery, Three Test Lead (Green + Yellow +
Red), English Manual, Simple Test Lead,
Carrying Bag, Test Probe 2 pcs |
Standard Individual Packing |
Gift Box |
Standard Quantity Per Carton |
4 pcs |
Standard Carton Measurement |
615 x 530 x 190 mm (0.062 CBM Per Standard
Carton) |
Standard Carton Gross Weight |
15kg |
|
|
﹛ |

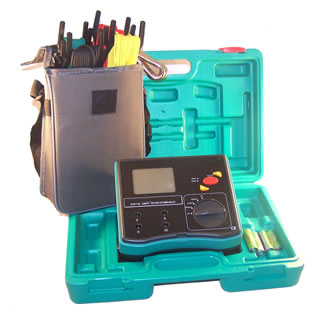

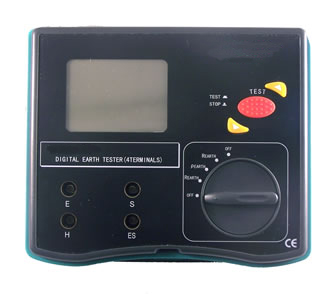

4 pole Digital earth tester
XHST4300
﹛
![](XHST4300-ShowRange.jpg) ![](XHST4300pack-ShowRange.jpg)
Features:
-4 pole earth resistance measurement;
-soil resistivity measurement;
-conductor resistance measurement;
-LCD backlight.
Specifications:
﹛
MODEL |
XHST4300 |
Earth Ground Resistance |
0/20/200/2000次 ㊣(5%+2) |
Earth Voltage |
0~30V ㊣(3%+5) |
Resolution |
0.01次 |
Soil resistivity |
yes |
Data Hold |
yes |
Working LED Indicator |
yes |
Function Symbol Display |
yes |
Low Battery Warning |
yes |
LCD Backight |
yes |
General Characteristics:
Power Source |
AA1.5Vx8(UM3) |
Product Size |
190*155*75 mm |
Product net weight |
approx. 900g |
Standard Accessories |
![](dy43[1].jpg) ![](dy41.jpg) ![](dy2.jpg) ![](dy5.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
5 pcs. |
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
Gross weight of Standard Carton |
16kgs |
|
﹛

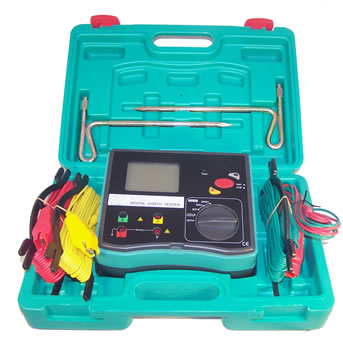

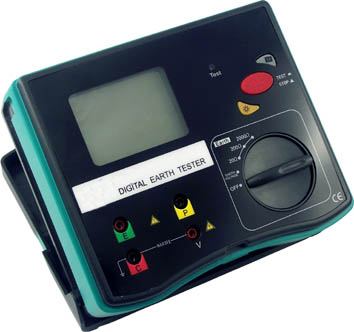

Digital Earth Tester
XHST4200
![](XHST4200-ShowRange.jpg) ![](XHST4200pack-ShowRange.jpg)
Digital earth resistance tester XHST4200
is a new generation tester for electrician practice which is
developed in recent years. The circuit, structure and technique of
traditional earth resistance tester have been improved and the new
design is both fine-looking and practical. This one has more
complete functions, higher accuracy, more convenient and reliable
for operation and more suitable for outdoor use with dust and wet
proof structure.
It can test earth resistance of various earth systems including
power systems, electric equipments, lightning conductors as well as
resistance value of low resistance conductor and AC voltage test.
Features:
-LCD backlight;
-data hold;
Specifications:
MODEL |
XHST4200 |
Earth Ground Resistance |
0/20/200/2000次 ㊣(2%+3) |
Earth Voltage |
0~30V ㊣(3%+5) |
Resolution |
0.01次 |
Data Hold |
yes |
Working LED Indicator |
yes |
Function Symbol Display |
yes |
Low Battery Warning |
yes |
LCD Background Light |
yes |
General Characteristics:
Power |
AA1.5Vx8(UM3) |
Product Size |
190 x 155 x 75 mm |
Product net weight |
approx. 900g |
Standard Accessories |
﹛![](dy41.jpg) ![](dy5.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
5 pcs. |
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
Gross weight of Standard Carton |
13kgs |
|

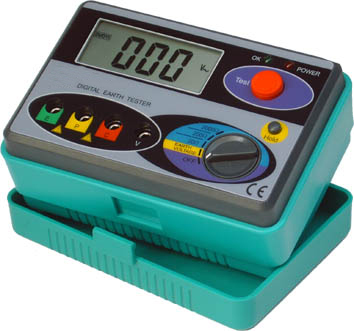

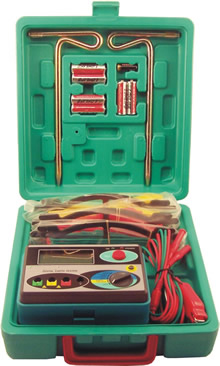

Digital earth
tester XHST4100
![](XHST4100pack-ShowRange.jpg)
Digital earth resistance tester XHST4100
is a new generation tester for electrician practice which is
developed in recent years. The circuit, structure and technique of
traditional earth resistance tester have been improved and the new
design is both fine-looking and practical. This one has more
complete functions, higher accuracy, more convenient and reliable
for operation and more suitable for outdoor use with dust and wet
proof structure.
It can test earth resistance of various earth systems including
power systems, electric equipments, lightning conductors as well as
resistance value of low resistance conductor and AC voltage test.
Specifications:
MODEL |
XHST4100 |
Earth Ground Resistance |
0/20/200/2000次 ㊣(2%+3) |
Earth Voltage |
0~30V ㊣(3%+5) |
Resolution |
0.01次 |
Data Hold |
yes |
Working LED Indicator |
yes |
Function Symbol Display |
yes |
Low Battery Warning |
yes |
General Characteristics:
Power |
AA1.5Vx6(UM3) |
Product Size |
150 x 100 x 70 mm |
Product Net Weight |
approx. 680g |
Standard Accessories |
﹛![](dy41.jpg) ![](dy4.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
5 pcs. |
Measurement of Standard Carton |
510*265*293mm (0.040 CBM) |
Gross weight of Standard Carton |
12.5kgs |
|

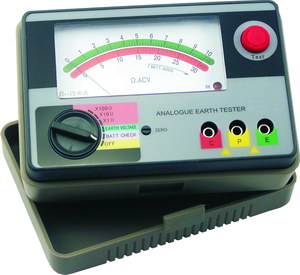

Analog Earth
Resistance Tester XHST4102
![](XHST4102-ShowRange.jpg)
Analog Earth Resistance Tester XHST4102
has complete functions and high accuracy. It is convenient and
reliable to operate and more suitable for outdoor use with dust and
wet proof structure.
It can test earth resistance of various earth systems including
power systems, electric equipments, lighting conductors as well as
resistance value of low resistance conductor and AC voltage below
30V.
Specifications:
MODEL |
XHST4102 |
Earth Ground Resistance |
0/10/100/1000次 ㊣5% |
Earth Voltage |
0~30V ㊣5% |
Low Battery Warning |
yes |
General Characteristics:
Power |
AA1.5Vx6(UM3) |
Product Size |
150 x 100 x 70 mm |
Product Net Weight |
680g |
Standard Accessories |
![](dy39.jpg) ![](dy41.jpg) ![](dy4.jpg) |
Standard individual packing |
Carry case |
Standard Quantity per Carton |
5 pcs. |
Measurement of Standard Carton |
510*265*293mm (0.040 CBM) |
Gross weight of Standard Carton |
12.5kgs |
|
