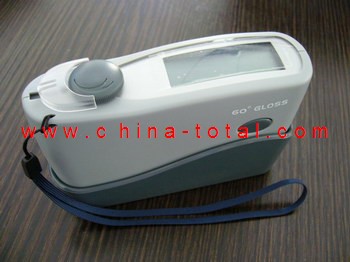

ETB6-F1 Gloss Meter
|
Technical Parameters |
Unit |
Parameter |
|
Reading Range |
GU |
0~199.9 |
|
Indication Error |
GU |
+/-1.2 |
|
Measuring Area |
mm2 |
20*10 |
|
Incidence Angle |
Deg. |
60 |
|
Volume |
mm3 |
123*38*65 |
|
(L*W*H) |
|
Main Weight |
g |
300 |
|
Power Supply |
V |
One AA-size battery |
Applications:
●All kinds of coating and finishing surfaces, such as paints,
varnishes, printing ink, etc.
●Decorative materials, such as marble, granite, polishing brick,
ceramic tile and so on.
●The other kinds of materials and objects, such as plastic,
woodenware, paper, etc.
Features:
●Small, Smart, Stable.
●Simple to use.
●A single battery only. AA size, Rechargeable or alkaline.
●The knob protector for operating with ease.
Service:
Guaranteed for one year and repaired for ever.
Anytime be checked free.
Technical support on the gloss measurement.
Customizing any gloss meter for a special application.
|

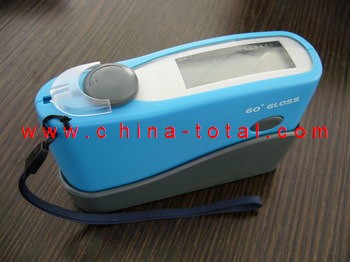

ETB6-S1 Gloss Meter
|
Technical Parameters |
Unit |
Parameter |
|
Reading Range |
GU |
0~199 |
|
Indication Error |
GU |
+/-2 |
|
Measuring Area |
mm2 |
20*10 |
|
Incidence Angle |
Deg. |
60 |
|
Volume |
mm3 |
123*38*65 |
|
(L*W*H) |
|
Main Weight |
g |
300 |
|
Power Supply |
V |
One AA-size battery |
Applications:
●All kinds of coating and finishing surfaces, such as paints,
varnishes, printing ink, etc.
●Decorative materials, such as marble, granite, polishing brick,
ceramic tile and so on.
●The other kinds of materials and objects, such as plastic,
woodenware, paper, etc.
Features:
●Small, Smart, Stable.
●Simple to use.
●A single battery only. AA size, Rechargeable or alkaline.
●The knob protector for operating with ease.
Service:
Guaranteed for one year and repaired for ever.
Anytime be checked free.
Technical support on the gloss measurement.
Customizing any gloss meter for a special application.
|
|
ETB6-SM Gloss Meter
(for
metallic and
non-metallic)\
|
Technical Parameters |
Unit |
Parameter |
|
Reading Range |
GU |
0~999 |
|
Deviation |
GU |
+/-2; +/-1.5% |
|
Measuring Area |
mm2 |
20*10 |
|
Incidence Angle |
Deg. |
60 |
|
Volume |
mm3 |
123*38*65 |
|
(L*W*H) |
|
Main Weight |
g |
300 |
|
Power Supply |
V |
One AA-size battery |
Apply Area:
Measurement of the surface gloss of all kinds of metallic and
non-metallic materials and their coatings.
Features:
●Small, Smart, Stable.
●Simple to use.
●A single battery only. AA size, Rechargeable or alkaline.
●The knob protector for operating with ease.
Service:
Guaranteed for a year and repaired for ever.
Anytime be checked free.
Technical support on the gloss measurement.
|

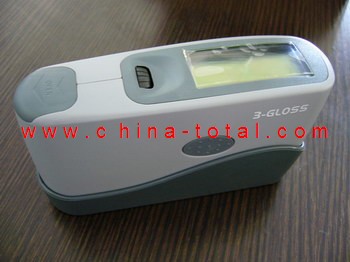

ETB268-F2
Gloss Meter
(for multiple usings) RS232
(USB) computer interface
|
Technical Parameters |
Unit |
Parameter |
|
Reading Range |
GU |
0~199.9
~
2000 |
|
Deviation |
GU |
+/-1.5; +/-1.5% |
|
Measuring Area |
mm2 |
9*10 / 9*16 / 5*39 |
|
Incidence Angle |
Deg. |
20 / 60 / 85 |
|
Volume |
mm3 |
155*48*75 |
|
(L*W*H) |
|
Main Weight |
g |
400 |
Applications:
●All kinds of coating and finishing surfaces, such as paints,
varnishes, printing ink, etc.
●Decorative materials, such as marble, granite, polishing brick,
ceramic tile and so on.
●The other kinds of materials and objects, such as plastic,
woodenware, paper, etc.
●All kinds of metallic materials and their coatings.
Features:
●Interface: Serial RS 232
●Software: Data Operator included.
●Memory: 10000
measurements or 999 data groups
●Power Supply: A single battery only. AA size, Rechargeable or
alkaline.
●Comes Complete With:
Main Device, Holder with Working Standard, Tracable Certificate,
Data Operator Software,
Cable for PC Serial port, USB Adapter (optional), Users Manual,
Carrying Bag.
Service:
Guaranteed for a year and repaired for ever.
Anytime be checked free.
Technical support on the gloss measurement.
Customizing any gloss meter for a special application.
|
For gloss
meters,
1, What
surface gloss you/your customer want to check? There are two
kinds as non-metallic or metallic surface.
2, What
angle they need? There are two kinds as 60 degree or 20, 60,
85 degrees combined in one meter.
3, Do
your customer need analysize the data on computer? There are
two kinds as can't connect with computer or can connect with
computer.
4, What
measuring range they need? Different model has different
measuring range.
Knowing
above 4 points, then you can choose the correct model from
above models.
Special Noting: 1,

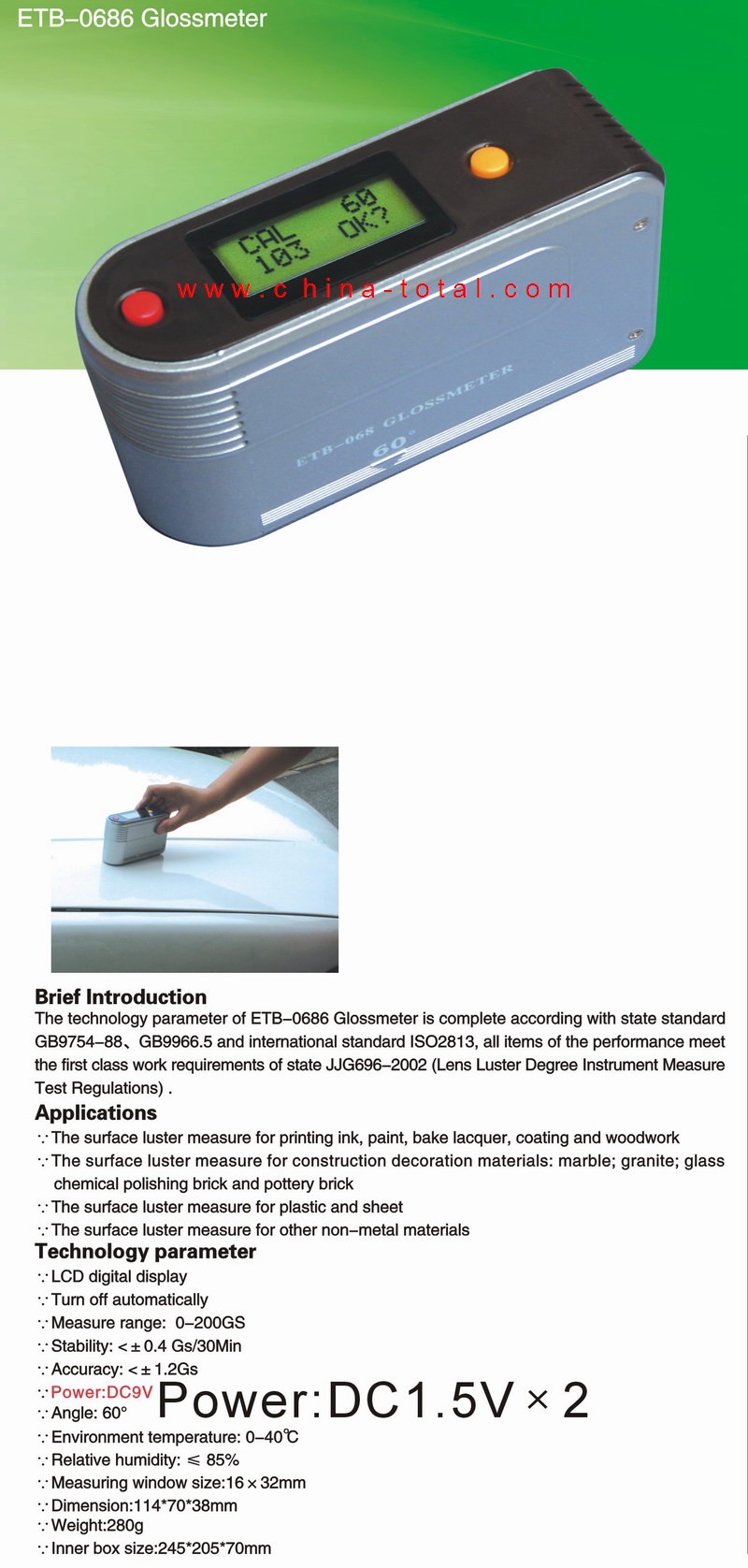

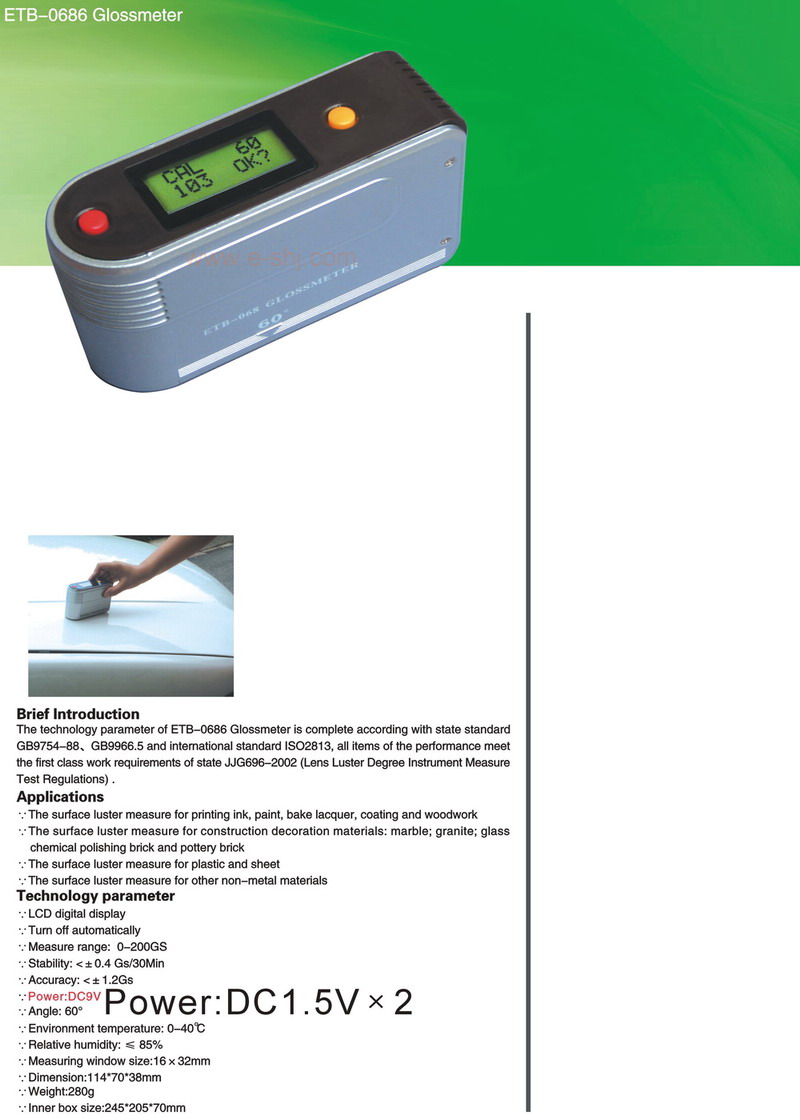

ETB-0686
is a very economical model, the most
competitive in price. It is also very popular using on
automotive/car painting glossiness testing, for simple testing.
But, all our models can be used for automotive/car painting
glossiness testing.
Special Noting: 2,
ETB6-
series are high
level/professional ones, so with a little higher prices.
Special Noting: 3,
ETB268-F2 is
the unique one can be connected with computer to interface.
Special Noting: 4,

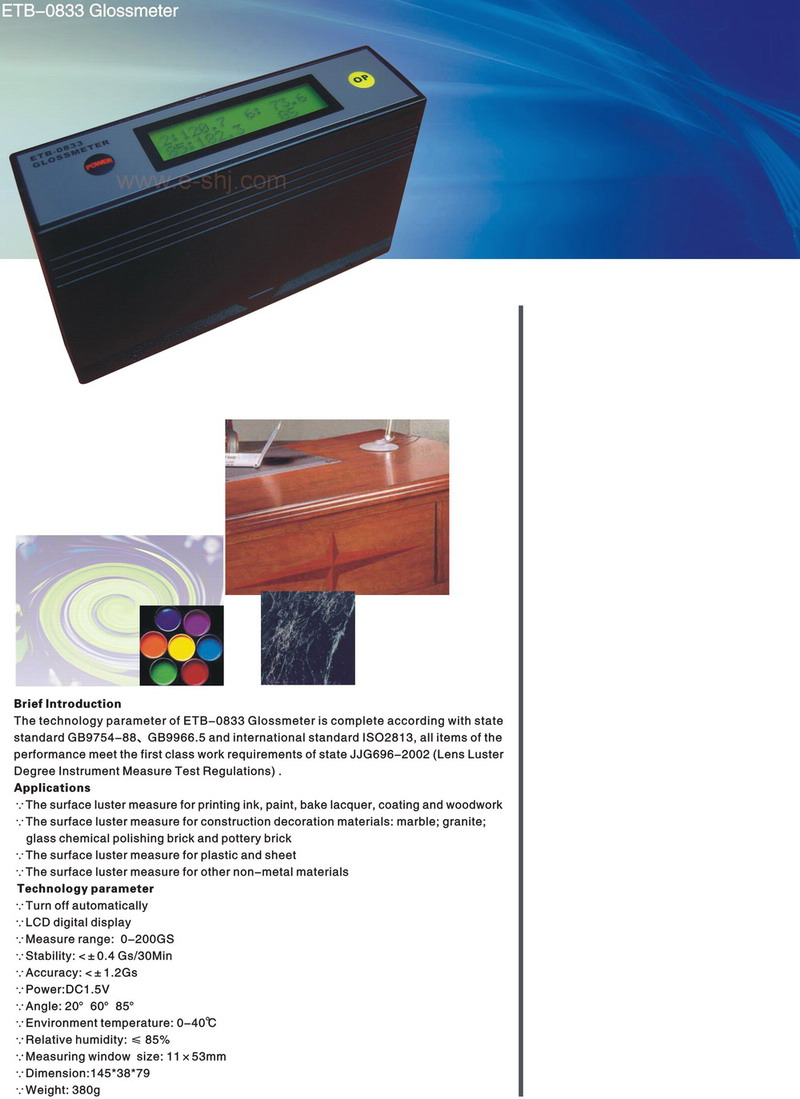

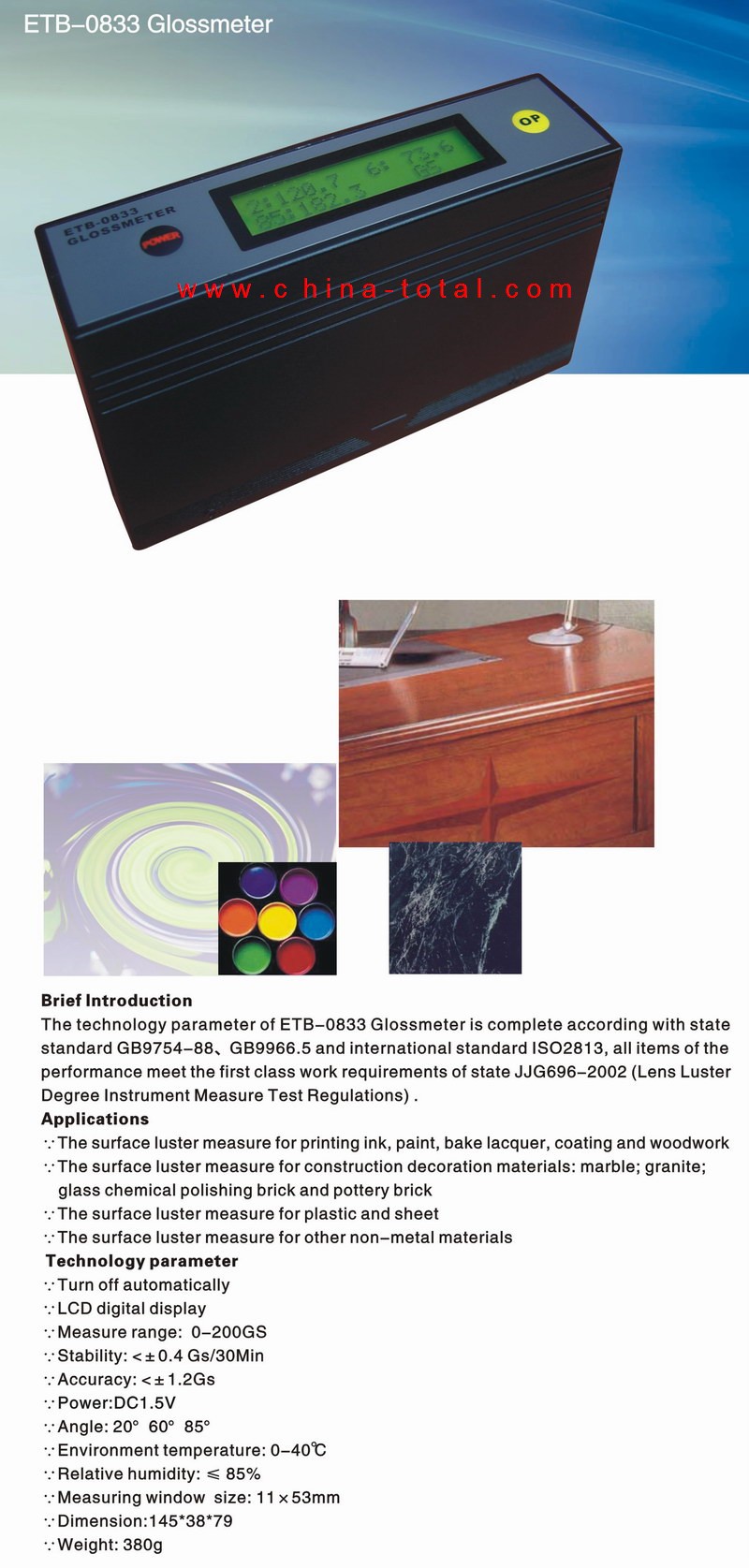

ETB-0833
and
ETB268-F2 are models of 20, 60,
85 degrees combined in one meter. Other models are single 60
degree.
Special Noting: 5,
ETB6-SM,
ETB268-F2 are not only for metal surface glossiness
testing, but also for non-metallic glossiness; other models
are for non-metallic glossiness only.
Special Noting: 6,
GU=GS
|
