Intelligent multimeter VC98A
(computer interface RS-232)
﹛
|
Special function |
VC98A |
|
Diode test |
﹟
|
|
Continuity buzzer |
﹟
|
|
Low battery indication |
﹟
|
|
Data hold |
﹟
|
|
Dual-insulation |
﹟
|
|
Overload range display |
﹟
|
|
Anti-shock protect |
﹟ |
|
Extremum record |
﹟
|
|
Data comparing |
﹟
|
|
Relative value measurement |
﹟
|
|
Analog bar graph |
﹟
|
|
Input warning function |
﹟
|
|
Function setting |
﹟ |
|
Data saving |
2000 data |
|
Communication way |
RS-232 interface type |
|
Input impedance |
10M次 |
|
Sampling rate |
3times/s |
|
AC frequency response |
(50-400) Hz |
|
Operation way |
Auto/Manual range |
|
Max. display |
3999 |
|
Displaying |
Large LCD with ternary display |
|
Backlight |
white LED backlight |
|
Battery |
1.5V*4 |
General characteristic:
|
Color |
Body: dark grey, holster: orange
|
|
Weight |
485g |
|
Meter size |
210℅100℅55mm |
|
Standard accessory |
Test leads, battery, manual, CD
driver, RS232 cable |
|
Packing |
Color box |
|
Standard packing per carton |
20pcs |
|
Carton size |
52℅42℅37cm |
|
Standard G.W per carton |
20kg |
﹛
﹛
﹛ |
|
Measuring function |
Range |
Measuring range |
Resolving power |
Accuracy |
Remark |
|
DC Voltage
|
4V |
-4.000V~4.000V |
1mV |
0.2%+4 |
imput impedance:
10M次 |
|
40V |
-40.00V~40.00V |
0.01V |
0.2%+4 |
|
400V |
-400.0V~400.0V |
0.1V |
0.2%+4 |
|
1000V |
-1000V~1000V |
1V |
0.2%+4 |
|
AC Voltage
(40Hz~500Hz)
(5%~100%RANG) |
400mV |
0~400.0mV |
0.1mV |
1%+4 |
imput impedance:
10M次
< 100pF |
|
4V |
0~4.000V |
1mV |
0.5%+4 |
|
40V |
0~40.00V |
0.01V |
0.5%+4 |
|
400V |
0~400.0V |
0.1V |
0.5%+4 |
|
750V |
0~750V |
1V |
1%+4 |
|
DC Mv Voltage |
40mV |
-40.00 mV~40.00mV |
0.01mV |
0.2%+4 |
imput impedance:
10M次 |
|
400mV |
-400.0mV~400.0mV |
0.1mV |
0.2%+4 |
|
OHM |
400次 |
0~400.0次 |
0.1次 |
0.2%+4 |
Plough voltage:
0.4V
Not including the accuracy of down-lead
resistance |
|
4K次 |
0~4.000K次 |
1次 |
0.2%+4 |
|
40K次 |
0~40.00K次 |
0.01 K次 |
0.2%+4 |
|
400K次 |
0~400.0K次 |
0.1 K次 |
0.2%+4 |
|
4M次 |
0~4.000M次 |
1 K次 |
0.2%+4 |
|
40M次 |
0~40.00M次 |
0.01 M次 |
1 %+4 |
|
DC Current |
4A |
-4.000A~4.000A |
0.001A |
1.5%+3 |
Input impedance:
0.01次 |
|
10A |
-10.00A~10.00A |
0.01A |
1.5%+3 |
|
AC Current
ACA
(40Hz~200Hz)
(5%~100%RANG) |
4A |
0~4.000A |
0.001A |
1.5%+3 |
Input impedance:
0.01次 |
|
10A |
0~10.00A |
0. 01A |
1.5%+3 |
|
DCmA |
40mA |
-40.00mA~40.00mA |
0.01mA |
0.2%+4 |
Input impedance:
1次 |
|
400mA |
-400.0mA~400.0mA |
0.1 mA |
0.2%+4 |
|
ACmA
(40Hz~500Hz)
(5%~100%RANG) |
40mA |
0~40.00mA |
0.01 mA |
0.5%+4 |
Input impedance:
1次 |
|
400mA |
0~400.0mA |
0.1 mA |
0.5%+4 |
|
DCuA
DCuA |
400uA |
-400.0uA~400.0uA |
0.1 uA |
0.2%+4 |
Input impedance:
100次 |
|
4000uA |
-4000uA~4000uA |
1 uA |
0.2%+4 |
|
ACuA
(40Hz~400Hz)
(5%~100%RANG) |
400uA |
0~400.0uA |
0.1 uA |
0.5%+4 |
Input impedance:
100次 |
|
4000uA |
0~4000uA |
1 uA |
0.5%+4 |
|
Frequency |
50Hz |
0~50.0Hz |
0.01Hz |
0.1%+3 |
Auto range |
|
500Hz |
0~500.0Hz |
0.1Hz |
0.1%+3 |
|
5KHz |
0~5.000kHz |
1Hz |
0.1%+3 |
|
50KHz |
0~50.00kHz |
0.01KHz |
0.1%+3 |
|
100KHz |
0~100.0kHz |
0.1KHz |
0.1%+3 |
|
Duty cycle |
0.1%
~99% |
|
0.1% |
1% |
|
|
Diode test |
1V |
|
0.001V |
10% |
ploughvoltage1.1V~1.6V
Current of short circuit:0.6mA |
|
Continuity test |
≒50次BB |
|
0.1次 |
Not Specified |
|
|
Capacitance |
50nF |
0~50.00nF |
0.01nF |
2%+5 |
Auto range
About need 30s in the range of 100uF |
|
500nF |
0~500.0nF |
0.1nF |
2%+5 |
|
5米F |
0~5.000米F |
0.001uF |
5%+5 |
|
50米F |
0~50.00米F |
0.01uF |
5%+5 |
|
100米F |
0~100.0米F |
0.1uF |
5%+5 |
|
Thermocouple |
K |
-200~950 |
1∼C |
0.5%+2
(more/=-100∼C)
0.5%+1(less/=-100∼C) |
Adopt ITS-90 thermometric scale not including
the accuracy of inner temperature compensatory transducer |
|
Thermo resistance |
PT100 |
-200~700 |
1∼C |
0.5%+2 |
Pt100-385thermometric scale not includig the
accuracy of down-lead resistance |
|
|
 |

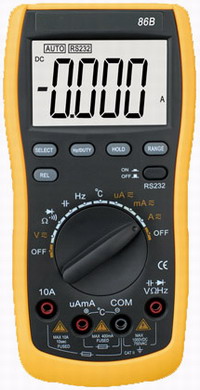

VC86B 3 3/4 Digital Multimeter
-New type holster, streamline design.
-USB interface can connect to computer ,Large LCD anoloq bar graph
display.
-Unit symbol display, make the reading clearly, display.
-Metallic screen board with strong antimagnetic and anti-interferential
function.
-Auto power off and alarm when stopped used after 15 minutes.
-Full function protection, anti-high voltage circuit design.
Technical data
|
Basic Function |
Range |
Basic accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.5%+4) |
|
AC Voltage |
400mV/4V/40V/400V/750V |
㊣(0.8%+10) |
|
DC Current |
400uA/4000uA /40mA/400mA/4A/10A |
㊣(1.0%+10) |
|
AC Current |
400uA/4000uA /40mA/400mA/4A/10A |
㊣(1.5%+10) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(0.8%+4) |
|
Capacitance |
50nF/500nF/5uF/50uF/100uF |
㊣(3.5%+8) |
|
Frequency |
4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/30MHz |
㊣(0.1%+4) |
|
Temperature |
(-20~1000)ºC |
㊣(1.0%+5) |
﹛
|
Special Function |
|
Diode test |
﹟ |
|
Continuity buzzer |
﹟ |
|
Low battery indication |
﹟ |
|
Data hold |
﹟ |
|
Auto power off |
﹟ |
|
Bar graph display |
﹟ |
|
RS232 interface jack |
﹟ |
|
Function protection |
﹟ |
|
Shockproof protection |
﹟ |
|
Frequency /duty cycle |
0.1%~99.9% |
|
Input impedance |
10M次 |
|
Sampling rate |
3 times/s |
|
AC Frequency response |
(40-400)Hz |
|
Operation way |
Auto range |
|
Max. display |
3999 |
|
LCD Size |
70℅50mm |
|
Power |
3V (1.5V℅2) |
﹛
|
General Characters |
|
Product color |
Case: dark gray; Holster color:
yellow |
|
Product Net Weight |
Approx.350g (including battery) |
|
Product dimension |
191℅93℅48mm |
|
Standard Accessories |
Test leads; battery; instruction
manual TP01 temperature probe; (86C Transistor test accessory) |
|
Standard inner packing |
Color box |
|
Carton size |
465℅375℅506mm |
|
Standard Quantity Per Carton |
30 pcs |
|
Standard Gross Weight |
Approx. 26kg |
|
|
 |

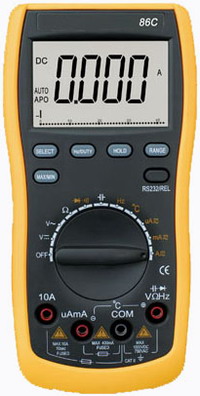

VC86C 3 3/4 Digital Multimeter
-New type holster, streamline design.
-USB interface can connect to computer ,Large LCD anoloq bar graph
display .
-Unit symbol display, make the reading clearly, display.
-Metallic screen board with strong antimagnetic and anti-interferential
function.
-Auto power off and alarm when stopped used after 15 minutes.
-Full function protection, anti-high voltage circuit design.
Technical data
|
Basic Function |
Range |
Basic accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.5%+4) |
|
AC Voltage |
400mV/4V/40V/400V/750V |
㊣(0.8%+10) |
|
DC Current |
400uA/4000uA /40mA/400mA/4A/10A |
㊣(1.0%+10) |
|
AC Current |
400uA/4000uA /40mA/400mA/4A/10A |
㊣(1.5%+10) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(0.8%+4) |
|
Capacitance |
40nF/400nF/4uF/40uF/200uF |
㊣(3.5%+8) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz |
㊣(0.5%+4) |
|
Temperature |
(-20 ~ 1000)ºC |
㊣(1.0%+5) |
|
Celsius |
(0~1832)ºF |
㊣(1.5%+15) |
﹛
|
Special Function |
|
Diode test |
﹟ |
|
Transistor test |
﹟ |
|
Continuity buzzer |
﹟ |
|
Low battery indication |
﹟ |
|
Data hold |
﹟ |
|
Auto power off |
﹟ |
|
Bar graph display |
41segment(30time/s) |
|
RS232 interface jack |
﹟ |
|
Max./ Min |
﹟ |
|
Function protection |
﹟ |
|
Shockproof protection |
﹟ |
|
Frequency /duty cycle |
0.1%~99.9% |
|
Input impedance |
10M次 |
|
Sampling rate |
3 times/s |
|
AC Frequency response |
(40-400)Hz |
|
Operation way |
Auto range |
|
Max. display |
3999 |
|
LCD Size |
70℅50mm |
|
Power |
3V (1.5V℅2) |
﹛
|
General Characters |
|
Product color |
Case: dark gray; Holster color:
yellow |
|
Product Net Weight |
Approx.350g (including battery) |
|
Product dimension |
191℅93℅48mm |
|
Standard Accessories |
Test leads; battery; instruction
manual TP01 temperature probe; (86C Transistor test accessory) |
|
Standard inner packing |
Color box |
|
Carton size |
465℅375℅506mm |
|
Standard Quantity Per Carton |
30 pcs |
|
Standard Gross Weight |
Approx. 26kg |
|
|
 |

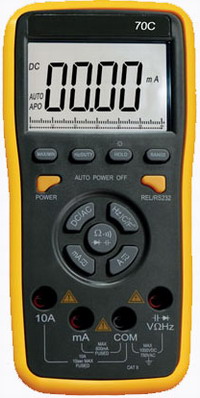

VC70C 3 5/6 Key Touch Digital Multimeter
-New type holster, streamline design.
--USB interface can connect to computer,
Large LCD makes the reading clearly.
-Key spring type; automatic operation way.
-Metallic screen board with stronger antimagnetic and
anti-interferential function.
-Data hold, Diode, etc.
Technical data
|
Basic Function |
Range |
Basic accuracy |
|
DC Voltage |
400mV/4V/40V/400V/1000V |
㊣(0.5%+4) |
|
AC Voltage |
400mV/4V/40V/400V/750V |
㊣(0.8%+10) |
|
DC Current |
30mA/300mA/10A |
㊣(1.5%+10) |
|
AC Current |
30mA/300mA/10A |
㊣(1.5%+10) |
|
Resistance |
400次/4k次/40k次/400k次/4M次/40M次 |
㊣(0.8%+4) |
|
Capacitance |
4nF/40nF/400nF/4uF/40uF/200uF |
㊣(2.5%+20) |
|
Frequency |
100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz |
㊣(0.5%+10) |
﹛
|
Special Function |
|
Diode |
﹟ |
|
Continuity buzzer |
﹟ |
|
Low battery indication |
﹟ |
|
Data hold |
﹟ |
|
Auto power off |
﹟ |
|
Function protection |
﹟ |
|
Relative value measurement |
﹟ |
|
Shockproof protection |
﹟ |
|
Temperature/ |
Work environment: 0~40ºC, Relative
humidity< 80% |
|
Humidity environment |
Store environment: ㄜ10~50ºC,
Relative humidity< 80% |
|
Over range display |
Display " 0L" |
|
Frequency/Duty cycle |
1%~99% |
|
input impedance |
10M次 |
|
sampling rate |
3time/s |
|
AC Frequency response |
(40-400)Hz |
|
Operation way |
Keys spring Auto range |
|
Max. Display |
3999(3 3/4 Auto polarity display or
unit display) |
|
LCD size |
70℅50mm |
|
Battery |
3V(1.5V℅2) |
﹛
|
General Characters |
|
Product color |
Case: dark gray; Holster color:
yellow |
|
Product Net Weight |
Approx:320g (contain battery ) |
|
Product Dimension |
200℅90℅45mm |
|
Standard Accessories |
Instruction manual, Holster, Test
leads, battery |
|
Standard inner packing |
Color box |
|
Carton size |
465℅317℅506mm |
|
Standard Quantity Canton |
30 pcs |
|
Standard Gross Weight |
20kg |
|
|
 |

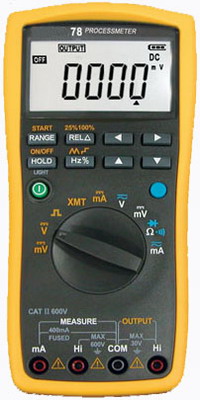

VC78 3 3/4 Process Multimeter
♂ Process Meter is a handheld, battery-operated tool for measuring
electrical parameters. It has all the features of a digital multimeter
(besides the feature of RTD and TC), it could also output signals of
direct voltage, current, resistance, temperature and frequency as well.
♂ Auto/manual range switch, Measure value display hold
♂ The thermocouple high accuracy cold-end can auto offset
♂ Panel auto calibrated
♂ The function of auto close backlight and auto power-off
♂ Large LCD include white LED backlight
♂ It is easy to operation by user, cabinet and solid adapt to be used at
locale Measure function: can test DCV, ACV, resistance, DCA, ACA, frequency, duty cycle,
diode test, continuity
Output measuring function:
Analog transducer: -20mA
DC mV: 500mV
DC mA: 20mA
Frequency: 100Hz/1kHz/10kHz
Accuracy: ±(%reading + LSD)
﹛ |
|
 |

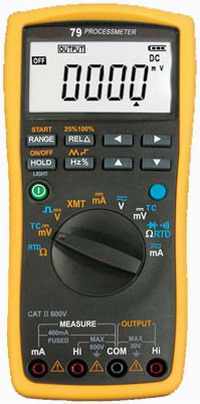

VC79 3 3/4 Process Multimeter
♂ Process Meter is a handheld, battery-operated tool for measuring
electrical parameters. It has all the features of a digital multimeter
(besides the feature of RTD and TC), it could also output signals of
direct voltage, current, resistance, temperature and frequency as well.
♂ Auto/manual range switch, Measure value display hold
♂ The thermocouple high accuracy cold-end can auto offset
♂ Panel auto calibrated
♂ The function of auto close backlight and auto power-off
♂ Large LCD include white LED backlight
♂ It is easy to operation by user, cabinet and solid adapt to be used at
locale Process Multimeter VC79 2 in 1
Measure function: it can test DCV, ACV, resistance, DCA, ACA, frequency, duty cycle, diode test, continuity, thermocouple and thermo resistance
Output measuring function:
OMH: 400 ohms
DC: 100mV
Frequency: 100Hz/1kHz/10kHz
Thermocouple: R/S/K/E/J/T/N/B
Thermo resistance: Pt100/Cu 50
﹛ |
