Coating Thickness Meter / Coating Thickness Gauge
|
Operating principle |
||
|
Measuring methods |
Application |
For example |
|
F type Magnetic induction |
Can measure the thickness of non-magnetic coating layers covered on magnetic substrate |
Such as: thickness of layer (aluminum, chrome, copper, zinc, tin, lead, cadmium, porcelain, powder, enamel, rubber, paint, plastic, anodic-oxide) on magnetic substrate (steel, iron, alloy and magnetic stainless steel). ¡¡ It doesn't matter if the layers are conductive or nonconductive, but must be not magnetic. |
|
Eddy current |
Can measure the thickness of nonconductive coating layers covered on nonferrous substrate |
Such as: thickness of layer (enamel, rubber, paint, vanish, plastic, anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel, gold, silver) ¡¡ The layers must be nonconductive. |
|
Codes explaining: F means it only can use F TYPE magnetic induction measuring method. N means it only can use NF TYPE eddy current measuring method. FN means it can use both F TYPE magnetic induction and NF TYPE eddy current measuring methods. |
||
¡¡

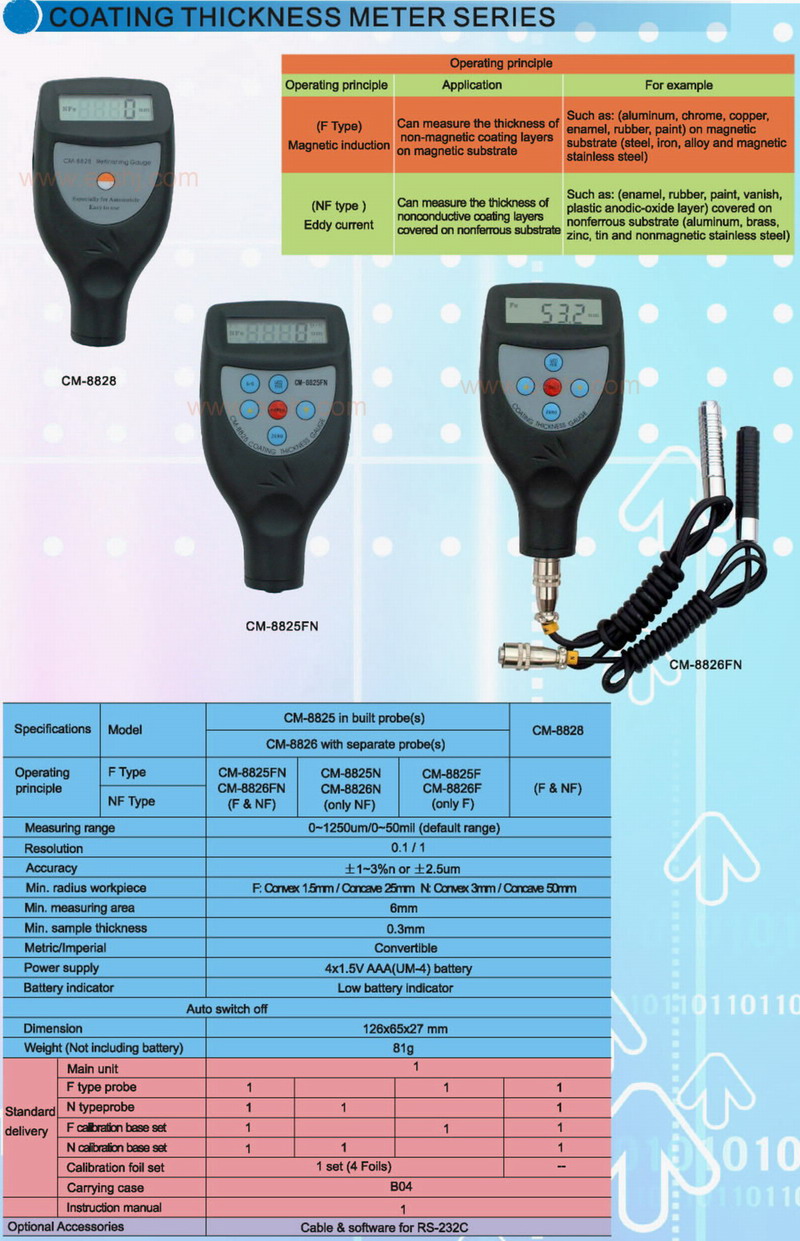

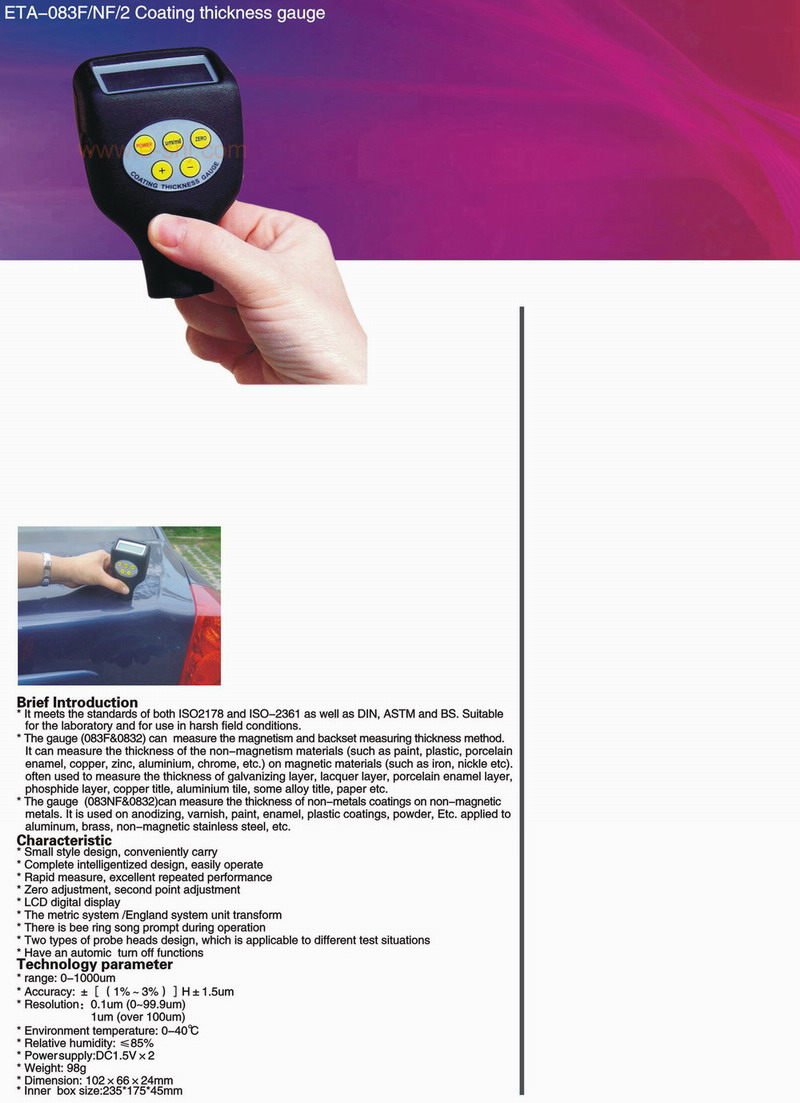

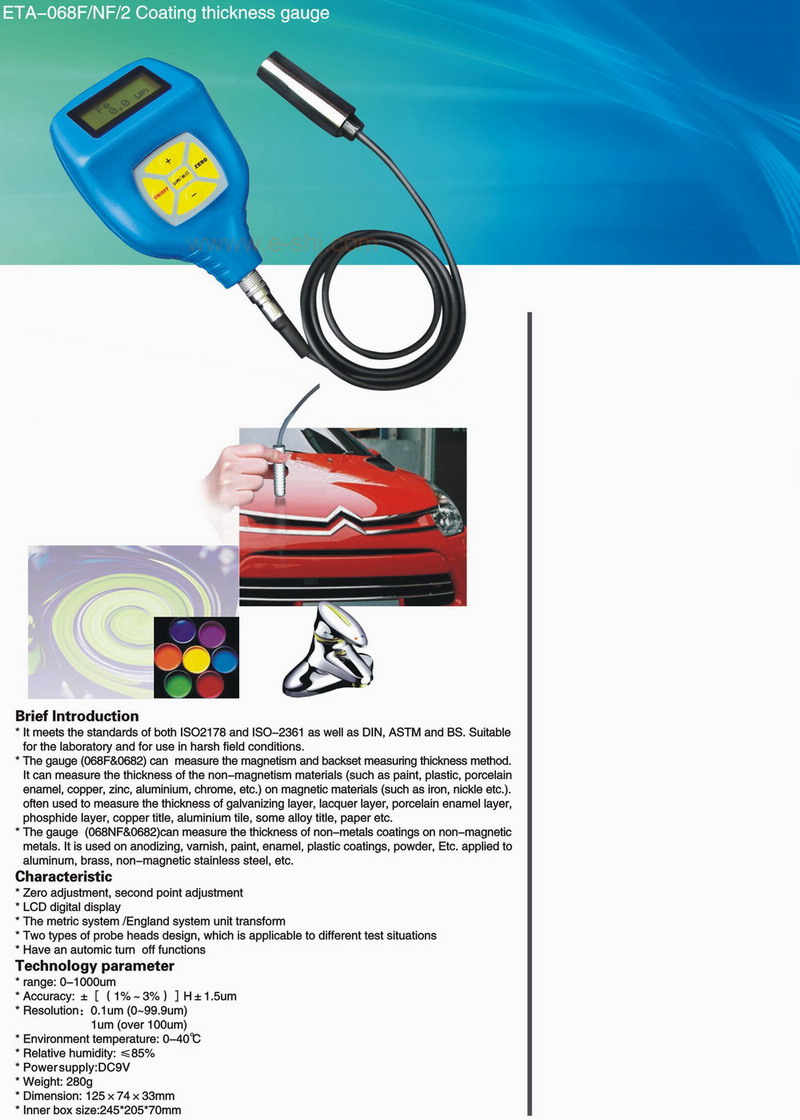

The CM8828, ETA-068F, ETA-068NF, ETA-0682, ETA-083F, ETA-083NF, ETA-0832 is very suitable for automotive field using.
( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
