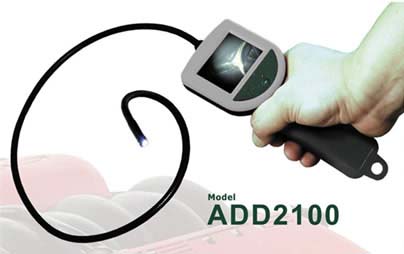

Automotive Video Inspection Scope ADD2100
|
The Video inspection scope is for
remote inspection of areas generally inaccessible to the naked eye.
It comes with a distal video camera at the end of a 36" shaft for
internal inspection of engines A/C system and any space such as
walls or old tree trunks. Imaging and illumination is provided by a
full colour image sensor and dual solid state LEDs which are
controlled by an on/off rocker switch. The 2.5" full colour LCD
screen allows you to observe live video from the distal camera. The
unit is powered by 4 x AA batteries and comes in a protective case
for storage and transportation. The accessory mirror allows you to
see 90 degrees to the axis of the shaft. Specification: Cable length and diameter: 36" x 10mm Cable type: Obedient Distal tip diameter: 0.42" max Diameter with accessories: 0.46" maxi Viewing angle: 55 ¡ã Viewing distance: 0.4" to infinity Resolution: 320 x 240 pixels Viewing monitor: Colour 2.5" LCD Video out port: RCA - NTSC signal Shaft radius: 2.5" minimum Power: 4 x AA alkaline batteries Battery life: 4 hours Storage temperature: -20¡ãC to +70¡ãC Operating temperature: 0¡ãC to +45¡ãC |
( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
