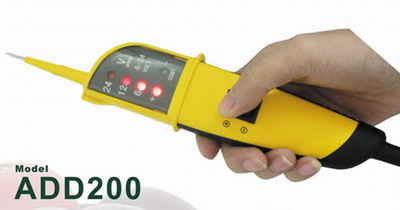

Automotive Circuit Function Tester ADD200
|
||
ADD200 is an equipment used to test
the automotive electrical system within12 ¨C 24 volts. In order to
save the testing hours for the automotive electrical system, ADD200
is designed to testing the system without re-connection between the
vehicle battery and the testing components, and it contains the
following functions: Determine the polarity and circuit circumstance (short/ open). Activating the components with positive or negative current without jumper wire. Testing the continuity of the circuit. Illumination. Locate missing cylinders. Peak detection. |
||

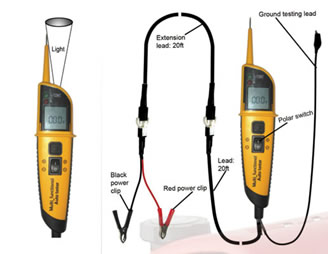

¡¡ Automotive Mul-Function Tester With LCD Display ADD210
|
||
|
||
ADD210 is an equipment used to test
the automotive electrical system within12 ¨C 24 volts. In order to
save the testing hours for the automotive electrical system, ADD210
is designed to testing the system without re-connection between the
vehicle battery and the testing components, and it contains the
following functions: Determine the polarity and circuit circumstance (short/ open). Activating the components with positive or negative current without jumper wire. Testing the continuity of the circuit. Illumination. Locate missing cylinders. Measuring frequency of the high-tension ignition pulses and we could calculate the rotational speed of engine according to the measured frequency. Peak detection. Testing the voltage of the circuit and the voltage reading will be indicated on the LCD display within 1/10th of a volt. |
( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
