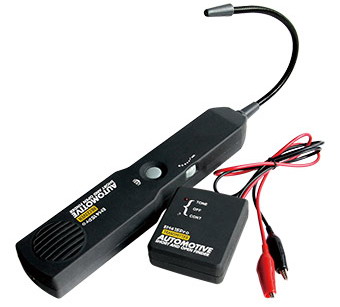

Automotive Short & Open Finder ADD330




The ADD330 detects and alerts you immediately where a circuit is open.You can quickly and easily Locate short circuits,open connections,broken wires,current leaks and even trace wires.You can also find intermittent circuit problems by flexing wires or connectors and listening for a change in the receiver tone Allowing you general tracing or pinpointing the problem location.It also shows you the direction to the short with its direction indicator,eliminating the guesswork. This professional tool will work on all kinds of circuits with voltages between 6 and 42 volt DC.such as those found in automobiles,trucks,tractors,boats,RVs,etc...With its wide working voltage range
Feature
,One of the top 20 tools in China automotive after market
,Quickly and easily locate short circuits
,Save your times and increase your income

HOW TO USE THE PROBE
The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions. However, for the best possible range the Receiver¨s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.

Specifications

Checking for short circuit
Locating open circuit
Wire identification
Wire tracing

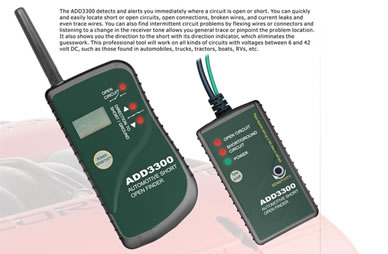

Automotive Short & Open Finder ADD3300

Receiver

Transmitter

The ADD3300 detects and alerts you immediately where a circuit is open or short. You can quickly and easily locate short or open circuits, open connections, broken wires, and current leaks and even trace wires. You can also find intermittent circuit problems by flexing wires or connectors and listening to a change in the receiver tone allows you general trace or pinpoint the problem location. It also shows you the direction to the short with its direction indicator, which eliminates the guesswork. This professional tool will work on all kinds of circuits with voltages between 6 and 42 volt DC, such as those found in automobiles, trucks, tractors, boats, RVs, etc.

The ADD3300 Automotive circuit tracers provide the highest levels of safety and performance in their class and are a welcome addition to our comprehensive range of functional, reliable and competitively priced test and measurement solutions, We have designed the circuit tracers to be exceptionally easy to use, for example, rather than having a standard series of blinking LED lights, like most competitive models, our display provides a numeric value indicate short or open for quick, simple-to-understand tracing feedback.

Features:
-Operates on DC voltages from 6 to 42 volts.
-Internally protected against power surges and overloads.
-display provides a numeric value to indicate short or open
-Transmitter and Receiver LEDs show open or short circuit conditions.
Variable audio/visual signal provides fast and intuitive feedback on the circuit/wire proximity.
-Adjustable sensitivity for all tracing situations.
-Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.

Function:
1.Short circuit tracing
2. Open circuit tracing
3. Wire identification
4. Wire/Circuit tracing

Application:
-Automobiles
-Trucks
-Trailers
-Boats
-RVs
-Any 6 to 42 Volt DC powered circuits

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
