Automotive Multimeters/Testers

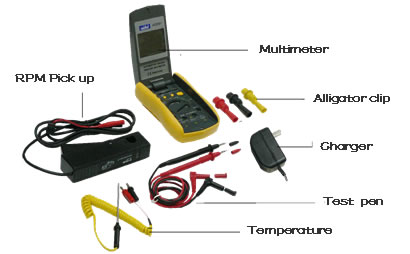

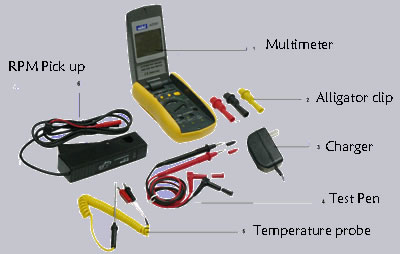

  Automotive Multimeter
﹛
 ADD81
﹞ Display:3 3/4 digits LCD with a max
  reading of 3999
﹞ Back light / hold key
﹞
 Safety: According to EN61010-1 protection class ｊ
  over voltage category(CAT ｋ 600V)
﹞ Power supply : 2℅1.5VAA batteries
﹞
 Size: 145(H)℅74(W)℅40(D) mm
﹞
 Weight: Approx. 500g(including battery and holster)


Function
﹞DC/AC Voltage,Resistance,DC/ AC Current,Capacitance,Frequency and Duty cycle
﹞Temperature,Diode\ Continuity test
﹞Tachometer, Dwell
﹞ms-PULSE
Description
﹞Display:3 3/4 digits LCD with a max . reading of 3999
﹞Auto range / Auto power off
﹞Back light / hold key
﹞Safety: According to EN61010-1 protection class ｊ
﹞over voltage category(CAT ｋ 600V) pollution degree 2
﹞Power supply : 2℅1.5VAA batteries
﹞Size: 145(H)℅74(W)℅40(D) mm
﹞Weight: Approx. 500g(including battery and holster)
Applications
﹞Automotive sensor simulator
﹞Measure output in sensors like Oxygen (O2)
  Coolant Temperature, Throttle Position (TPS)
  Manifold Air, Pressure (MAP), Manifold Air Flow (MAF), etc
﹞Check grounds, Voltage drops and continuity across Connectors
  Wires, Cables, Relays Contacts, Lamps, Switches, etc
﹞Check components like Alternator
  Diodes, Relays Coils
  Condensers, Ignition Coils, Spark Plug Wires
  Magnetic Pick-ups, Motors, Switches, Fuses, etc
Specifications
Function Range BasicAccuracy
DC Voltage 400mV , 4V, 40V 400V,1000V ㊣(0.5% + 3d)
AC Voltage 400mV , 4V, 40V 400V,750V ㊣(0.8% +3d)
DC Current 40mA , 400mA , 10A ㊣(1.2% + 3d)
AC Current 40mA , 400mA , 10A ㊣(1.5% +5d)
Resistance (次) 400.4K,40K,400k,4M,40M ㊣(1.0% + 3d)
Capacitance 40nF, 400nF, 4uF,40 uF ,100 uF ㊣(5.0% + 10d)
Frequency 10Hz-10MHz ㊣(0.5% + 3d)
Duty cycle 0.1% -99.9% ㊣(2.0%+1 d)
Temperature -30-+400⊥ ㊣(1.2%㊣4d)
+400⊥-+1000⊥ ㊣(2.0%㊣15d)
Diode test and Audible Continuity test 0 Test current :1㊣0.6mA
0 ≒60次Buzzer sounds
Tachometer 500-10000RPM ㊣(1.2% ㄚ2d)
Dwell 4 CYL, 5CYL, 6CYL, 8CYL ㊣(1.2 %ㄚ2d)
ms-PULSE  Test injection time

﹛

COMbox

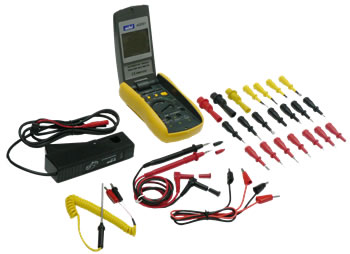

  Automotive Professional Multimeter
﹛
 ADD91
﹞ Display:3 3/4 digits LCD with a max
  reading of 3999
﹞ Back light / hold key
﹞
 Safety: According to EN61010-1 protection class ｊ
  over voltage category(CAT ｋ 600V)
﹞ Power supply : 2℅1.5VAA batteries
﹞
 Size: 145(H)℅74(W)℅40(D) mm
﹞
 Weight: Approx. 500g(including battery and holster)
﹞ Quadratic signal output(reference are changeable)

Function
﹞DC/AC Voltage,Resistance,DC/ AC Current,Capacitance,Frequency and Duty cycle
﹞Temperature,Diode\ Continuity test
﹞Tachometer, Dwell
﹞ms-PULSE
Description
﹞Display:3 3/4 digits LCD with a max . reading of 3999
﹞Auto range / Auto power off
﹞Back light / hold key
﹞Safety: According to EN61010-1 protection class ｊ
﹞over voltage category(CAT ｋ 600V) pollution degree 2
﹞Power supply : 2℅1.5VAA batteries
﹞Size: 145(H)℅74(W)℅40(D) mm
﹞Weight: Approx. 500g(including battery and holster)
Applications
﹞Automotive sensor simulator
﹞Measure output in sensors like Oxygen (O2)
                   Coolant Temperature, Throttle Position (TPS)
                   Manifold Air, Pressure (MAP), Manifold Air Flow (MAF), etc
﹞Check grounds, Voltage drops and continuity across Connectors
  Wires, Cables, Relays Contacts, Lamps, Switches, etc
﹞Check components like Alternator
Diodes, Relays Coils
  Condensers, Ignition Coils, Spark Plug Wires
  Magnetic Pick-ups, Motors, Switches, Fuses, etc
Specifications
Function Range BasicAccuracy
DC Voltage 400mV , 4V, 40V 400V,1000V ㊣(0.5% + 3d)
AC Voltage 400mV , 4V, 40V 400V,750V ㊣(0.8% +3d)
DC Current 40mA , 400mA , 10A ㊣(1.2% + 3d)
AC Current 40mA , 400mA , 10A ㊣(1.5% +5d)
Resistance (次) 400.4K,40K,400k,4M,40M ㊣(1.0% + 3d)
Capacitance 40nF, 400nF, 4uF,40 uF ,100 uF ㊣(5.0% + 10d)
Frequency 10Hz-10MHz ㊣(0.5% + 3d)
Duty cycle 0.1% -99.9% ㊣(2.0%+1 d)
Temperature -30-+400⊥ ㊣(1.2%㊣4d)
+400⊥-+1000⊥ ㊣(2.0%㊣15d)
Diode test and Audible Continuity test 0 Test current :1㊣0.6mA
0 ≒60次Buzzer sounds
Tachometer 500-10000RPM ㊣(1.2% ㄚ2d)
Dwell 4 CYL, 5CYL, 6CYL, 8CYL ㊣(1.2 %ㄚ2d)
ms-PULSE  Test injection ms-Pulse
Quadratic signal output Hz/Duty/Voltage changeable 0-5V 20HZ-40KHZ 10%-90%

﹛

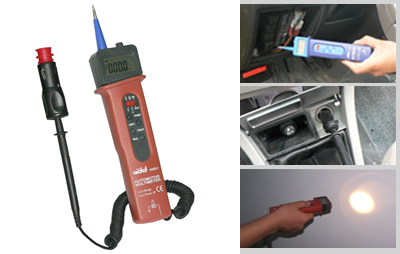

  Automotive Pen Multimter
﹛
 ADD51
﹞ Digits LCD display,Max.reading 3999
﹞
 Data-hold function
﹞ Auto ranging
﹞
 Auto power off
﹞ Overload protection
﹛

﹛

﹛



Introduce
﹞Digits LCD display,Max.reading 3999
﹞Data-hold function
﹞Auto ranging
﹞Auto power off
﹞Overload protection
Specification
﹞DCVㄩ400m-4-40-400-600V
﹞ACVㄩ400m-4-40-400-500V
﹞OHMㄩ400-4K-40K-400K-4M-40M次
﹞CAPㄩ4n-40n-400n-4米-40米-200米F
﹞FREQ:9.999-99.99-999.9-9.999K-99.99K-999.9K-30MHz
﹞DUTY:0.1%~99.9%
﹞Diode Check:1.5V/1mA
﹞Size/weightㄩ230x44x30mm/110g
Application
﹞Measure output in sensors like Oxygen (O2)
  Coolant Temperature
  Throttle Position (TPS)
  Manifold Air
  Pressure (MAP)
  Manifold Air Flow (MAF) etc
﹞Check grounds
  Voltage drops and continuity across Connectors
  Wires, Cables, Relays Contacts, Lamps, Switches, etc
﹞Check components like Alternator
  Diodes, Relays Coils, Condensers, Ignition Coils, Spark Plug Wires
  Magnetic Pick-ups, Motors, Switches, Fuses, etc
﹞An essential tool for all around troubleshooting of electrical
  electronic circuit and systems

﹛

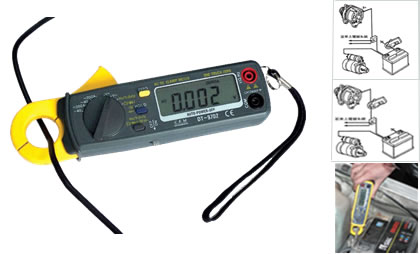

  Automotive Clamp-on Meter
﹛
 ADD9702
﹞ Large 4000 count LCD display with full function indication
  Auto-ranging or manual ranging with Data-Hold
﹞ One touch "Auto Zero" for DCA measurements
﹞
 Resolution to 10mA DC Current measurements
  Measures DC/AC Current, DC/AC Voltage, resistance
﹞ Capacitance, Frequency, Duty Cycle
﹛
 Diode and Continuity check
﹛



Features
﹞Auto power off
﹞0.9" (23mm) Clamp jaw opening
﹞Includes  9V battery, test leads, carrying case
﹞Dimensions/Wt.: 7 X 1.8 X 1.2"( 181 X 43 X 30mm)/8 oz.(225g)
Applications
﹞Measure currents in circuits like battery chargers
  alternators, starter motors, electrical loads, etc.
﹞Check grounds, Voltage drops and continuity across Connectors,
  Wires, Cables, Relays Contacts, Lamps, Switches, etc
﹞Check components like Alternator, Diodes, Relays Coils
  Condensers, Ignition Coils, Spark Plug Wires, Magnetic Pick-ups, Motors
  Switches, Fuses, etc
﹞An essential tool for all around troubleshooting of electrical
  and electronic circuit and systems
Specifications
﹛ Function RANGE RESOLUTION ACCURACY
(%rdg+digits)
DC Current 40A 10mA ㊣(3.0%+6d)
200A 100mA ㊣(3.5%+3d)
AC Current 40A 10mA ㊣(3.0%+4d)
200A 100mA ㊣(3.5%+4d)
DC Voltage (V) 400m,4,40,400,600 0.1m,1m,10m,100m,1 ㊣(0.8%+2d)
AC Voltage (V) 4,40,400,600 1m,10m,100m,1 ㊣(1.5%+3d)
Resistance(次) 400,4K,40K,400K,4M,40M 0.1,1,10,100,1k,10k ㊣(1.2%+4d)
Diode Check Test Current 0.3mA typical 1mV ㊣(10%+5d)
Frequency(Hz) 9.999,99.99,999.9 0.001,0.01,0.1,1,10 ㊣(0.8%+3d)
9.999K,99.99K,999.9K,9.999M 100,1K
Capacitance(F) 4n,40n,400n,4u,40u,200u 1p,10p,0.1n,1n,10n,0.1u ㊣(3.5%+3d)
Duty Cycle 0.1%~99.9% 0.1 ㊣(1.2%+2d)
Transistor Test 0-1000hFE of PNP or NPN transistors Vce:approx.2.8VDC;Base
current:aaprox.10uA
Continuity Check Threshold 30次, Continuity Beeper 2.7KHz
Automotive Tester
﹛

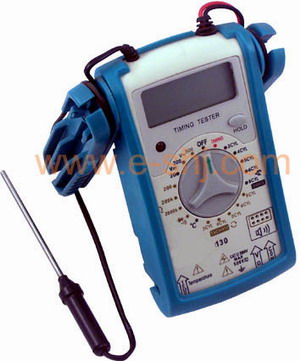

Timing Tester XHST130

The brand new XHST130 Multi-functional Automobile Repairing Multimeter features superior design, convenient operation, precise reading, complete functions, shockproof holster, bottom stand, and skillful combination of meter components, to improve your operation.

It can measure or voltage, resistance, temperature, diode continuity, dwell angle of automobile distributor contact, motor speed and time of contact open and close when measuring ignition device.

This meter is suitable for professional automobile detection and servicing, and is your ideal portable automobile repairing and maintaining tool.

Features:
-Ignition timing test;
-TACH;
-DWALL;
-Temperature test;
-Continuity buzzer / Data hold;
-Model patent code: ZL 01 3 47899.0

Specifications:

MODEL XHST130
Ignition Timing yes
DC V 20/200V ㊣(0.8%+3)
AC V 500V ㊣(1.0%+10)
Temperature -40∼C~300∼C ㊣(1.0%+3)
Resistance 200/200k/2000K次 ㊣(1.0%+3)
TACH 3/4/5/6/8 CYL ㊣(1.2%+5)
DWALL 3/4/5/6/8 CYL ㊣(1.2%+5)
Diode Test yes
Continuity buzzer yes
Data Hold yes
Voltage Input Impedance 1M次
Low Battery Warning yes
LCD MAX. Count 1999

General Characteristics:

Power 6F22(9V)
Product Size 135*100*30 mm
Product Net Weight 250g
Standard individual packing blister card
Standard Quantity per Carton 44 pcs.
Measurement of Standard Carton 575*380*235mm (0.051 CBM)
Gross weight of Standard Carton 15.5kgs

Automotive Tester XHST2201/XHST2201A

As a 3 1/2 digital automobile repairing multimeter, XHST2210/XHST2201A features superior design, convenient operation, precise reading, complete functions, new style holster and big liquid crystal display.

To avoid misoperation, a mechanical protection device is applied to the current measuring jack. The ※mA§ or ※20§ A socket can be opened only when selecting current for measurement. Otherwise, they will be blocked to effectively avoid inserting wrong probe, enhancing the product safety and life.

XHST2210/XHST2201A can measure DC voltage and current, AC voltage and current, resistance, Duty ratio, temperature, diode transistor, continuity, dwell angle of automobile distributor contact, and motor speed.

They are suitable for automobile detection and servicing, engineering design, experimental test, production experiment, etc and is your ideal portable automobile repairing and maintaining tool.

Main Features:
-Structure Patent: terminal sockets with automatic blocking system (XHST2201)
-Structure patent code: ZL 01 21 5021.5 (XHST2201)
-TACH / Temperature test
-DWALL
-Rich resistance measure ranges
-Continuity buzzer / Data hold / Auto Power off
-9V(6F22) power supply

Specifications:

MODEL XHST2201A XHST2201
DC V 2/20/200/1000 V ㊣(0.5%+3) 2/20/200/1000 V ㊣(0.5%+3)
AC V 2/20/200/700 V ㊣(1.0%+3) 2/20/200/700 V ㊣(1.0%+3)
DC A 200m/20 A ㊣(1.0%+2) 20m/200m/20 A ㊣(1.0%+2)
AC A 200m/20 A ㊣(1.5%+3) 20m/200m/20 A ㊣(1.5%+2)
Resistance 20/200/2k/20K/200K/2M/20M/200M 次 ㊣(1.0%+1) 200/20K/200K/20M 次 ㊣(1.0%+3)
Temperature -40∼C~1000∼C ㊣(1%+3) -40∼C~1000∼C ㊣(1%+3)
Party cycle 1%~90% 1%~90%
TACH 3/4/5/6/8CYL ㊣(1.5%+5) 3/4/5/6/8CYL ㊣(1.5%+5)
DWALL 3/4/5/6/8CYL ㊣(1.5%+5) 3/4/5/6/8CYL ㊣(1.5%+5)
Diode test yes yes
Transistor test yes yes
Continuity buzzer yes yes
Data Hold yes yes
Auto Power OFF yes yes
LCD MAX. Count 1999 1999
terminal sockets with automatic blocking system - yes

General Characteristics:

Power 6F22(9V)
Product Size 200*85*38 mm
Product Net Weight 700g
Standard individual packing gift box
Standard Quantity per Carton 20 pcs.
Measurement of Standard Carton 480*370*335mm (0.059 CBM)
Gross weight of Standard Carton 18kgs

Digital Automotive Tester XHST2201B

As a 3 1/2 digital automobile repairing multimeter, XHST2201B features superior design, convenient operation, precise reading, complete functions, new style holster and big liquid crystal display.

To avoid misoperation, a mechanical protection device is applied to the current measuring jack. The ※mA§ or ※20§ A socket can be opened only when selecting current for measurement. Otherwise, they will be blocked to effectively avoid inserting wrong probe, enhancing the product safety and life.

XHST2201B can measure DC voltage and current, AC voltage and current, resistance, Duty ratio, temperature, diode transistor, continuity, dwell angle of automobile distributor contact, and motor speed.

This product is suitable for automobile detection and servicing, engineering design, experimental test, production experiment, etc and is your ideal portable automobile repairing and maintaining tool.

Features:
-Structure Patent: terminal sockets with automatic blocking system;
-Structure patent code: ZL 01 21 5021.5;
-Battery(12V) test;
-TACH / Temperature test;
-DWALL;
-Frequency test;
-Continuity buzzer / Data hold / Auto Power off;
-9V(6F22) power supply.

Specifications:

MODEL XHST2201B
Battery Test 12 V ㊣(2.5%+10)
DC V 20/200/1000 V ㊣(0.5%+3)
AC V 20/200/700 V ㊣(1.0%+5)
DC A 20m/200m/20 A ㊣(1.0%+2)
AC A 20m/200m/20 A ㊣(1.5%+5)
Resistance 200/20K/200K/200M 次 ㊣(1.0%+1)
Temperature -40∼C~1000∼C ㊣(1.0%+3)
Party cycle 1%~90%
TACH 3/4/5/6/8CYL ㊣(1.5%+5)
DWALL 3/4/5/6/8CYL ㊣(1.5%+5)
Diode test yes
Transistor test yes
Continuity buzzer yes
Data Hold yes
Auto Power OFF yes
LCD MAX. Count 1999
terminal sockets with automatic blocking system yes

General Characteristics:

Power 6F22(9V)
Product Size 200*85*38 mm
Product Net Weight 700g
Standard individual packing gift box
Standard Quantity per Carton 20 pcs.
Measurement of Standard Carton 480*370*335mm (0.059 CBM)
Gross weight of Standard Carton 18kgs

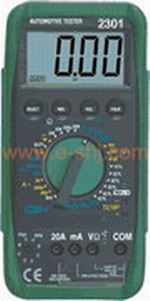

Digital Automotive Tester XHST2301

The brand new XHST2301 Auto-range Automobile Repairing Multimeters features superior design, convenient operation, precise reading, complete functions, new style holster and big liquid crystal display.

It can measure DC voltage and current, AC voltage and current, resistance, capacitance, frequency, duty ratio, temperature, crystal diode transistor, continuity, dwell angle of automobile distributor contact, and motor speed.

This product is suitable for automobile detection and servicing, engineering design, experimental test, production experiment, etc and is your ideal portable automobile repairing and maintaining tool.

Features:
-Auto range
-TACH / Temperature test;
-DWALL;
-Frequency test;
-Continuity buzzer / Data hold / Auto Power off;
-9V(6F22) power supply.

Specifications:

MODEL XHST2301(auto range)
DC V 400m/4/40/400/1000V ㊣(0.8%+3)
AC V 4/40/400/700V ㊣(1.0%+5)
DC A 400µ/4000µ/40m/400m/20A ㊣(1.0%+2)
AC A 400µ/4000µ/40m/400m/20A ㊣(1.5%+5)
Resistance 400/4K/40K/400K/4M/40M次 ㊣(1.0%+3)
Capacitance 51.2n/512n/5.12µ/51.2µF ㊣(4.0%+3)
Temperature -40∼C~1000∼C ㊣(1%+3)
Frequency 10Hz~5MHz ㊣(0.1%+3)
Party Cycle 1%~90% ㊣(1.2%+2)
TACH 1/3/4/5/6/8CYL ㊣(1.5%+10)
DWALL 1/3/4/5/6/8CYL ㊣(1.5%+10)
Diode test yes
Transistor test yes
Continuity buzzer yes
Data Hold yes
Auto Power Off yes
LCD MAX. Count 3999

General Characteristics:

Power 6F22(9V)
Product Size 200*85*38 mm
Product Net Weight 700g
Standard individual packing gift box
Standard Quantity per Carton 20 pcs.
Measurement of Standard Carton 480*370*335mm (0.059 CBM)
Gross weight of Standard Carton 18kgs

Battery Impedance Tester XHST2501

As a hand-held multi-function meter, the brand new double-color plastic injection digital battery impedance tester XHST2501 can measure the internal resistance of various batteries, such as dry battery, storage battery, automobile battery, mobile phone battery, and USB battery.

The meter adopt vector measuring technique and 4-terminal measuring method, can correctly measure the real internal resistance value of batteries. It consumes a small amount of energy to effectively, rapidly and correctly measure battery resistance up to 1m . It also can measure DC and AC voltage.

XHST2501 features superior design, convenient operation, precise reading, complete functions, pleasing and practical double-color plastic injection housing and super large LCD display. It is suitable for engineering design, experimental test, field work, automobile battery repairing, etc and is your ideal measuring tool.

Features:
-Automotive Battery Impedance Testing;
-Automotive 12V Testing;
-Continuity buzzer / Data hold;
-LCD background light;
-9V(6F22) power supply.

Specifications:

MODEL XHST2501
Resistance 200m/2/20/200次 ㊣(1.0%+5)
Battery 12V testing 20V(load resistance inside 120次/2W) ㊣(2.5%+5)
AC V 700V ㊣(1.5%+10)
DC V 20/1000V ㊣(1.0%+3)
Continuity buzzer yes
Data Hold yes
Voltage Input Impedance 1M次
Low Battery Warning yes
LCD Backlight yes
LCD MAX. Count 1999

General Characteristics:

Power 6F22(9V)
Product Size 200*85*38 mm
Product Net Weight 700g
Standard individual packing gift box
Standard Quantity per Carton 20 pcs.
Measurement of Standard Carton 485*275*490mm (0.065 CBM)
Gross weight of Standard Carton 13kgs

For engine analyzer multimeters, please click here special multimeter

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
