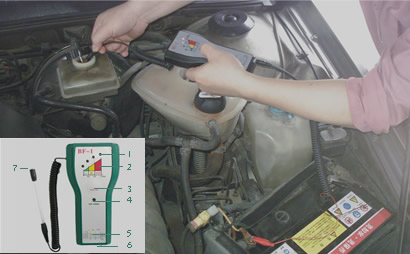

Panel Illustration:
1.Indicator
2.Water content
3.Work button(PUSH ON button)
4.Fine tuning
5. temperature-resisting curve
6. DC input socket
7. Probe |
|
How To Use
1. After cleaning the probe, put it in dry air or
immerse it into new brake fluid.
2.Press down the work button for 3-5 seconds continously,
and then turn the fine tuning clockwise until the second
green indicator lights on, and then turn the fine tuning
counter-clockwisely until the green indicator put out.
Now it can be used to test brake fluid.
3.Immerse the probe into the brake fluid, and press down
the work button for a few seconds, then you can judge
the brake fluid state by indicator light.
£ªAll the green light indicate the brake fluid is fine,
the water content is below 0.5%
£ªYellow light indicates the fluid is not so good, the
water content is above 0.5%, you can choose to change
brake fluid.
£ªRed light with buzzer sound indicates the brake fluid
is very bad, wate content above 2.5%, the brake force
decline seriously, and brake fluid should be changed!
4.Please clean the probe and reset the instrument after
testing.
¡ïWarning:
The four indicators twinkle simultaneously with buzzer
sound, it means the battery power is low, and the
battery need to be changed.(voltage:9v). Or powered by
the automotive battery(12v) through DC input socket(12v) |
|
|
