Hose Clamp

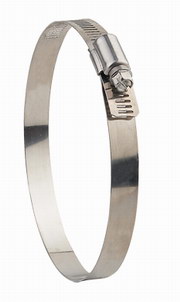

American type hose clamp

Band Width: 1/2¡± & 9/16¡±, 12.7mm & 14.2mm

Band Thickness: 0.6mm, 0.7mm

Screw: 5/16¡± hex head, slotted screw £¬200/300/400series stainless steel: 430, 201, 301, 304

Band: 200/300 series stainless steel (430, 201, 301, 304)

Housing: 200/300 series stainless steel (430, 201, 301, 304)

Part No.

Dia Max (Inch)

Dia Min ¨C Dia Max (mm)


6605029K

1/4

11-20



¡¡

6605030K

7/8

13-23

6605031K

1¡±

15-25

6605032K

1-1/16

14-27

6605033K

1-1/4

18-32

6605034K

1-3/8

23-35

6605035K

1-1/2

21-38

6605036K

1-5/8

19-42

6605037K

1-3/4

19-44

6605038K

1-7/8

20-47

6605039K

2

32-51

6605040K

2-1/4

38-57

6605041K

2-5/16

38-59

6605042K

2-1/2

40-64

6605043K

2-3/4

46-70

6605044K

2-7/8

51-73

6605045K

3

57-76

6605046K

3-1/4

67-83

6605047K

3-1/2

65-89

6605048K

3-3/4

72-95

6605049K

4

78-101

6605050K

4-1/4

84-108

6605051K

4-5/16

92-110

6605052K

4-1/2

91-114

6605053K

4-3/4

105-121

6605054K

5

105-127

6605055K

5-1/2

118-140

6605056K

6

130-152

6605057K

6-1/2

141-165

6605058K

7

156-178

6605060K

8

165-203

¡¡

¡¡
